Functional Neuroimaging

On this page

fNI Fundamentals - Brain Buzz Basics

  • Functional Neuroimaging (fNI): Techniques mapping brain activity by detecting physiological/metabolic changes (e.g., blood flow, oxygenation).
  • Neurovascular Coupling (NVC): The core physiological basis.
    • ↑ Neuronal activity → ↑ Localized cerebral blood flow (CBF) & oxygen delivery.
  • BOLD (Blood-Oxygen-Level Dependent) Effect: Cornerstone of fMRI.
    • Neural activation → ↑ CBF → ↓ Deoxyhemoglobin (paramagnetic) concentration → ↑ fMRI signal.

    ⭐ BOLD fMRI signal relies on the difference in magnetic susceptibility between oxyhemoglobin (diamagnetic) and deoxyhemoglobin (paramagnetic).

  • Advantages: Non-invasive; in-vivo human brain mapping.
  • Limitations: Indirect measure of neural activity; susceptible to artifacts; resolution limits.

fMRI Deep Dive - Mapping Mind Moves

  • Principle: BOLD (Blood-Oxygen-Level-Dependent) contrast reflects neural activity.
    • Neurovascular coupling: ↑ activity → ↑ blood flow → ↑ oxyHb (↓ deoxyHb) → ↑ T2* signal.
  • Sequence: Echo-Planar Imaging (EPI) for rapid acquisition.
  • Types:
    • Task-based: Correlates brain activity with tasks.
      • Block design: Alternating task/rest.
      • Event-related: Detects responses to discrete stimuli.
    • Resting-state (rs-fMRI): Assesses spontaneous BOLD fluctuations; identifies networks (e.g., DMN).
  • Clinical Uses:

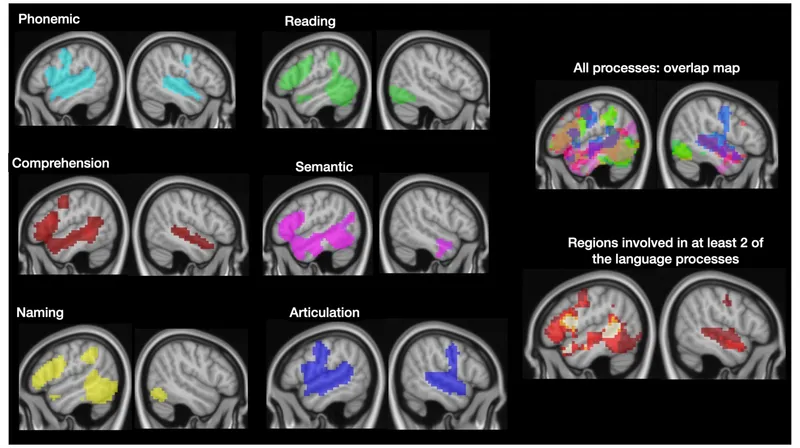

    • Presurgical mapping: Eloquent cortex (motor, language, visual). Language lateralization uses Laterality Index (LI), $LI = (L-R)/(L+R)$.
    • Epilepsy: Non-invasive seizure foci localization.
  • Paradigms:
    • Motor: Finger tapping.
    • Language: Verb generation.

Loading diagram…

⭐ In presurgical fMRI for language lateralization, a Laterality Index (LI) is often calculated to determine language dominance.

Nuclear Neuroimaging - Tracer Trackers

  • Basic Principles:
    • PET (Positron Emission Tomography): Radiotracers emit positrons; annihilation creates two $\mathbf{511} \text{ keV}$ gamma rays detected simultaneously.
    • SPECT (Single Photon Emission Computed Tomography): Radiotracers emit single gamma rays; detected by rotating gamma cameras.
  • PET Tracers & Uses:
    • $^{18}\text{F-FDG}$ (Fluorodeoxyglucose): Glucose metabolism (tumors, dementia, epilepsy).
    • $^{15}\text{O-water}$: Cerebral Blood Flow (CBF).
    • Amyloid (e.g., $^{18}\text{F-Florbetapir}$): Alzheimer's disease plaques.
    • Tau (e.g., $^{18}\text{F-Flortaucipir}$): Tau pathology in neurodegeneration.
  • SPECT Tracers & Uses:
    • $^{99\text{m}}\text{Tc-HMPAO}$, $^{99\text{m}}\text{Tc-ECD}$: Cerebral Blood Flow (CBF) (stroke, dementia, epilepsy).
  • Clinical Applications:
    • Dementia: Differentiating types (e.g., Alzheimer's vs. FTD patterns).
    • Epilepsy: Pre-surgical localization of seizure foci.
    • Brain Tumors: Grading, detecting recurrence, distinguishing from radiation necrosis.

⭐ Interictal FDG-PET in temporal lobe epilepsy typically shows hypometabolism in the epileptogenic zone, while ictal SPECT shows hyperperfusion.

Electrophys & DTI + Comparison - Signals, Pathways & Showdown

  • EEG & MEG:
    • Signal: Neuronal electrical/magnetic activity.
    • Temporal Res: Excellent (ms).
    • Use: Epilepsy (seizure localization).
  • DTI & Tractography:
    • Assesses: WM integrity (FA, MD).
    • Maps: Structural connectivity (links to function).
    • Use: TBI, stroke, tumors, surg plan.

Functional Neuroimaging Modality Comparison:

ModalitySignalSpatial Res.Temporal Res.Invasive?Key Utility
fMRIBOLDmmsNoBrain map, pre-surg
PETRadiotracer (glucose metab)mm-cmminYesOncology, dementia, epilepsy
SPECTRadiotracer (blood flow)cmminYesDementia, stroke, seizure
EEGElectrical activitycmmsNoEpilepsy, sleep, enceph.
MEGMagnetic fieldsmm-cmmsNoEpilepsy loc, pre-surg

High‑Yield Points - ⚡ Biggest Takeaways

  • fMRI uses BOLD signal (blood oxygenation) to map brain activity via hemodynamic response.
  • PET with FDG assesses glucose metabolism; vital for tumor grading and dementia evaluation.
  • SPECT evaluates regional cerebral blood flow (rCBF), aiding in ictal focus localization.
  • DTI maps white matter integrity and tracts by measuring water diffusion anisotropy.
  • MRS identifies brain metabolites (NAA, choline) for lesion differentiation and prognosis.
  • Functional neuroimaging is key for pre-surgical planning and diagnosing neurological disorders.

Unlock the full lesson and continue reading

Signup to continue reading this lesson and unlimited access questions, flashcards, AI notes, and more

Scan to download app

Scan to download
UNLOCK FREE ACCESS

Practice Questions: Functional Neuroimaging

  1. 1. All of the following are potentially reversible causes of cognitive impairment EXCEPT:

    • A. Normal pressure hydrocephalus
    • B. Alzheimer's disease
    • C. Hypothyroidism
    • D. Meningoencephalitis
    Show answer

    Answer: B. Alzheimer's disease

    > Key point: Alzheimer’s disease is the exception because its progressive neurodegeneration is not reversible. Why Alzheimer's disease is correct - Alzheimer’s disease causes progressive neurodegeneration associated with amyloid plaques and neurofibrillary tangles. - Treatment is primarily symptomatic; it does not reverse the underlying disease. Why the other options are wrong - Normal pressure hydrocephalus: Cognitive impairment may improve with treatment such as cerebrospinal fluid shunting. - Hypothyroidism: Cognitive symptoms can improve when thyroid hormone replacement corrects the deficiency. - Meningoencephalitis: Treating the infection and inflammation may reverse cognitive dysfunction.

  2. 2. Which is NOT a physiological regulator of cerebral blood flow in a healthy adult breathing room air?

    • A. Extracellular potassium concentration
    • B. Cerebral perfusion pressure
    • C. Arterial nitrogen tension
    • D. Arterial carbon dioxide tension
    Show answer

    Answer: C. Arterial nitrogen tension

    > Key point: Cerebral perfusion pressure, arterial carbon dioxide tension and extracellular potassium can regulate cerebral blood flow; arterial nitrogen tension does not. Why arterial nitrogen tension is correct - In a healthy adult breathing room air, arterial nitrogen tension is not a physiological regulator of cerebral blood flow. - The other listed factors can influence flow: perfusion pressure drives it, carbon dioxide alters it, and extracellular potassium contributes to local vasodilation. How they compare | Candidate | Role in cerebral blood flow | |---|---| | Arterial nitrogen tension | Not a physiological regulator | | Cerebral perfusion pressure | Drives flow; autoregulation buffers changes within its operating range | | Arterial carbon dioxide tension | Regulates flow through changes in brain extracellular hydrogen ion concentration | | Extracellular potassium concentration | Can contribute to local vasodilation when modestly increased | Why the other options are wrong - Cerebral perfusion pressure: It drives cerebral blood flow, even though autoregulation buffers changes within its operating range. - Arterial carbon dioxide tension: It regulates flow, chiefly through changes in brain extracellular hydrogen ion concentration. - Extracellular potassium concentration: A modest increase can contribute to local vasodilation.

  3. 3. Which of the following is shown on this cerebral digital subtraction angiogram?

    • A. Cerebral saccular aneurysm
    • B. Carotid-cavernous fistula
    • C. Vein of Galen malformation
    • D. Angiofibroma tumor blush
    Show answer

    Answer: A. Cerebral saccular aneurysm

    > Key point: A discrete sac-like outpouching from a cerebral artery is characteristic of a saccular aneurysm. Why Cerebral saccular aneurysm is correct - The described angiographic finding is a focal, rounded arterial outpouching, consistent with a saccular (berry) aneurysm. - It is a discrete arterial lesion, rather than a vascular blush or an arteriovenous connection. Why the other options are wrong - Angiofibroma tumor blush: A hypervascular mass produces a dense tumor blush, not a discrete arterial sac. - Carotid-cavernous fistula: This causes abnormal cavernous sinus opacification from an arteriovenous communication, not a focal arterial outpouching. - Vein of Galen malformation: This involves abnormal shunting into a dilated vein, rather than a solitary cerebral arterial sac.

  4. 4. After recovery from spinal shock, complete spinal cord transection at C7 produces all of the following EXCEPT:

    • A. Areflexia below the lesion
    • B. Limited respiratory effort
    • C. Anesthesia below the lesion
    • D. Orthostatic hypotension
    Show answer

    Answer: A. Areflexia below the lesion

    > Key point: After spinal shock resolves, reflexes below a complete transection return and may become exaggerated, so persistent areflexia is the exception. Why Areflexia below the lesion is correct - Spinal shock causes initial areflexia, but reflex activity below a complete lesion commonly returns after recovery. - The long-term state may include hyperreflexia and spasticity, not persistent areflexia. Why the other options are wrong - Limited respiratory effort: A C7 lesion can impair intercostal and abdominal muscle function, limiting forceful expiration and coughing, although the diaphragm is spared. - Anesthesia below the lesion: Complete transection interrupts ascending sensory pathways, causing loss of sensation below the lesion. - Orthostatic hypotension: Impaired descending sympathetic control can limit vasoconstriction on standing.

  5. 5. Substance used for PET scan is

    • A. 99mTc-MDP
    • B. 18F-FDG
    • C. 123I-MIBG
    • D. 111In-pentetreotide
    Show answer

    Answer: B. 18F-FDG

    > Key point: ¹⁸F-FDG is a positron-emitting glucose analogue used for PET imaging. Why ¹⁸F-FDG is correct - It emits positrons and is used as a tracer for PET scans. How they compare | Agent | Imaging use | |---|---| | ¹⁸F-FDG | PET imaging | | ⁹⁹ᵐTc-MDP | Gamma-camera bone scintigraphy | | ¹¹¹In-pentetreotide | Gamma-camera somatostatin-receptor scintigraphy | | ¹²³I-MIBG | Gamma-camera imaging of selected neuroendocrine tumours | Why the other options are wrong - ⁹⁹ᵐTc-MDP: It is used for bone scintigraphy, not PET. - ¹¹¹In-pentetreotide: It is used for gamma-camera somatostatin-receptor imaging, not PET. - ¹²³I-MIBG: It is used for gamma-camera imaging, not PET.

  6. 6. Which aphasia syndrome most characteristically follows a lesion of posterior Brodmann area 22 in the language-dominant hemisphere?

    • A. Expressive aphasia
    • B. Receptive aphasia
    • C. Conduction aphasia
    • D. Anomic aphasia
    Show answer

    Answer: B. Receptive aphasia

    > Key point: A lesion of posterior Brodmann area 22 in the dominant hemisphere characteristically causes receptive aphasia. Why Receptive aphasia is correct - The dominant posterior temporal language region supports comprehension. - Damage there produces impaired comprehension with fluent speech. How they compare | Syndrome | Typical language deficit | |---|---| | Receptive aphasia | Comprehension; fluent speech | | Expressive aphasia | Nonfluent, effortful speech | | Conduction aphasia | Repetition | | Anomic aphasia | Naming | Why the other options are wrong - Expressive aphasia: associated with dominant inferior frontal damage and nonfluent, effortful speech. - Conduction aphasia: repetition is predominantly impaired, while comprehension is relatively preserved. - Anomic aphasia: naming is predominantly impaired, while comprehension and repetition are relatively preserved.

  7. 7. Which method is the diagnostic reference standard for distinguishing cerebral radiation necrosis from recurrent tumor after radiotherapy?

    • A. Positron emission tomography
    • B. Computed tomography
    • C. Magnetic resonance imaging
    • D. Biopsy
    Show answer

    Answer: D. Biopsy

    > Key point: Biopsy is the diagnostic reference standard because histology can distinguish radiation necrosis from recurrent tumor. Why Biopsy is correct - Biopsy allows direct histological examination of the tissue. - It can demonstrate necrosis and help exclude residual or recurrent malignancy. How they compare | Method | Role | Limitation | |---|---|---| | Biopsy | Reference standard | Direct tissue examination | | Positron emission tomography | Supportive | Uptake may be falsely increased in necrosis | | Magnetic resonance imaging | Supportive | Structural findings may overlap with recurrence | | Computed tomography | Supportive | Low density, edema, and mass effect are nonspecific | Why the other options are wrong - Positron emission tomography: Metabolic uptake can be misleading, so it is not definitive alone. - Magnetic resonance imaging: Findings can support radiation injury but may not distinguish it reliably from recurrence. - Computed tomography: Its findings are nonspecific and do not establish the diagnosis.

  8. 8. Which cranial nerve is NOT associated with the nucleus ambiguus?

    • A. Cranial Nerve XII (Hypoglossal)
    • B. Cranial Nerve XI (Accessory)
    • C. Cranial Nerve IX (Glossopharyngeal)
    • D. Cranial Nerve X (Vagus)
    Show answer

    Answer: A. Cranial Nerve XII (Hypoglossal)

    > Key point: The nucleus ambiguus is associated with cranial nerves IX, X, and the cranial component of XI—not XII. Why Cranial Nerve XII (Hypoglossal) is correct - The nucleus ambiguus supplies motor fibers associated with CN IX, CN X, and the cranial root of CN XI. - CN XII arises from the hypoglossal nucleus and controls tongue movements, so it is not associated with the nucleus ambiguus. How they compare | Nerve | Association with nucleus ambiguus | |---|---| | CN XII (Hypoglossal) | Not associated; arises from hypoglossal nucleus | | CN IX (Glossopharyngeal) | Associated; includes motor supply to stylopharyngeus | | CN X (Vagus) | Associated; pharyngeal and laryngeal motor fibers | | CN XI (Accessory) | Cranial root associated; travels with vagus | Why the other options are wrong - Cranial Nerve X (Vagus): Its pharyngeal and laryngeal motor component is associated with the nucleus ambiguus. - Cranial Nerve XI (Accessory): Its cranial root is associated with the nucleus ambiguus, even though its spinal root has a different origin. - Cranial Nerve IX (Glossopharyngeal): The nucleus ambiguus contributes motor fibers to stylopharyngeus.

  9. 9. Pine-tree bladder is a sign of.

    • A. Pelvic abscess
    • B. Bilharziasis
    • C. Intraperitoneal bladder rupture
    • D. Neurogenic bladder
    Show answer

    Answer: B. Bilharziasis

    Bilharziasis - The "pine-tree bladder" appearance on a retrograde cystogram is characteristic of chronic bilharzial cystitis, also known as schistosomiasis of the bladder. - This appearance results from fibrosis, granulomas, and calcification of the bladder wall leading to multiple irregular diverticula and trabeculations, which resemble pine-tree branches. Pelvic abscess - A pelvic abscess causes an extrinsic compression on the bladder, leading to mass effect or displacement, rather than intrinsic wall changes. - It would typically present with symptoms of infection, such as fever and localized pain, and imaging would show a fluid collection. Intraperitoneal bladder rupture - An intraperitoneal bladder rupture would lead to extravasation of urine into the peritoneal cavity, which would be visible on imaging as free fluid around abdominal organs. - The bladder itself would appear flaccid and potentially collapsed, without the characteristic "pine-tree" appearance. Neurogenic bladder - Neurogenic bladder is characterized by detrusor-sphincter dyssynergia or loss of bladder sensation, leading to features like trabeculation, cellules, and diverticula due to high intravesical pressure. - While it can cause some bladder wall changes, the specific "pine-tree" pattern is not its hallmark, and it is usually associated with neurological deficits.

  10. 10. A radiograph of the skull is suggestive of which of the following diagnoses?

    • A. Langerhans cell histiocytosis
    • B. Sickle cell anemia
    • C. Multiple myeloma
    • D. Malignant melanoma
    Show answer

    Answer: B. Sickle cell anemia

    > Key point: Chronic hemolysis in sickle cell anemia expands skull marrow spaces, producing a hair-on-end appearance. Why Sickle cell anemia is correct - Chronic hemolysis stimulates marrow hyperplasia and expands the diploic space between the skull tables. - Thickened trabeculae create the characteristic hair-on-end (crew-cut) appearance on skull radiography. Why the other options are wrong - Langerhans cell histiocytosis: typically causes geographic, beveled lytic lesions rather than diffuse trabecular thickening. - Multiple myeloma: classically produces discrete punched-out lytic lesions, not diploic expansion. - Malignant melanoma: skull metastases usually cause focal lytic lesions rather than the diffuse hair-on-end pattern.

Flashcards: Functional Neuroimaging

  1. 1. The investigation of choice for stroke is a .

    Show answer

    NCCT

  2. 2. Most sensitive investigation for Cortical vein thrombosis is

    Show answer

    MR Venography

  3. 3. The investigation of choice for ischemic stroke is a .

    Show answer

    diffusion-weighted MRI

  4. 4. What is the investigation of choice for diagnosing brain abscess?

    Show answer

    MRI

  5. 5. In _____ weighted images, CSF is _____ and white matter is _____, grey matter is _____

    Show answer

    T2 · bright/hyperintense · dark · white

  6. 6. _____ peak in magnetic resonance (MR) spectroscopy is characteristically increased in _____.

    Show answer

    Choline · glioma

  7. 7. Tigroid white matter on MR imaging is seen in disease.

    Show answer

    Pelizaeus-Merzbacher

  8. 8. Pseudotumor cerebri (idiopathic intracranial hypertension) characteristically causes a palsy of which cranial nerve?\n\n_____

    Show answer

    CN VI

  9. 9. CT scan shows a concavo-convex-shaped hematoma is suggestive of a _____ hematoma

    Show answer

    subdural

  10. 10. The image showing a bleed over the arachnoid layer but under the dura is suggestive of a _____ hemorrhage.

    Show answer

    subdural
