Nanoparticle Fundamentals - Tiny Titans Unveiled

  • Definition: Particles with at least one dimension 1-100 nm.
  • Types & Imaging Relevance:
    • Liposomes: Drug/gene delivery vehicles.
    • Micelles: Solubilize hydrophobic drugs.
    • Dendrimers: Highly branched, tunable carriers.
    • Quantum Dots (QDs): Bright, photostable optical imaging.
    • Metallic NPs (Au, SPIONs): Contrast (CT, MRI), photothermal therapy.
  • Key Properties:
    • High surface-area-to-volume ratio.
    • Surface modifiable for targeting.
    • Quantum effects (QDs).
  • 📌 Little Men Deliver Quick Messages (Liposomes, Micelles, Dendrimers, QDs, Metallic NPs). Types and composition of lipid nanoparticles

⭐ Enhanced Permeability and Retention (EPR) effect: Passive accumulation of NPs (~10-200 nm) in tumors due to leaky vasculature and impaired lymphatic drainage; crucial for cancer theranostics.

NPs in Imaging Techniques - Modality Masterclass

NPs serve as versatile contrast agents or delivery vehicles across imaging modalities. 📌 Mnemonic: My Cat Purrs Often Underneath (MRI, CT, PET/SPECT, Optical, Ultrasound).

  • MRI (Magnetic Resonance Imaging):
    • SPIONs (Superparamagnetic Iron Oxide NPs): T2 contrast (hypointense signal), e.g., liver imaging.
    • Gd-NPs (Gadolinium-based NPs): T1 contrast (hyperintense signal).
  • CT (Computed Tomography):
    • High-Z NPs (e.g., AuNPs, Iodinated NPs, Bismuth NPs): ↑ X-ray attenuation.
    • Applications: Angiography, enhanced tumor visualization.
  • PET/SPECT (Nuclear Imaging):
    • NPs carry radionuclides (e.g., $^{64}$Cu, $^{68}$Ga, $^{99m}$Tc, $^{111}$In).
    • Function: Targeted molecular imaging, theranostics.
  • Optical Imaging:
    • QDs (Quantum Dots), UCNPs (Upconversion NPs), Dye-loaded NPs: Fluorescence/luminescence.
    • Applications: Cell tracking, superficial lesion imaging. Limited tissue penetration.
  • Ultrasound (US):
    • Nanobubbles, Perfluorocarbon-filled NPs: ↑ Echogenicity.
    • Applications: Contrast-Enhanced US (CEUS), US-triggered drug delivery.

Nanoparticle contrast agents in medical imaging

⭐ SPIONs (Superparamagnetic Iron Oxide Nanoparticles) in MRI predominantly cause T2 shortening, resulting in signal void (dark areas) on T2-weighted images, crucial for identifying liver lesions like metastases.

Clinical Uses & Targeting - Disease Decoders

  • Key Clinical Applications:

    • Oncology: Sentinel node mapping, tumor margin delineation, therapy response assessment (e.g., photothermal).
    • Cardiology: Imaging vulnerable atherosclerotic plaques, tracking stem cells post-MI.
    • Neurology: BBB penetration for glioblastoma imaging, detecting amyloid plaques (Alzheimer's).
  • Targeting Strategies:

    • Passive (EPR Effect): Nanoparticles (10-200 nm) accumulate in tumors/inflammation via leaky vasculature & poor lymphatic drainage.
    • Active: Ligands (antibodies, aptamers, peptides) on NPs bind specific cell receptors (e.g., folate, transferrin). Improves specificity & cellular uptake.

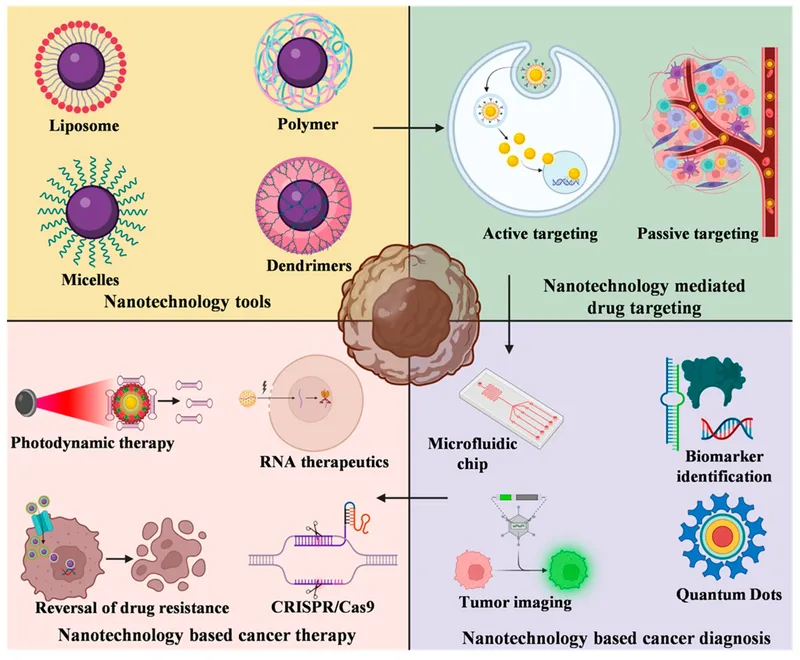

Nanoparticles in cancer diagnosis and therapy

⭐ The Enhanced Permeability and Retention (EPR) effect, crucial for passive tumor targeting, varies significantly with tumor type and microenvironment.

Pros, Cons & Future - Nano's Next Steps

  • Pros:
    • Improved imaging: ↑ sensitivity & specificity for early detection.
    • Targeted delivery: Enhanced accumulation at disease sites, reduced off-target effects.
    • Multimodal capabilities: e.g., PET-MRI agents.
    • Theranostics: Simultaneous diagnosis and therapy.
  • Cons:
    • Biocompatibility: Potential toxicity, immunogenicity.
    • Pharmacokinetics: Rapid Reticuloendothelial System (RES) uptake, potentially short circulation time.
    • Manufacturing: Scalability, cost-effectiveness challenges.
    • Regulatory: Complex approval pathways.
  • Future Outlook:
    • Personalized approaches: Patient-specific nanomedicine.
    • Intelligent design: AI in nanoparticle development.
    • Advanced materials: Fully biodegradable & stimuli-responsive NPs for controlled release.
    • Enhanced delivery: Overcoming biological barriers (e.g., BBB).

⭐ A key promise of nanoparticles is "theranostics" - integrating diagnostic imaging with targeted therapeutic delivery in a single agent.

High‑Yield Points - ⚡ Biggest Takeaways

  • Nanoparticles (1-100 nm) utilize the Enhanced Permeability and Retention (EPR) effect for passive tumor targeting.
  • Common types include liposomes, dendrimers, gold nanoparticles, SPIONs (Superparamagnetic Iron Oxide Nanoparticles), and quantum dots.
  • SPIONs are crucial T2/T2 MRI contrast agents*, particularly for liver imaging and macrophage tracking.
  • Quantum dots offer size-tunable fluorescence for multiplexed imaging but raise toxicity concerns.
  • Key applications: Targeted drug delivery, enhanced imaging contrast (MRI, CT), photothermal therapy, and sentinel node mapping.
  • Active targeting via surface ligands improves specificity; biocompatibility, toxicity, and clearance remain significant challenges for clinical translation.

Practice Questions: Nanoparticles in Molecular Imaging

Test your understanding with these related questions

Which of the following is water soluble contrast?

1 of 5

Flashcards: Nanoparticles in Molecular Imaging

1/3

C11 Methionine PET is done for the _____

TAP TO REVEAL ANSWER

C11 Methionine PET is done for the _____

brain tumor.
