Molecular Inflammation Imaging - Basics & Beacons

  • Basics: Visualizes cellular/molecular processes in inflammation/infection non-invasively. Aims for early detection, characterization, and monitoring treatment response.
  • Beacons (Probes/Tracers): Target specific biological entities involved in inflammation/infection.
    • Radiolabeled Cells: E.g., $^{99m}$Tc-HMPAO or $^{111}$In-oxine labeled leukocytes.
    • Radiolabeled Antibodies/Fragments: Target specific antigens (e.g., anti-CD15 Ab).
    • Radiolabeled Peptides: E.g., somatostatin receptor analogs, chemotactic peptides.
    • Small Molecules: E.g., $^{18}$F-FDG (glucose analog), radiolabeled antibiotics.
  • Ideal Probe Traits: High target affinity & specificity, rapid non-target clearance, favorable dosimetry, easy synthesis. Molecular imaging probes and techniques

⭐ $^{18}$F-FDG PET/CT is widely used for detecting inflammation/infection due to increased glucose metabolism in activated inflammatory cells (macrophages, neutrophils).

Key Radiotracers - Infection Illuminators

RadiotracerMechanism of Uptake (MoU)Key ApplicationsProsCons
Gallium-67 CitrateTransferrin; bacterial siderophores; leukocyte lactoferrin.FUO, chronic osteomyelitis, sarcoidosis, PCP.Widely available.Delayed imaging (24-72h), gut/renal excretion, non-specific.
Labeled WBCsChemotaxis.Acute bacterial infections, IBD, PJI, osteomyelitis.High specificity (bacterial).Complex labeling, blood handling, ↓ chronic/low-grade.
- Tc-99m HMPAOAppendicitis, IBD.Better images, ↓ radiation.Shorter window (≤24h).
- In-111 OxineAbdominal/pelvic infections, FUO.Longer window (≤72h), no gut excretion.↑ radiation, poorer images.
F-18 FDG PET/CT↑ glucose use (inflam. cells/microbes via GLUT).FUO, osteomyelitis (spinal), vasculitis, sarcoidosis, therapy monitor.Rapid (~1h), high resolution.Non-specific (tumors, post-op), glucose control, physiological uptake (brain, heart, GU).

⭐ Ga-67 localizes via transferrin binding, direct bacterial siderophore uptake, & leukocyte lactoferrin at inflammatory sites.

Clinical Applications - Diagnostic Detectives

  • Fever of Unknown Origin (FUO):
    • $^{18}$F-FDG PET/CT: Key modality; detects inflammation, infection, malignancy. High sens.
    • Labelled WBC scan ($^{99m}$Tc-HMPAO / $^{111}$In-oxine): High spec. for infection.
  • Osteomyelitis (OM) & Diabetic Foot:
    • $^{18}$F-FDG PET/CT: Differentiates OM vs. Charcot foot. High acc.
    • Labelled WBC scan: Gold std. for OM (non-violated bone).
    • 3-phase bone scan ($^{99m}$Tc-MDP): Sensitive, low spec.
  • Prosthetic Joint Infection (PJI):
    • Combined WBC/Marrow scan: High acc. Mismatch (WBC > marrow) indicates infection.
    • $^{18}$F-FDG PET/CT: Useful, esp. chronic PJI. Good Neg Pred Value.

    ⭐ In PJI, combined WBC/Marrow scan ($^{99m}$Tc-SC & $^{111}$In-WBC) is highly specific; incongruent uptake (WBC > marrow) signifies infection.

  • Other Key Areas:
    • Vasculitis (Large Vessel): $^{18}$F-FDG PET/CT for activity & extent (e.g., Takayasu).
    • IBD: $^{18}$F-FDG PET/CT for activity assessment, extent.
    • Sarcoidosis: $^{18}$F-FDG PET/CT for active inflammation.

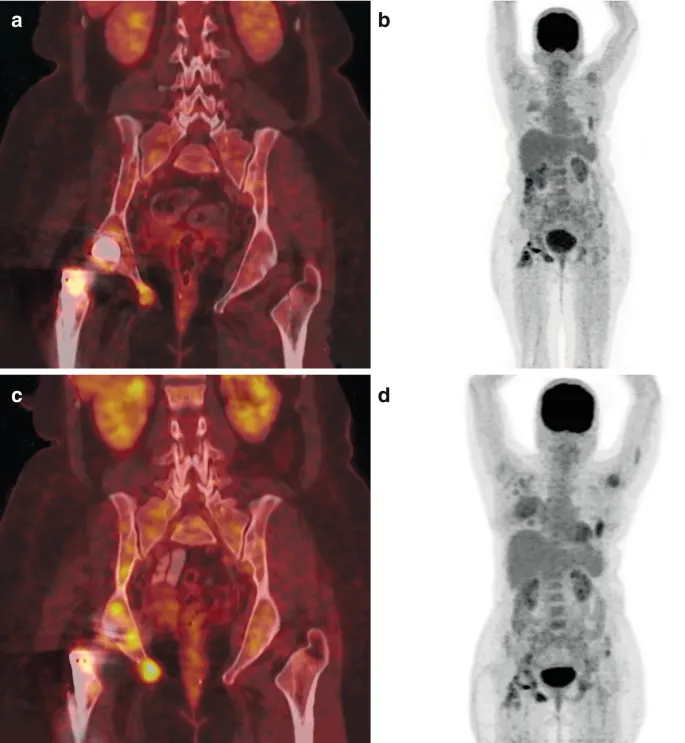

FDG PET/CT of prosthetic joint infection

Emerging & Advanced - Future Focus

  • Novel Radiotracers:
    • Pathogen-specific agents (e.g., sorbitol-based for bacteria).
    • Immune cell tracking (e.g., $^{89}$Zr-oxine for lymphocytes).
  • Theranostics:
    • Combining diagnosis & targeted radionuclide therapy for infections.
  • Hybrid Imaging:
    • Enhanced PET/MRI: Superior soft tissue contrast, reduced radiation.
  • AI & Machine Learning:
    • Improved lesion detection, quantification, and outcome prediction.
  • Reporter Gene Imaging:
    • Monitoring engineered cells or microbial gene expression.

Key Goal: Developing radiotracers to distinguish active infection from sterile inflammation remains a major research priority.

High‑Yield Points - ⚡ Biggest Takeaways

  • FDG-PET/CT is widely used, showing ↑ glucose uptake in inflammatory cells like macrophages and neutrophils.
  • 67Ga-citrate binds transferrin/lactoferrin, useful for chronic inflammation, sarcoidosis, and PCP.
  • Labeled Leukocyte Scans (111In, 99mTc-HMPAO) are highly specific for bacterial infections, e.g., osteomyelitis.
  • Differentiating infection from sterile inflammation is a key role, where WBC scans often outperform FDG-PET.
  • FDG-PET/CT is also crucial for Fever of Unknown Origin (FUO), vasculitis, and IBD.
  • 99mTc-Monoclonal antibodies (e.g., Sulesomab) target granulocytes for specific infection imaging.

Practice Questions: Molecular Imaging in Inflammation and Infection

Test your understanding with these related questions

Which radiopharmaceutical is commonly used in positron emission tomography (PET) imaging?

1 of 5

Flashcards: Molecular Imaging in Inflammation and Infection

1/3

C11 Methionine PET is done for the _____

TAP TO REVEAL ANSWER

C11 Methionine PET is done for the _____

brain tumor.
