Spectroscopy - What's Cooking Inside?

  • Principle: Non-invasive detection of tissue metabolite concentrations using magnetic resonance.
  • Nuclei:
    • Main: Proton ($^1$H MRS) for N-acetylaspartate (NAA), Choline (Cho), Creatine (Cr), Lactate.
    • Others: $^{31}$P (energy metabolism), $^{13}$C (glucose), $^{19}$F (drugs).
  • Signal: Spectrum graph of intensity vs. chemical shift (frequency in ppm). Each peak represents a metabolite.
  • MRS vs. MRI:
    • MRI: Maps water protons for anatomical structure.
    • MRS: Maps metabolite protons for biochemical information ("biochemical biopsy").

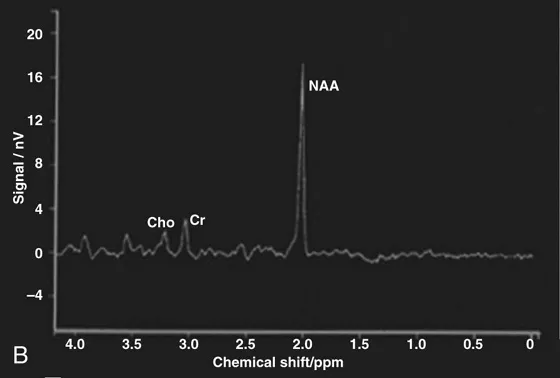

MRS spectrum with NAA, Cho, and Cr peaks

⭐ Key for differentiating tumor recurrence from radiation necrosis in brain imaging.

Spectroscopy - The Brain's Biomarkers

Magnetic Resonance Spectroscopy (MRS) non-invasively detects brain metabolites, offering insights into tissue biochemistry.

MetabolitePeak (ppm)Represents↑ in↓ in
N-acetylaspartate (NAA)2.0Neuronal viability/density---Neuronal damage/loss (tumors, stroke, MS, neurodegeneration)
Choline (Cho)3.2Cell membrane turnover/synthesisTumors, inflammation, demyelination---
Creatine (Cr/PCr)3.0 (major), 3.9Energy metabolism marker; Relatively stable, often used as internal reference------
Lactate (Lac)1.33 (doublet)Anaerobic glycolysisIschemia, hypoxia, high-grade tumors, abscess, mitochondrial disorders---
Lipids (Lip)0.9-1.5 (broad)Cell necrosis, membrane breakdownHigh-grade tumors, necrosis, abscess---
myo-Inositol (mI)3.56Glial cell marker, osmolyteGliosis, Alzheimer's, demyelinationHepatic encephalopathy
Glutamate/Glutamine (Glx)2.1-2.5, 3.6-3.8Excitatory neurotransmitters/metabolism; Altered in hepatic encephalopathy, epilepsy------

MRS brain spectroscopy metabolite peaks graph

⭐ Lactate peak at 1.33 ppm inverts with long TE (e.g., 144ms PRESS), distinguishing it from lipids.

Spectroscopy - Peeking with Precision

  • Localization:
    • SVS (Single Voxel): One ROI, good SNR. E.g., PRESS, STEAM.
    • CSI/MRSI (Multi-Voxel): Multiple voxels, spatial map, ↓SNR/voxel.
  • Pulse Sequences:
    • PRESS: ↑SNR (90°-180°-180° pulses), common.
    • STEAM: ↓SNR (three 90° pulses), shorter min TE.
  • Echo Time (TE):
    • Short TE (e.g., 20-35 ms): More metabolites (NAA, Cho, Cr, mI, Glx, Lip, Lac), complex baseline.
    • Long TE (e.g., 135-144 ms, 270-288 ms): Fewer metabolites (NAA, Cho, Cr, Lac). Lactate doublet inverts at TE 144/272 ms (key for Lac detection).
  • Interpretation: Peak area ∝ concentration. Ratios (e.g., $Cho/NAA$, $NAA/Cr$) vital.

⭐ In brain tumors, increased Cho/NAA and Cho/Cr ratios are characteristic, reflecting increased membrane turnover and decreased neuronal integrity.

MRS Spectroscopy Common Metabolite Peaks and Markers

Spectroscopy - MRS in Action

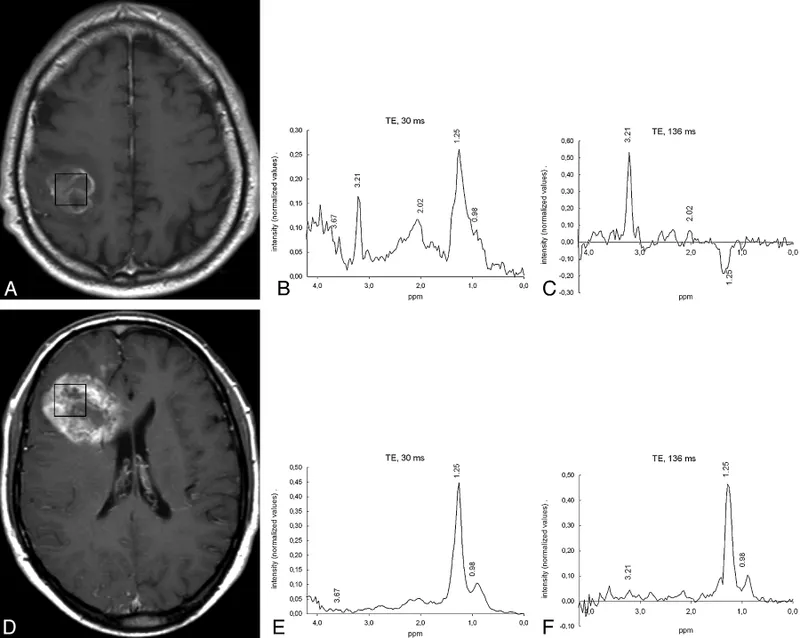

MRS spectra: Brain tumor vs. radiation necrosis

  • Brain Tumors: ↑ Cho, ↓ NAA, ↑ $Cho/NAA$ ratio, ↑ $Cho/Cr$ ratio. High-grade: Lac/Lip.
    • Recurrence: ↑ Cho.
    • Radiation Necrosis: ↓ Cho, ↓ NAA, ↓ Cr, prominent Lac/Lip.
  • Stroke/Ischemia: ↓ NAA, ↑ Lac (acute). Cho variable.
  • Infections:
    • Pyogenic Abscess: ↓ NAA/Cho/Cr; ↑ Lac, amino acids (0.9 ppm: Val, Leu, Ile), acetate, succinate.

      ⭐ Pyogenic abscess shows specific amino acids (Val, Leu, Ile) at 0.9 ppm.

    • Tuberculoma: ↑ Lipids, often ↑ Cho.
  • Demyelinating Diseases (e.g., MS):
    • Acute plaques: ↑ Cho, ↑ Lac, ↑ Lip, ↓ NAA.
    • Chronic plaques: ↓ NAA; myo-inositol (mI) may be ↑.
  • Neurodegenerative (e.g., Alzheimer's): ↓ NAA (posterior cingulate), ↑ mI.
  • Metabolic Disorders (e.g., Canavan disease): Markedly ↑ NAA.
  • Prostate Cancer: ↑ $(Cho+Cr)/Citrate$ ratio (malignancy). Healthy: High Citrate.

High‑Yield Points - ⚡ Biggest Takeaways

  • NAA (N-acetylaspartate): Neuronal marker; ↓ in most brain pathologies.
  • Choline (Cho): Cell membrane turnover marker; ↑ in tumors, inflammation.
  • Creatine (Cr): Stable reference peak for energy metabolism.
  • Lactate: Indicates anaerobic glycolysis (e.g., ischemia, abscess); characteristic doublet at 1.33 ppm, inverts on long TE.
  • Lipids: Signify necrosis (e.g., high-grade tumors, abscesses); broad peak at 0.9-1.4 ppm.
  • Myo-inositol (mI): Glial cell marker; ↑ in Alzheimer's disease, ↓ in tumors.
  • Short TE sequences display more metabolites; long TE (e.g., 144ms, 270ms) helps identify lactate and suppress other signals.
