Intravenous Urography

Introduction & Indications - Kidney Blueprint

• IVU (Intravenous Urography): Timed X-rays of urinary tract post-IV iodinated contrast.
  • Contrast filtered by glomeruli, concentrated in tubules.
  • Provides anatomical "blueprint" of urinary tract.
• Primary Indications:
  • Suspected obstruction (calculi, strictures, PUJ obstruction).
  • Hematuria (if CT/US limited or for urothelial detail).
  • Congenital anomalies (horseshoe kidney, duplex systems).
  • Renal trauma (limited role; CT primary).
  • Pre-op mapping for urologic surgery.
• Prep: Check creatinine; ensure hydration.

  ⭐ IVU remains valuable for detailed visualization of pelvicalyceal system, ureters, and bladder mucosa, often superior for subtle urothelial lesions. oka

Contrast & Procedure - The Dye's Journey

• Contrast Agent:
  • Type: Water-soluble, tri-iodinated contrast media (WCM).
  • Preference: Non-ionic Low Osmolar Contrast Media (LOCM) e.g., Iohexol, Iopamidol, for ↑safety profile (↓adverse reactions).
  • Dose (Adult): ~1 mL/kg (typically 50-100 mL), IV bolus.

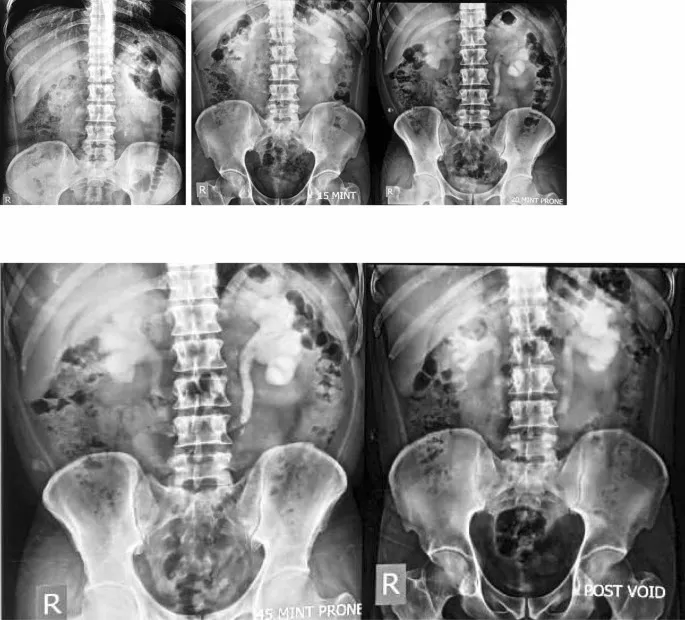

• The Dye's Journey (Standard IVU Protocol): Serial abdominal radiographs track dye excretion.

> ⭐ The nephrogram phase, peaking around **1 minute** post-bolus injection, is optimal for detecting renal parenchymal lesions and assessing renal perfusion.

Interpretation & Findings - Clues in Contrast

• Phases & Timing:
  • Nephrogram: 1 min (renal parenchyma).
  • Pyelogram: 3-5 min (calyces), 5-15 min (PCS, ureters).
  • Cystogram: 25-30 min (bladder).
• Normal Anatomy:
  • Kidneys: Smooth outlines, 10-14 cm length.
  • PCS: Sharp, cupped calyces; no dilatation.
  • Ureters: Smooth, uniform caliber, peristalsis.
  • Bladder: Smooth outline, symmetrical.
• Key Pathological Signs:
  • Nephrogram Changes:
    • Delayed/Absent: RAS, renal disease, occlusion.
    • Persistent Dense: Acute obstruction.
  • PCS & Ureter Abnormalities:
    • Hydronephrosis: Dilated PCS ± ureter; obstruction (stone, PUJO, tumor).
    • Filling Defects (PCS/Ureter/Bladder): Radiolucent calculi, TCC, clots, sloughed papillae.
  • Calyceal Details:
    • Clubbing/Blunting: Chronic pyelonephritis, reflux.
    • "Moth-eaten" calyces: Renal TB.
    • Papillary Necrosis: "Egg-in-cup", "lobster claw". 📌
  • Ureteric Findings:
    • Strictures: TB, post-calculus. "Beaded"/"pipe-stem" ureter (TB).
  • Bladder Abnormalities:
    • Wall Thickening/Irregularity: Cystitis, tumor.
    • Diverticula; "Christmas tree" bladder (neurogenic).

⭐ A delayed and increasingly dense nephrogram (obstructive nephrogram) is a hallmark of acute urinary tract obstruction.

Risks & Alternatives - Safety & Substitutes

• Adverse Events & Risks:
  • Allergic-like Reactions: From mild (urticaria, nausea) to severe (anaphylaxis). Higher risk with HOCM.
  • Contrast-Induced Nephropathy (CIN): Acute renal dysfunction. Risk factors: pre-existing renal disease, diabetes, dehydration.

    ⭐ CIN diagnosis: Serum creatinine ↑ >0.5 mg/dL or >25% from baseline within 48-72 hours post-contrast.

  • Radiation Exposure: ALARA principle; consider cumulative dose.
  • Extravasation: Perivenous contrast leakage; local pain, swelling.
• Patient Safety Protocols:
  • Pre-assessment: History (allergies, asthma), eGFR. Ensure hydration.
  • Contrast: Use non-ionic LOCM or IOCM.
  • High-Risk: Premedicate (steroids, antihistamines).
• Alternative Imaging Modalities:
  • IVU: Limited role; functional data (e.g., PUJ dynamics).

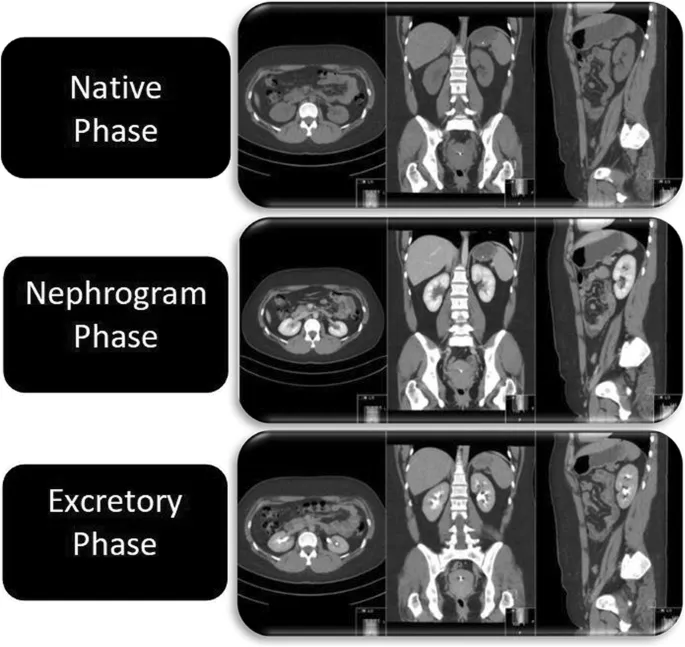

  • Dominant Alternatives:

High‑Yield Points - ⚡ Biggest Takeaways

• IVU, largely superseded by CT Urography, evaluates renal function and urinary tract anatomy.
• Uses iodinated contrast; key images include nephrogram, pyelogram, and post-void views.
• Identifies obstruction, calculi, filling defects, and congenital anomalies like duplex systems.
• Contraindicated in severe contrast allergy, renal impairment (Cr > 2 mg/dL), and multiple myeloma.
• Patient preparation involves fasting, bowel cleansing, and hydration.
• Risks include allergic reactions and contrast-induced nephropathy (CIN).
