Deep Learning in Radiology

DL Fundamentals - Brainy Basics

• Deep Learning (DL): Subfield of Machine Learning (ML) using Artificial Neural Networks (ANNs) with multiple layers ("deep architectures").
• Inspired by human brain structure and function.
  • Neurons (Nodes): Core processing units.
  • Weights & Biases: Learnable parameters, adjusted during training.
  • Activation Functions: Introduce non-linearity (e.g., ReLU, Sigmoid, Tanh). $f(x)$
• Training Process:
  • Forward Propagation: Input data flows through network to generate prediction.
  • Backpropagation: Algorithm to calculate gradients & update weights to minimize error (loss function).
• Requires large labeled datasets for optimal performance.

⭐ Exam Favourite: Backpropagation is key for DL training; it adjusts network weights to minimize prediction errors. DL excels at automatic feature extraction from raw data, unlike traditional ML.

Key Architectures - Image Interpreters

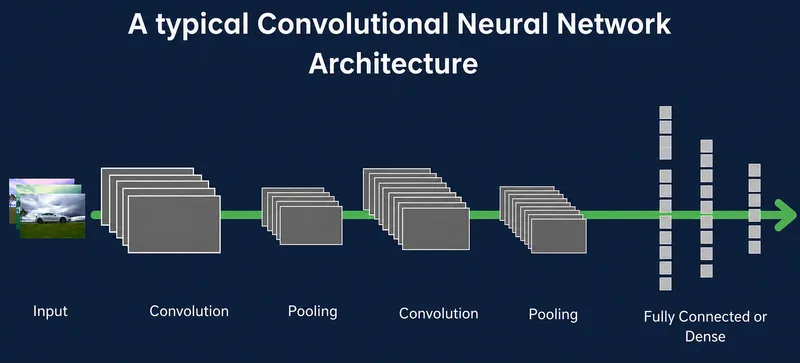

• Convolutional Neural Networks (CNNs): Workhorse for radiological image analysis.
  • Automatically learn hierarchical features (edges → patterns → objects).
  • Key Layers:
    • Convolutional: Feature extraction using filters.
    • Pooling (e.g., Max Pooling): Downsampling, reduces dimensionality.
    • Fully Connected: Classification/regression based on features.
  • Activation (e.g., ReLU) for non-linearity.
• U-Net: Specialized CNN architecture for precise biomedical image segmentation.
  • Encoder-decoder structure with skip connections to preserve spatial info.

⭐ Convolutional layers are the core of CNNs, responsible for automatically detecting and learning features like edges, textures, and patterns directly from pixel data.

Clinical Applications - Digital Diagnostic Dynamos

• Detection & Localization:

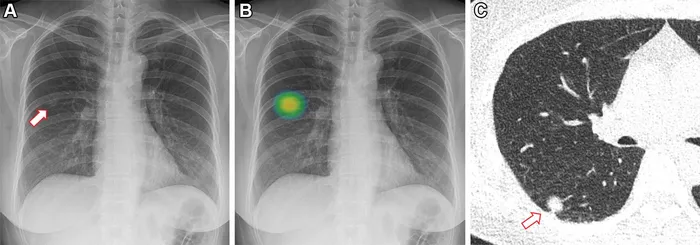

  • Identifies pathologies: lung nodules, fractures, intracranial bleeds.
  • Aids in Computer-Aided Detection (CADe).
• Segmentation:
  • Delineates organs or lesions (e.g., tumor volume for radiotherapy).
• Classification:
  • Categorizes findings (e.g., benign vs. malignant, BI-RADS scores).
• Quantification:
  • Automates measurements: lesion size, bone density, ejection fraction.
• Image Enhancement & Reconstruction:
  • Improves image quality from low-dose CT or accelerated MRI.
  • Reduces noise, enhances resolution.
• Workflow Optimization:
  • Prioritizes critical studies (e.g., stroke, pneumothorax).
  • Automates preliminary report generation.

⭐ Exam Favourite: DL excels in mammography for early breast cancer detection, often matching or exceeding human performance in identifying subtle lesions, potentially improving screening efficacy.

Challenges & Future - AI's Ascent & Agonies

• Challenges (Agonies):
  • Data Hurdles:

    ⭐ Critical need: Large, diverse, high-quality, annotated datasets for robust, unbiased AI.

    • Privacy (DICOM de-identification), security, & ethical data handling.
    • Heterogeneity (scanners, protocols); class imbalance (rare diseases).
  • Model Limitations:
    • "Black box" issue: Poor interpretability & explainability of AI decisions.
    • Generalizability to new data/settings; overfitting; adversarial attack vulnerability.
  • Implementation & Societal:
    • Workflow integration; regulatory approval (CDSCO); high costs.
    • Algorithmic bias; medicolegal clarity; user trust.
    • India: Infrastructure, digital literacy, equitable access.
• Future (Ascent):
  • Smarter AI Development:
    • Explainable AI (XAI) for transparency & trust.
    • Federated learning: privacy-preserving collaborative training.
  • Expanding Clinical Utility:
    • Personalized radiology; population screening; quantitative biomarkers.
    • AI-augmented diagnostics & reporting efficiency.
  • Indian Healthcare Focus:
    • Indigenous, affordable, accessible AI tools.
    • AI-enhanced teleradiology for wider reach.

High‑Yield Points - ⚡ Biggest Takeaways

• Convolutional Neural Networks (CNNs) are key for radiological image analysis.
• Supervised learning with large annotated datasets is most common.
• Main applications: image segmentation, lesion detection, and classification.
• Overfitting is a major challenge; addressed by data augmentation.
• Transfer learning helps with limited medical data by using pre-trained models.
• Explainability (XAI) issues ("black box") hinder clinical adoption.
• Regulatory approval (e.g., FDA) is vital for clinical use of AI tools.
