Vision and Optics

On this page

Eye Structures & Optics - Lens Look Lively!

  • Eyeball Layers:
    • Outer: Sclera (posterior), Cornea (anterior)
    • Middle: Uvea (Iris, Ciliary body, Choroid)
    • Inner: Retina
  • Refractive Media (Anterior to Posterior):
    • Cornea: ~+43D, main refractive component.
    • Aqueous Humor
    • Lens: ~+15D to +29D (accommodated).
    • Vitreous Humor
    • Total eye power: ~+58D to +60D.
  • Accommodation:
    • Ciliary muscle contracts (Parasympathetic, M3) → Zonules relax → Lens ↑convexity → ↑refractive power.
    • Presbyopia: Age-related ↓accommodation.
  • Refractive Errors: 📌 "Myopic Minus, Hyperopic Plus"
    • Myopia (nearsighted): Focus anterior to retina; correct with concave (-) lens.
    • Hypermetropia (farsighted): Focus posterior to retina; correct with convex (+) lens.
    • Astigmatism: Irregular corneal curvature; correct with cylindrical lens. Eye anatomy and light path diagram

⭐ The cornea provides the largest, fixed part of the eye's refractive power, approximately two-thirds.

Phototransduction - Rod & Cone Show!

  • Site: Rods (scotopic, B&W) & Cones (photopic, color) outer segments.
    • 📌 Rods: Rhodopsin, Reduced light; Cones: Color, Central vision.
  • Pigments: Rods: Rhodopsin (Opsin + 11-cis retinal); Cones: Photopsins (Cone opsins + 11-cis retinal).
  • Dark State (Dark Current): ↑cGMP → Na+ channels open → depolarization → tonic glutamate release.
  • Light Cascade (Hyperpolarization):
    • Light: 11-cis retinal → All-trans retinal (isomerization).
    • Activates G-protein Transducin (Gt).
    • Transducin activates cGMP Phosphodiesterase (PDE).
    • PDE hydrolyzes cGMP → ↓cGMP.
    • Closure of cGMP-gated Na+ channels.
    • Hyperpolarization of photoreceptor.
    • ↓Glutamate release to bipolar cells.

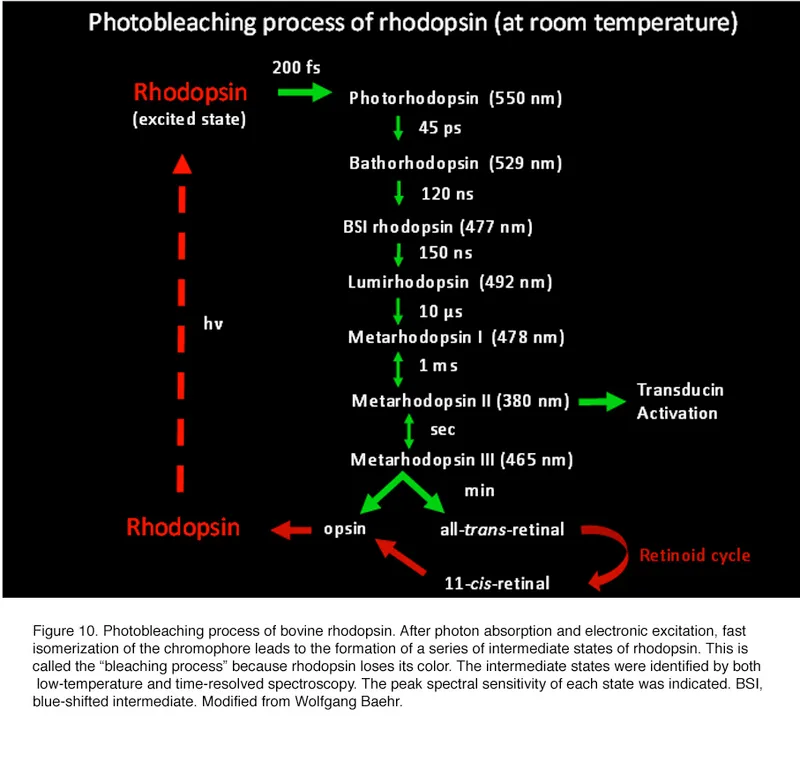

Rhodopsin Photobleaching and Retinoid Cycle

⭐ Inactivation: Rhodopsin kinase phosphorylates rhodopsin; Arrestin binds, blocking transducin activation. Key for light adaptation and recovery of sensitivity.

Visual Pathways & Lesions - Pathway Puzzles!

  • Pathway: Retina → Optic N. → Optic Chiasm (nasal fibers cross) → Optic Tract → LGN (Thalamus) → Optic Radiations → Visual Cortex (Occipital).
  • Lesions & Field Defects:
    • Optic Nerve: Ipsilateral anopia.
    • Optic Chiasm (central): Bitemporal hemianopia (e.g., pituitary adenoma).
    • Optic Tract: Contralateral homonymous hemianopia.
    • Meyer's Loop (Temporal Lobe): Contralateral "pie in the sky" (superior quadrantanopia).
    • Parietal Lobe Radiation: Contralateral "pie on the floor" (inferior quadrantanopia). 📌 PITS: Parietal-Inferior, Temporal-Superior.
    • Visual Cortex (Occipital Lobe): Contralateral homonymous hemianopia, often with macular sparing.

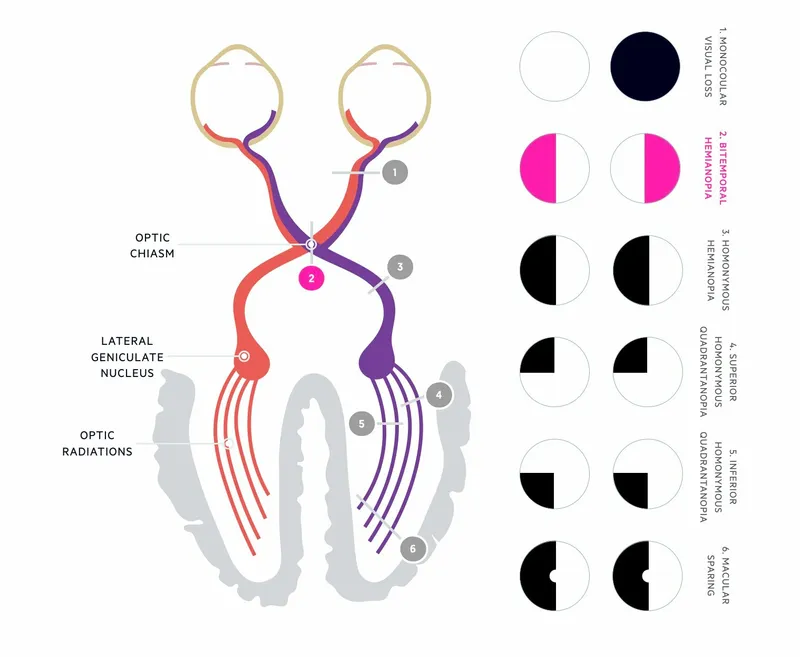

Visual pathway lesions and visual field defects

⭐ Lesions at the optic chiasm typically cause bitemporal hemianopia, classically associated with pituitary tumors compressing the decussating nasal fibers.

Pupillary Reflexes & Eye Movements - Pupil Power Play!

  • Light Reflex:
    • Afferent: CN II → Pretectal Nucleus → Bilateral Edinger-Westphal (EW) Nuclei.
    • Efferent: CN III → Ciliary Ganglion → Sphincter Pupillae → Miosis (Direct & Consensual).
  • Near Reflex (Accommodation Triad):
    • Miosis (pupil constriction).
    • Accommodation (ciliary muscle contracts, lens ↑convexity).
    • Convergence (medial recti contract).
    • Cortical input: Occipital (Area 19) → Frontal Eye Field (Area 8).
  • Key Eye Movements:
    • Saccades: Rapid, voluntary shifts in gaze (Frontal Eye Field - Area 8).
    • Smooth Pursuit: Slow, tracking movements (Parieto-occipital cortex).
    • Vestibulo-ocular Reflex (VOR): Gaze stability during head movement.
  • Gaze Control Centers:
    • Horizontal Gaze: PPRF (Paramedian Pontine Reticular Formation) in Pons.
    • Vertical Gaze: riMLF (Rostral Interstitial Nucleus of MLF) in Midbrain.
    • MLF (Medial Longitudinal Fasciculus): Coordinates CN III, IV, VI; lesion → Internuclear Ophthalmoplegia (INO).
  • 📌 Extraocular Muscles: $LR_6SO_4$, All others CN III.

⭐ Argyll Robertson Pupil (ARP): Exhibits Light-Near Dissociation. The pupil constricts with a near stimulus (accommodation) but does not react to light. Classically associated with neurosyphilis. (Mnemonic: ARP = Accommodation Reflex Present, Pupillary Light Reflex Absent).

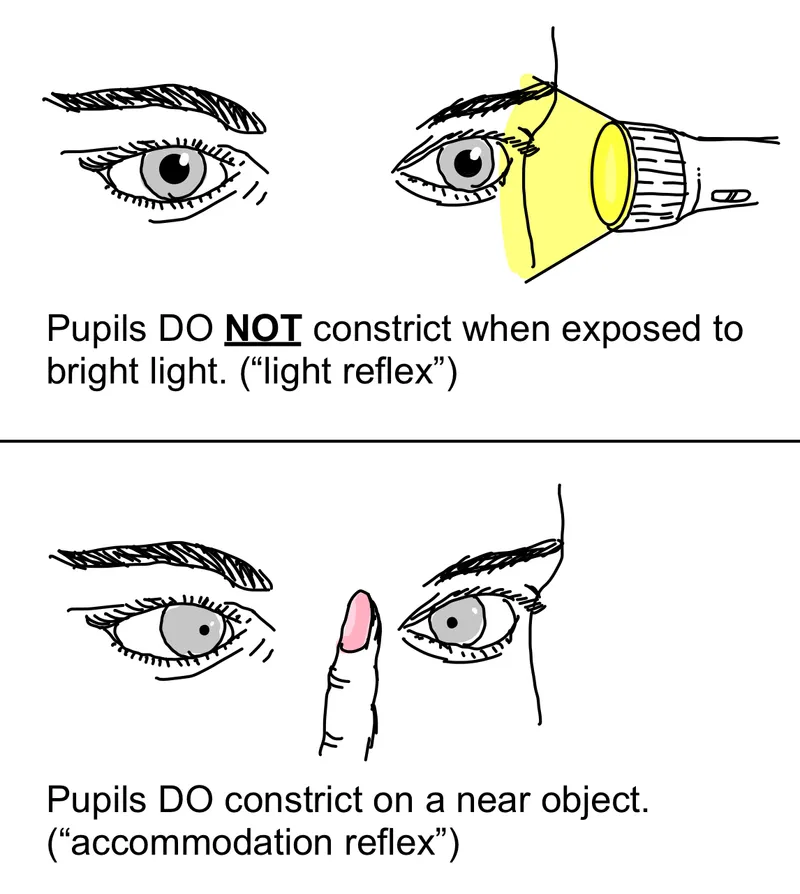

Argyll Robertson Pupil vs Normal Pupillary Light Reflex

High‑Yield Points - ⚡ Biggest Takeaways

  • Myopia (nearsightedness) corrected by concave lens; Hypermetropia by convex lens.
  • Astigmatism: Irregular corneal curvature, corrected by cylindrical lens.
  • Presbyopia: Age-related loss of accommodation, needs convex lens.
  • Rods: Scotopic (night) vision; Cones: Photopic (day/color) vision, high acuity.
  • Visual pathway: Optic nerve → Chiasm (nasal decussation) → Tract → LGN → Radiation → Visual cortex.
  • Pupillary light reflex: Afferent CN II; Efferent CN III (parasympathetic).
  • Glaucoma: Characterized by ↑ Intraocular pressure, optic disc cupping.
