Vestibular System

On this page

Vestibular Anatomy - Inner Ear GPS

  • Location: Inner ear (petrous temporal bone).
  • Labyrinths:
    • Bony: Outer bony shell; contains perilymph.
      • Includes: 3 Semicircular Canals, Vestibule (houses Utricle, Saccule), Cochlea.
    • Membranous: Inner sacs/ducts within bony labyrinth; contains endolymph.
      • Includes: Semicircular Ducts, Utricle & Saccule (Otolith Organs), Cochlear Duct.
  • Sensory Receptors:
    • Cristae Ampullares: In ampullae of semicircular ducts.
      • Sense angular acceleration (head rotation).
    • Maculae: In utricle & saccule.
      • Sense linear acceleration & gravity.
      • Contain otoconia ($CaCO_3$ crystals). 📌 "Ear stones"

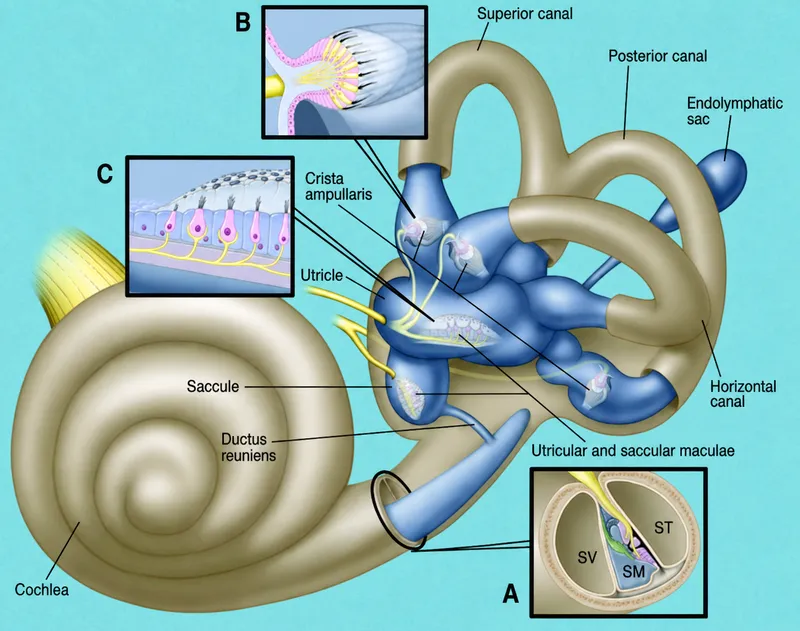

  • Innervation: Vestibular nerve (branch of CN VIII). Inner ear anatomy with vestibular system components

⭐ The vestibular system's primary sensory organs, the semicircular canals and otolith organs, are located within the bony labyrinth of the inner ear.

Balance Transduction - Hair Cell Hustle

  • Sensory Receptors: Hair cells in ampullary cristae (angular acceleration) & utricular/saccular maculae (linear acceleration).
  • Mechanism: Mechanical force (endolymph/otolith movement) bends stereocilia.
    • Towards Kinocilium: Stretches tip links → opens MET $K^+$ channels.
      • $K^+$ influx (from $K^+$-rich endolymph) → Depolarization.
      • $Ca^{2+}$ influx → ↑ Glutamate release → ↑ AP frequency in vestibular nerve.
    • Away from Kinocilium: Compresses tip links → closes MET $K^+$ channels.
      • ↓ $K^+$ influx → Hyperpolarization.
      • ↓ Glutamate release → ↓ AP frequency in vestibular nerve.
  • Resting State: Tonic neurotransmitter release.

⭐ Deflection of stereocilia towards the kinocilium causes depolarization of the hair cell, while deflection away causes hyperpolarization.

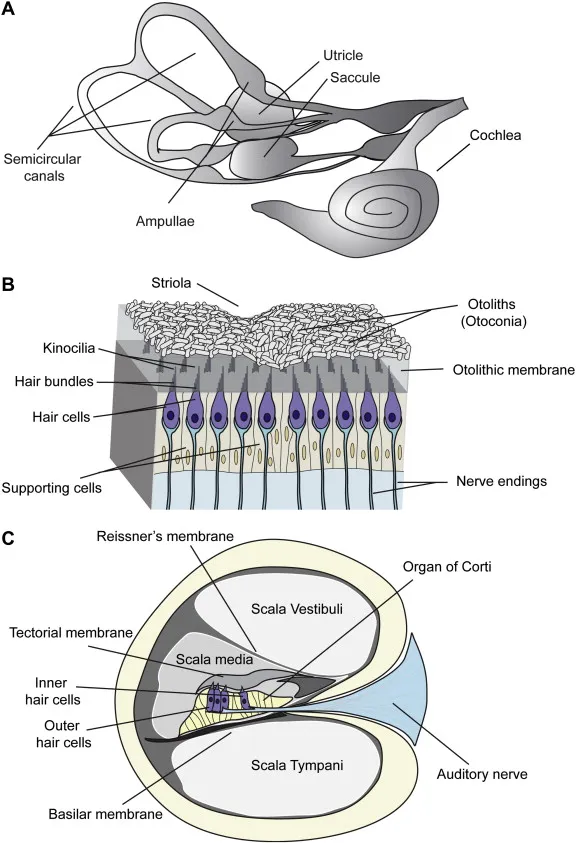

Vestibular System Anatomy and Hair Cell Transduction

Neural Connections - Reflex Relay Race

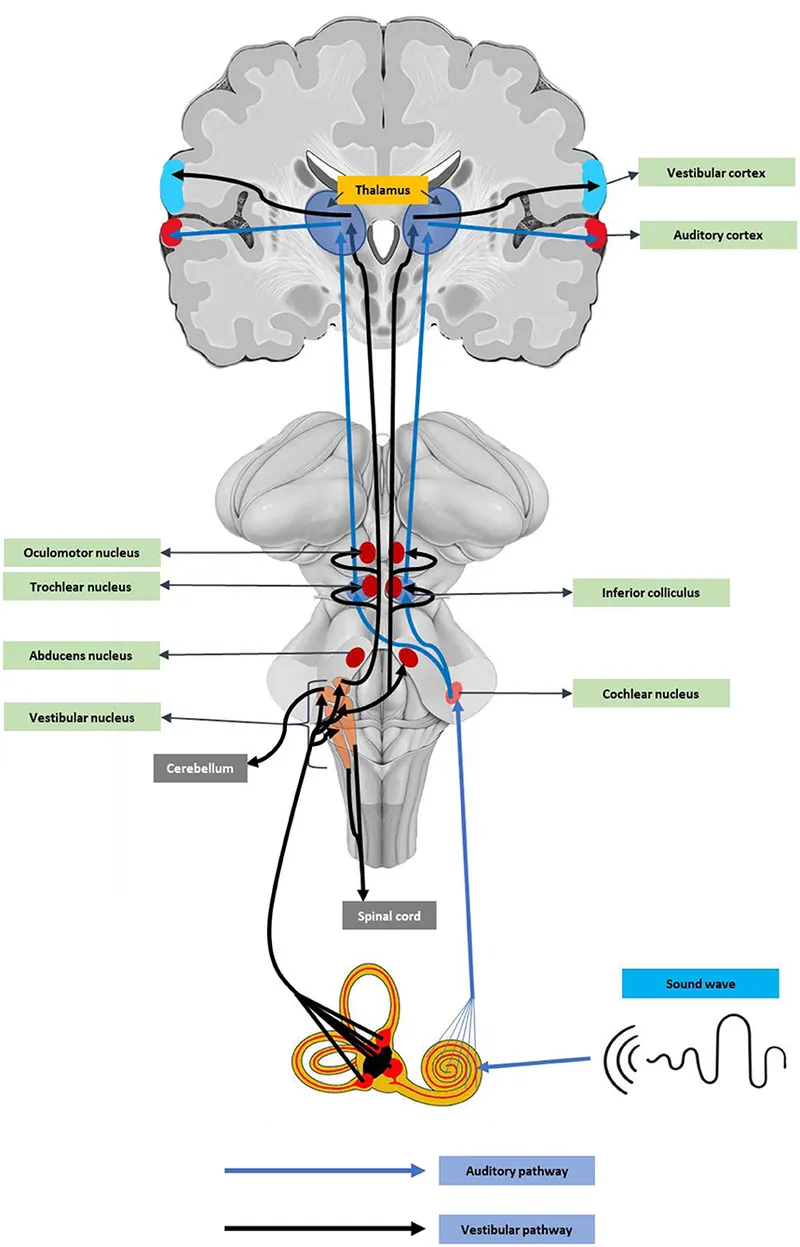

Vestibular and auditory neural pathways

  • Primary Afferents: Scarpa's ganglion → Vestibular Nuclei (VN) & Cerebellum (flocculonodular lobe).
  • Vestibular Nuclei (VN): 4 nuclei (Superior, Lateral, Medial, Inferior) - central relay station.
    • Inputs: Vestibular organs, cerebellum, visual, proprioceptive signals.
    • Outputs: Key reflex pathways.
  • Key Reflexes & Pathways:
    • VOR (Vestibulo-Ocular Reflex): Maintains gaze stability during head movements.

      ⭐ The Vestibulo-Ocular Reflex (VOR) stabilizes gaze during head movements, maintaining visual acuity. Its gain is typically close to 1.0.

      • Path: VN → Medial Longitudinal Fasciculus (MLF) → Oculomotor nuclei (III, IV, VI) → Eye muscles.
    • VSR (Vestibulospinal Reflexes): Critical for posture.
      • Lateral Vestibulospinal Tract (LVST): From Lateral VN → Ipsilateral spinal cord → Extensor motor neurons (anti-gravity).
      • Medial Vestibulospinal Tract (MVST): From Medial VN → Bilateral cervical spinal cord (via MLF) → Neck/axial muscle control (head stabilization).
    • VCR (Vestibulocollic Reflex): Stabilizes head position in space; acts on neck muscles.
  • Cerebellar Loop: VN ↔ Flocculonodular lobe (vestibulocerebellum); crucial for modulating and adapting reflexes (e.g., VOR adaptation).
  • Cortical Pathway: VN → Thalamus (VPI/VPLc nuclei) → Parieto-Insular Vestibular Cortex (PIVC) & other areas for conscious perception of motion and spatial orientation.

Clinical Clues - Dizzying Dilemmas

  • Benign Paroxysmal Positional Vertigo (BPPV):
    • Brief, intense vertigo with specific head movements.
    • Dx: Positive Dix-Hallpike maneuver. Cause: Otoconia in semicircular canals (SCC).
  • Meniere's Disease:
    • Episodic vertigo (minutes to hours), fluctuating sensorineural hearing loss (SNHL), tinnitus, aural fullness.
    • Cause: Endolymphatic hydrops.
  • Vestibular Neuritis:
    • Sudden, severe vertigo (lasts days), nausea, vomiting.
    • No auditory symptoms. Cause: Inflammation of vestibular nerve (often viral).
  • Labyrinthitis:
    • Similar to vestibular neuritis (sudden vertigo) but includes hearing loss and/or tinnitus.
    • Cause: Inflammation of the labyrinth.
  • Key Diagnostic Tests:
    • Dix-Hallpike test: For BPPV.
    • Head Impulse Test (HIT): Differentiates peripheral vs. central causes.
    • Caloric Testing: Evaluates horizontal SCC function.

      ⭐ The COWS mnemonic (Cold Opposite, Warm Same) describes the direction of nystagmus fast phase during caloric testing of the horizontal semicircular canal. Caloric testing COWS mnemonic for nystagmus direction

High‑Yield Points - ⚡ Biggest Takeaways

  • Otolith organs (utricle, saccule) sense linear acceleration and head position.
  • Semicircular canals detect angular acceleration (head rotation).
  • Sensory receptors: maculae in otoliths, cristae ampullares in semicircular canals.
  • Vestibulo-Ocular Reflex (VOR) maintains stable vision during head movements.
  • Nystagmus: involuntary eye movement; fast phase indicates direction.
  • Caloric test: COWS (Cold-Opposite, Warm-Same) mnemonic for nystagmus.
  • BPPV is caused by displaced otoconia in semicircular canals_._

Practice Questions: Vestibular System

Test your understanding with these related questions

A 60-year-old man presents to his primary care physician complaining that he often feels as if the room is spinning when he gets up from a recumbent position or turns his head. He has not lost consciousness and has had no chest pain. He has no cardiac history, and a recent treadmill test showed no abnormalities. On examination, the sensation can be produced by rapidly turning the head. It can be reproduced many times, but it eventually ceases. Nystagmus is elicited. Hearing is normal. Which of the following is the MOST likely mechanism for this patient's symptoms?

1 of 5

Flashcards: Vestibular System

1/10

_____cellular pathway gives signals for movement, depth, flicker, and spatial organization

TAP TO REVEAL ANSWER

_____cellular pathway gives signals for movement, depth, flicker, and spatial organization

Magno
