Retinal Physiology - Layers & Players

  • 10 Layers (Vitreous to Choroid): 📌 Mnemonic: "Inner Nerds Go In In Outer Outer Eating Pie Regularly." (ILM→NFL→GCL→IPL→INL→OPL→ONL→ELM→Photoreceptors→RPE).
  • Key Cells & Functions:
    • Photoreceptors (Rods/Cones): Light detection.
    • Bipolar Cells: Connect Photoreceptors to Ganglion Cells.
    • Ganglion Cells: Output neurons (axons form Optic Nerve).
    • Horizontal/Amacrine Cells: Lateral modulation.

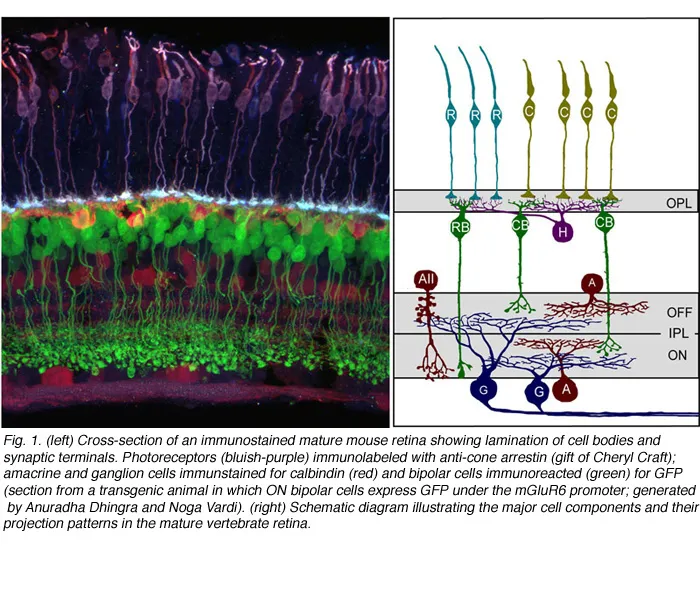

    • RPE: Support, phagocytosis. Retina Cross-Section: Cell Layers and Types

⭐ Fovea: Cone-only area for peak acuity; 1:1 cone-ganglion cell ratio.

Retinal Physiology - Light to Sight

  • Phototransduction: Light → neural signal.
    • Dark (Resting State): High $cGMP$ → Na+ channels open (dark current) → photoreceptor depolarized → glutamate released. 📌 $cGMP$ opens Sodium Gates In The Dark.
    • Light Exposure:
      1. Light isomerizes 11-cis retinal → all-trans retinal (in rhodopsin/photopsin).
      2. Activates Transducin (G-protein).
      3. Transducin activates Phosphodiesterase (PDE).
      4. PDE hydrolyzes $cGMP$ → ↓ $cGMP$ levels.
      5. Na+ channels close → photoreceptor hyperpolarization.
      6. ↓ Glutamate release.
  • Signal Transmission to Brain:
    • Bipolar cells: Modulate signal.
      • ON-center: Activated by ↓ glutamate.
      • OFF-center: Inhibited by ↓ glutamate (activated by glutamate in dark).
    • Ganglion cells: Generate action potentials; axons form optic nerve.

Phototransduction cascade steps

⭐ In the dark, photoreceptors are depolarized due to open $Na^+$ channels (maintained by high $cGMP$) and continuously release glutamate. Light causes hyperpolarization by closing these channels (via ↓ $cGMP$), thus reducing glutamate release. This change in glutamate signals to bipolar cells.

Retinal Physiology - Hue Knew?

  • Visual pigments: Retinal (aldehyde of Vitamin A) + Opsin protein.
  • Rods: Contain Rhodopsin (peak sensitivity ~500 nm, scotopic vision).
  • Cones: Contain Photopsins for color vision (photopic vision) & high acuity.
    • S-cones (Cyanolabe): Peak ~420 nm (Blue).
    • M-cones (Chlorolabe): Peak ~535 nm (Green).
    • L-cones (Erythrolabe): Peak ~565 nm (Red).
    • 📌 Mnemonic: Short, Medium, Long wavelengths for S, M, L cones.

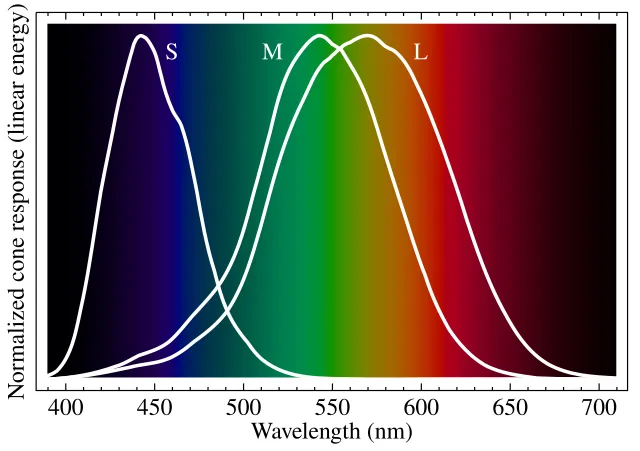

  • Trichromatic theory: Color perception based on relative stimulation of these 3 cone types. Spectral sensitivity curves of S, M, and L human cones

⭐ Genes for red (L) and green (M) cone opsins are on the X-chromosome, leading to higher prevalence of red-green color blindness in males (X-linked recessive).

Retinal Physiology - Neural Network

  • Vertical Pathway: Photoreceptors (Rods/Cones) → Bipolar Cells → Ganglion Cells (output to brain).
  • Horizontal Cells (Outer Plexiform Layer - OPL):
    • Mediate lateral inhibition.
    • Modulate photoreceptor-bipolar cell synapse.
    • Enhance contrast and edge detection.
  • Amacrine Cells (Inner Plexiform Layer - IPL):
    • Diverse types and functions (e.g., direction selectivity, motion detection).
    • Modulate bipolar cell-ganglion cell synapse.
  • Bipolar Cells: Two main types based on response to glutamate released by photoreceptors in the dark:
    • ON-center: Depolarize to light (mGluR6 receptors). Light ↓glutamate → ↓inhibition.
    • OFF-center: Hyperpolarize to light (AMPA/Kainate receptors). Light ↓glutamate → ↓excitation.
  • Ganglion Cells: Output neurons; axons form the optic nerve.
    • Types: M-cells (Magno: motion, low light), P-cells (Parvo: form, color), K-cells (Konio: blue-yellow).
    • Exhibit center-surround receptive fields.

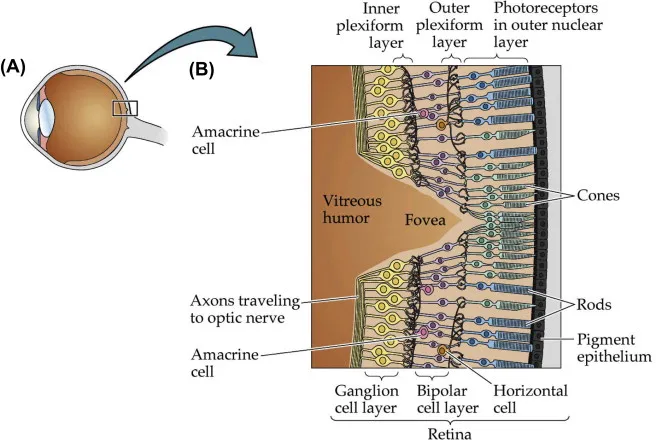

Retinal neural network layers and cell types

⭐ Lateral inhibition, primarily mediated by horizontal cells in the OPL, is crucial for sharpening spatial resolution and enhancing contrast at visual edges. This process helps define boundaries between objects and improves visual acuity by exaggerating differences in luminance between adjacent retinal regions.

Retinal Physiology - Dim & Dazzle Docs

  • Light Adaptation: Rapid (minutes). Pupils constrict, cones dominate. Rhodopsin bleaches, ↓rod sensitivity.
  • Dark Adaptation: Slower (30-40 min). Pupils dilate, rods dominate. Rhodopsin regenerates, ↑rod sensitivity.
    • Rod-cone break: Point where rods become more sensitive than cones.
  • Photoreceptors:
    • Rods: Scotopic (dim light), achromatic, high sensitivity. Pigment: Rhodopsin (Vitamin A dependent).
    • Cones: Photopic (bright light), color vision (3 types), high acuity. Pigments: Iodopsins.
  • Phototransduction: Light converts 11-cis retinal to all-trans retinal → hyperpolarization.

⭐ Nyctalopia (night blindness) is an early sign of Vitamin A deficiency, impairing rhodopsin regeneration in rods.

High‑Yield Points - ⚡ Biggest Takeaways

  • Phototransduction: Light → ↓cGMPNa+ channels closehyperpolarization of photoreceptors.
  • Rods: Specialized for scotopic vision (night), contain rhodopsin, high sensitivity, slow response.
  • Cones: Mediate photopic vision (day/color), contain iodopsins, concentrated in fovea, high acuity, fast response.
  • Dark adaptation: Involves rhodopsin regeneration and ↑rod sensitivity; light adaptation is much faster.
  • Fovea centralis: Region of highest cone concentration and maximum visual acuity; contains no rods.
  • Optic disc: Physiological blind spot due to absence of photoreceptors; site of optic nerve formation.
  • Vitamin A deficiency: Leads to nyctalopia (night blindness) by impairing rhodopsin synthesis.
