Auditory System

On this page

Ear Anatomy - Sound's Grand Entrance

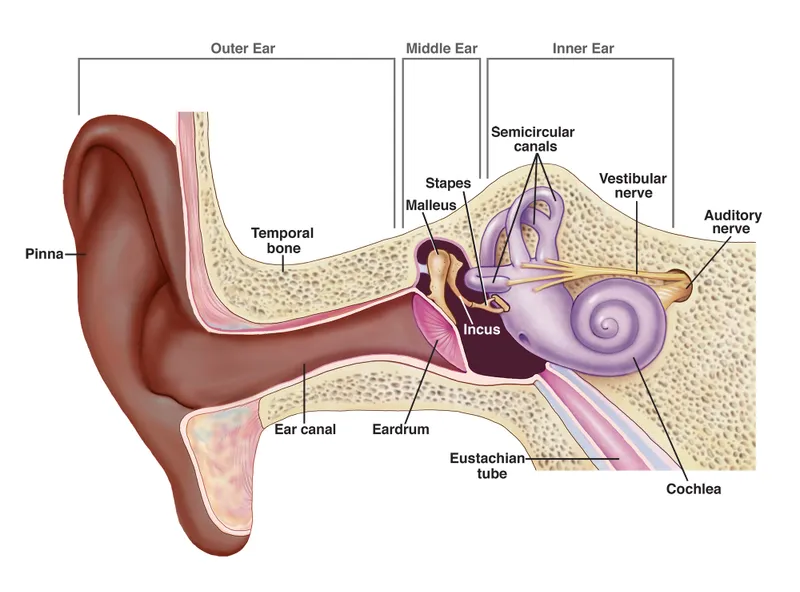

Anatomy of the Human Ear

  • Outer Ear: Collects & directs sound.
    • Pinna (Auricle): Cartilage; sound localization.
    • External Auditory Canal (Meatus): ~2.5 cm; S-shaped; outer 1/3 cartilage (cerumen), inner 2/3 bone.
    • Tympanic Membrane (Eardrum): Vibrates; 3 layers. Pars tensa & flaccida.
  • Middle Ear (Tympanic Cavity): Air-filled; transmits & amplifies vibrations.
    • Ossicles (📌 MIS: Malleus, Incus, Stapes): Smallest bones.
      • Stapes footplate on oval window.
    • Muscles: Tensor Tympani (CN V3), Stapedius (CN VII - acoustic reflex).
    • Eustachian Tube: To nasopharynx; pressure equalization.
  • Inner Ear (Labyrinth): Sensory transduction.
    • Bony Labyrinth: Perilymph (Cochlea, Vestibule, Semicircular Canals).
    • Membranous Labyrinth: Endolymph; contains sensory organs.

⭐ Stapedius muscle (CN VII) dampens loud sounds (acoustic reflex); paralysis causes hyperacusis. Smallest skeletal muscle in the body.

Sound Transmission - Wave to Nerve Impulse

  • Air to Cochlea: Sound → TM → Ossicles (Malleus, Incus, Stapes) amplify pressure (~22x) → Oval Window.

    • Impedance matching: Ossicular lever action & TM/Oval Window area ratio (~17:1).
  • Cochlear Mechanics:

    • Stapes → Perilymph wave (Scala Vestibuli → Helicotrema → Scala Tympani).
    • Basilar Membrane (BM) vibrates; Round window dampens.
    • Tonotopy: High freq. at BM base, low freq. at apex.
  • Transduction (Organ of Corti):

    • BM & Tectorial Membrane shear → Stereocilia bend (Hair Cells).
    • Towards kinocilium: Tip links open MET K+ channels.
    • K+ influx (from endolymph) → Depolarization → Ca2+ influx → Glutamate release → Auditory nerve AP.
> ⭐ Endolymph's high K+ (~**150** mEq/L) & +**80**mV endocochlear potential are vital for hair cell excitation.

Auditory Pathways - Brain's Sound Map

  • Sound's Journey: Cochlea → Auditory Cortex.
  • Bilateral Pathway Relays (Ascending):
    • Spiral Ganglion (CN VIII) → Cochlear Nuclei (CN).
    • CN → Superior Olivary Complex (SOC) - binaural interaction starts.
    • SOC → Lateral Lemniscus (LL) → Inferior Colliculus (IC) - major auditory center.
    • IC → Medial Geniculate Body (MGB) of Thalamus.
    • MGB → Auditory Cortex (Temporal Lobe; Areas 41, 42).
  • 📌 Mnemonic (Key Stops): "Cold Soup Left In My Area" (CN, SOC, LL, IC, MGB, Auditory Cortex).
  • Tonotopy: Maintained throughout; specific frequencies map to specific areas.

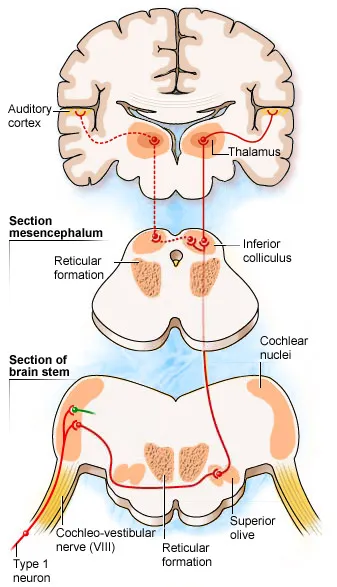

Auditory Pathway: Brainstem to Cortex

⭐ The Superior Olivary Complex is the first major site for processing binaural cues (interaural time/intensity differences), vital for sound localization.

Hearing & Tests - Deciphering Decibels

  • Decibel (dB): Logarithmic unit. Ref: $0 \text{ dB} = 20 \text{ µPa}$ (threshold).
    • 20 dB: $10 \times$ pressure increase.
    • 10 dB: $10 \times$ intensity increase.
  • Hearing:
    • Range: 20-20,000 Hz.
    • Speech: 500-2,000 Hz.
    • Pain Threshold: approx. 120-130 dB.
  • Tuning Fork Tests (512 Hz):
    • Rinne: (AC vs BC)
      • Normal/SNHL: AC > BC (+ve).
      • CHL: BC > AC (-ve).
    • Weber: (Lateralization)
      • CHL: To AFFECTED ear.
      • SNHL: To UNAFFECTED ear.
      • 📌 WEBER: CHL → Comes to affected ear.
  • PTA (Pure Tone Audiometry):
    • Plots thresholds (dB HL vs Hz).
    • ABG > 10 dB indicates CHL.

⭐ In conductive hearing loss, Weber test lateralizes to the diseased ear because the masking effect of ambient noise is reduced on that side, making bone-conducted sound appear louder.

High‑Yield Points - ⚡ Biggest Takeaways

  • Organ of Corti (scala media) has hair cells, the auditory receptors.
  • Outer hair cells amplify; inner hair cells are main sensory receptors.
  • Sound: Ossicles → oval window → cochlear fluids → basilar membrane vibration.
  • Basilar membrane tonotopy: High frequencies at base, low frequencies at apex.
  • Auditory pathway: Cochlear nuclei → SOC → IC → MGB (Thalamus) → Auditory cortex.
  • Endolymph (scala media) is K+ rich, vital for hair cell excitation.
  • Ototoxic drugs (aminoglycosides, cisplatin) risk sensorineural hearing loss.

Practice Questions: Auditory System

Test your understanding with these related questions

A 70-year-old male patient presents with high-frequency hearing loss. It was noted that the basilar membrane was affected. Which of the following structures lies near the affected structure?

1 of 5

Flashcards: Auditory System

1/10

_____ -lymph (inner ear) is characterized by high Na+ and low K+ concentration

TAP TO REVEAL ANSWER

_____ -lymph (inner ear) is characterized by high Na+ and low K+ concentration

Peri
