Oxygen and Carbon Dioxide Transport

Oxygen and Carbon Dioxide Transport

Oxygen and Carbon Dioxide Transport

On this page

O2 Carriage: Basics - The O2 Taxi Service

  • $O_2$ transported in blood in two forms:
    • Dissolved $O_2$ (~2%): Directly in plasma; $PaO_2 \times \mathbf{0.003}$. Contributes to partial pressure.
    • Bound to Hemoglobin (Hb) (~98%): Main transport mechanism.
  • Hemoglobin (Hb):
    • Protein in Red Blood Cells (RBCs); 4 heme groups, each binds one $O_2$ molecule.
    • Normal Hb: M: 13-17 g/dL, F: 12-15 g/dL.
    • $1g \text{ Hb binds } \mathbf{1.34 mL} O_2$.
  • $O_2$ Carrying Capacity: Maximum $O_2$ blood can carry if Hb is 100% saturated.
  • $O_2$ Content ($CaO_2$): Total $O_2$ in arterial blood.
    • Formula: $CaO_2 = (Hb \times \mathbf{1.34} \times SaO_2/100) + (PaO_2 \times \mathbf{0.003})$.
    • $SaO_2$: % of Hb saturated with $O_2$.
    • $PaO_2$: Partial pressure of $O_2$ in arterial blood.

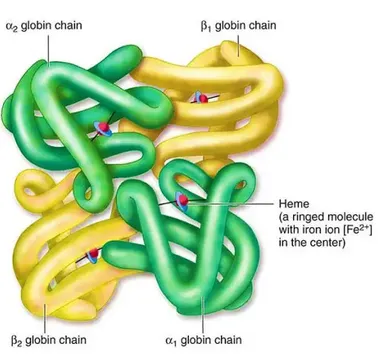

Hemoglobin Structure

⭐ Each Hb molecule can bind up to four $O_2$ molecules, exhibiting cooperative binding. The binding of one $O_2$ molecule increases the affinity of Hb for subsequent $O_2$ molecules, facilitating efficient oxygen uptake in the lungs.

O2 Dissociation Curve - Letting Go Gracefully

The Oxygen-Hemoglobin Dissociation Curve (OHDC) is a sigmoid-shaped graph crucial for understanding $O_2$ transport. It plots hemoglobin's $O_2$ saturation against the partial pressure of oxygen ($PO_2$), detailing Hb's $O_2$ binding in lungs and release in tissues.

  • P50 Value: The specific $PO_2$ at which hemoglobin is 50% saturated with $O_2$. This value inversely reflects Hb's affinity for oxygen.
    • Normal adult P50: 26.6 mmHg.
    • An ↑P50 indicates ↓ $O_2$ affinity (right shift of the curve), enhancing $O_2$ delivery to tissues.
    • A ↓P50 indicates ↑ $O_2$ affinity (left shift of the curve), promoting $O_2$ retention by Hb.

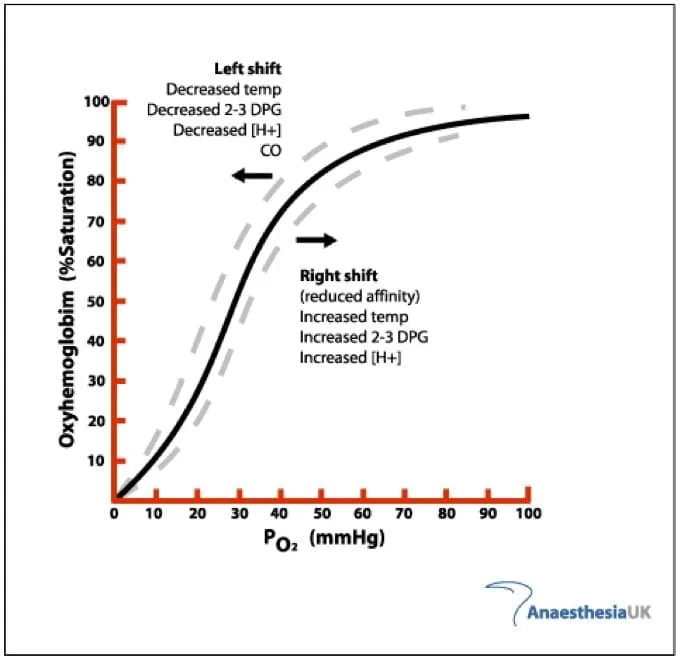

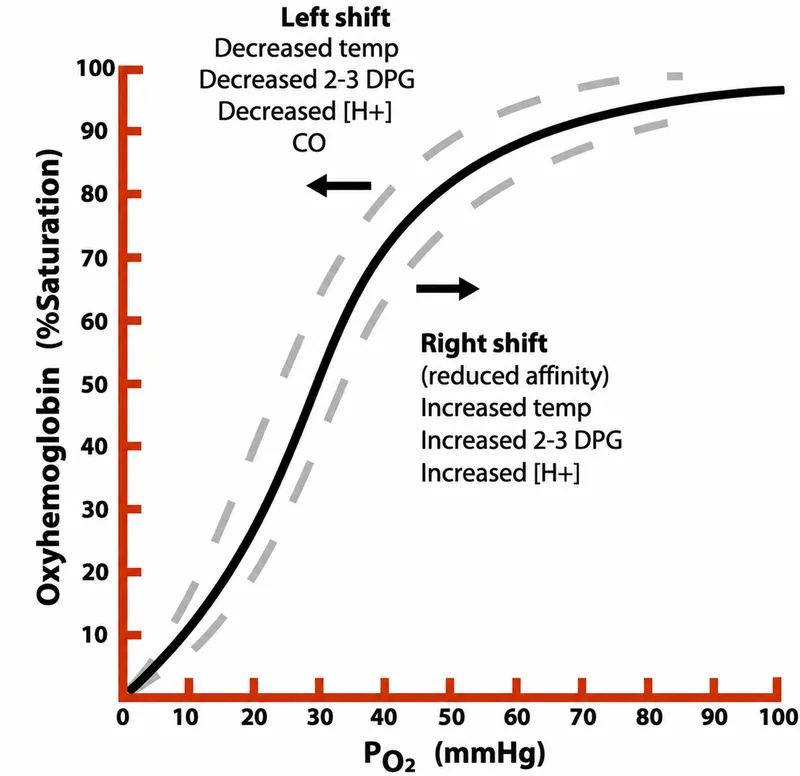

Oxygen-Hemoglobin Dissociation Curve Shifts

The mermaid diagram below details factors causing these shifts:

⭐ The OHDC's sigmoid shape is vital: its steep portion allows for substantial $O_2$ unloading to tissues with minor $PO_2$ drops, while the flat upper portion ensures high $O_2$ saturation in lungs despite $PO_2$ fluctuations.

CO2 Transport Mechanisms - The Waste Disposal Unit

  • CO2 is transported in blood in three forms:

    • As Bicarbonate ions ($HCO_3^-$): ~70%
      • $CO_2 + H_2O \xrightarrow{\text{Carbonic Anhydrase (in RBC)}} H_2CO_3 \leftrightarrow H^+ + HCO_3^-$
      • $HCO_3^-$ moves from RBC to plasma.
    • As Carbaminohemoglobin: ~23%
      • $CO_2$ binds to globin part of Hb: $CO_2 + Hb \cdot NH_2 \leftrightarrow Hb \cdot NH \cdot COOH$
      • Favored by deoxygenated Hb.
    • Dissolved $CO_2$: ~7%
      • Directly in plasma, contributes to $PCO_2$.
  • Chloride Shift (Hamburger's Phenomenon) 📌

    • To maintain electrical neutrality, $Cl^-$ enters RBC as $HCO_3^-$ exits.
    • Occurs in tissues; reverse process in lungs.
  • Haldane Effect
    • Deoxygenated Hb has a higher affinity for $CO_2$ and is a better buffer for $H^+$.
    • Oxygenation of Hb in lungs (↑ $PO_2$) promotes $CO_2$ release.

    ⭐ Haldane Effect: Deoxygenation of hemoglobin (e.g., in tissues) ↑ its ability to carry $CO_2$; conversely, oxygenated Hb (e.g., in lungs) has a ↓ affinity for $CO_2$ and releases it.

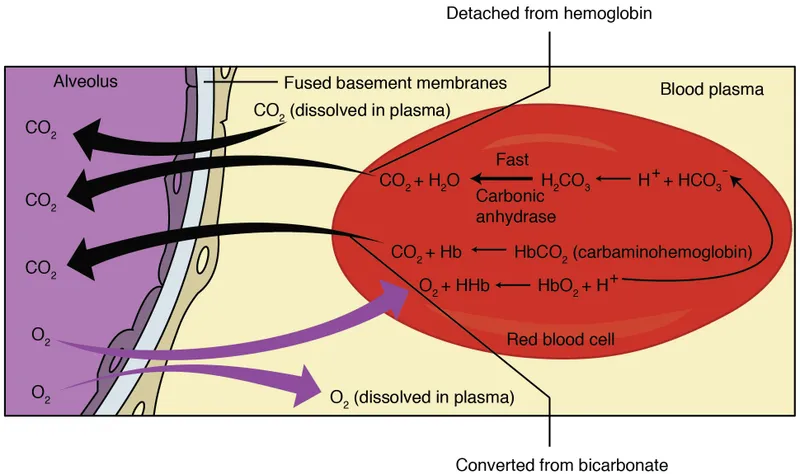

CO2 Transport and Chloride Shift

High‑Yield Points - ⚡ Biggest Takeaways

  • Oxygen primarily binds hemoglobin (97%); 3% dissolved.
  • Oxygen-Hb curve right shift (↑O₂ release): ↑PCO₂, ↑H⁺ (Bohr effect), ↑2,3-DPG, ↑Temp.
  • CO₂ transport: Mainly bicarbonate (70%), carbaminoHb (23%), dissolved CO₂ (7%).
  • Haldane effect: Deoxy-Hb has ↑affinity for CO₂ & H⁺, aiding CO₂ tissue loading.
  • Chloride shift: HCO₃⁻ exits RBCs in tissues; Cl⁻ influx maintains electroneutrality.
  • P₅₀ (~26.6 mmHg) reflects Hb-O₂ affinity; ↑P₅₀ means ↓affinity.

Practice Questions: Oxygen and Carbon Dioxide Transport

Test your understanding with these related questions

What is the primary enzyme responsible for the conversion of carbon dioxide to bicarbonate in erythrocytes?

1 of 5

Flashcards: Oxygen and Carbon Dioxide Transport

1/10

_____ in 2,3-BPG cause the O2-hemoglobin dissociation curve to shift to the left

TAP TO REVEAL ANSWER

_____ in 2,3-BPG cause the O2-hemoglobin dissociation curve to shift to the left

Decreases
