Motor Control Systems

On this page

Motor System Hierarchy - Command Central

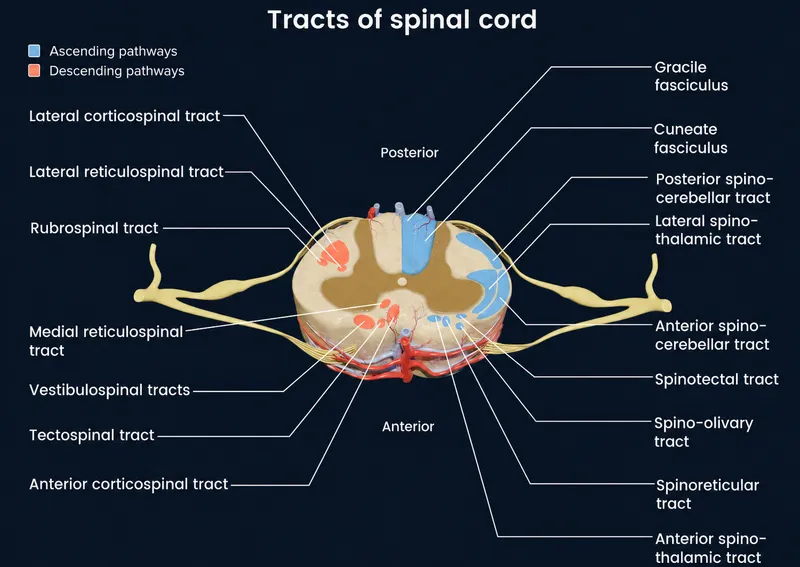

Spinal Cord Tracts Diagram

  • Levels of Control:
    • Highest: Association Cortex (strategy/goal); Motor Cortex (planning, commands).
    • Middle: Brainstem (postural control, basic movements).
    • Lowest: Spinal Cord (execution, reflexes).
  • Key Modulators:
    • Cerebellum: Coordinates, fine-tunes movements, motor learning. 📌 "Cerebellum = The Coordinator"
    • Basal Ganglia: Gates initiation/suppression of movement, habits. 📌 "Basal Ganglia = The Gatekeeper"
  • Descending Tracts (Overview):
    • Pyramidal (e.g., Corticospinal): Direct; voluntary, skilled movements.
    • Extrapyramidal (e.g., Rubrospinal): Indirect; posture, muscle tone.

⭐ Highest level (association cortex) for strategy/goal, lowest level (spinal cord) for execution detail.

Spinal Cord Reflexes - The Quick Responders

  • Motor Unit: α-MN + innervated muscle fibers. Types: S (slow), FR (fast, fatigue-resistant), FF (fast, fatigable).
  • Stretch Reflex (Myotatic): Monosynaptic. Muscle spindle (Ia afferent) → α-MN → agonist contraction.

    ⭐ Jendrassik maneuver enhances stretch reflexes by reducing descending inhibition.

  • Golgi Tendon Reflex (Inverse Stretch): Disynaptic. GTO (Ib afferent) → inhibitory interneuron → α-MN inhibition → muscle relaxation. Protects muscle.
  • Flexor Withdrawal & Crossed Extensor: Polysynaptic. Pain → ipsilateral flexion, contralateral extension.
  • Renshaw Cells: Recurrent inhibition of α-MNs; sharpens signals.

Stretch reflex arc diagramoka

Brainstem & Posture - Upright & Alert

  • Key Nuclei & Tracts:
    • Vestibular (VST): Medial VST → head stability; Lateral VST → balance, extensors ↑.
    • Reticular (RST): Pontine RST → extensors ↑; Medullary RST → flexors ↑ / extensors ↓.
    • Red Nucleus: Rubrospinal (RuST) → upper limb flexors.
  • Rigidities (Lesion Levels):
    • Decorticate (above Red Nucleus): Upper limbs flexed, lower limbs extended. (📌 Arms to CORtex)
    • Decerebrate (below Red Nucleus, above Vestibular Nuclei): All limbs extended. Decorticate vs Decerebrate Rigidity Lesion Levels

⭐ Decerebrate rigidity (extension of all four limbs) indicates a lesion below the red nucleus but above the vestibular nuclei, affecting extensor tone via unopposed vestibulospinal and pontine reticulospinal tracts.

Motor Cortex - The Executioner

  • Primary Motor Cortex (M1/Area 4): Executes voluntary movements. Somatotopically organized (motor homunculus).

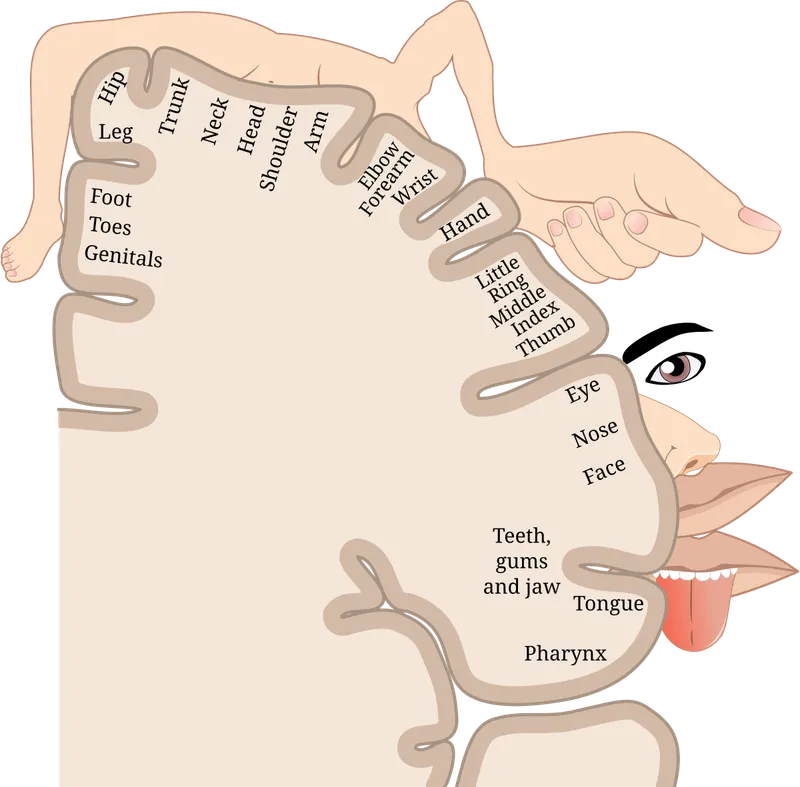

    • Motor Homunculus Diagram
  • Premotor Area (PMA/Area 6, lateral): Plans movements based on external (sensory) cues; mirror neurons.
  • Supplementary Motor Area (SMA/Area 6, medial): Plans complex, internally generated sequences; bimanual coordination.
  • Corticospinal (Pyramidal) Tract: Originates mainly from M1, PMA, SMA. Most fibers decussate at medulla (lateral tract), terminate on interneurons/motor neurons in spinal cord.

⭐ Lesions of the Primary Motor Cortex (M1) result in contralateral spastic paralysis/paresis, especially affecting fine, skilled movements of the distal limbs (e.g., fingers).

Cerebellum - The Coordinator

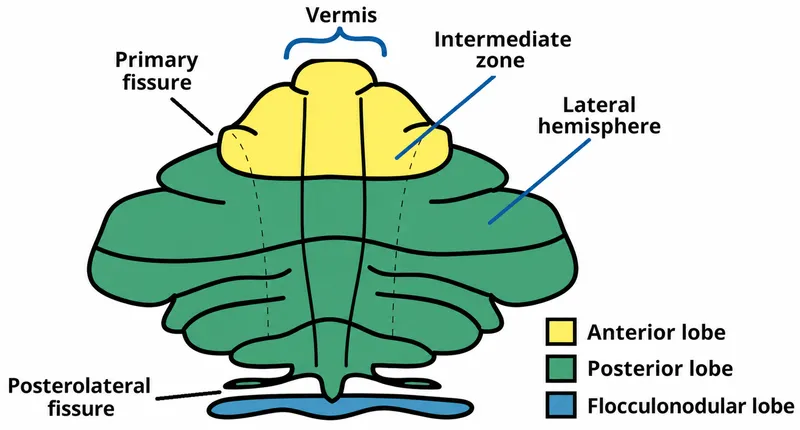

Modulates cortical/brainstem output for coordination & motor learning. Cerebellar Lobes and Functional Divisions

  • Functional Divisions:
    • Vestibulocerebellum (Flocculonodular): Balance, eye movements.
    • Spinocerebellum (Vermis, Paravermis): Execution, muscle tone, gait.
    • Cerebrocerebellum (Lateral Hemispheres): Planning, timing, motor learning.
  • Peduncles: Carry inputs/outputs connecting to brainstem.
  • Signs of Lesions (📌 DANISH P):
    • Dysdiadochokinesia, Ataxia, Nystagmus, Intention tremor, Slurred speech/Scanning speech, Hypotonia, Past-pointing.

⭐ Intention tremor is a characteristic sign of cerebellar dysfunction, worsening as the target is approached.

Basal Ganglia - The Gatekeeper

  • Components: Striatum (Caudate + Putamen), Globus Pallidus (GPe, GPi), Subthalamic Nucleus (STN), Substantia Nigra (SNc, SNr).
  • Pathways: Direct (facilitates movement via D1 receptors), Indirect (inhibits movement; modulated by D2 receptors).
  • Key Neurotransmitters: Dopamine (DA from SNc→Striatum; D1-excites direct pathway neurons, D2-inhibits indirect pathway neurons), GABA (inhibitory), Glutamate (excitatory).
  • Disorders: Parkinson's (↓SNc DA, hypokinesia), Huntington's (Striatal degeneration, hyperkinesia). Basal Ganglia Direct and Indirect Pathways Diagram

⭐ Parkinson's disease is primarily caused by the loss of dopaminergic neurons in the Substantia Nigra pars compacta, leading to overactivity of the indirect pathway and underactivity of the direct pathway, resulting in hypokinesia.

High‑Yield Points - ⚡ Biggest Takeaways

  • Cerebellum: Key for coordination, balance, motor learning. Lesions: ataxia, intention tremor, dysmetria.
  • Basal Ganglia: Modulate movement via direct (excitatory) & indirect (inhibitory) pathways. Dysfunction: Parkinson's, Huntington's.
  • Motor Cortex (M1) executes voluntary movements; Premotor/SMA for planning & sequencing.
  • UMN lesions: Spastic paralysis, hyperreflexia, positive Babinski sign.
  • LMN lesions: Flaccid paralysis, muscle atrophy, fasciculations, areflexia.
  • Muscle Spindles sense stretch; Golgi Tendon Organs sense tension.
  • Renshaw cells provide recurrent inhibition to motor neurons_

Practice Questions: Motor Control Systems

Test your understanding with these related questions

Loss of striatal fibres in caudate nucleus is associated with?

1 of 5

Flashcards: Motor Control Systems

1/10

In _____ rigidity, the upper and lower limbs show extension due to loss of excitation by corticospinal and rubrospinal fibres on flexor alpha-motor neurons of spinal cord; and corticoreticular fibres on reticular formation of medulla.

TAP TO REVEAL ANSWER

In _____ rigidity, the upper and lower limbs show extension due to loss of excitation by corticospinal and rubrospinal fibres on flexor alpha-motor neurons of spinal cord; and corticoreticular fibres on reticular formation of medulla.

decerebrate
