Electrophysiological Measurements

On this page

Membrane Potentials - Charge Matters

  • Resting Membrane Potential (RMP): Potential across cell membrane at rest. Neuron RMP ~-70mV (inside negative).

  • Ionic Basis:

    • Unequal ion distribution (Na⁺, K⁺, Cl⁻, Anions⁻).
    • Selective membrane permeability (dominant K⁺ leak at rest).
  • Key Players:

    • K⁺ efflux: Primary RMP determinant due to high resting K⁺ permeability.
    • Na⁺/K⁺ ATPase pump: Electrogenic (3 Na⁺ out / 2 K⁺ in), maintains concentration gradients.

      ⭐ The Na+/K+ ATPase pump contributes to RMP by pumping 3 Na+ ions out for every 2 K+ ions in, making the inside more negative and maintaining concentration gradients.

  • Equilibrium Potential ($E_{ion}$): Potential at which net ion flow for a specific ion is zero.

    • Nernst Equation: $E_{ion} = (RT/zF) \ln([ion]{out}/[ion]{in})$.
  • Goldman-Hodgkin-Katz (GHK) Equation: Calculates overall RMP considering relative permeabilities ($P$) of multiple key ions (K⁺, Na⁺, Cl⁻).

    • $V_m = (RT/F) \ln((P_K[K^+]{out} + P{Na}[Na^+]{out} + P{Cl}[Cl^-]{in}) / (P_K[K^+]{in} + P_{Na}[Na^+]{in} + P{Cl}[Cl^-]_{out}))$.

Action Potentials - Spark of Life

  • Rapid, all-or-none electrical signals in excitable cells. Triggered when stimulus reaches threshold potential (approx. -55mV).
  • Phases & Ionic Basis:
    • Depolarization: Rapid Na$^+$ influx (voltage-gated Na$^+$ channels open).
    • Repolarization: K$^+$ efflux (voltage-gated K$^+$ channels open, Na$^+$ channels inactivate).
    • Hyperpolarization: K$^+$ channels close slowly; membrane potential briefly dips below RMP.
  • Refractory Periods:
    • Absolute (ARP): No new AP possible. 📌 "Absolutely No AP".
    • Relative (RRP): New AP with stronger stimulus. 📌 "Relatively Stronger Stimulus for AP".

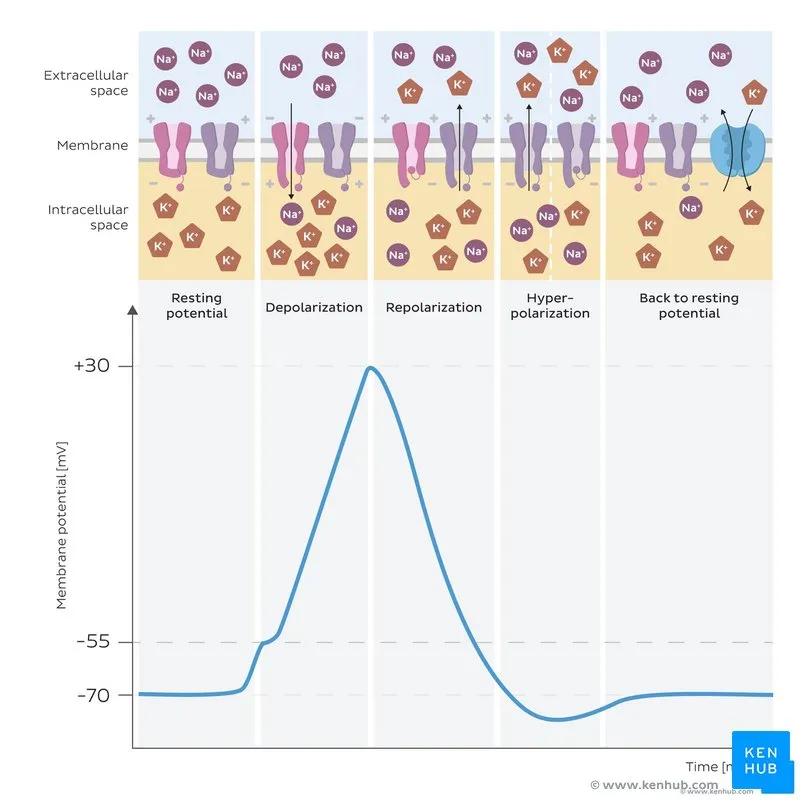

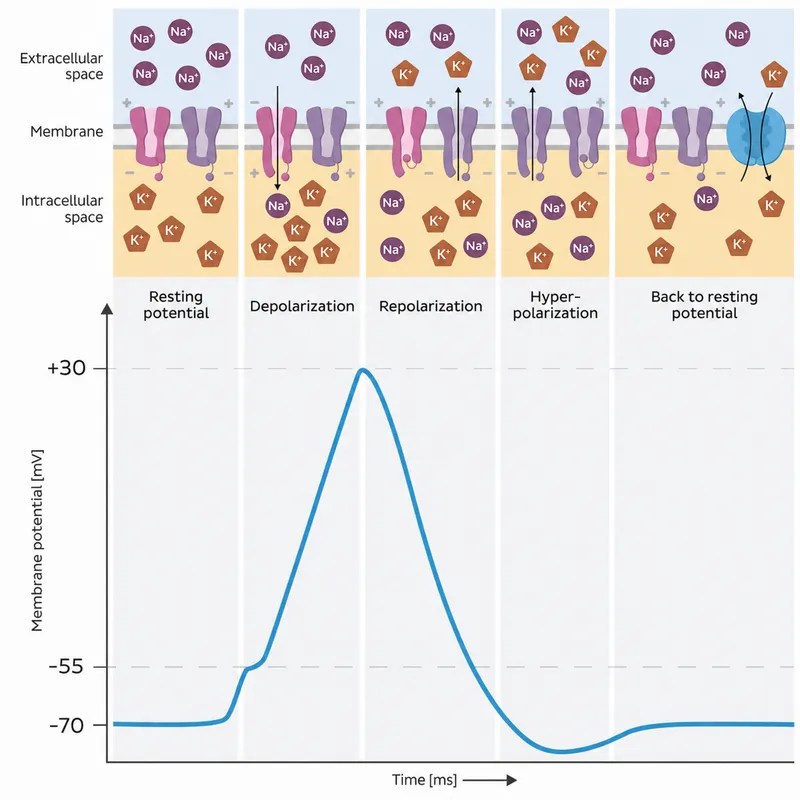

Action potential curve with ionic basis

⭐ Tetrodotoxin (TTX) selectively blocks voltage-gated Na$^+$ channels, preventing action potential generation.

Nerve Conduction & Synapses - Message Relays

  • Conduction: AP propagation.
    • Myelinated: Saltatory (Nodes of Ranvier), ↑speed. 📌 SALTy Dog: Saves ATP, Large diameter, Temperature dependent, Myelinated.
    • Unmyelinated: Continuous, ↓speed.

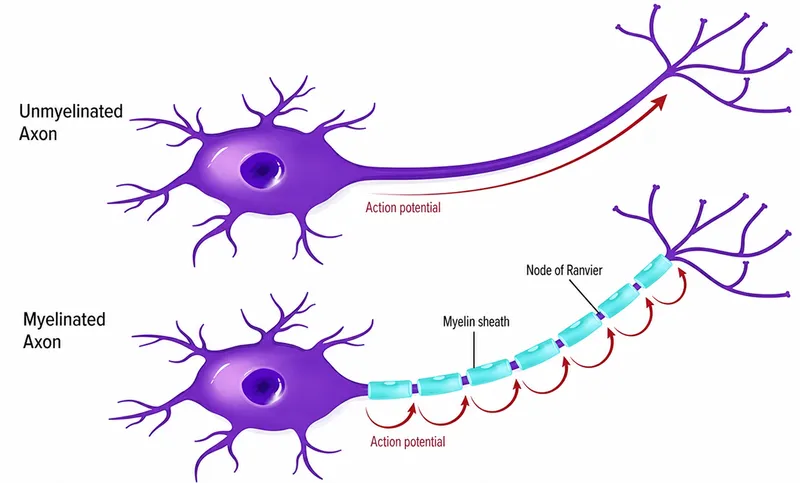

    • Factors: ↑Diameter, Myelin → ↑Velocity. Saltatory vs. Continuous Conduction

⭐ Myelination ↑conduction velocity (insulation, saltatory at Nodes of Ranvier).

  • Synapses: Signal junctions.

    • Chemical: Neurotransmitters (e.g., ACh); unidirectional; synaptic delay (~0.5 ms). AP → Ca²⁺ influx → NT release → PSP.
    • Electrical: Gap junctions; rapid; bidirectional. Chemical Synapse Function
  • Erlanger-Gasser Nerve Fibers:

    TypeMyelinDia (µm)Vel (m/s)Key Function(s)
    Yes12-2070-120Proprioception, Motor
    Yes5-1230-70Touch, Pressure
    Yes3-615-30Muscle spindle motor
    Yes2-512-30Fast pain, Cold
    BYes<33-15Preganglionic autonomic
    CNo0.4-1.20.5-2Slow pain, Warmth, Postganglionic

Clinical Electrophysiology - Diagnostic Sparks

Clinical electrophysiology uses electrical recordings to diagnose neurological disorders.

TestRecordsKey Uses & ExamplesCharacteristic Findings
EMGMuscle electrical activity (insertional, spontaneous, MUAPs)Myopathy, neuropathy, NMJ disorders (Myasthenia Gravis, LEMS)Fibrillations, +ve sharp waves (denervation); Small, short, polyphasic MUAPs (myopathy); Decrement on RNS (MG)
NCSNerve signal speed (CV) & strength (CMAP/SNAP amplitude, latency)Peripheral neuropathy (CTS, GBS), radiculopathy, plexopathy, nerve trauma↓ CV, ↑ distal latency (demyelination); ↓ amplitude (axonal loss); Conduction block
EEGBrain's spontaneous electrical activity via scalp electrodesSeizures/epilepsy, encephalopathy, sleep disorders, brain death determinationSpike-wave discharges (epilepsy); Diffuse slowing (encephalopathy); Specific sleep stage patterns
EPsNervous system electrical responses to sensory stimuli (Visual, Auditory, Somatosensory)MS (VEP for optic neuritis), hearing loss (BAEP), spinal cord/brainstem lesions (SSEP)↑ Latency, ↓ amplitude of recorded potentials, indicating slowed or impaired conduction

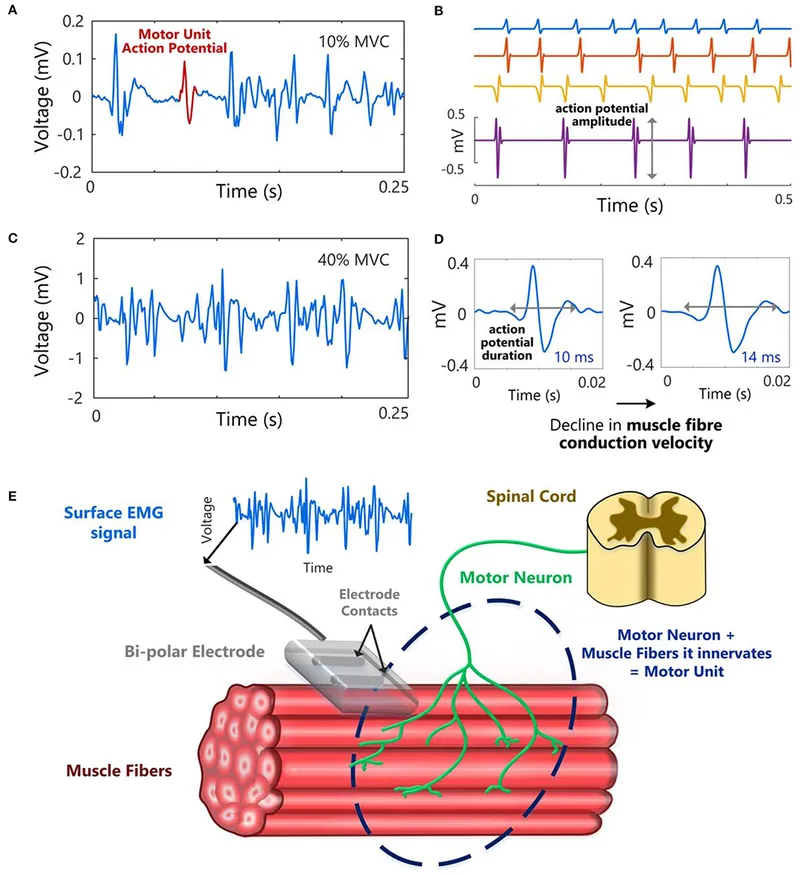

EMG setup, waveforms, and motor unit diagram

⭐ In Myasthenia Gravis, repetitive nerve stimulation (RNS) during EMG shows a characteristic decremental response (>10% decrease in amplitude of CMAP).

High‑Yield Points - ⚡ Biggest Takeaways

  • Nernst equation calculates equilibrium potential for a single ion.
  • Goldman-Hodgkin-Katz (GHK) equation determines Resting Membrane Potential (RMP) considering multiple ion permeabilities.
  • Patch-clamp technique measures current through single ion channels.
  • EEG records brain's electrical activity; identifies seizure patterns.
  • EMG assesses muscle electrical activity; differentiates myopathy from neuropathy.
  • Nerve Conduction Velocity (NCV) measures action potential speed; reduced in demyelination.
  • Evoked Potentials (EPs) assess neural pathways via sensory stimuli responses.
