Bioelectric Phenomena

On this page

Resting Membrane Potential - Cell's Electric Chill

  • Electrical potential difference across a non-excited cell membrane; inside negative.
  • Typical: -70 mV to -90 mV (neurons).
  • Key Determinants:
    • High K⁺ permeability (K⁺ efflux): Primary driver. K⁺ Nernst Potential ($E_K$) approx. -90 mV.
      • Nernst Eq: $E_{ion} = (61.5/z) \log ([ion]{out}/[ion]{in})$
    • Na⁺/K⁺ ATPase: 3 Na⁺ out / 2 K⁺ in (electrogenic). 📌 "PUMPKIN": Pump K⁺ IN.
    • Intracellular anionic proteins (A⁻).
  • Goldman-Hodgkin-Katz (GHK) equation: Calculates RMP using multiple ion permeabilities.

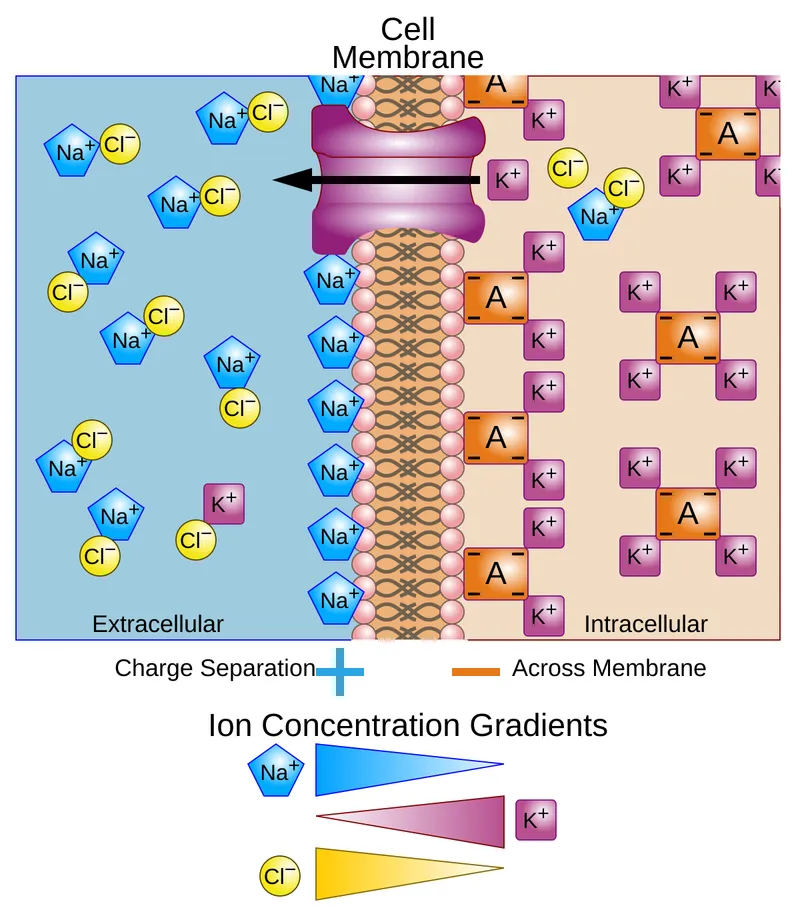

⭐ The Na+/K+ ATPase pump contributes significantly to RMP by pumping 3 Na+ ions out for every 2 K+ ions in, making the inside more negative (electrogenic pump, contributes ~-4mV). Resting membrane potential ion distribution and Na/K pump

Action Potential - Nerve's Electric Spike

  • Rapid, transient, 'all-or-none' electrical spike in excitable cells (neurons, muscle).
  • Triggered when stimulus depolarizes membrane to threshold potential (approx. -55 mV).

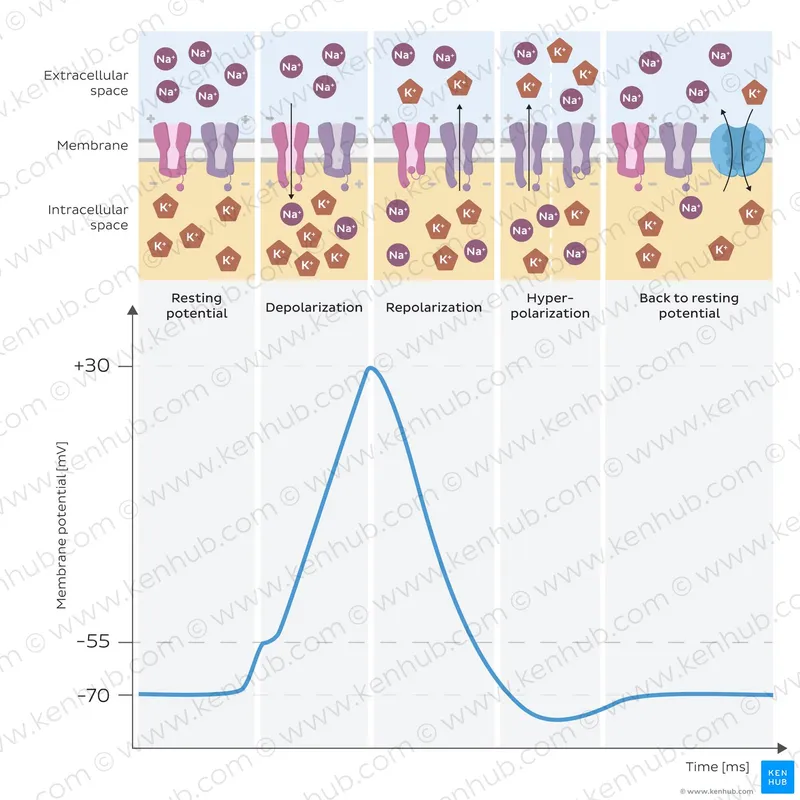

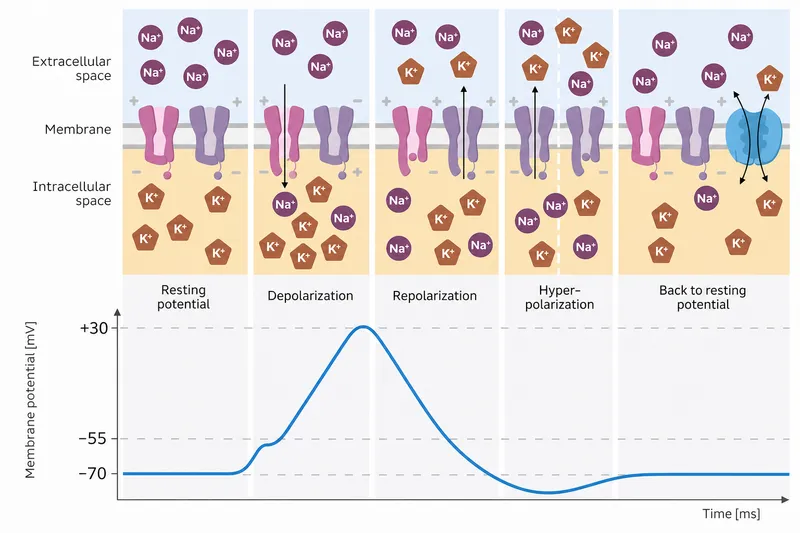

Action potential graph with ion channel states

Phases & Ionic Basis:

  • Depolarization:
    • Voltage-gated Na+ channels (VGSCs) open rapidly → Na+ influx.
    • Membrane potential reverses (overshoot, e.g., to +30 mV).
  • Repolarization:
    • VGSCs inactivate.
    • Voltage-gated K+ channels (VGKCs) open → K+ efflux.
  • Hyperpolarization (Afterpotential):
    • VGKCs close slowly → RMP transiently more negative (undershoot).

Properties:

  • All-or-None Law: AP fires at full amplitude if threshold is met, or not at all.
  • Refractory Periods:
    • Absolute (ARP): No new AP. VGSCs inactivated.
    • Relative (RRP): Stronger stimulus needed. Some VGSCs recovered, K+ efflux continues.
  • 📌 Mnemonic: "Salt (Na+) IN for Depolarization, Potato (K+) OUT for Repolarization."

⭐ Tetrodotoxin (TTX) from pufferfish selectively blocks voltage-gated Na+ channels, preventing action potential generation.

Key Channel Blockers:

  • Voltage-gated Na+ channels:
    • Tetrodotoxin (TTX)
    • Lidocaine (local anesthetic)
  • Voltage-gated K+ channels:
    • Tetraethylammonium (TEA)

Synaptic & Receptor Potentials - Signals Across Gaps

  • Synaptic Potentials: Graded postsynaptic Vm changes.
    • EPSP (Excitatory Postsynaptic Potential): Depolarization ($Na^+$ influx via glutamate). Moves Vm to threshold.
    • IPSP (Inhibitory Postsynaptic Potential): Hyperpolarization ($Cl^-$ influx / $K^+$ efflux via GABA, glycine). Moves Vm from threshold.
    • Summation:
      • Temporal: Single presynaptic neuron, rapid stimuli.
      • Spatial: Multiple presynaptic neurons, simultaneous stimuli.
  • Receptor/Generator Potentials: Graded sensory receptor potentials.
    • Stimulus alters ion permeability.
    • Amplitude ~ stimulus intensity.
    • Triggers AP if threshold reached.

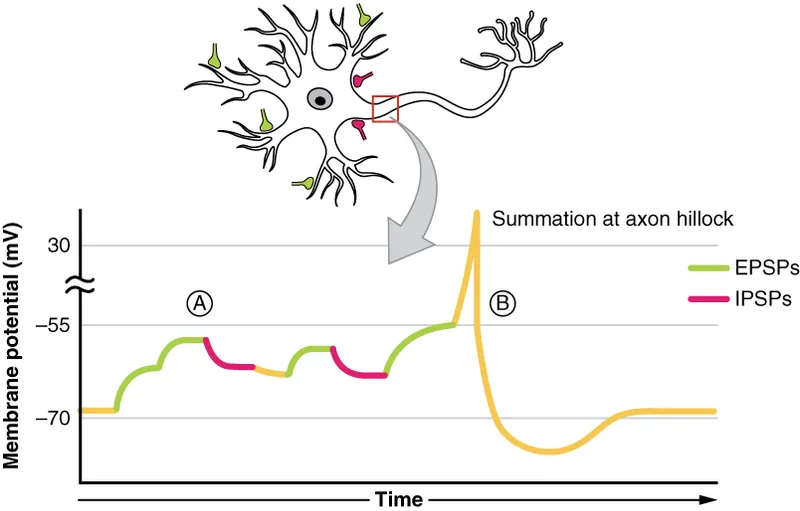

    • Adaptation: ↓ response to sustained stimulus. EPSP, IPSP, and summation at axon hillock

⭐ Temporal summation involves multiple stimuli from a single presynaptic neuron close in time, while spatial summation involves stimuli from multiple presynaptic neurons at the same time.

Clinical Correlations - Bioelectric Insights

  • Diagnostic tools utilize body's bioelectric signals.
  • ECG (Electrocardiogram):
    • Assesses heart's electrical activity.
    • Key for arrhythmias, ischemia detection.
  • EEG (Electroencephalogram):
    • Records brain's electrical rhythms.
    • Aids in epilepsy, sleep disorder diagnosis.
  • EMG (Electromyogram) & NCS (Nerve Conduction Studies):
    • Assess nerve & muscle electrical activity.
    • Crucial for diagnosing neuropathies, myopathies.

⭐ Channelopathies are diseases caused by disturbed function of ion channel subunits or the proteins that regulate them, e.g., Liddle's syndrome (ENaC).

High‑Yield Points - ⚡ Biggest Takeaways

  • RMP: Primarily due to K+ efflux; maintained by Na+/K+ ATPase.
  • Action Potential: All-or-none; Na+ influx (depolarization), K+ efflux (repolarization).
  • Nernst potential for single ion; Goldman equation for RMP with multiple ions.
  • Chronaxie: Excitability measure; time for 2x Rheobase current to cause excitation.
  • Saltatory conduction: Myelinated nerves; AP jumps Nodes of Ranvier, ↑ conduction velocity.
  • Donnan equilibrium: Explains effect of non-diffusible ions on ion distribution.

Practice Questions: Bioelectric Phenomena

Test your understanding with these related questions

Sequence the events in neuromuscular action potential conduction: 1. Sodium channels open in the end plate 2. Calcium enters at the nerve terminal 3. Release of acetylcholine

1 of 5

Flashcards: Bioelectric Phenomena

1/10

Diffusion potential for an ion across a membrane depends on _____, permeability and concentrations of ions

TAP TO REVEAL ANSWER

Diffusion potential for an ion across a membrane depends on _____, permeability and concentrations of ions

polarity
