Congenital Heart Diseases: Cyanotic

Congenital Heart Diseases: Cyanotic

Congenital Heart Diseases: Cyanotic

On this page

Cyanotic CHDs: Overview - Blue Babies Basics

  • Result from critical right-to-left (R→L) shunts; deoxygenated blood bypasses lungs, entering systemic circulation.
  • Hallmark: Central cyanosis ("blue babies" - lips, tongue, nail beds). Clubbing is a later, chronic sign.
  • 📌 Common causes (Mnemonic: 5 T's):
    • Tetralogy of Fallot (TOF)
    • Transposition of Great Arteries (TGA)
    • Tricuspid Atresia
    • Truncus Arteriosus
    • Total Anomalous Pulmonary Venous Return (TAPVR)
  • Many are duct-dependent for survival (PGE1 infusion vital). Classified by Pulmonary Blood Flow (PBF):

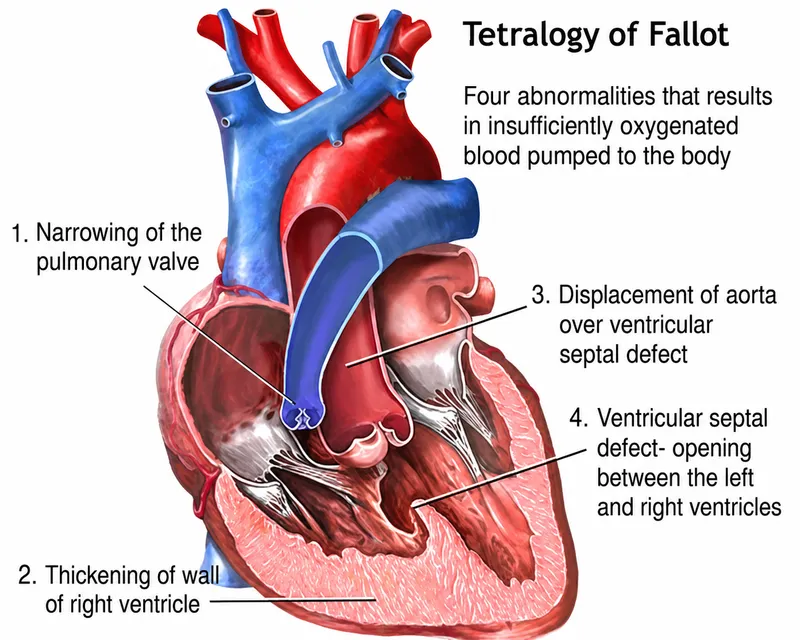

Tetralogy of Fallot abnormalities

⭐ Most cyanotic CHDs present with cyanosis in the neonatal period or early infancy, often worsening with crying or feeding.

Tetralogy of Fallot (TOF) - Four Faults Fury

  • Most common cyanotic CHD after 1 year. 📌 PROVe for components:
    • Pulmonary Infundibular Stenosis (determines severity, RVOTO)
    • Right Ventricular Hypertrophy (RVH)
    • Overriding Aorta (receives blood from both ventricles)
    • Ventricular Septal Defect (VSD - large, malaligned)
  • Symptoms: Cyanosis (episodic "tet spells" with O2 saturation often <70%), dyspnea on exertion, clubbing. Failure to thrive.
  • CXR: "Boot-shaped heart" (Coeur en sabot); normal or decreased pulmonary vascularity. Tetralogy of Fallot: Boot-Shaped Heart X-ray Tetralogy of Fallot heart anatomy diagram
  • ECG: Right axis deviation, RVH. Echocardiography confirms diagnosis.
  • Management of Tet Spells:

⭐ Squatting (or child assuming knee-chest position) increases systemic vascular resistance (SVR), reducing the right-to-left shunt, thus improving pulmonary blood flow and oxygenation during a tet spell. This is a classic physiological maneuver tested frequently.

Transposition of Great Arteries (TGA) - Switched Vessels Saga

  • Patho: Aorta from RV, PA from LV (ventriculoarterial discordance) → two parallel circulations.
  • Clinical: Severe cyanosis from birth ("blue baby"), tachypnea, loud single S2. Often "quiet tachypnea".
  • Investigations:
    • CXR: "Egg-on-string" sign; narrow superior mediastinum.

    • ECG: Right axis deviation (RAD), RV hypertrophy (RVH).

    • Echocardiogram: Diagnostic.

  • Management:
    • Immediate: $PGE_1$ dose: 0.05-0.1 mcg/kg/min to maintain PDA patency.
    • Balloon Atrial Septostomy (Rashkind) for poor mixing.
    • Definitive: Arterial Switch Operation (Jatene) within 2 weeks.
  • 📌 Mnemonic: Two Great Arteries Switched.

⭐ Survival in TGA is dependent on mixing between pulmonary and systemic circulations (e.g., via ASD, VSD, or PDA).

Other Key Cyanotic CHDs - The Rarer Blues Crew

  • Focus on distinguishing features of less common cyanotic heart diseases.
  • Early recognition and intervention are critical.
FeatureTricuspid AtresiaTotal Anomalous Pulmonary Venous Return (TAPVR)Truncus Arteriosus
Core DefectNo Tricuspid Valve, hypoplastic RVPulm. veins to RA/systemic veins (not LA)Single arterial trunk (Aorta+PA)
CXR↓Pulm. Vasc. Markings, "Box-shaped heart""Snowman sign" (supracardiac), ↑PVM (unobstructed) Chest X-ray: Snowman sign in TAPVRCardiomegaly, ↑PVM, Rt aortic arch (30%)
ECGLAD, RAE, LVH (📌 Tall And Left for TA)RAD, RVHBiventricular Hypertrophy (BVH)
Key AssociationASD/VSD essentialASD essentialVSD always present; DiGeorge syndrome (22q11 deletion)
MurmurVSD murmur if present; single S2Systolic Ejection Murmur, widely split fixed S2 (if ASD)Single loud S2, ejection click, harsh systolic murmur

High‑Yield Points - ⚡ Biggest Takeaways

  • Tetralogy of Fallot (TOF): Most common cyanotic CHD; "boot-shaped" heart; tet spells relieved by squatting.
  • Transposition of Great Arteries (TGA): Most common in newborns; "egg-on-string" sign; requires PGE1 for ductal patency.
  • Prostaglandin E1 (PGE1) is vital for duct-dependent lesions.
  • Ebstein's anomaly: Maternal lithium association; atrialized right ventricle.
  • TAPVR (supracardiac): "Snowman sign" or "figure of 8" on CXR.
  • Truncus Arteriosus: Single arterial trunk, often with DiGeorge syndrome.

Practice Questions: Congenital Heart Diseases: Cyanotic

Test your understanding with these related questions

Which of the following is a PRIMARY component of Tetralogy of Fallot?

1 of 5

Flashcards: Congenital Heart Diseases: Cyanotic

1/10

_____ is characterized by the pulmonary artery arising from the left ventricle and aorta from the right ventricle

TAP TO REVEAL ANSWER

_____ is characterized by the pulmonary artery arising from the left ventricle and aorta from the right ventricle

D-transposition of the great vessels
