Pediatric Spine Deformities

On this page

Spine Deformity Basics - Initial Twists

  • Core Deformities & Planes:
    • Scoliosis: Lateral bend + vertebral rotation (Coronal plane).
    • Kyphosis: Posterior "hunchback" curve (Sagittal plane).
    • Lordosis: Anterior "swayback" curve (Sagittal plane).
  • Scoliosis Specifics:
    • Cobb Angle: > 10° for diagnosis.
    • Vertebral Rotation ("Twist"): Key to structural scoliosis. Differentiates from flexible, non-structural curves.
  • Kyphosis Threshold:
    • Normal Thoracic: 20-45°.
    • Hyperkyphosis: > 50°.
  • Common Etiologies: Idiopathic (most frequent), Congenital (vertebral anomalies), Neuromuscular (muscle imbalance).

⭐ Adam's Forward Bend Test helps detect the rotational component (rib hump) in scoliosis, indicating a structural curve.

Idiopathic Scoliosis - Curve Control

  • AIS: Most common; >10 yrs. Screen: Adam's Test, Scoliometer (>5-7° → X-ray).
  • Cobb Angle: Measures curve on X-rays.
  • Risser Sign: Iliac apophysis (0-5); skeletal maturity. Treatment guide.
  • Goals: Halt progression, balance, prevent lung issues.

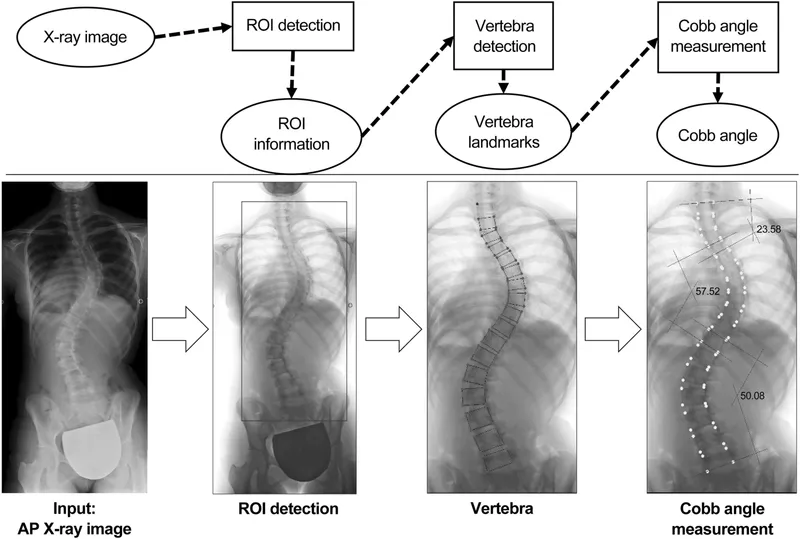

Cobb Angle Measurement Steps

⭐ Bracing in AIS is primarily for skeletally immature patients (Risser 0, 1, 2) with curves 25-45° to halt progression; it does not correct the existing curve.

Kyphosis & Spondylolisthesis - Sagittal Slips

Kyphosis: Excessive posterior thoracic curvature.

  • Postural: Flexible; corrects with hyperextension.
  • Scheuermann's: Rigid; thoracic kyphosis >45°.
    • Criteria: Wedging > (≥3 vertebrae), Schmorl's nodes, irregular endplates.
    • Rx: Brace (45-75°, immature); Surgery (>75° or neuro).
  • Congenital: Vertebral anomaly; high neuro risk. Early surgery.

Spondylolisthesis: Anterior vertebral slip, commonly L5-S1.

  • Isthmic (Type II): Common in adolescents; pars defect (spondylolysis).
    • 📌 "Scottie dog" sign on oblique X-ray for pars defect.
  • Meyerding Grades (% slip): I (0-25), II (26-50), III (51-75), IV (76-100), V (>100).
  • Clinical: LBP, tight hamstrings, "step-off".
  • Rx: Conservative (low grade). Surgery (high grade/progressive/symptomatic).

⭐ In children, high-grade spondylolisthesis (Grade III+) has a higher risk of progression and neurologic compromise.

Congenital & NM Scoliosis - Complex Curves

  • Congenital Scoliosis:
    • Etiology: Vertebral anomalies - failure of formation (e.g., hemivertebra, wedge vertebra) or failure of segmentation (e.g., unsegmented bar, block vertebra).
    • Progression: High risk, especially with unilateral unsegmented bar + contralateral hemivertebra (up to 75% progress).
    • Associated: VACTERL, Klippel-Feil syndrome, intraspinal anomalies (e.g., diastematomyelia - MRI essential pre-op).
    • Curve: Often rigid, sharp, angular.
  • Neuromuscular (NM) Scoliosis:
    • Etiology: Cerebral palsy (most common), Duchenne muscular dystrophy, SMA, myelomeningocele.
    • Curve: Long, sweeping "C"-shaped curves; often associated with significant pelvic obliquity.
    • Progression: Rapid, especially in non-ambulatory patients; continues after skeletal maturity.
    • Pulmonary function compromise is common.
  • Management (Complex Curves):
    • Observation: Curves < 25°.
    • Bracing: Limited efficacy in congenital; may delay surgery in some NM scoliosis (e.g., to allow lung maturation), but often poorly tolerated.
    • Surgery: Indicated for progressive curves > 50°. Options include growing rods (e.g., VEPTR, magnetically controlled), spinal fusion, hemivertebra excision.
      • Goals: Prevent progression, improve sitting balance, preserve/improve pulmonary function. Congenital Scoliosis X-ray with Hemivertebrae

⭐ In neuromuscular scoliosis, pelvic obliquity is a critical component; failure to address it during spinal fusion can lead to persistent sitting imbalance and pressure sores.

High‑Yield Points - ⚡ Biggest Takeaways

  • Scoliosis: Cobb angle >10°. Screen with Adam's forward bend test. AIS is most common.
  • AIS: Risser sign for maturity. Brace 25-45° (immature). Surgery for curves >45-50°.
  • Congenital Scoliosis: Due to vertebral anomalies (hemivertebrae). High risk of progression.
  • Neuromuscular Scoliosis: In CP, DMD. Often progressive, requires early surgery.
  • Scheuermann's Kyphosis: Rigid thoracic kyphosis; anterior wedging ≥5° (≥3 vertebrae); Schmorl's nodes.
  • Spondylolisthesis: Isthmic type (L5-S1 pars defect) common. Use Meyerding grading.

Practice Questions: Pediatric Spine Deformities

Test your understanding with these related questions

A 45-year-old patient presents with chronic lower back pain. X-ray shows anterior displacement of a vertebral body. What is the likely diagnosis?

1 of 5

Flashcards: Pediatric Spine Deformities

1/10

When the neck-shaft angle is >_____, the condition is known as coxa valga

TAP TO REVEAL ANSWER

When the neck-shaft angle is >_____, the condition is known as coxa valga

135
