Hand Anatomy & Biomechanics - Skeleton Scaffolding

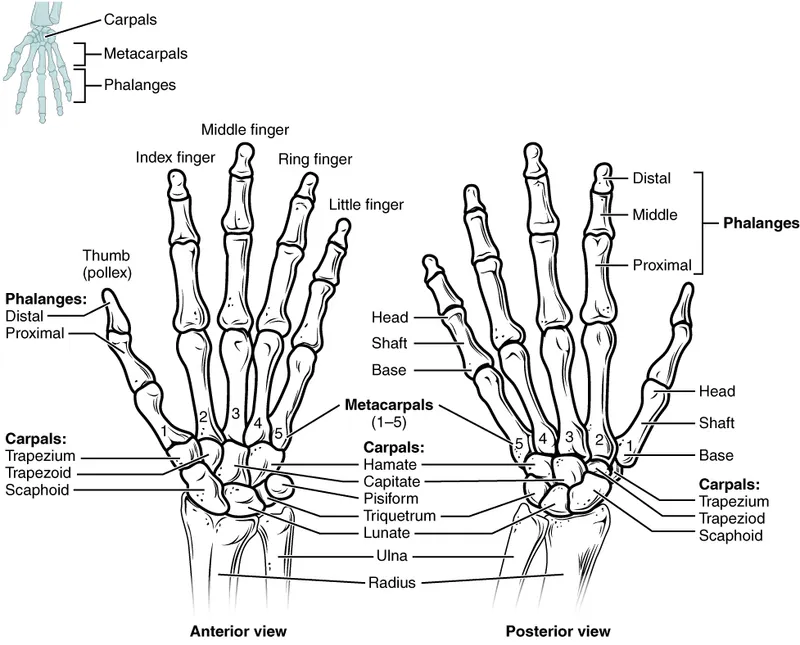

Hand skeleton anterior and posterior views with labels

  • Carpal Bones (8): Two rows. 📌 So Long To Pinky, Here Comes The Thumb.
    RowBones (Proximal First)Key Features
    ProximalScaphoid, Lunate, Triquetrum, PisiformScaphoid: Fx, AVN. Lunate: Kienböck's. Pisiform: Sesamoid.
    DistalTrapezium, Trapezoid, Capitate, HamateTrapezium: CMC OA. Capitate: Largest. Hamate: Hook fx, ulnar n.
  • Metacarpals (5), Phalanges (14): Palm & digits. Thumb: 2 phalanges; Fingers: 3.
  • Key Joints: Radiocarpal, Midcarpal, CMC, MCP, IP (PIP, DIP).

⭐ Scaphoid: most common carpal fracture; proximal pole AVN risk (retrograde blood supply).

Hand Anatomy & Biomechanics - Movers & Shakers

  • Flexor Tendons:
    • FDS (PIP flexion), FDP (DIP flexion).
    • Verdan's zones 1-5 for injury classification.
    • Pulleys (Annular A1-5, Cruciform C1-3) prevent bowstringing.
  • Extensor Tendons:
    • Organized into 6 dorsal compartments at the wrist.
    • Extensor mechanism (hood): complex structure with central slip (PIP extension) & lateral bands (DIP extension).
  • Intrinsic Muscles: For fine motor control & grip strength.
    • 📌 Lumbrical action: 'Lumbricals flex MCP, extend IP' joints (form an 'L' shape). | Muscle Group | Key Muscles | Innervation | Main Action(s) | |--------------|----------------------|-----------------------------|-----------------------------------------| | Thenar | APB, OP, FPB (part) | Median N. | Thumb opposition, abduction, flexion | | Hypothenar | ADM, ODM, FDM | Ulnar N. | Little finger abduction, opposition | | Lumbricals | L1-4 | Median (L1,2), Ulnar (L3,4) | Flex MCPs, Extend IPs | | Interossei | Palmar (PAD), Dorsal (DAB) | Ulnar N. | Adduct (PAD), Abduct (DAB) fingers |

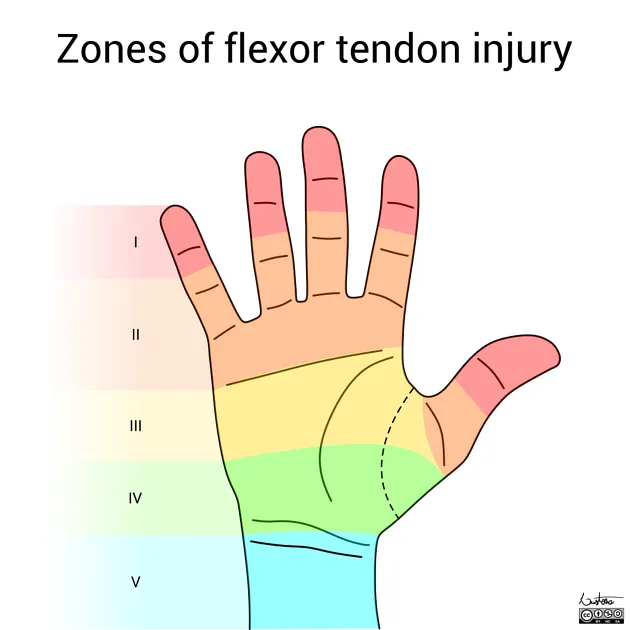

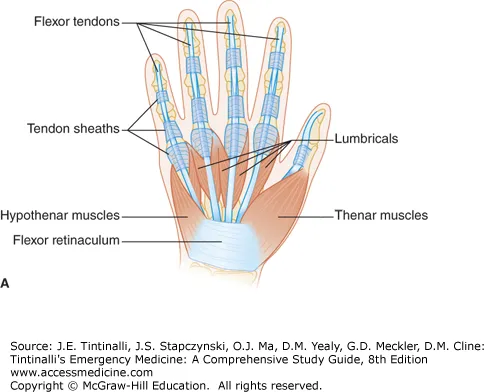

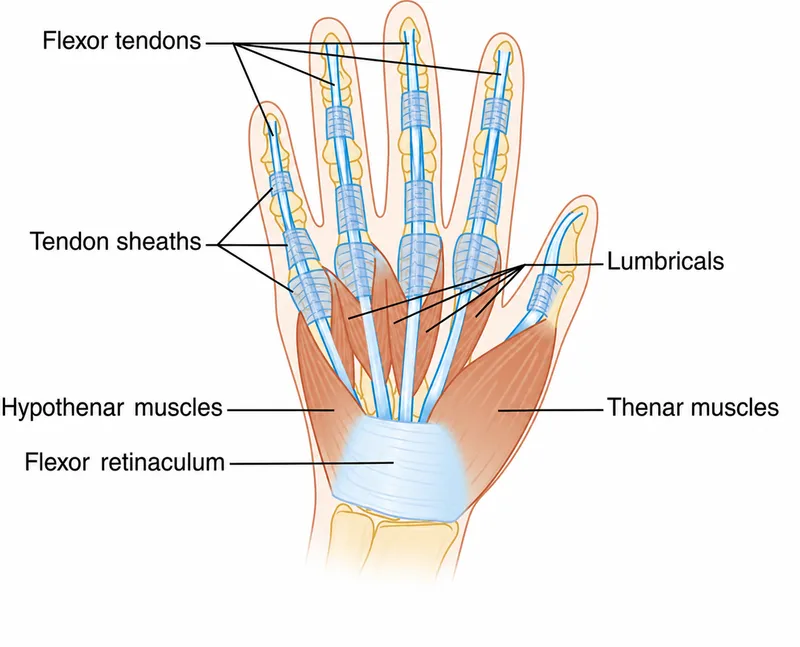

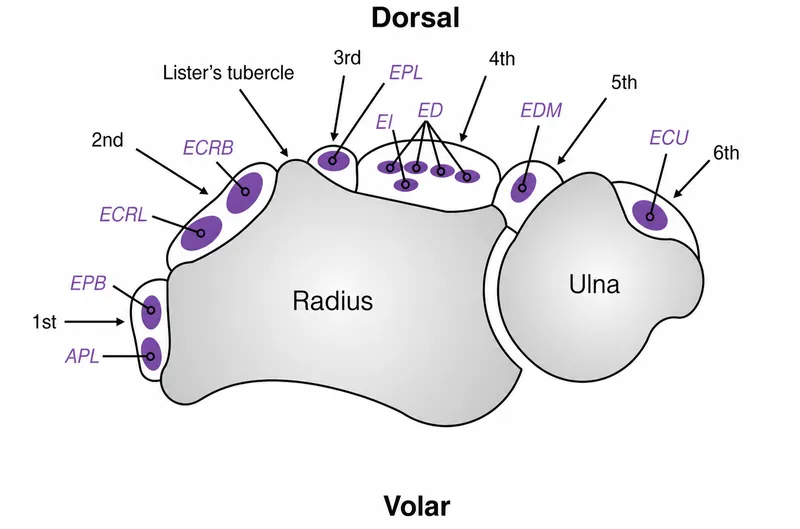

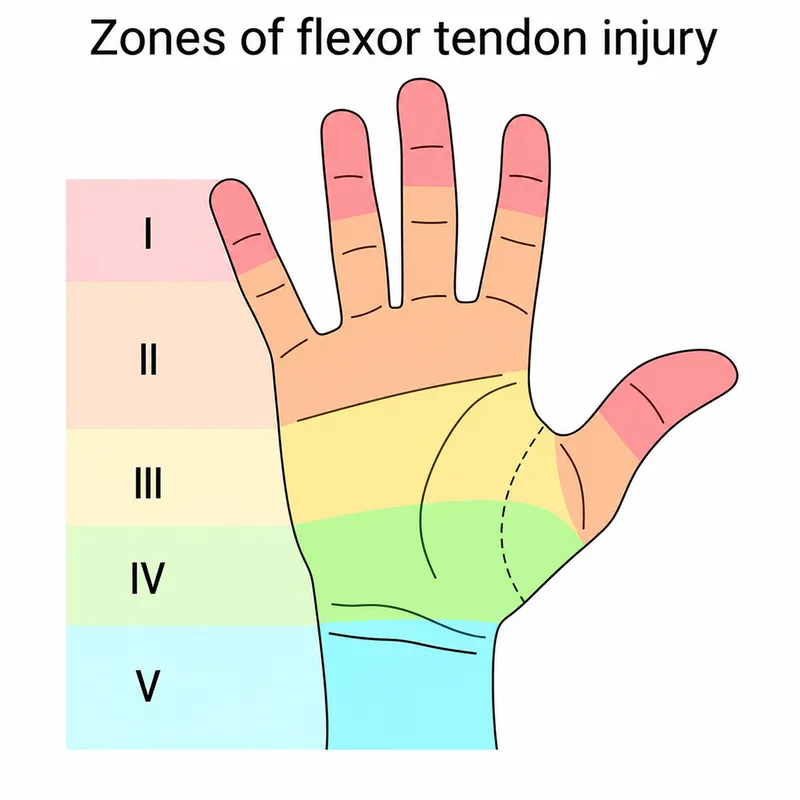

Verdan's flexor tendon zones of the hand Wrist Extensor Compartments Diagram Intrinsic muscles of the hand

⭐ The FDP tendons to the ring and little fingers often share a common muscle belly, which can limit independent flexion of these digits (Quadriga effect).

Hand Anatomy & Biomechanics - Wiring Wonders

  • Hand's intricate function relies on Median, Ulnar, & Radial nerve integrity.
  • Key Nerve Injuries Summary:
    NerveMotor LossSensory LossDeformity(ies)
    MedianThenar, Lumbricals 1&2. 📌 LOAF*Palmar thumb, index, middleApe/Benediction hand
    UlnarIntrinsics, Adductor PollicisUlnar 1.5 fingersClaw hand, Froment's (+)
    RadialWrist/finger/thumb extensorsDorsal 1st web spaceWrist/Finger drop
    *📌 LOAF: Lumbricals 1&2, Opponens pollicis, Abductor pollicis brevis, Flexor pollicis brevis.

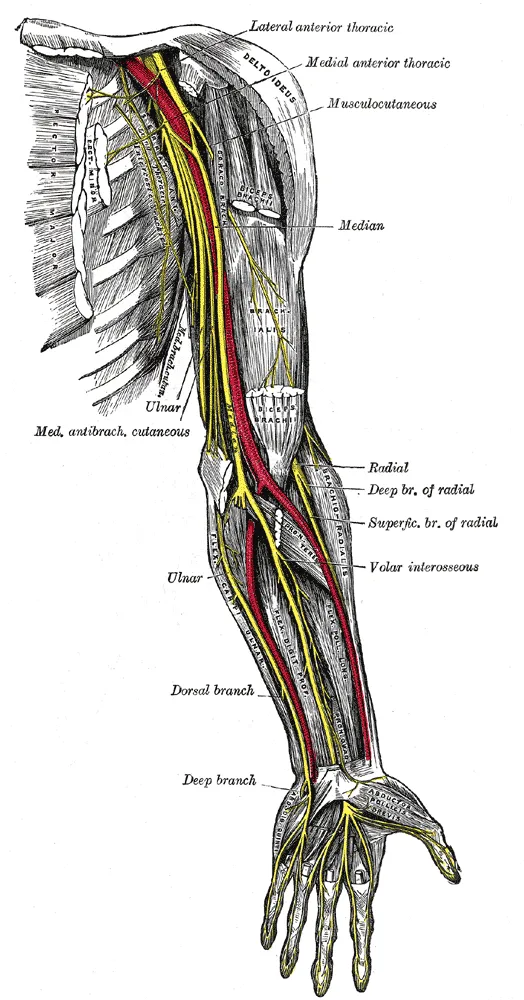

Nerves of the left upper extremity

  • Clinical Nerve Testing Algorithm:

⭐ Froment's sign indicates ulnar nerve palsy: weakness of Adductor Pollicis causes thumb IP joint flexion (FPL-median nerve) when gripping paper.

Hand Anatomy & Biomechanics - Life Lines

  • Arterial supply: Ulnar & Radial arteries.
  • Superficial Palmar Arch (SPA):
    • Main: Ulnar artery.
    • Completion: Superficial palmar branch of Radial artery.
    • Branches: Common & proper digital arteries.
  • Deep Palmar Arch (DPA):
    • Main: Radial artery.
    • Completion: Deep palmar branch of Ulnar artery.

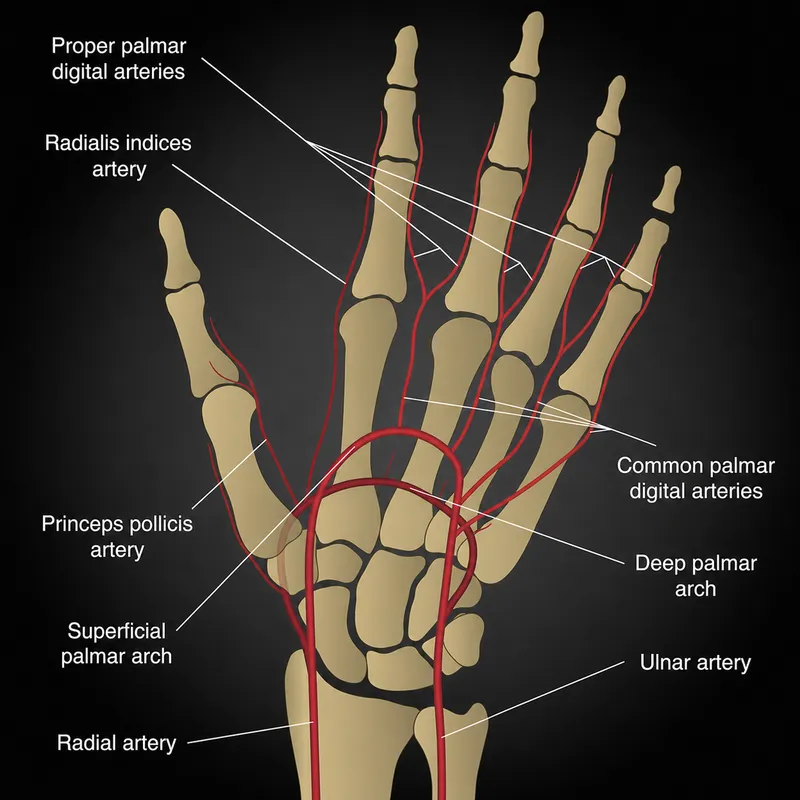

    • Branches: Palmar metacarpal arteries. Palmar arterial arches diagram

⭐ Allen's test is used to assess the patency of the radial and ulnar arteries supplying the hand.

Hand Anatomy & Biomechanics - Grip & Go

  • Functional position: Wrist 20-30° extension, MCPs 45-50° flexion, IPs slight flexion, thumb opposition.
  • Hand Grips:
    TypeKey Features / Examples
    PowerFull hand, static; Cylindrical (hammer), Spherical (ball), Hook (bag)
    PrecisionFine motor, dynamic; Pinch (key), Tripod (pen), Tip-to-tip (needle)

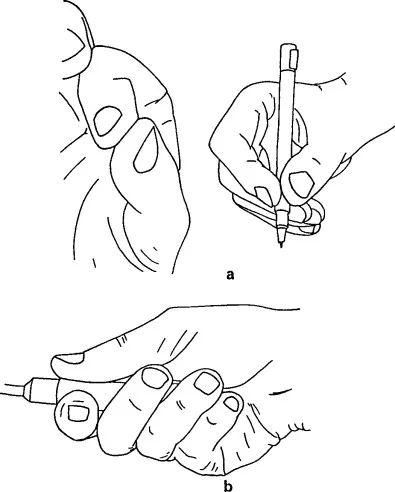

Hand grips: pinch, precision, and power

⭐ The cascade sign, where fingers point to the scaphoid tubercle upon flexion, indicates normal rotational alignment of metacarpals/phalanges.

High‑Yield Points - ⚡ Biggest Takeaways

  • Median nerve is crucial for thenar muscle function and thumb opposition.
  • Scaphoid is the most fractured carpal bone, prone to avascular necrosis (AVN).
  • Flexor Digitorum Profundus (FDP) flexes DIP joints; Flexor Digitorum Superficialis (FDS) flexes PIP joints.
  • Ulnar nerve injury leads to claw hand deformity and a positive Froment's sign.
  • Radial nerve injury typically causes wrist drop due to loss of extensor muscle function.
  • Intrinsic hand muscles (lumbricals, interossei) are essential for fine motor skills and grip strength.

Practice Questions: Hand Anatomy and Biomechanics

Test your understanding with these related questions

Hand deformity presenting as hyperextension at the metacarpophalangeal joint and flexion at the interphalangeal joint occurs due to paralysis of which muscle group?

1 of 5

Flashcards: Hand Anatomy and Biomechanics

1/10

Dislocation of the _____ (bone) may cause acute carpal tunnel syndrome.

TAP TO REVEAL ANSWER

Dislocation of the _____ (bone) may cause acute carpal tunnel syndrome.

lunate
