Ankle Fractures

On this page

Anatomy & Basics - Bones & Bands Bonanza

  • Bones: Tibia (medial malleolus, posterior malleolus), Fibula (lateral malleolus), Talus.
  • Malleoli: Medial (tibia), Lateral (fibula), Posterior (tibia).
  • Syndesmosis (Distal Tibiofibular):
    • Anterior Inferior Tibiofibular Ligament (AITFL)
    • Posterior Inferior Tibiofibular Ligament (PITFL)
    • Interosseous Ligament (IOL)
    • Transverse Ligament
  • Major Ligaments:
    • Medial: Deltoid complex (superficial & deep)
    • Lateral: Anterior Talofibular (ATFL), Calcaneofibular (CFL), Posterior Talofibular (PTFL).

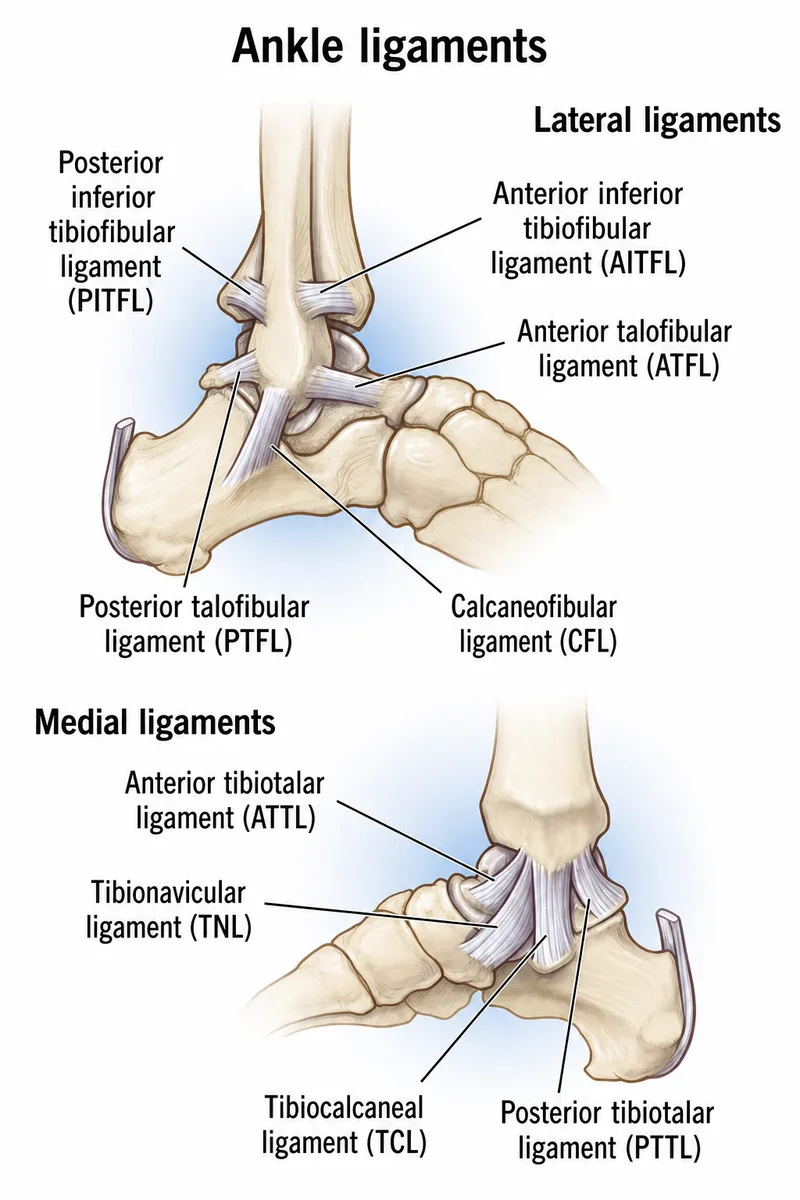

Ankle ligaments: lateral and medial views

⭐ The posterior malleolus is an extension of the posterior tibial plafond and its fracture often indicates significant injury and potential instability requiring fixation if >25% of articular surface or >2 mm displacement is involved.

📌 Mnemonic (Lateral Ligaments): Always Take Five Lads; Can Feel Love; Please Take Five Lasses (ATFL, CFL, PTFL from anterior to posterior).

Classification Systems - Cracking the Codes

Predict stability & guide treatment:

  • Lauge-Hansen Classification: Mechanism-based. 📌 SAD, SER, PAB, PER.

    TypeFibula FractureMedial InjuryOther Key Injuries
    SADTransverse, below syndesmosisVertical Med. Mall.
    SERSpiral, at syndesmosisMed. Mall. / DeltoidPost. Mall. # / PITFL tear
    PABTrans/Obl, above syndesmosisMed. Mall. / DeltoidSyndesmotic injury
    PERHigh Spiral, above syndesmosisMed. Mall. / DeltoidAnt/Post Syndesmotic, Interosseous memb.
  • Danis-Weber Classification: Fibular # level to syndesmosis. Weber Classification of Ankle Fractures

    • Type A: Fibula # below syndesmosis. Intact. Stable.
    • Type B: Fibula # at syndesmosis. Injury variable.
    • Type C: Fibula # above syndesmosis. Disrupted. Unstable.

    ⭐ Weber C fractures, with fibular fracture proximal to the syndesmosis, are considered unstable and often require syndesmotic screw fixation.

Clinical Features & Diagnosis - Spotting the Snaps

  • Presentation: Acute pain, swelling, deformity, ecchymosis, can't bear weight.
  • Examination: Palpate: tenderness, crepitus. Stability: Squeeze, external rotation, Cotton tests.
  • 📌 Ottawa Ankle Rules: Guides X-ray. Malleolar/midfoot pain + bone tenderness (post. malleoli, navicular, 5th MT base) OR no weight bearing (4 steps).
  • Imaging:

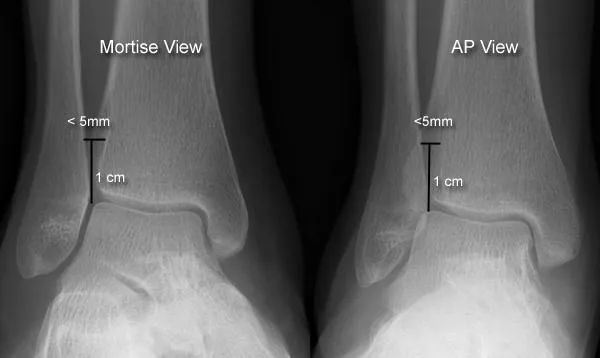

    • X-rays: AP, Lateral, Mortise (for syndesmosis; medial clear space, tibiofibular overlap). Mortise and AP ankle X-ray views with measurements
    • CT: Complex fractures, pre-op planning.
    • MRI: Ligamentous/soft tissue injuries.

⭐ The mortise view X-ray is crucial for assessing ankle joint congruity; a medial clear space >4mm suggests deltoid ligament injury and instability.

Management Principles - Mending Methods

Principles: Anatomical reduction, stable internal fixation, early mobilization.

  • Non-Operative Treatment:
    • Indications: Stable, undisplaced fractures (e.g., isolated Weber A).
    • Methods: Below-knee cast, walking boot.
  • Operative Treatment (ORIF):
    • Indications: Unstable fractures, displaced fractures >2mm, open fractures, syndesmotic disruption, bimalleolar/trimalleolar fractures.
    • Techniques:
      • Lateral Malleolus: Anatomical plate & screws (lag screw if possible).
      • Medial Malleolus: Cannulated screws, anti-glide plate, tension band wiring.
      • Posterior Malleolus: Screws (direct posterior/posterolateral approach), buttress plate.
      • Syndesmosis: Screws (e.g., 1-2 trans-syndesmotic screws, 3 or 4 cortices), suture button devices.

⭐ Anatomical reduction of the ankle mortise is paramount; even 1mm of lateral talar shift can reduce the tibiotalar contact area by approximately 42%, leading to early arthritis.

ORIF bimalleolar ankle fracture with syndesmotic fixation

Complications - Pitfalls & Problems

  • Early:
    • Wound infection, skin necrosis
    • Neurovascular injury (nerve/vessel)
    • Compartment syndrome (↑ pressure)
    • DVT/PE
  • Late:
    • Malunion (deformity), nonunion (no union)
    • Stiffness, ↓ range of motion
    • Post-traumatic osteoarthritis (PTOA)
    • Implant issues (pain, loosening)
    • Chronic pain, CRPS

⭐ Post-traumatic osteoarthritis is the most common long-term complication following an ankle fracture, particularly if anatomical reduction is not achieved.

High‑Yield Points - ⚡ Biggest Takeaways

  • Lauge-Hansen classification: mechanism-based (foot position, deforming force).
  • Weber classification: fibular fracture level relative to syndesmosis (A: infra-, B: trans-, C: supra-).
  • Maisonneuve fracture: proximal fibula fracture + syndesmotic injury ± medial injury.
  • Tillaux fracture: Salter-Harris III of anterolateral distal tibial epiphysis.
  • Bosworth fracture-dislocation: rare, irreducible posterior fibular dislocation.
  • Unstable syndesmotic injuries often require surgical fixation.
  • Trimalleolar fracture involves medial, lateral, and posterior malleoli.

Practice Questions: Ankle Fractures

Test your understanding with these related questions

An RTA patient presented to the emergency department with severe pain in the ankle. An X-ray was performed, given below. What is the best next step in management?

1 of 5

Flashcards: Ankle Fractures

1/10

Robert Jones fracture usually occurs in zone _____ of the metatarsal

TAP TO REVEAL ANSWER

Robert Jones fracture usually occurs in zone _____ of the metatarsal

2
