Achilles Tendon Disorders

On this page

Achilles Anatomy & Biomechanics - Foundation First

  • Origin: Gastrocnemius & Soleus muscles.
  • Insertion: Calcaneus (posterior aspect).
  • Nerve Supply: Tibial nerve (S1, S2).
  • Blood Supply: Branches from posterior tibial & peroneal arteries.
    • Critical watershed zone: 2-6 cm proximal to insertion (hypovascular).
  • Biomechanics:
    • Primary ankle plantarflexor.
    • Essential for push-off during gait.
    • Absorbs high tensile forces.

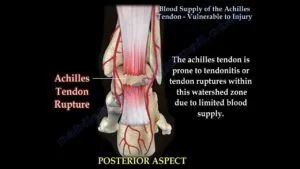

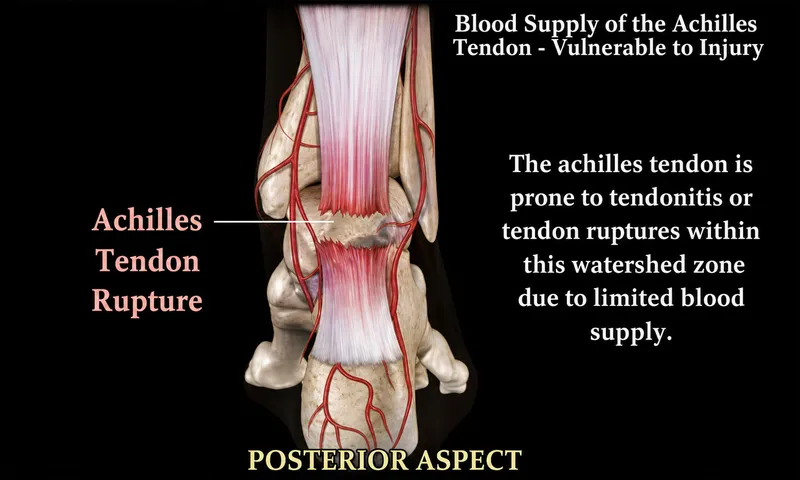

Achilles Tendon Blood Supply and Rupture Risk

⭐ The watershed area of the Achilles tendon, 2-6 cm proximal to its insertion, is prone to rupture due to relatively poor vascularity.

Achilles Tendinopathy - Wear & Tear Woes

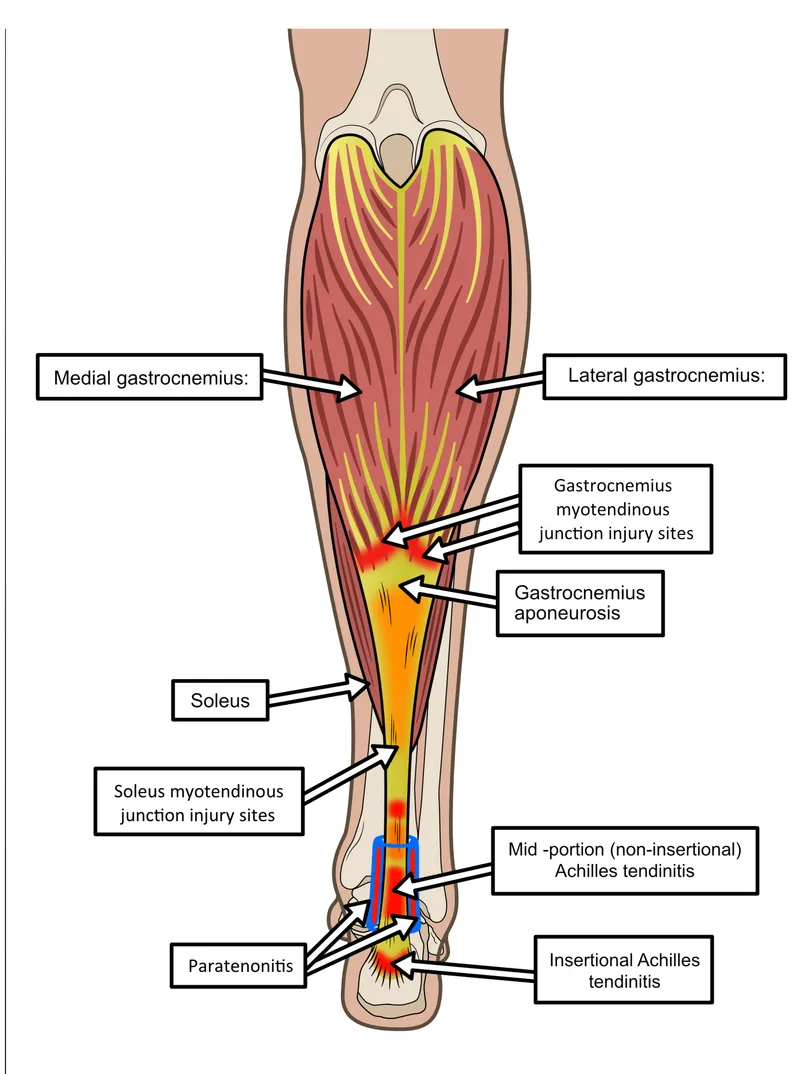

Achilles Tendinopathy and Injury Sites Diagram

Types:

FeatureNon-insertional TendinopathyInsertional Tendinopathy
Location2-7 cm proximal to calcaneal insertionAt tendon-bone interface (calcaneus)
PathologyFusiform swelling, mucoid degenerationMay involve retrocalcaneal bursa, enthesophytes
  • Overuse, training errors (↑ intensity/duration), poor footwear.
  • Systemic: Fluoroquinolones, inflammatory arthropathies.
  • Biomechanical: Pes planus/cavus, hindfoot malalignment, tight gastro-soleus.

Clinical Features:

  • Activity-related pain, morning stiffness.
  • Localized tenderness, palpable nodule/thickening.
  • Painful arc sign (tender area moves with ankle motion).

Conservative Management (First-line):

  • Activity modification, RICE. NSAIDs for pain.
  • Eccentric loading exercises (Alfredson protocol) - cornerstone.
  • Heel lifts/orthotics. ESWT for chronic cases.

⭐ The Alfredson protocol, involving eccentric heel-drop exercises, is a cornerstone of conservative management for Achilles tendinopathy.

Surgical Indications:

  • Failure of >6 months comprehensive conservative Rx.
  • Options: Debridement, +/- tendon transfer (e.g., FHL).

Management Flow:

Achilles Tendon Rupture - Snap, Crackle, Pop!

  • Epidemiology: 'Weekend warriors', males 30-50 yrs; hx tendinopathy, fluoroquinolone/steroid use.

  • Mechanism: Sudden eccentric load on dorsiflexed ankle; direct trauma.

  • Clinical: Audible 'pop'/'snap', sudden severe posterior ankle pain, ↓ ability to push off, palpable gap.

  • Diagnosis:

    • Thompson test (Simmonds' squeeze): No plantarflexion on calf squeeze (most reliable). 📌 'No Squeeze, No Flex'.
    • Matles test, O'Brien test (needle). Thompson Test for Achilles Tendon Rupture
  • Imaging:

    • Ultrasound: Confirms diagnosis, assesses gap (dynamic, cost-effective).
    • MRI: Chronic/missed cases, surgical planning.
  • Management: Controversial. See table and flowchart below.

    RxIndicationsOutcome Profile
    ConservativeOlder, low-demand, comorbidities, gap <1 cmHigher re-rupture; Lower complications
    SurgicalActive, athletes, larger gaps (>1 cm)Lower re-rupture; Higher complications (infection, sural nerve injury)

⭐ A positive Thompson test (absence of passive plantarflexion on calf squeeze) is highly specific for a complete Achilles tendon rupture.

Associated Conditions & Imaging - The Full Picture

  • Haglund's Deformity ('Pump Bump'):
    • Posterosuperior calcaneal prominence.
    • Assoc: Retrocalcaneal bursitis, insertional tendinopathy.

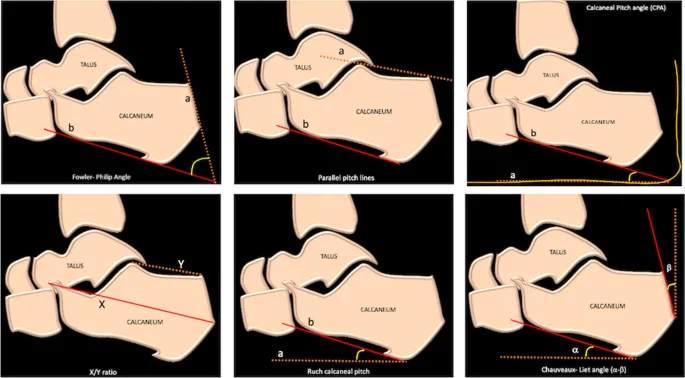

    • X-ray: Fowler-Philip angle >75°. Calcaneal angle measurements for Haglund's deformity
  • Retrocalcaneal Bursitis:
    • Inflammation: Bursa between Achilles & calcaneus.
    • Pain anterior to tendon insertion.
  • Sever's Disease (Calcaneal Apophysitis):
    • Traction apophysitis at Achilles insertion.
    • Age: 8-14 years (skeletally immature).
    • Activity-related heel pain, positive squeeze test.
  • Paratenonitis:
    • Paratenon sheath inflammation; crepitus.

⭐ Haglund's deformity: prominent posterosuperior calcaneal tuberosity, often causes retrocalcaneal bursitis & insertional Achilles tendinopathy.

  • Imaging Summary:
    • X-ray: Haglund's (Fowler-Philip angle >75°), calcifications, enthesophytes; Sever's (sclerosis/fragmentation).
    • USG: Tendon thickening/tears, neovascularization (Doppler), bursitis, paratenon fluid.
    • MRI: Gold standard for soft tissue; pre-op planning (complex cases).

High‑Yield Points - ⚡ Biggest Takeaways

  • Achilles tendinopathy: Pain 2-6 cm proximal to insertion; Thompson test negative.
  • Achilles rupture: Sudden "pop", positive Thompson test; common in "weekend warriors".
  • Insertional tendinopathy: Pain at posterior heel insertion, often with Haglund's deformity.
  • Key risk factors: Fluoroquinolones, corticosteroids, male sex, age >30.
  • Diagnosis: Primarily clinical; Ultrasound confirms rupture or assesses tendinopathy.
  • Tendinopathy treatment: Eccentric exercises are mainstay.
  • Rupture treatment: Surgical repair (lower re-rupture) vs. conservative management (casting/bracing).
