Ceramic Materials - Rock Solid Basics

  • Synthetic, inorganic, non-metallic, crystalline materials for bone void filling & reconstruction.
  • Key Features:
    • High compressive strength; low tensile strength (brittle).
    • Excellent biocompatibility.
    • Primarily osteoconductive (scaffold for bone ingrowth).
    • Variable porosity & resorption profiles.
  • Classification & Examples:
    • Bioinert: Minimal host tissue interaction; maintain structure.
      • Alumina ($Al_2O_3$), Zirconia ($ZrO_2$).
    • Bioactive: Bond directly to bone; stimulate bone formation.
      • Hydroxyapatite (HA) - $Ca_{10}(PO_4)_6(OH)_2$.
      • Bioactive Glass (e.g., Bioglass 45S5).
    • Bioresorbable: Degrade over time, replaced by new bone.
      • $\beta$-Tricalcium Phosphate ($\beta$-TCP) - $Ca_3(PO_4)_2$.

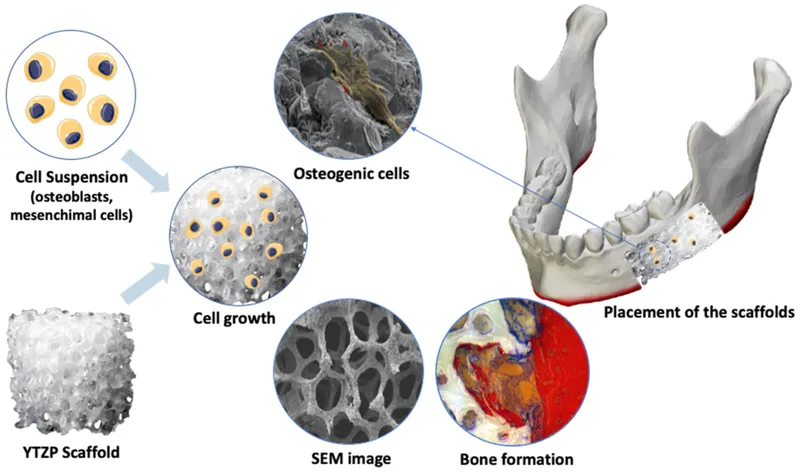

      • Calcium Sulfate. Bone graft scaffold and cell growth process

⭐ Hydroxyapatite (HA) closely mimics the mineral phase of natural bone, promoting excellent osteointegration without eliciting an immune response.

Ceramic Materials - The Bone Builders

Synthetic, inorganic, crystalline materials primarily used for their osteoconductive properties in bone regeneration. They are biocompatible but generally brittle.

  • Common Types & Characteristics:

    MaterialChemical Formula/CompositionOsteoconductivityResorption RateKey Features
    Hydroxyapatite (HA)$Ca_{10}(PO_4)_6(OH)_2$ExcellentVery SlowMimics natural bone mineral; provides stable, long-lasting scaffold.
    $\beta$-Tricalcium Phosphate ($\beta$-TCP)$Ca_3(PO_4)_2$GoodModerate-FastMore soluble than HA; resorbs as new bone forms.
    Biphasic Calcium Phosphate (BCP)HA + $\beta$-TCP (e.g., 60% HA, 40% TCP)ExcellentVariableCombines HA stability with $\beta$-TCP resorption; properties tunable by ratio.
    Bioactive Glassese.g., $SiO_2-Na_2O-CaO-P_2O_5$ (Bioglass® 45S5)ExcellentVariableBonds directly to bone; forms hydroxycarbonate apatite (HCA) layer.
  • General Properties:

    • Act as scaffolds for new bone ingrowth.
    • Mechanical strength: Generally low tensile strength, brittle.
    • Forms: Granules, blocks, putties, coatings on implants.

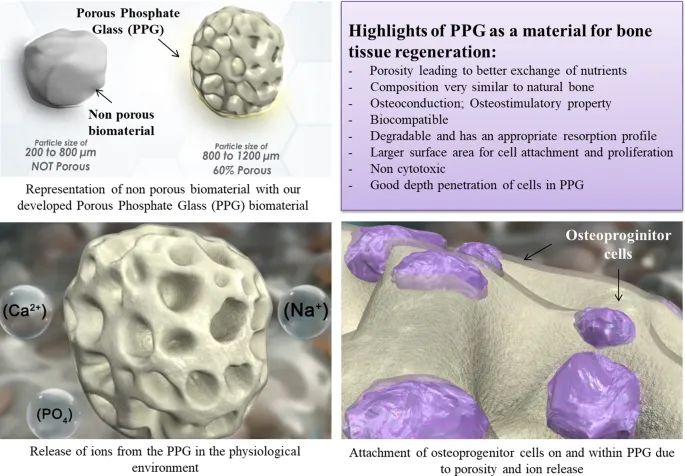

Porous Phosphate Glass (PPG) biomaterial for bone grafts

⭐ Some bioactive glasses not only bond to bone (osteo-conductive) but can also stimulate osteoprogenitor cells to differentiate into osteoblasts (osteo-inductive).

Ceramic Materials - Healing Hands, Careful Steps

  • Core Properties: Biocompatible, inorganic, non-metallic. Primarily osteoconductive scaffold for bone ingrowth.

  • Calcium Phosphates (CaP):

    • Hydroxyapatite (HA): $Ca_{10}(PO_4)_6(OH)_2$. Very slow resorption, stable, excellent osteointegration.
    • $\beta$-Tricalcium Phosphate ($\beta$-TCP): $Ca_3(PO_4)_2$. Faster resorption than HA, replaced by bone.
    • Biphasic CaP (BCP): HA + $\beta$-TCP. Balances stability & resorption.
  • Bioactive Glasses (e.g., Bioglass 45S5): Surface-reactive; bond to bone. Release ions ($Si, Ca, P, Na$) stimulating osteoblasts; potentially osteoinductive.

  • Orthopaedic Uses:

    • Filling bone voids (granules, blocks).
    • HA-coating on metallic implants (hip stems) for biological fixation.
    • Interbody fusion devices (spine).
  • Selection Factors: Resorption kinetics, defect site/size, mechanical load.

  • Limitations: Brittle (poor tensile/shear), unpredictable resorption, particulate inflammation.

⭐ Bioactive glasses uniquely bond to bone and can stimulate osteogenesis (osteoinduction) via ion release.

High‑Yield Points - ⚡ Biggest Takeaways

  • Ceramic materials primarily function as osteoconductive scaffolds.
  • Common types: Hydroxyapatite (HA), Tricalcium Phosphate (TCP), and Bioactive Glasses.
  • HA features slow resorption and good biocompatibility but is brittle.
  • TCP offers faster resorption than HA, maintaining good biocompatibility.
  • Bioactive glasses bond directly to bone and are osteostimulative.
  • Key benefits: excellent biocompatibility, no disease transmission risk, readily available.
  • Major drawbacks: inherent brittleness, variable resorption, typically lack osteoinductivity alone.
