OR Setup & Positioning - Setting the Stage

  • OR Readiness: Dedicated arthroscopy tower, video monitor (ergonomic placement), light source, fluid management system (pump).
  • Patient Positioning: Specific to joint.
    • Supine: Knee, ankle, elbow, wrist. Shoulder (beach chair variation).
    • Lateral Decubitus: Hip, shoulder.
    • Prone: Posterior knee access, posterior ankle.
  • Limb Support & Distraction: Essential for joint visualization. Leg holders (knee), traction towers/booms (hip, shoulder), arm boards.
  • Tourniquet: Commonly used for extremities (e.g., knee: 250-300 mmHg). Aids visualization by minimizing bleeding.
  • Anesthesia: General, regional (spinal/epidural, peripheral nerve blocks), or occasionally local anesthesia.
  • Asepsis: Standard surgical skin preparation and sterile draping; impervious stockinettes and drapes.

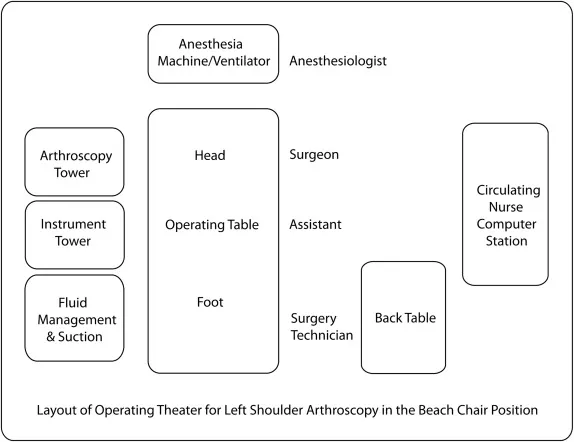

⭐ Proper patient positioning and adequate distraction are paramount to prevent iatrogenic chondral injury and ensure optimal surgical access. OR layout for shoulder arthroscopy in beach chair position

Arthroscopy Tower - Vision & Control

  • Camera Control Unit (CCU):
    • "Brain" of the vision system; processes signals from the camera head.
    • Controls: White balance, brightness, zoom, image capture/recording.
  • Light Source:
    • Provides high-intensity illumination for the surgical site.
    • Commonly Xenon (bright, true color) or LED (cooler, longer life).
    • Light transmitted via fiberoptic cable to the arthroscope.
  • Monitor:
    • Displays the live, magnified surgical view.
    • Typically high-definition (HD) or 4K medical-grade screen.
    • Ergonomic placement is crucial for surgeon comfort and posture.
  • Image Management System:
    • Records still images and video footage.
    • Allows for patient data association and archival (e.g., DICOM).
  • Shaver/Ablation System Control:
    • Manages powered instruments like shavers, burrs, and radiofrequency (RF) ablation probes.

⭐ Xenon light sources are preferred for their intense brightness and excellent color rendition, closely mimicking natural daylight, which is critical for accurate intra-articular tissue differentiation during arthroscopy.

Scope & Tools - Surgeon's Extensions

  • Arthroscope (Telescope):

    • Rigid, rod-lens system (e.g., Hopkins).
    • Common Diameters:
      • 4mm: Standard (knee, shoulder).
      • 2.7mm: Small joints (wrist, ankle).
      • 1.9mm: Very small joints (TMJ, pediatric).
    • Common Viewing Angles:
      • 30°: Workhorse, most versatile for general viewing and working.
      • 70°: Views around corners (e.g., posterior horn of meniscus, rotator cuff undersurface).
      • : Direct, straight-ahead view; limited use, mainly for initial portal placement.
    • Provides illumination (via light cable) & image transmission (to camera).
  • Hand Instruments (Manual):

    • Probe/Hook: Diagnostic palpation, tissue elevation, retraction.
    • Basket Forceps (Punches): Meniscal resection, tissue debridement. Various angles (straight, up-biting, curved).
    • Graspers (Grasping Forceps): Loose body retrieval, tissue manipulation, suture management.
    • Arthroscopic Scissors: Suture cutting, meniscal trimming.
    • Knives/Blades: Precise incisions (e.g., meniscal repair, cartilage scoring).
    • Suture Passers/Retrievers: For arthroscopic repair techniques.
  • Powered Instruments:

    • Shaver System: For soft tissue resection (e.g., synovectomy, chondroplasty).
      • Includes console, handpiece, and disposable blades/burrs (e.g., full radius resector, abrader, burr).
    • Radiofrequency (RF) Probes: For ablation, coagulation, and tissue shrinkage (e.g., capsular shrinkage, hemostasis).

⭐ The 4mm, 30° arthroscope is the most frequently utilized scope in knee and shoulder arthroscopy, offering an optimal balance of field of view, illumination, and maneuverability for most diagnostic and therapeutic procedures.

Fluid Management & Complications - Clear Views, Key Risks

  • Irrigation Fluids:
    • Normal Saline (0.9% NaCl): Standard; isotonic, good visualization.
    • Ringer's Lactate: Alternative isotonic.
    • Glycine 1.5%: Hypotonic, non-conductive (for monopolar); risk of hyponatremia.
  • Pressure Control:
    • Arthroscopic pumps: Maintain intra-articular pressure (IAP).

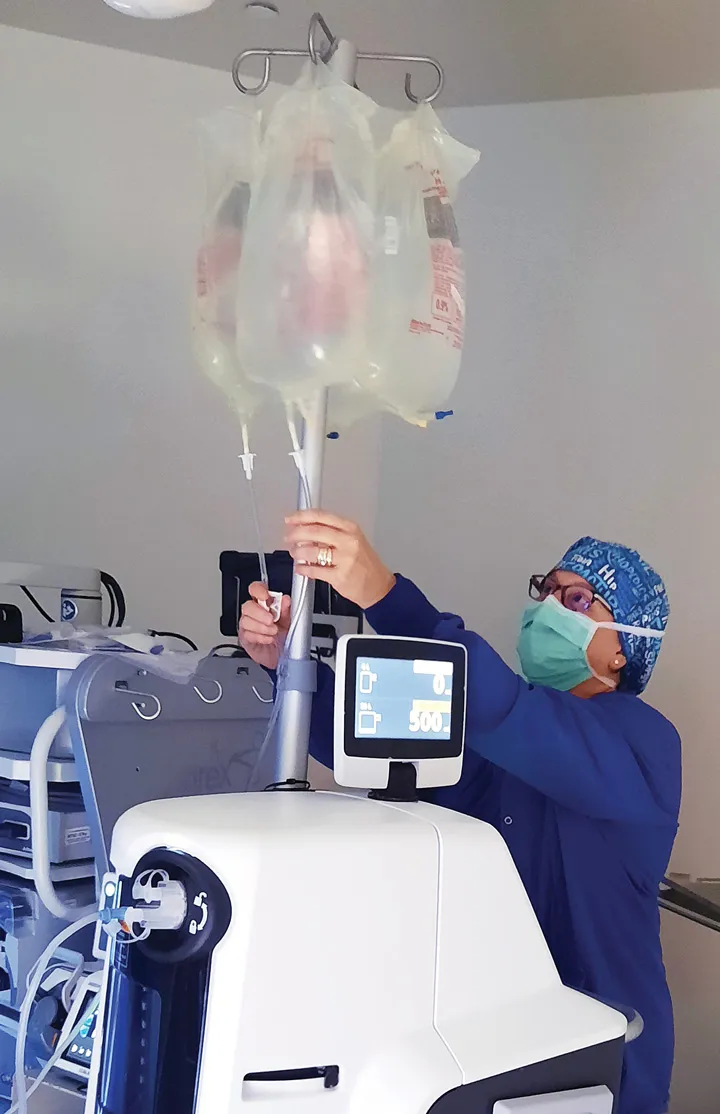

    • Typical IAP: 30-60 mmHg (adjust per joint/SBP); ensures clear field, hemostasis. Arthroscopic Fluid Management System Setup
  • Major Risks & Management:
    • Fluid Extravasation: Leads to tissue edema, can be significant.

      ⭐ Massive extravasation can cause ⚠️ compartment syndrome, a surgical emergency.

    • Systemic Absorption/Overload:
      • Pulmonary edema (risk ↑ with cardiac history).
      • Hyponatremia (with hypotonic fluids): confusion, seizures. Monitor fluid deficit.
    • Hypothermia: Use fluid warmers for cases >1 hour.
    • Others: Nerve palsy, infection, DVT (Deep Vein Thrombosis).

High‑Yield Points - ⚡ Biggest Takeaways

  • Xenon light source: Preferred for bright, natural-color illumination.
  • 3-chip CCD camera: Delivers superior image quality and color fidelity.
  • 30-degree arthroscope: Most versatile and commonly used for viewing.
  • Normal saline: Standard arthroscopic distension and irrigation fluid.
  • Intra-articular pressure: Maintained at 30-60 mmHg for optimal view and hemostasis.
  • Triangulation: Key surgical skill for instrument and scope coordination.
  • Radiofrequency (RF) probes: Employed for soft tissue ablation and coagulation.

Practice Questions: Arthroscopic Equipment and Setup

Test your understanding with these related questions

Intrathecal fluorescein with endoscopic visualization is useful in diagnosis of?

1 of 5

Flashcards: Arthroscopic Equipment and Setup

1/7

Gold standard investigation for cruciate ligament injury is _____

TAP TO REVEAL ANSWER

Gold standard investigation for cruciate ligament injury is _____

arthroscopy
