Principles of Joint Replacement

Principles of Joint Replacement

Principles of Joint Replacement

On this page

Indications & Contraindications - Joint's Last Stand?

  • Indications (Why replace?):
    • Severe, disabling pain; failed conservative Rx (meds, physio).
    • Marked functional limitation impacting ADLs.
    • Advanced joint destruction (radiographic):
      • Osteoarthritis
      • Rheumatoid Arthritis, other inflammatory arthritis
      • Avascular necrosis (AVN)
      • Post-traumatic arthritis
    • Selected acute fractures (e.g., femoral neck).
  • Contraindications (Why not?):
    • Absolute:
      • Active joint/systemic infection ⚠️.
      • Medically unstable (e.g., severe cardiac/respiratory disease).
      • Poor bone stock / inadequate soft tissue envelope.
      • Non-functional extensor mechanism (relevant for knee arthroplasty).
    • Relative:
      • Younger age (< 50-55 yrs; consider implant longevity).
      • Morbid obesity (BMI > 40 kg/m²; ↑risk of complications).
      • Neuropathic (Charcot) joint.
      • Poor patient motivation/unrealistic expectations.
      • Significant peripheral vascular disease.

Hip osteoarthritis and total hip arthroplasty

⭐ Active infection is an absolute contraindication to arthroplasty; eradication is paramount, as performing surgery in its presence leads to high failure rates and complex revisions.

Pre-op Planning & Templating - Blueprint for Bone

Essential for surgical accuracy, aiming to restore native joint anatomy and biomechanics.

  • Core Objectives:
    • Determine correct implant size, type, and position.
    • Precisely plan bone resections.
    • Restore limb length equality (LLD), femoral/joint offset, and joint line.
    • Anticipate potential intra-operative difficulties (e.g., bone defects, need for augments).
  • Methodology:
    • Detailed clinical history and physical examination.
    • Standardized, calibrated radiographic views (AP/Lateral with magnification marker).
    • Templating: Using digital software or acetate overlays.
      • Hip: Acetabular inclination (40-45°), anteversion (15-20°). Femoral stem sizing and offset.
      • Knee: Femoral and tibial component sizing, alignment to mechanical axis.

Hip Arthroplasty Planning X-ray with Template

⭐ Accurate templating is proven to reduce operative time, blood loss, and improve the accuracy of implant placement, potentially decreasing early revision rates.

Implant Materials & Design - Bionic Bits & Bobs

  • Metals:
    • Stainless Steel (316L): Historical, corrosion.
    • Cobalt-Chromium (Co-Cr): Strong, wear-resistant (heads, trays).
    • Titanium & alloys (Ti-6Al-4V): Biocompatible, ↓modulus (↓stress shielding), for cementless stems (osseointegration).
  • Polymers:
    • UHMWPE (Ultra-High Molecular Weight Polyethylene): Standard bearing.
    • HXLPE (Highly Cross-Linked Polyethylene): ↑Wear resistance.
  • Ceramics:
    • Alumina ($Al_2O_3$): Hard, low friction, brittle.
    • Zirconia ($ZrO_2$): Tougher. For heads, liners.
  • Bone Cement:
    • PMMA (Polymethylmethacrylate): Acrylic grout, mechanical interlock.
  • Key Design Aspects:
    • Bearing Surfaces: 📌 Pairs: Metal-on-Poly (MoP), Ceramic-on-Poly (CoP), Ceramic-on-Ceramic (CoC).

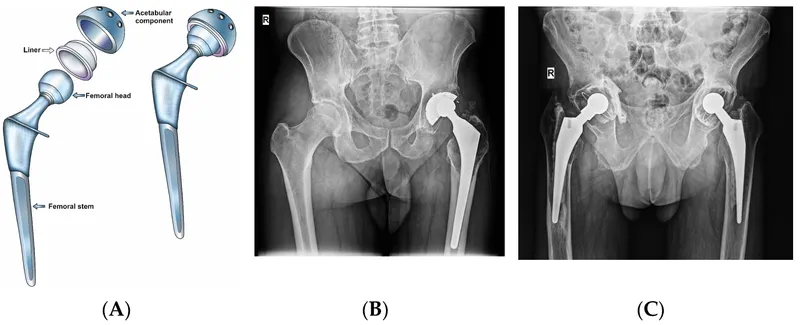

    • Fixation: Cemented (PMMA) vs. Cementless (porous coat for ingrowth). Total Hip Replacement Components & Radiographs

⭐ Ti alloys (Young's Modulus 110 GPa) closer to bone (10-30 GPa) than Co-Cr (~210 GPa), ↓stress shielding.

Surgical Principles & Fixation - The Replacement Ritual

  • Surgical Steps (📌 Mnemonic: Planning Always Beats Sloppy Technique Inside):

    • Planning: Templating for component size, position, and alignment.
    • Approach: Balance adequate exposure with soft tissue preservation.
    • Bone Preparation: Precise cuts and reaming for optimal implant fit.
    • Soft Tissue Balancing: Critical for joint stability, kinematics, and range of motion (ROM).
    • Trialing: Assess component fit, stability, ROM, and leg length before final implantation.
    • Implantation & Asepsis: Strict sterile technique to prevent Periprosthetic Joint Infection (PJI).
  • Fixation Methods:

    • Cemented (PMMA - Polymethylmethacrylate):
      • Mechanism: Mechanical interlock (grout).
      • Indications: Typically older patients (e.g., >65-70 yrs), poor bone stock, osteoporosis, irradiated bone.
      • Advantage: Immediate stability, allows early weight-bearing.
    • Uncemented (Press-fit):
      • Mechanism: Initial press-fit stability followed by biological fixation (osseointegration) via bone ingrowth into porous surfaces.
      • Indications: Younger, more active patients (e.g., <65 yrs) with good bone stock.
      • Advantage: Potential for durable, long-term biological fixation.
    • Hybrid: Combination (e.g., cemented femoral stem, uncemented acetabular cup in Total Hip Replacement).

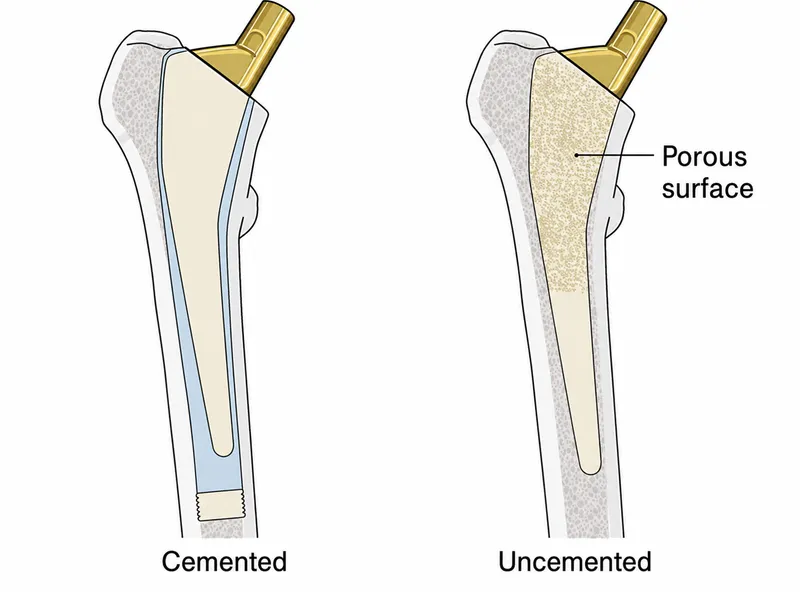

Cemented vs. uncemented hip stem fixation

⭐ The "cement mantle" thickness is critical in cemented arthroplasty; ideal is 2-4 mm. An incomplete or uneven mantle can lead to stress concentration and early aseptic loosening.

High‑Yield Points - ⚡ Biggest Takeaways

  • Primary goals: Pain relief, functional restoration, and improved quality of life.
  • Key indications: End-stage arthritis (OA, RA), avascular necrosis (AVN), certain fractures.
  • Absolute contraindication: Active infection (local or systemic).
  • Fixation: Cemented (PMMA, older patients) vs. Uncemented (bone ingrowth, younger patients).
  • Common bearings: Metal-on-Polyethylene (MoP), Ceramic-on-Polyethylene (CoP).
  • Most common long-term failure: Aseptic loosening (wear debris, osteolysis).
  • Most feared complication: Periprosthetic Joint Infection (PJI).

Practice Questions: Principles of Joint Replacement

Test your understanding with these related questions

Fracture neck of femur in 80-year-old male sustained 1 week ago. The treatment of choice is -

1 of 5

Flashcards: Principles of Joint Replacement

1/4

Patients with metal on metal implants have high levels of _____ and chromium in serum, erythrocytes, and urine.

TAP TO REVEAL ANSWER

Patients with metal on metal implants have high levels of _____ and chromium in serum, erythrocytes, and urine.

cobalt
