ICRS Basics - Ringing in Clarity

  • Definition: PMMA (polymethyl methacrylate) arc segments implanted in deep corneal stroma.
  • Mechanism: Act as spacers, separating stromal lamellae.
    • Based on Barraquer's Law of Thickness: adding volume peripherally flattens central cornea.
    • Corrects myopia; regularizes cornea in ectasias (e.g., keratoconus).
  • Effect: Ring thickness or optical zone diameter = flattening.

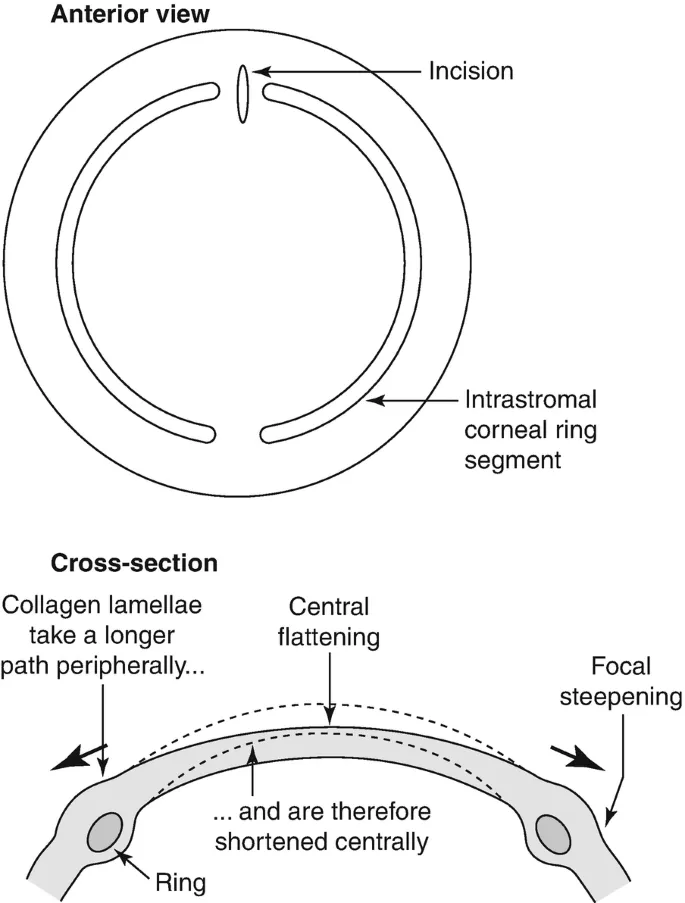

  • Reversible, adjustable, tissue-sparing. Intrastromal Corneal Ring Segments: Anterior & Cross-section

⭐ ICRS are most effective for mild to moderate keratoconus with clear central cornea & contact lens intolerance.

ICRS Indications & Contraindications - Who Gets the Ring?

  • Indications:
    • Keratoconus (mild-moderate stages, contact lens intolerance)
    • Post-LASIK ectasia
    • Pellucid Marginal Degeneration (PMD)
    • High regular astigmatism post-Keratoplasty (non-scarring)
  • Key Contraindications:
    • Advanced Keratoconus (Kmax > 58 D, steep K > 55 D)
    • Significant central corneal opacity/scarring
    • Corneal thickness < 400-450 µm at incision site
    • Active ocular inflammation or infection
    • Unrealistic patient expectations

⭐ ICRS work by a "coupling effect": flattening the central cornea and steepening the paracentral cornea, thus reducing myopia and irregular astigmatism.

ICRS Designs & Materials - Ringing Endorsements

  • Material:
    • Polymethyl methacrylate (PMMA): Standard, biocompatible, optically clear.
  • Designs:
    • Vary in arc length (e.g., 90°-355°), thickness (150-350 µm), & diameter (5, 6, 7 mm).
    • Cross-section: Triangular (most common, ↑ flattening), oval, flat.
    • Smaller diameter → greater refractive effect.

⭐ PMMA is the gold standard material for ICRS due to its proven biocompatibility and optical properties. oka

ICRS Implantation - Surgical Symphony

  • Anesthesia: Topical.
  • Marking: Corneal center, incision site, tunnel axis.
  • Incision:
    • Femtosecond laser (FS) or manual (diamond knife).
    • ~1mm long, 70-80% depth.
  • Tunnel Creation:
    • FS laser (preferred for precision) or manual dissectors.
    • Target depth: ~70-80% stromal thickness.
    • Optical Zone (OZ): 5mm, 6mm, or 7mm.
  • Segment Insertion: Gentle placement into dissected tunnels via main incision.
  • Closure: Suture (e.g., 10-0 nylon) or stromal hydration.
  • Post-op: Topical antibiotics & steroids.

⭐ Femtosecond laser-assisted tunnel creation offers superior precision, safety, and predictability over manual dissection for ICRS implantation.

ICRS Complications & Management - Ring of Recourse

  • Early Complications (Days to Weeks):
    • Pain, photophobia, foreign body sensation: Common, usually transient; manage symptomatically.
    • Incorrect segment placement/depth: Requires surgical repositioning or exchange.
    • Infectious keratitis (bacterial/fungal): Rare but serious. Intensive topical antimicrobials; segment removal if severe.
    • Epithelial defects over tunnel: Lubrication, bandage contact lens (BCL).
  • Late Complications (Months to Years):

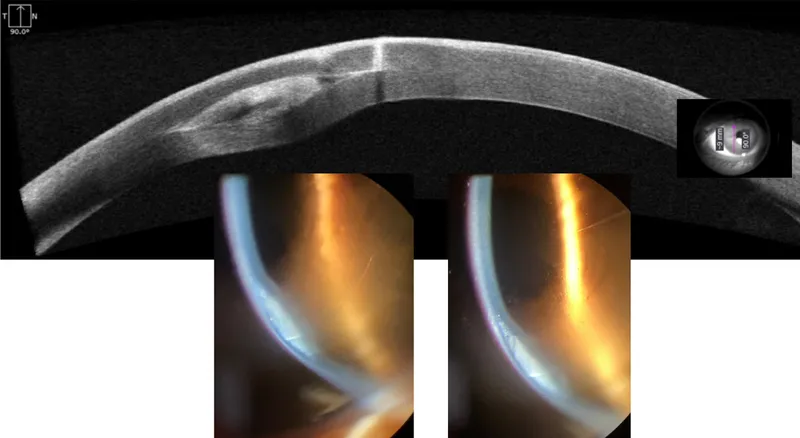

    • Segment migration/extrusion: Most common late issue. Management: repositioning, exchange, or removal. ICRS segment extrusion with OCT and slit lamp views
    • Corneal ectasia/thinning/melt: Progressive. Ring removal, corneal cross-linking (CXL), or keratoplasty (DALK/PKP).
    • Channel deposits (lipid, crystalline): Often asymptomatic; observe. Rarely requires removal.
    • Corneal neovascularization: Towards segments. Topical steroids; argon laser photocoagulation if persistent.
    • Persistent glare/halos: May necessitate ring adjustment or removal.
    • Epithelial ingrowth into tunnel: Uncommon; surgical debridement if visually significant.

⭐ Segment extrusion or migration is the most common late complication necessitating intervention, often due to shallow placement or trauma.

High‑Yield Points - ⚡ Biggest Takeaways

  • Intrastromal Corneal Ring Segments (ICRS) are primarily indicated for keratoconus (mild-moderate) and post-LASIK ectasia.
  • Mechanism: Flattens the central cornea, reduces refractive error and irregular astigmatism.
  • Typically made of PMMA and implanted in the deep mid-peripheral corneal stroma.
  • Major advantages include reversibility, adjustability, and being tissue-sparing (non-ablative).
  • Goal: Improve UCVA and BCVA, enhance contact lens tolerance, and defer keratoplasty.
  • Potential complications: Ring extrusion/migration, neovascularization, infectious keratitis, glare/halos.
