Astigmatic Keratotomy

On this page

AK Basics - Shaping Sight

  • Goal: Surgically correct astigmatism by reshaping the cornea.
  • Mechanism: Peripheral corneal incisions (transverse or arcuate) flatten the steepest meridian.
  • Effect: Improves vision by reducing astigmatic error.

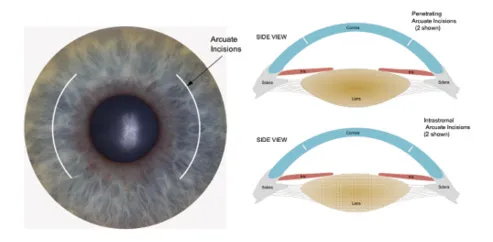

  • Coupling: Flattening in incised meridian couples with steepening in orthogonal meridian (coupling ratio, e.g., $1:1$). Arcuate incisions for astigmatic keratotomy

⭐ AK primarily corrects naturally occurring astigmatism but is also valuable for managing post-cataract surgery or post-penetrating keratoplasty (PKP) astigmatism.

Patient Selection - Ideal Candidates

  • Age >18 years, stable refraction (≥1 year).
  • Regular, symmetric corneal astigmatism (1-4D).
  • Adequate Central Corneal Thickness (CCT).
  • Normal corneal topography (no ectasia/keratoconus).
  • Realistic patient expectations.
  • No active ocular disease, severe dry eye.

⭐ AK is less predictable for high astigmatism (typically >4D) compared to excimer laser procedures like LASIK or PRK.

Incisions & Techniques - Precision Cuts

  • Incision Types:
    • Arcuate (curved): Most common; follow corneal curvature.
    • Transverse (straight/linear): Less common.
    • Paired incisions: Often used for symmetrical effect.
  • Critical Parameters:
    • Depth: 85-95% of peripheral corneal thickness.
    • Optical Zone (OZ): Typically 6.0-8.0 mm. Smaller OZ = ↑ effect.
    • Length & Number: Guided by nomograms; ↑ length/number = ↑ correction.
    • Placement: Along the steepest corneal meridian.
  • Nomograms: Essential for planning; consider patient age, magnitude & axis of astigmatism.
  • Surgical Tools: Diamond knife (manual) or Femtosecond laser (for enhanced precision & safety).
  • Coupling Effect: Flattening in incised meridian, steepening 90° away (ratio varies, ideally 1:1).

⭐ Arcuate incisions placed at a larger optical zone (e.g., >7 mm) have less corrective effect but induce less irregular astigmatism and glare compared to smaller OZ incisions for the same correction amount.

Potential Pitfalls - Complication Corner

⭐ Corneal perforation is a significant intraoperative complication, risk increased by inaccurate pachymetry or excessive incision depth.

PhaseComplicationManagement
Intra-opCorneal PerforationStop procedure, suture defect, consider aborting
Incision ErrorsRecalculate, adjust; may need secondary procedure
MicroperforationOften self-sealing; bandage contact lens (BCL)
Post-opRefractive SurpriseSpectacles, contact lenses, surgical enhancement
Irregular AstigmatismRGP lenses, CXL, topography-guided ablation
Glare/HalosUsually transient; topical brimonidine
Infection (Keratitis)Intensive fortified topical antibiotics
Wound DehiscenceResuturing of incision

Aftercare & Results - Vision Victory

  • Post-op Care:
    • Topical antibiotics & steroids (tapered schedule).
    • Frequent lubricating eye drops for comfort.
    • Protective eye shield, especially at night initially.
  • Expected Outcomes:
    • Significant ↓ in astigmatism; improved Uncorrected Visual Acuity (UCVA).
    • Vision typically stabilizes within 1-3 months.
    • High patient satisfaction is common.
  • Predictability & Enhancements: Good with modern nomograms; enhancements possible if needed.

    ⭐ Undercorrection is more common than overcorrection with modern AK techniques and nomograms. oka

High‑Yield Points - ⚡ Biggest Takeaways

  • Astigmatic Keratotomy (AK) corrects astigmatism with corneal incisions in the steepest meridian.
  • Incisions cause flattening in that meridian, steepening 90° away (coupling effect).
  • Arcuate incisions are common; Limbal Relaxing Incisions (LRIs) are peripheral AK, often with cataract surgery.
  • Effect determined by incision depth (target 85-95% stroma), length, and optical zone.
  • Risks: Over/undercorrection, irregular astigmatism, glare, infection, perforation.
  • Used for low to moderate regular astigmatism; results less predictable than laser_._

Practice Questions: Astigmatic Keratotomy

Test your understanding with these related questions

A patient presents with eye pain, redness, and blurred vision after sleeping in contact lenses. Fluorescein staining reveals a corneal ulcer. What is the most appropriate management?

1 of 5

Flashcards: Astigmatic Keratotomy

1/9

Conductive keratoplasty is used in the correction of _____.

TAP TO REVEAL ANSWER

Conductive keratoplasty is used in the correction of _____.

hypermetropia (myopia/hypermetropia)
