Thyroid Orbitopathy

On this page

TED Pathogenesis - Autoimmune Attack

  • Primary Antigen: Thyrotropin receptor (TSH-R) on orbital fibroblasts & thyrocytes.
  • Autoantibodies: TSH-R antibodies (TRAbs), particularly stimulating antibodies (TSI), cross-react with TSH-R on orbital fibroblasts.
  • Orbital Fibroblast Activation: Leads to:
    • Adipogenesis (↑ fat volume).
    • Glycosaminoglycan (GAG) production (e.g., hyaluronic acid) → osmotic swelling.
    • Release of pro-inflammatory cytokines (TNF-α, IL-1, IL-6).
  • Immune Cells: T-cells & B-cells infiltrate orbit, perpetuating inflammation.
  • Consequences: Muscle swelling, proptosis, optic nerve compression.

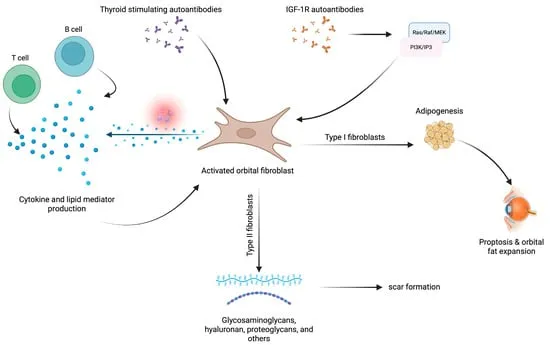

Pathogenesis of Thyroid Eye Disease

⭐ Orbital fibroblasts are the key effector cells in TED, differentiating into adipocytes and myofibroblasts, and producing excess GAGs under autoimmune stimulation, primarily by TSH-R antibodies and IGF-1R activation pathway.

📌 Mnemonic: TSH-R Antibodies Go For Orbits (TSH-R Antibodies, GAGs, Fibroblasts, Orbitopathy).

Clinical Showcase - Grave Signs

  • Signs follow 📌 NOSPECS classification (severity increases down the list):
    • No signs/symptoms.
    • Only signs (no symptoms):
      • Lid retraction (Dalrymple's sign: stare).
      • Lid lag (von Graefe's sign: on downgaze).
    • Soft tissue involvement: Periorbital edema, chemosis, conjunctival injection, lid fullness.
    • Proptosis: Axial globe displacement > 21mm (Hertel exophthalmometer). Often asymmetric.
    • Extraocular muscle (EOM) involvement: Diplopia due to restrictive myopathy.
      • Common order of involvement: Inferior Rectus (IR), Medial Rectus (MR), Superior Rectus (SR), Lateral Rectus (LR) (📌 IMSLO).
    • Corneal involvement: Exposure keratopathy from proptosis & lid retraction; leads to punctate erosions, ulceration.

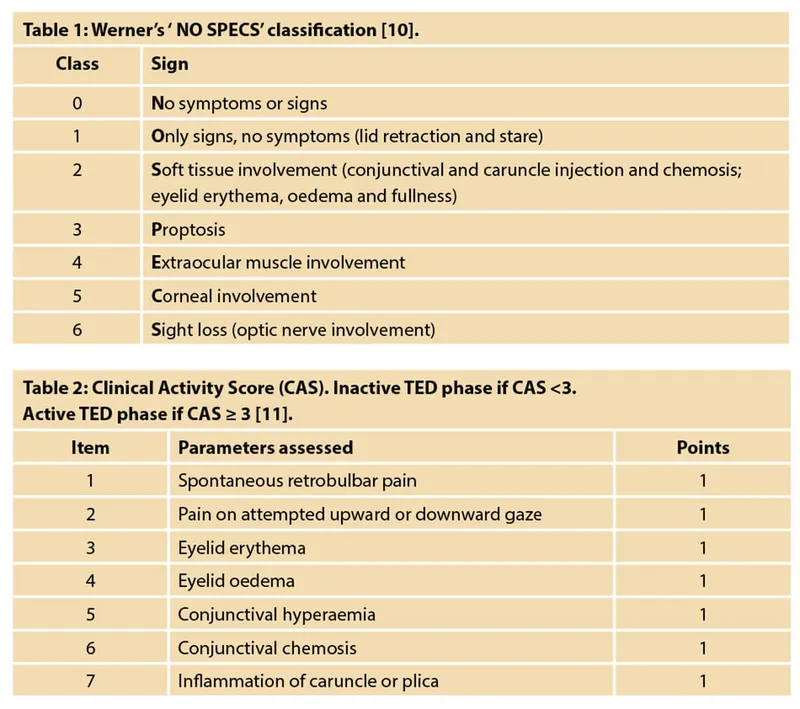

    • Sight loss (Optic Neuropathy): Due to optic nerve compression by enlarged EOMs at orbital apex. Presents with ↓ visual acuity, ↓ color vision, Relative Afferent Pupillary Defect (RAPD). Werner's NO SPECS and Clinical Activity Score for TED

⭐ The Inferior Rectus is the most commonly affected extraocular muscle, leading to vertical diplopia (worse on upgaze) and restricted elevation of the eye.

Diagnostic Toolkit - Unmasking TED

  • Clinical Suspicion: Proptosis, lid retraction (Darlymple's sign), diplopia, compressive optic neuropathy.
  • Lab Confirmation:
    • TFTs: TSH, fT3, fT4 (patient may be hyper-, hypo-, or euthyroid).
    • Autoantibodies: TRAb (Thyroid Stimulating Hormone Receptor Ab) highly specific; Anti-TPO Ab.
  • Orbital Imaging (CT/MRI):
    • Fusiform EOM belly enlargement, tendon sparing (key feature).
    • Apical crowding, optic nerve changes.
    • 📌 IMSLOw: Common EOM involvement order (Inferior > Medial > Superior > Lateral > Obliques).
  • Activity Assessment:
    • Clinical Activity Score (CAS): Assesses 7 inflammatory parameters. Score ≥ 3/7 indicates active disease requiring potential immunomodulation.
  • Severity Grading:
    • EUGOGO classification (Mild, Moderate-to-Severe, Sight-threatening).
    • NOSPECS classification (0-No signs/symptoms, 1-Only signs, 2-Soft tissue, 3-Proptosis, 4-EOM, 5-Cornea, 6-Sight loss).

⭐ In TED, extraocular muscle enlargement typically spares the tendons, a key differentiator from orbital myositis where tendons are often involved.

Treatment Playbook - Orbital Rescue

⭐ Teprotumumab, an IGF-1R inhibitor, is a significant advancement for active, moderate-to-severe Thyroid Eye Disease, reducing proptosis and diplopia.

High‑Yield Points - ⚡ Biggest Takeaways

  • Most common cause of adult proptosis, often bilateral.
  • Autoimmune, strongly linked to Graves' disease; can occur in euthyroid/hypothyroid states.
  • Key pathology: Glycosaminoglycan (GAG) deposition and fibroblast proliferation in orbital tissues.
  • NO SPECS mnemonic guides clinical assessment of severity.
  • Inferior rectus (IR) and medial rectus (MR) most affected, causing diplopia and motility restriction.
  • Dysthyroid Optic Neuropathy (DON) from apical compression is a major sight threat; smoking cessation is crucial_._

Practice Questions: Thyroid Orbitopathy

Test your understanding with these related questions

Which of the following conditions is least likely to cause proptosis?

1 of 5

Flashcards: Thyroid Orbitopathy

1/10

An absolute protrusion of >_____ mm or a difference of >2 mm between the two eyes is labeled as proptosis.

TAP TO REVEAL ANSWER

An absolute protrusion of >_____ mm or a difference of >2 mm between the two eyes is labeled as proptosis.

20
