Bony Orbit & Openings - Bone Box Boundaries

  • Pyramidal, ~30 mL volume. Base anterior, apex posterior.
  • 7 Bones: 📌 Many Friendly Zebras Eat Lovely Salty Peanuts
    • Maxilla
    • Frontal
    • Zygomatic
    • Ethmoid
    • Lacrimal
    • Sphenoid (GWS, LWS)

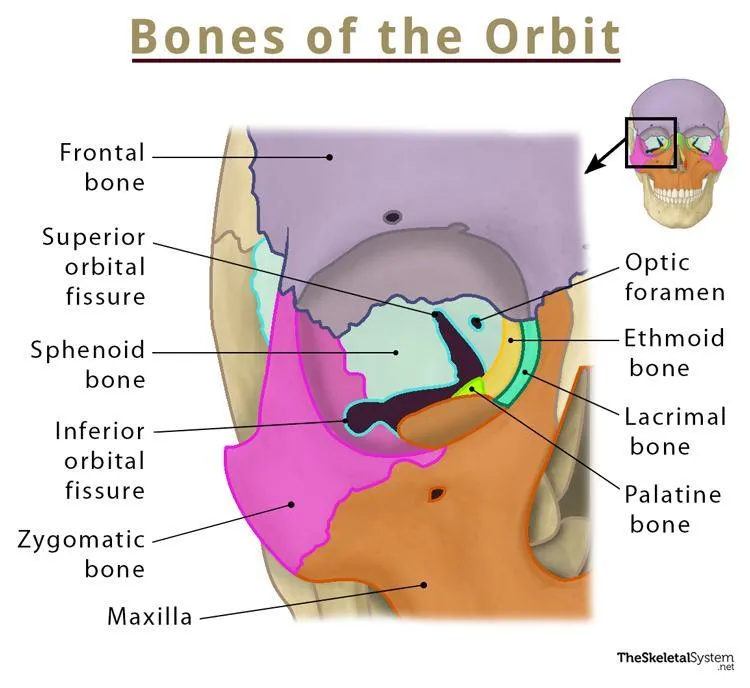

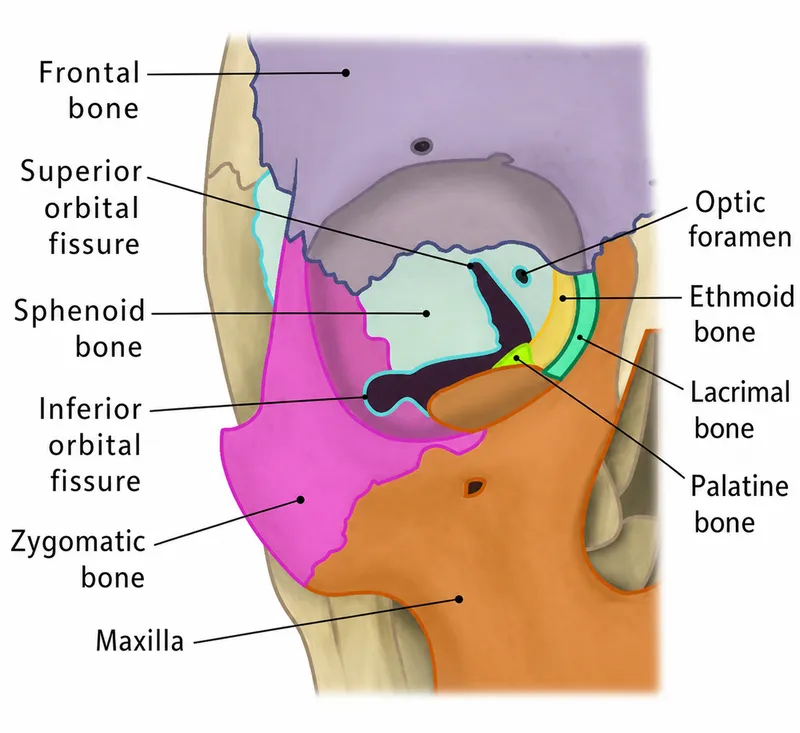

    • Palatine (orbital proc.) Bones of the Orbit Diagram
  • Boundaries:
    • Roof: Frontal, Lesser wing of Sphenoid (LWS).
      • Lacrimal fossa (anterolat), Trochlear fossa (anteromed).
    • Floor: Maxilla, Zygomatic, Palatine.
      • Infraorbital groove & canal (V2).
      • Links to maxillary sinus.
    • Medial: 📌 SMEL- Sphenoid (body), Maxilla, Ethmoid (lamina papyracea), Lacrimal.
      • Thinnest: Lamina papyracea.
      • Lacrimal sac fossa. Ant/Post ethmoidal foramina.
    • Lateral: Zygomatic, Greater wing of Sphenoid (GWS).
      • Strongest. Whitnall"s tubercle.
    • Apex: Optic canal (LWS).

⭐ Orbital floor (maxilla) & medial wall (ethmoid lamina papyracea) are commonest blowout fracture sites (thin).

Muscles & Fascia - Movers & Sheaths

  • Extraocular Muscles (EOMs): 7 (4 Recti, 2 Obliques, 1 Levator)
    • Recti (SR, IR, MR, LR): Origin - Annulus of Zinn. Insertion - Sclera (anterior).
    • Obliques (SO, IO): Origin - SO: Sphenoid; IO: Maxilla. Insertion - Sclera (posterior).
    • Levator Palpebrae Superioris (LPS): Elevates upper lid.
  • Innervation: 📌 LR6SO4R3 (LR: CN VI; SO: CN IV; Rest: CN III).
  • Primary Actions:
    • Adduction: MR
    • Abduction: LR
    • Elevation: SR, IO
    • Depression: IR, SO
    • Intorsion: SR, SO
    • Extorsion: IR, IO
  • Orbital Fascia:
    • Tenon's Capsule (Fascia Bulbi): Ensheaths globe.
    • Muscular Fasciae: Cover EOMs.
    • Check Ligaments: Limit movement (Medial & Lateral).
    • Suspensory Ligament of Lockwood: Supports globe (fascial sling from IR & IO).

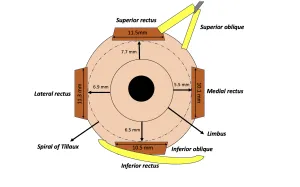

Extraocular muscle insertions and distances from limbus

⭐ The Inferior Rectus (IR) is the most commonly involved muscle in Thyroid Eye Disease (Graves' Orbitopathy).

Nerves of the Orbit - Wired for Sight

  • Optic Nerve (CN II): Special sensory for vision. Exits via Optic Canal.
  • Motor Nerves (enter via SOF):
    • Oculomotor (CN III): Innervates SR, IR, MR, IO, Levator Palpebrae Superioris. Carries parasympathetic fibers to ciliary ganglion (for sphincter pupillae, ciliary muscle).
    • Trochlear (CN IV): Innervates Superior Oblique (SO). Longest intracranial course.
    • Abducens (CN VI): Innervates Lateral Rectus (LR).
  • Sensory Nerve (V1 - Ophthalmic division of Trigeminal CN V): Enters via SOF. 📌 SOF Contents Mnemonic: "Live Frankly To See Absolutely No Insult" (Lacrimal, Frontal, Trochlear, Superior division CN III, Abducens, Nasociliary, Inferior division CN III).

Parasympathetic Pathway to Pupil: Preganglionic fibers (Edinger-Westphal nucleus, CN III) → Ciliary Ganglion (synapse) → Postganglionic Short Ciliary Nerves → Sphincter Pupillae (miosis) & Ciliary Muscle (accommodation).

Orbital Vasculature & Fat - Pipes & Packing

  • Arterial Supply:
    • Ophthalmic Artery (OA): Main supply.
      • Via Optic Canal.
      • Branches: CRA, Lacrimal, Muscular, SPCAs/LPCAs, Ethmoidal, Supraorbital.

      ⭐ OA from Internal Carotid Artery (ICA).

    • CRA: enters optic nerve ~10-12 mm from globe; end artery.
  • Venous Drainage: Valveless.
    • Superior Ophthalmic Vein (SOV): Main drainage; to Cavernous Sinus (SOF).
    • Inferior Ophthalmic Vein (IOV): To Cavernous Sinus (SOF) or Pterygoid Plexus (IOF).
    • Central Retinal Vein (CRV): To Cavernous Sinus (direct/SOV).
  • Orbital Fat:
    • Cushions & supports contents.
    • Intraconal & extraconal.

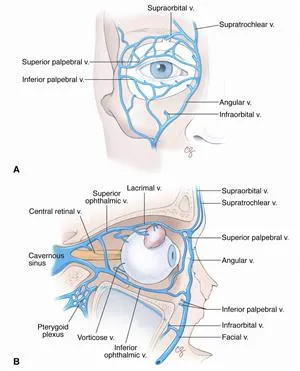

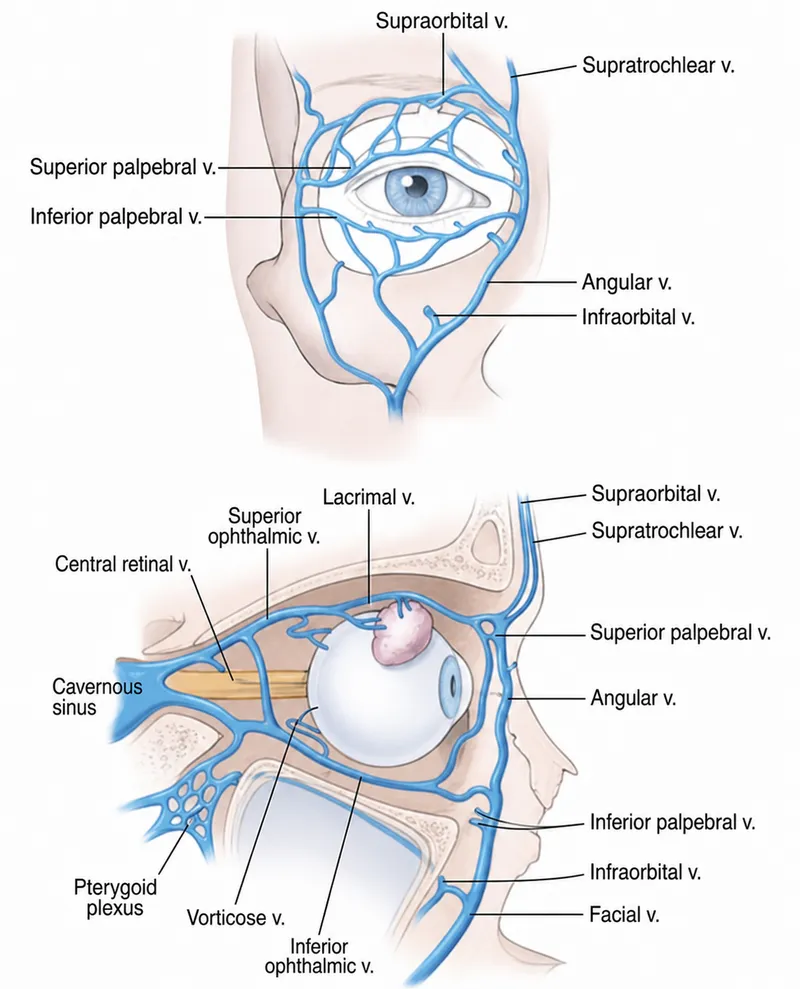

Orbital Venous Drainage Diagram

High‑Yield Points - ⚡ Biggest Takeaways

  • Orbit: 7 bones (Frontal, Sphenoid, Zygomatic, Maxillary, Ethmoid, Lacrimal, Palatine).
  • Optic canal: Transmits CN II & ophthalmic artery.
  • Superior Orbital Fissure: Transmits CN III, IV, V1, VI & superior ophthalmic vein.
  • Orbital floor: Weakest wall; site of blowout fractures. Involves maxillary, zygomatic, palatine.
  • Medial wall: Thinnest wall; primarily lamina papyracea of ethmoid.
  • Lateral wall: Strongest wall; zygomatic & greater wing of sphenoid.
  • Annulus of Zinn: Common origin for recti muscles.

Practice Questions: Orbital Anatomy

Test your understanding with these related questions

A teenager presented with a blowout fracture of the orbit. The fracture may involve mainly:

1 of 5

Flashcards: Orbital Anatomy

1/10

Surgical management for thyroid ophthalmopathy: Orbital _____, Extraocular muscle surgery and Eyelid surgery

TAP TO REVEAL ANSWER

Surgical management for thyroid ophthalmopathy: Orbital _____, Extraocular muscle surgery and Eyelid surgery

decompression
