Subjective Refraction

Subjective Refraction - Focus Fundamentals

• Purpose: Refine objective refraction (retinoscopy/autorefraction) for best spherical & cylindrical lenses, achieving optimal BCVA & comfort.
• Principle: Patient-driven; uses subjective responses ("Better 1 or 2?") to lens adjustments.
• Starting Point:
  • Objective data (sphere, cylinder, axis).
  • Initial VA.
  • Fogging: Add plus sphere to relax accommodation.
• Setup:
  • Dim room light.
  • Snellen chart at $\textbf{6}$m / $\textbf{20}$ft.
  • Vertex distance: critical for powers >$\pm\textbf{4}$D.
  • Occlude non-testing eye.

⭐ Goal: Position Circle of Least Confusion (CLC) on the retina for maximum clarity and comfort.

Spherical Power Refinement - Sphere Quest

• Fogging Technique:

  • Goal: Relax accommodation; determine initial spherical endpoint.
  • Method: Add +1.00 D to +2.00 D over subjective correction to blur vision (e.g., 6/18).
  • Reduce fog in -0.25 D steps until Best Visual Acuity (BVA) is reached. Stop if next -0.25 D blurs vision.

• Duochrome Test (Red-Green Test):

  • Confirms spherical endpoint using longitudinal chromatic aberration.
  • Patient views black letters on red/green backgrounds.
  • 📌 Mnemonic: RAM-GAP
    • Red clearer? Add Minus (-0.25 D) / Reduce Plus.
    • Green clearer? Add Plus (+0.25 D) / Reduce Minus.
    • Equal clarity = Endpoint.
  • Performed monocularly, after fogging, before JCC.

⭐ The Duochrome test is most accurate when the patient is guided from a state where green is slightly clearer (slight myopia) towards the final equal endpoint. This helps prevent over-minusing the patient.

Astigmatism Correction - Cylinder Crackdown

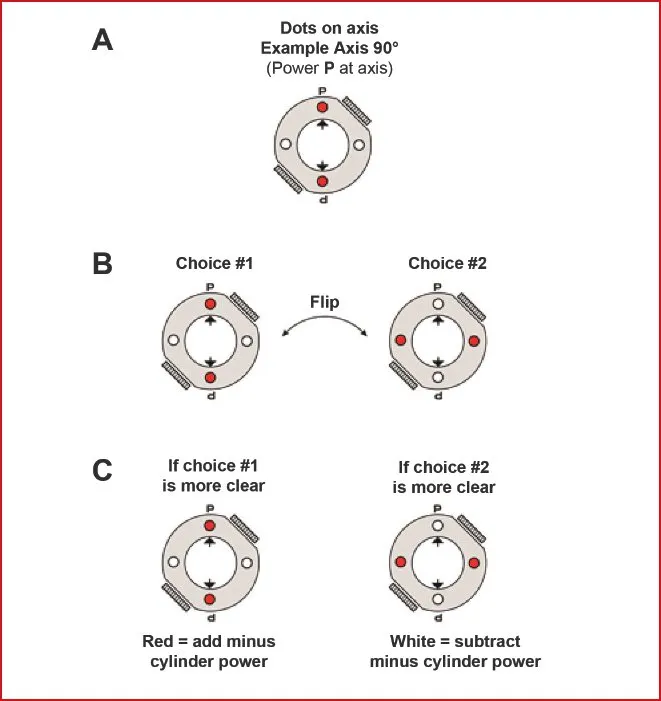

• Jackson Cross Cylinder (JCC): Refines astigmatism axis & power.
  • Spherical equivalent = $0$. Standard powers: ±0.25 D, ±0.50 D.
• JCC Technique (Minus Cylinder Convention):
  • 1. Axis Refinement ("Chase"):
    • JCC handle aligns with trial cylinder axis (JCC axes at 45° to trial cyl axis).
    • Flip JCC. Patient chooses clearer view.
    • 📌 "Chase the white": Rotate trial cylinder axis towards white dots (5-15° steps).
    • Repeat until neutrality or reversal.
  • 2. Power Refinement ("Power"):
    • JCC white dots align with refined trial cylinder axis.
    • Flip JCC. Patient chooses clearer view.
    • White dots preferred: Add more minus cylinder (e.g., -0.25 D).
    • Red dots preferred: Reduce minus cylinder (e.g., by 0.25 D).
    • For every 0.50 D change in cylinder, adjust sphere by 0.25 D (opposite sign to maintain spherical equivalent).

⭐ JCC is most accurate when the eye is slightly fogged (e.g., with +0.50 D over the best sphere) to keep the Circle of Least Confusion (CLC) on or just before the retina.

Binocular Balancing & Finalization - Vision Duet

• Goal: Equalize accommodative effort; achieve comfortable binocular vision.
• Prerequisite: Best monocular Visual Acuity (VA) achieved for both eyes.
• Key Principle: Ensure both eyes perceive images as equally clear or equally (slightly) blurred.
• Common Techniques:

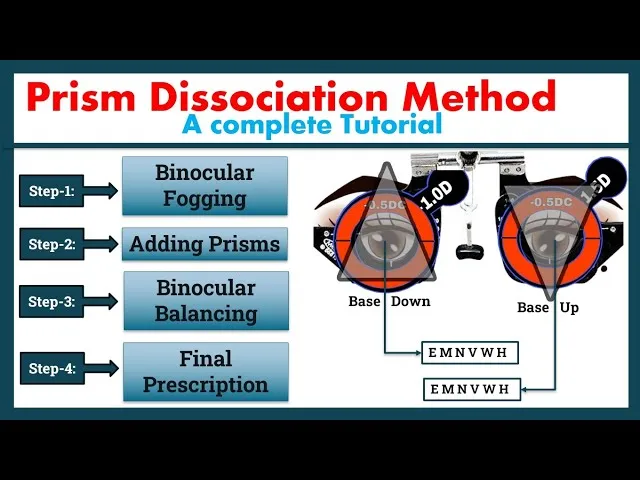

  • Prism Dissociation Test (Most Common):
    • Induce vertical diplopia (e.g., 3-4Δ Base Down one eye, Base Up other).
    • Fog both eyes (e.g., +0.75DS over subjective correction).
    • Patient compares clarity of two images (e.g., a line of letters).
    • Add +0.25DS sphere to the eye with the clearer image until both are equally distinct/blurred.
  • Alternate Occlusion Test: Rapidly cover/uncover eyes; patient compares clarity.
  • Humphriss Immediate Contrast (HIC): One eye fogged, other not; compare letters.
• Finalization Steps:
  • Recheck binocular VA.
  • Confirm patient's subjective comfort.
  • Consider dominant eye preference (may leave slightly clearer if perfect balance not tolerated).
  • Issue final prescription (Rx).

⭐ The prism dissociation technique is the most widely used method for binocular balancing, aiming to equalize accommodative demand between the two eyes.

High‑Yield Points - ⚡ Biggest Takeaways

• Subjective refraction aims to refine objective measurements, achieving maximum visual acuity and patient comfort.
• The Jackson Cross Cylinder (JCC) is pivotal for accurately determining cylinder axis and power.
• Use the Duochrome test (RAMGAP principle) to verify the final spherical endpoint, utilizing chromatic aberration.
• Binocular balancing techniques equalize accommodative effort between the two eyes.
• Fogging is essential to control and relax accommodation during refraction.
• The Stenopaeic slit helps identify the axis of astigmatism, especially in irregular or high cylinders.
