Optical System of Eye

On this page

Optical System of Eye - Eye's Powerhouses

  • Total optical power: ~+58 D to +60 D.
  • Principal Refracting Components:
    • Cornea: ~+43 D (main refractor). RI: ~1.376.
      • Anterior surface: Air-tear film-cornea interface.
    • Crystalline Lens: ~+15 D to +20 D (dynamic, accommodation). RI: ~1.386 (cortex) to ~1.406 (nucleus).
    • Aqueous & Vitreous Humor: RI ~1.336.
  • Average axial length: 23.5 mm.
  • Reduced Eye Model (Listing):
    • Single refracting surface.
    • Power: +60 D.
    • Nodal point: 7.2 mm posterior to cornea.
    • Posterior focal length: ~22.2 mm.

⭐ > The cornea contributes approximately +43 D, about two-thirds of the eye's total refractive power.

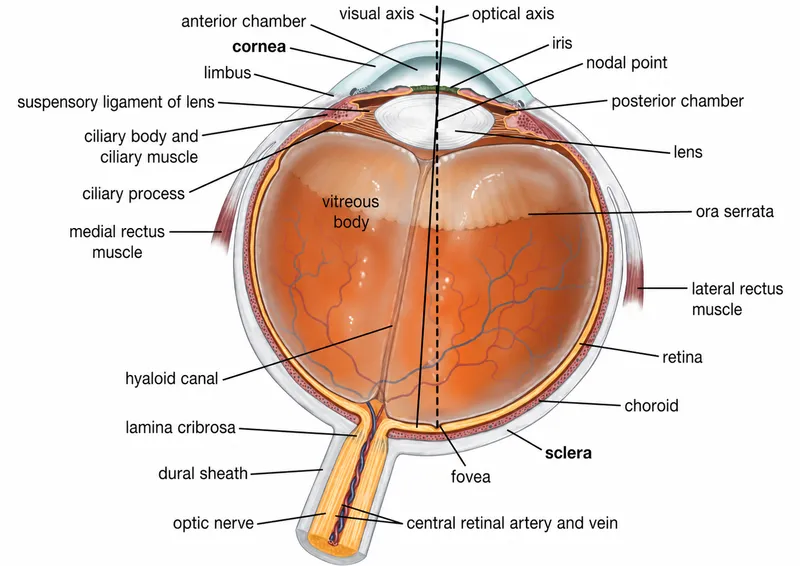

Eye cross-section with cornea, lens, and optical axis

Accommodation & Emmetropia - Perfect Focus

  • Emmetropia: Ideal refractive state.
    • Parallel light from infinity (≥6m) focuses on retina.
    • Distant vision clear without accommodation. Far point: Infinity.
  • Accommodation: Dynamic; eye ↑ refractive power for near vision.
    • Mechanism (Helmholtz): Ciliary muscle contracts (CN III, M3) → zonules relax → lens ↑ convexity (anterior) → ↑ lens power.
    • Near Reflex Triad (📌 AMC): Accommodation, Miosis (↑ depth of focus), Convergence.
    • Amplitude of Accommodation (AoA): Max power ↑. $AoA = P - R$.
      • ~14D (child), ↓ to ~4D (age 40), ~1D (age 60) → Presbyopia.
    • Range of Accommodation: Distance: far point to near point.

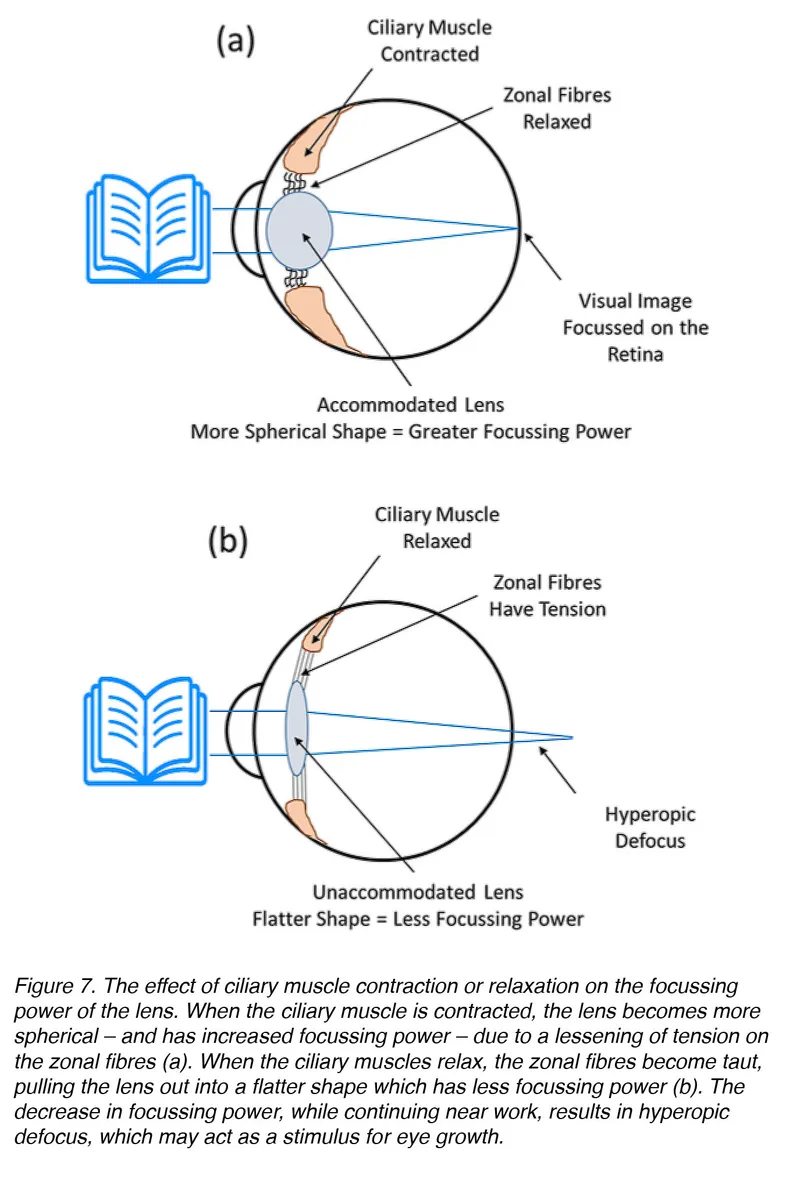

Accommodation: Ciliary muscle, zonal fibres, lens shape

⭐ Emmetropia: Far point at infinity; parallel rays focus on retina without ciliary muscle activity.

Ametropias - When Focus Fails

  • Ametropia: Parallel light rays not focused on retina (unaccommodated eye).
  • Myopia (Nearsightedness):
    • Focus: In front of retina.
    • Causes: ↑ Axial length (commonest), ↑ refractive power.
    • Correction: Concave (-) lens.
    • Types: Simple; Pathological (≥-6 D or axial length >26.5 mm; risk of retinal detachment).
  • Hypermetropia (Farsightedness):
    • Focus: Behind retina.
    • Causes: ↓ Axial length (commonest), ↓ refractive power.
    • Correction: Convex (+) lens.
    • Types: Latent, Manifest (Absolute, Facultative).
  • Astigmatism:
    • Refractive power varies in different meridians; forms two focal lines (Sturm's conoid).
    • Cause: Usually corneal.
    • Correction: Cylindrical lens.
    • Types: Regular (WTR, ATR, Oblique), Irregular. Myopia, Hyperopia, Astigmatism, and Normal Vision

⭐ With-the-rule (WTR) astigmatism: Vertical meridian is steeper (more converging power) than horizontal. Corrected by a minus cylinder axis at 180° (or plus cylinder axis at 90°).

Visual Acuity & Axes - Sighting Right

  • Visual Acuity (VA): Eye's capacity to discern fine details.
    • Snellen Chart: Standard (e.g., 6/6). MAR for 6/6 = $1'$ arc.
    • LogMAR Chart: Logarithmic scale, research standard.
  • Axes of the Eye:
    • Optical Axis: Through optical centers of cornea & lens.
    • Visual Axis: Fovea to fixation point (via nodal points).
    • Pupillary Axis: Perpendicular to cornea, through pupil center.
    • Angle Alpha: Optical vs Visual axes (avg. ).
    • Angle Kappa: Pupillary vs Visual axes.
  • Ocular Dominance: Preferential use of one eye.
    • Tests: Miles test, Porta test. Angles Kappa, Lambda, and Alpha of the Eye

⭐ Angle Kappa is crucial for accurate centration in refractive surgery and multifocal IOL implantation.

High‑Yield Points - ⚡ Biggest Takeaways

  • The eye's total optical power is approximately +60 D.
  • Cornea provides the majority of refraction (around +43 D).
  • Crystalline lens offers variable focusing power (+15 to +20 D), essential for accommodation.
  • Axial length is the key determinant of refractive status (myopia/hyperopia).
  • Refractive indices of ocular media (cornea, aqueous, lens, vitreous) and air govern light bending.
  • Accommodation involves ciliary muscle contraction, increasing lens power for near vision.
