Contact Lens Optics - Lens Lowdown

  • Types:
    • Hard (PMMA): Low O₂ permeability.
    • Rigid Gas Permeable (RGP): ↑O₂ permeability, good optics.
    • Soft: Hydrophilic (HEMA, Silicone Hydrogel).
      • Silicone Hydrogel (SiHy): High O₂ permeability, preferred for extended wear.
  • Key Parameters:
    • Base Curve (BC): Curvature of the back surface; matches corneal curvature.
    • Overall Diameter (OAD): Lens width.
    • Power (Diopters): $P = (n' - n) / r$
    • Central Thickness (CT).
  • Material Properties:
    • Oxygen Permeability (Dk): $Dk = ext{diffusivity} imes ext{solubility}$.
    • Oxygen Transmissibility (Dk/t): $Dk/ ext{thickness}$; critical for corneal health.
      • Minimum for daily wear: 24 $ imes 10^{-9}$.
      • Minimum for extended wear: 87 $ imes 10^{-9}$.

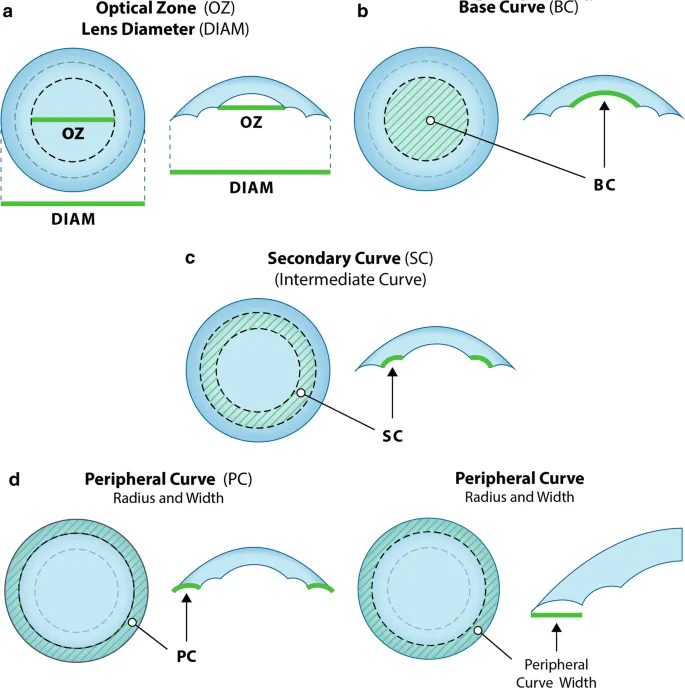

Contact Lens Parameters Diagram

⭐ Higher Dk/t value in contact lenses is crucial to prevent corneal hypoxia, especially during extended wear. Silicone hydrogels offer significantly higher Dk/t compared to HEMA lenses.

  • Advantages of CLs: ↑Field of vision, ↓Aniseikonia, cosmetic.
  • Disadvantages: Risk of infection, dry eyes, cost, maintenance.

📌 SAD CL Complications: Sterile infiltrates, Allergic, Dry eye

Contact Lens Optics - Focus Pocus

  • Effective Power & Vertex Distance: Crucial for Rx > ±4.0D.
    • CL power ($F_{CL}$) vs Spectacle power ($F_{Spec}$): $F_{CL} = \frac{F_{Spec}}{1 - d \cdot F_{Spec}}$ ($d$ = vertex distance in meters, typically 0.012m).
    • Myopes: Need stronger CL (more minus power).
    • Hyperopes: Need weaker CL (less plus power).
  • Tear Lens (RGP): Liquid lens between Rigid Gas Permeable (RGP) lens & cornea.
    • Steeper fit (Base Curve < K): Creates (+) power tear lens.
    • Flatter fit (Base Curve > K): Creates (-) power tear lens.
    • Can mask corneal astigmatism (up to ~2.0D).
  • Back Vertex Power (BVP): Standard for CL power specification.

⭐ For RGP lenses: Every 0.05mm the Base Curve is steeper than flat K, approx. +0.25D tear lens power is induced. Flatter induces minus.

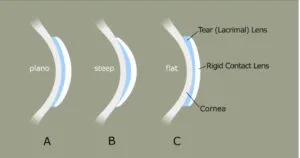

Tear lens formation with rigid contact lens on cornea

Contact Lens Optics - Perfect Fit Pixels

  • Key Parameters:
    • BCR (Base Curve Radius): Steeper K → Steeper BCR.
    • OAD (Overall Diameter): HVID + 2 mm (soft CL).
    • Power: Vertex distance correction > ±4.00 D. $F_c = F_s / (1 - d \cdot F_s)$.
  • Fit Assessment:
    • Centration, Coverage.
    • Movement: 0.25-0.5 mm (ideal).
    • RGP: Fluorescein pattern. RGP lens fluorescein: ideal vs steep fit
  • Fit Issues & Correction:
  • Problems:
    • Tight: Minimal movement, discomfort, limbal compression.
    • Loose: Excessive movement (>1.5 mm), decentration, variable vision.
  • RGP Tear Lens:
    • Corrects corneal astigmatism.
    • 📌 SAM-FAP (for CL power adjustment): Steeper fit Adds Minus, Flatter fit Adds Plus.
  • Over-Refraction (OR): Refines CL power.

⭐ For RGP lenses, a BCR steeper than flat K creates a positive tear lens; a BCR flatter than flat K creates a negative tear lens.

Contact Lens Optics - Eye Guardians

  • Potential Complications:
    • Corneal hypoxia: Edema, neovascularization.
    • Infections: Microbial keratitis (⚠️ sight-threatening), Acanthamoeba keratitis.
    • Inflammatory: Sterile infiltrates, contact lens-associated red eye (CLARE), superior limbic keratoconjunctivitis (SLK).
    • Mechanical: Superior epithelial arcuate lesion (SEAL), tight lens syndrome.
    • Allergic: Giant papillary conjunctivitis (GPC), solution hypersensitivity.
  • Essential Lens Care:
    • Strict hand hygiene.
    • "Rub and rinse" cleaning method.
    • Use only prescribed solutions (multipurpose, hydrogen peroxide).
    • Replace lens case every 1-3 months.
    • ⚠️ Never use tap water.
  • Regular Monitoring: Essential for early detection of issues.

    ⭐ Acanthamoeba keratitis risk significantly ↑ with tap water exposure (rinsing/swimming).

Contact Lens Care and Eye Health Monitoring

High-Yield Points - ⚡ Biggest Takeaways

  • Back Vertex Power (BVP) is critical, especially for high-power contact lenses.
  • Contact lenses have zero vertex distance, altering effective power compared to spectacles.
  • Rigid Gas Permeable (RGP) lenses utilize a tear lens to correct corneal astigmatism.
  • Oxygen permeability (Dk/t) is paramount for maintaining corneal health.
  • Ill-fitting lenses can cause corneal warpage, leading to refractive changes.
  • Plus power CLs magnify, while minus power CLs minify the retinal image relative to spectacles for the same refractive error correction point at the cornea plane.
