Orbital Trauma

On this page

Orbital Anatomy & Intro - Bones & Beyond

  • Bones (7): Pyramidal cavity. Walls:
    • 📌 Mnemonic: "FLEZMS P" (Frontal, Lacrimal, Ethmoid, Zygomatic, Maxillary, Sphenoid, Palatine).
    • Roof: Frontal, Lesser Sphenoid wing.
    • Floor: Maxillary, Zygomatic, Palatine (weakest).
    • Medial: Maxilla, Lacrimal, Ethmoid (lamina papyracea - thinnest), Sphenoid body.
    • Lateral: Zygomatic, Greater Sphenoid wing (strongest).
  • Key Openings & Contents:
    • Optic Canal: CN II, Ophthalmic artery.
    • Superior Orbital Fissure (SOF): CN III, IV, V1, VI; Sup. Ophthalmic Vein.
    • Inferior Orbital Fissure (IOF): CN V2, Infraorbital vessels; Inf. Ophthalmic Vein.

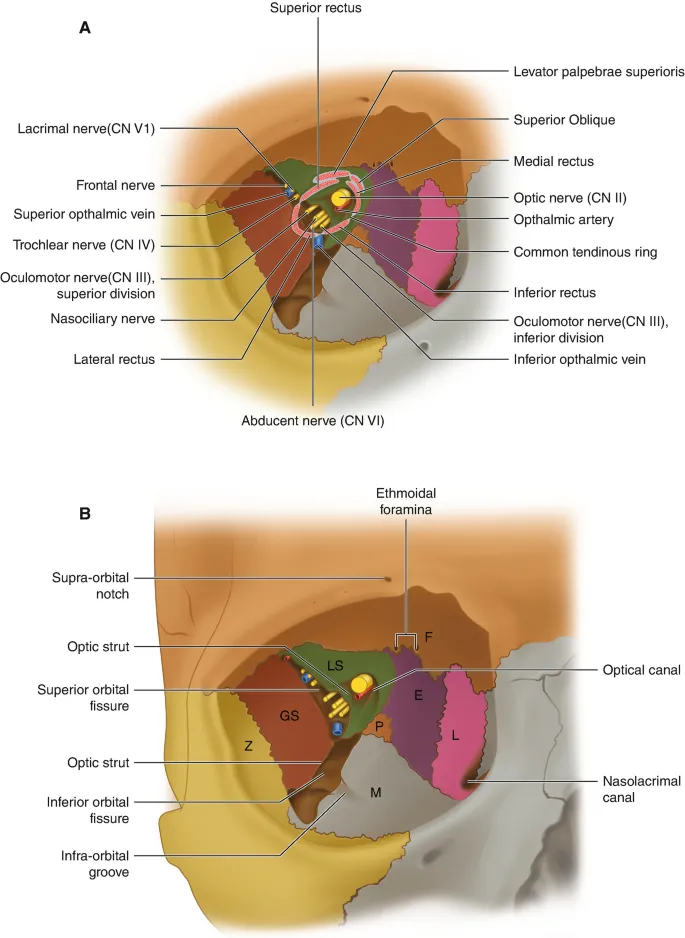

  • Volume: Approx. 30 ml. Cross-section of human orbit showing bones and foramina

⭐ The orbital floor (maxillary bone) is the most common site for blowout fractures, followed by the medial wall (ethmoid - lamina papyracea).

Orbital Fractures - Walls That Tumble

  • Blowout Fracture: Most common; inferior wall (maxillary sinus) > medial wall (ethmoid sinus).
    • Mechanism: Sudden ↑ intraorbital pressure (e.g., fist, ball).
    • Signs: Diplopia (esp. upgaze), enophthalmos, infraorbital anesthesia, orbital emphysema.
    • 📌 "Trapdoor" fracture in children: minimal external signs, significant muscle entrapment.
  • Tripod Fracture (Zygomaticomaxillary Complex - ZMC): Involves zygomatic arch, lateral orbital rim/wall, inferior orbital rim/floor.
    • Signs: Facial flattening, trismus, palpable step-offs.
  • Le Fort Fractures (II & III): Involve orbital rims/walls as part of larger midface fractures.
    • Le Fort II: Pyramidal; involves nasal bones, maxilla, lacrimal bones, orbital floor/rim.
    • Le Fort III: Craniofacial dysjunction; involves ZMC, nasoethmoidal complex, orbital walls.

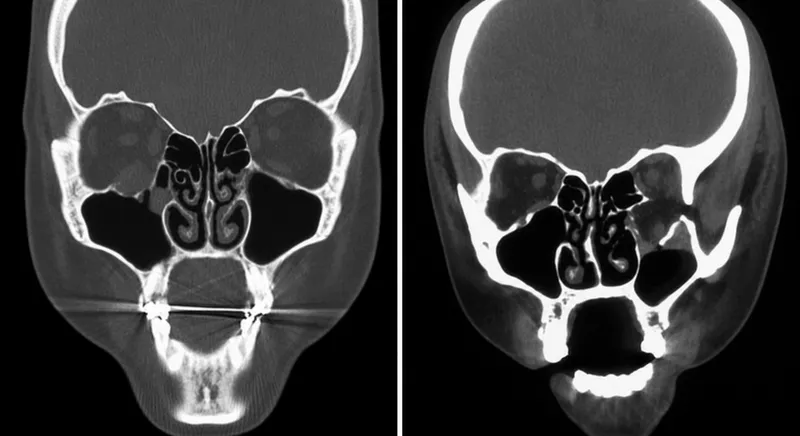

Coronal CT: Orbital floor fracture w/ muscle

⭐ Diplopia on upgaze and infraorbital nerve anesthesia are classic signs of an orbital floor blowout fracture involving the inferior rectus muscle or infraorbital nerve respectively.

Clinical Assessment - Eyes on a Prize

  • History: Mechanism (blunt/penetrating), symptoms (pain, ↓vision, diplopia, numbness).
  • Examination "EOM & Pupils First":
    • Visual Acuity (VA): Document meticulously.
    • Pupils: Size, reactivity, RAPD (optic nerve damage).
    • Ocular Motility: Diplopia, restricted movements (esp. up/down gaze in blowout), Forced Duction Test (FDT).
    • Globe: Proptosis/Enophthalmos.
    • Palpation: Orbital rim step-off, crepitus, tenderness.
    • Sensation: Infraorbital nerve anesthesia.
    • 📌 Mnemonic (Blowout Signs): "TRAP" - Trapped muscle, Rim step-off, Anesthesia, Peri-orbital changes.
  • Imaging:
    • CT Scan (axial & coronal): Gold standard. Shows fractures, muscle entrapment.
    • X-ray (Waters'): "Tear-drop" sign; limited.

⭐ CT scan (axial and coronal views) is the gold standard for diagnosing orbital fractures, detailing bone and soft tissue involvement.

![Image of CT scan showing orbital floor fracture with muscle entrapment]

Orbital Trauma Management - Patch & Proceed

Error: Failed to generate content for this concept group.

High‑Yield Points - ⚡ Biggest Takeaways

  • Orbital floor blowout fracture is most common, involving maxillary bone; often traps inferior rectus muscle.
  • Key signs: diplopia on upgaze, restricted elevation, and infraorbital nerve anesthesia.
  • "Teardrop sign" on CT scan signifies herniated orbital contents into maxillary sinus.
  • Retrobulbar hemorrhage is an ocular emergency causing proptosis, ↑IOP; requires urgent lateral canthotomy & cantholysis.
  • Orbital emphysema (crepitus) indicates fracture communicating with paranasal sinuses.
  • Enophthalmos can be a delayed complication due to orbital volume changes or fat atrophy.

Practice Questions: Orbital Trauma

Test your understanding with these related questions

Patient with history of blunt trauma to face presents with enophthalmos, diplopia on upward gaze and loss of sensitivity over cheek. True statement about this is:

1 of 5

Flashcards: Orbital Trauma

1/9

The two most common places of fracture in the orbit are the _____ and the orbital floor

TAP TO REVEAL ANSWER

The two most common places of fracture in the orbit are the _____ and the orbital floor

medial wall
