Diseases of the Lens

🔬 The Lens Architecture: Your Eye's Transparent Powerhouse

Understanding the lens is essential for mastering cataract pathology, surgical interventions, and refractive outcomes. This lesson builds your expertise from molecular structure to clinical application, covering 12 critical concepts with quantitative precision. Master lens anatomy and physiology, and you unlock the logic behind every cataract presentation, surgical complication, and visual outcome.

The lens represents one of medicine's most elegant structures-a completely avascular, transparent tissue that maintains lifelong clarity through precise metabolic control. Every clinical decision in cataract surgery depends on understanding its unique architecture, from IOL power calculations to predicting posterior capsular opacification. This lesson progresses from embryonic development through biochemical machinery to clinical correlations that transform your diagnostic and surgical reasoning.

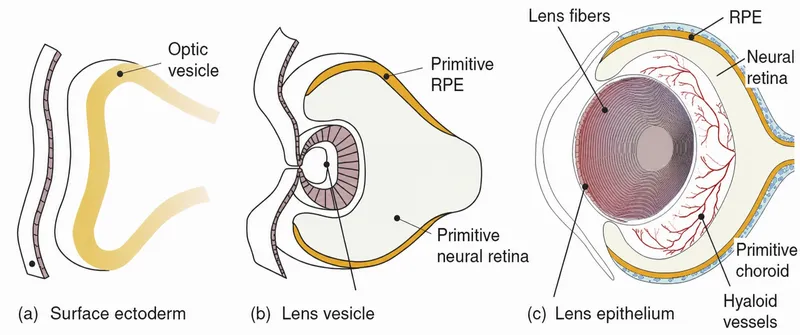

🌱 Embryonic Origins: The Lens Development Blueprint

The lens emerges as a masterpiece of embryological precision, beginning at day 27 of gestation when surface ectoderm thickens to form the lens placode. This critical timing makes the lens vulnerable to teratogenic insults during the first trimester, explaining why rubella infection before week 8 causes dense nuclear cataracts in >85% of exposed fetuses.

📌 Remember: VESICLE for lens embryology sequence

• Vesicle forms (day 33, lens pit invaginates)
• Ectoderm separates (lens vesicle detaches from surface)
• Secondary fibers elongate (posterior cells stretch anteriorly)
• Sutures form (Y-sutures appear by week 7)
• Inner nuclear zone develops (primary lens fibers form nucleus)
• Capsule secreted (basement membrane by week 5)
• Lifelong growth continues (cortical fibers added peripherally)
• Embryonic nucleus complete (by 8 weeks, 3mm diameter)

Developmental Timeline with Clinical Correlations

• Weeks 3-4: Lens placode induction
  • Optic vesicle induces surface ectoderm thickening
  • PAX6 gene mutations at this stage cause aniridia with lens abnormalities in 90% of cases
  • Critical period for teratogenic cataract formation
• Week 5: Lens vesicle formation
  • Lens pit invaginates and closes by day 33
  • Capsule secretion begins (primarily type IV collagen)
  • Failure of complete separation causes anterior polar cataracts in 1:10,000 births
• Weeks 6-8: Primary fiber formation
  • Posterior cells elongate to fill vesicle cavity
  • Anterior epithelium remains single layer
  • Embryonic nucleus forms (3mm diameter, completed by week 8)
  • Y-sutures develop: erect Y anteriorly, inverted Y posteriorly
• Month 3-Birth: Fetal nucleus development
  • Cortical fibers added continuously from equatorial epithelium
  • Fetal nucleus reaches 6mm by term
  • Vascular tunica vasculosa lentis regresses (persistent remnants cause Mittendorf dot in 25% of normal adults)

⭐ Clinical Pearl: The embryonic nucleus opacity pattern (dense central 3mm zone) distinguishes congenital rubella cataracts from metabolic causes. Nuclear density on slit-lamp corresponds precisely to gestational timing of insult-week 4-6 insults affect embryonic nucleus, week 8-12 affect fetal nucleus.

Postnatal Growth Patterns

The lens grows throughout life, increasing from 6.5mm diameter at birth to 9-10mm in adulthood, with 0.02mm/year equatorial expansion. This lifelong growth drives presbyopia onset around age 42-45 years when lens thickness reaches 4.5mm and loses accommodative elasticity.

💡 Master This: Lens growth never stops-equatorial diameter increases 0.02mm/year while thickness increases 0.02mm/year after age 20. This continuous growth compresses nuclear fibers, increasing density and refractive index (nuclear sclerosis), shifting refraction toward myopia by -0.25 to -1.0D per decade after age 60. Understanding this progression predicts the "second sight" phenomenon where presbyopic patients temporarily regain near vision before cataract surgery becomes necessary.

The lens develops from a single layer of ectoderm into a complex structure containing the longest-lived cells in the body-embryonic nuclear fibers persist for 100+ years without replacement. This unique biology explains why oxidative damage accumulates preferentially in the nucleus, causing age-related nuclear cataracts in >70% of patients over age 75.

Connect lens embryology through structural organization to understand how developmental architecture enables lifelong transparency and accommodation.

🏗️ Gross Anatomy: The Biconvex Precision Instrument

The adult lens measures 9-10mm in equatorial diameter, 4-5mm in anterior-posterior thickness, and weighs 190-255mg-remarkably small yet optically powerful. Its biconvex shape provides +18 to +20 diopters of refractive power in the relaxed state, contributing one-third of the eye's total +60D focusing capacity.

📌 Remember: CAPSULE for lens gross anatomical components

• Capsule (basement membrane, thickest at equator 21μm)
• Anterior epithelium (single cuboidal layer)
• Posterior pole (no epithelium, direct fiber contact)
• Sutures (Y-shaped meeting points of fiber ends)
• Unique avascularity (no blood vessels throughout life)
• Layers (cortex surrounds nucleus in concentric zones)
• Equator (germinal zone, continuous fiber production)

Anatomical Zones and Surgical Relevance

• Anterior capsule: 14-16μm thick centrally
  • Thinnest point: 5-6μm just anterior to equator
  • Capsulorhexis diameter: 5.0-5.5mm optimal for IOL stability
  • Zonular attachments: 360° insertion 1-2mm anterior to equator
  • Capsular tension ring placement requires ≥270° intact zonules
• Posterior capsule: 2-4μm thick (50% thinner than anterior)
  • Most fragile during phacoemulsification, rupture risk 2-3%
  • Nd:YAG capsulotomy rate: 20-30% at 3 years post-op
  • Thinnest centrally where Berger's space (potential space) exists
  • Posterior capsular opacification develops in 40-50% without square-edge IOL
• Equatorial zone: 21μm capsule thickness (thickest region)
  • Zonular fibers insert in 2mm wide band
  • Germinal epithelium produces ~1 fiber/day lifelong
  • Surgical relevance: cortical cleanup prevents Soemmering ring formation

Geometric Parameters for IOL Calculations

Understanding lens dimensions enables accurate IOL power calculations using the SRK/T, Holladay, or Barrett Universal II formulas. The effective lens position (ELP) prediction depends on preoperative lens thickness measurements.

⭐ Clinical Pearl: The anterior chamber depth (ACD) measured from corneal endothelium to anterior lens surface averages 3.15mm in emmetropes but decreases 0.01mm/year with age due to continuous lens thickening. Patients with ACD <2.5mm have 6-8× higher risk of angle-closure glaucoma and require prophylactic laser peripheral iridotomy before cataract surgery.

Zonal Architecture: The Onion-Like Organization

The lens exhibits concentric zones representing different developmental periods, each with distinct optical and mechanical properties:

• Embryonic nucleus: 3mm diameter, formed weeks 4-8
  • Highest protein concentration (>40% by weight)
  • Densest refractive index (n = 1.41)
  • Surgical hardness: Grade 4-5 nuclear sclerosis
• Fetal nucleus: 6mm diameter, formed months 3-9
  • Moderate density, n = 1.39
  • Represents 40% of lens mass at birth
• Infantile nucleus: Added first year of life
  • Rapid fiber addition, n = 1.38
• Adult nucleus: Accumulates ages 1-20
  • n = 1.37, represents mature lens core
  • Phacoemulsification settings: 30-40% power, linear mode
• Cortex: Outer 1-2mm, continuously added
  • Youngest fibers, lowest density n = 1.36
  • Softest tissue, aspiration-only removal during surgery
  • Cortical cataracts form in this zone in 40% of age-related cases

💡 Master This: The lens refractive index gradient from cortex (n=1.36) to nucleus (n=1.41) creates a gradient index (GRIN) lens that reduces spherical aberration naturally. This 0.05 refractive index difference contributes ~3D of the lens's total power and explains why nuclear sclerosis causes myopic shift-increased nuclear density raises central refractive index, adding -0.25 to -1.0D per grade of sclerosis.

The lens sits in the patellar fossa of the vitreous, suspended by zonular fibers that transmit ciliary muscle forces during accommodation. This unique positioning creates the anterior chamber (aqueous-filled space) anteriorly and posterior chamber (narrow aqueous channel) behind the iris, with the lens acting as the anatomical barrier between these compartments.

Connect gross anatomy through microscopic structure to understand how cellular organization maintains transparency and enables accommodation.

🔬 Microscopic Architecture: The Transparent Cellular Array

The lens achieves transparency through extraordinary cellular specialization-elongated fiber cells packed with crystallin proteins at >35% concentration, devoid of organelles, and arranged in precise hexagonal arrays. This unique histology eliminates light scatter while maintaining mechanical strength for accommodation.

The Capsule: Elastic Basement Membrane Foundation

The lens capsule represents the thickest basement membrane in the body at 21μm equatorially, composed primarily of type IV collagen with laminin, fibronectin, and heparan sulfate proteoglycans. This elastic structure withstands >3g of zonular tension during accommodation while maintaining optical clarity.

📌 Remember: THICK for capsule regional thickness variations

• Thickest at equator (21μm, zonular insertion zone)
• Highest elasticity coefficient (0.4 MPa in young lens)
• Intermediate anterior thickness (14-16μm centrally)
• Centrally posterior thinnest (2-4μm, surgical fragility)
• Key surgical target (capsulorhexis 5-5.5mm diameter)

• Anterior capsule composition:
  • Type IV collagen: 70% by weight, provides tensile strength
  • Laminin: 15%, cell adhesion for epithelium
  • Fibronectin: 8%, wound healing response
  • Heparan sulfate: 7%, regulates growth factor binding
  • Continuous secretion by anterior epithelium adds 0.5μm/year
• Posterior capsule structure:
  • 50% thinner than anterior (2-4μm vs 14-16μm)
  • No epithelial coverage-direct fiber cell contact
  • Basement membrane only, secreted by posterior fiber tips
  • Surgical fragility: rupture occurs in 2-3% of phacoemulsification cases
  • PCO development: epithelial migration causes opacification in 20-30% at 3 years

⭐ Clinical Pearl: Capsular elasticity decreases exponentially with age-the elastic modulus increases from 0.4 MPa at age 20 to 2.5 MPa at age 70, making capsulorhexis in elderly patients 6× more prone to radial tears. Surgeons compensate by using higher viscosity viscoelastic (e.g., Healon GV at 4% sodium hyaluronate) to maintain anterior chamber depth and capsular tension during the tear.

Anterior Epithelium: The Metabolic Command Center

A single cuboidal layer of epithelial cells covers the anterior lens surface beneath the capsule, serving as the lens's metabolic engine and fiber production factory. These cells contain abundant mitochondria, rough endoplasmic reticulum, and Golgi apparatus-organelles absent in fiber cells.

• Central epithelial zone: 0.5-1.5mm diameter
  • Lowest mitotic activity (<0.1% cells in division)
  • Highest Na+/K+-ATPase expression for ionic homeostasis
  • Maintains ~70% water content in underlying fibers
  • Damage causes anterior subcapsular cataracts in 80% of cases
• Germinative zone: 1.5-3.0mm from center
  • Active mitosis: ~1 cell division per day
  • Produces ~1 new fiber cell daily throughout life
  • Cell cycle time: 48-72 hours
  • Accumulates ~30,000 new fibers per year
• Equatorial zone: 3.0-4.5mm radius
  • Cells elongate and differentiate into fiber cells
  • Organelle degradation begins
  • Nuclear breakdown occurs over 2-3 weeks
  • Crystallin synthesis peaks before organelle loss

💡 Master This: The anterior epithelium functions as a metabolic pump, using Na+/K+-ATPase to maintain lens ionic balance. This pump consumes >70% of lens ATP production to exclude Na+ (keeping intracellular concentration at 20mM vs 140mM in aqueous) and concentrate K+ (120mM intracellular vs 5mM aqueous). Pump failure from hypoxia, diabetes, or aging allows Na+ influx, osmotic water entry, and cortical cataract formation in 40-50% of age-related cases.

Lens Fiber Cells: The Transparent Building Blocks

Mature lens fibers represent the most specialized cells in the body-hexagonal prisms measuring 8-12mm in length, 8-10μm in width, and 2μm in thickness, devoid of nuclei and organelles, packed with >90% crystallin proteins by dry weight.

• Fiber cell differentiation sequence:
  • Stage 1: Epithelial cell elongation at equator
  • Stage 2: Nuclear migration toward fiber center (days 1-7)
  • Stage 3: Organelle degradation via autophagy (days 7-14)
  • Stage 4: Crystallin synthesis peaks (days 14-21)
  • Stage 5: Complete organelle loss, terminal differentiation (day 21+)
  • Stage 6: Compaction into nuclear zone (years to decades)

• Fiber cell membrane specializations:
  • Ball-and-socket interdigitations: 10-15 per cell face
  • Gap junctions: >10,000 connexin channels per cell
  • Aquaporin-0 (AQP0): 50% of membrane protein, water transport
  • Membrane lipid composition: 1:1 cholesterol:phospholipid ratio (highest in body)
  • Fiber density: ~2,000 fibers per mm³ in cortex, ~5,000 per mm³ in nucleus

Suture Formation: The Architectural Meeting Points

Fiber cell ends meet at suture lines-branching patterns where anterior and posterior fiber tips interdigitate. These structures appear as Y-shaped configurations in the fetal nucleus, progressing to 9-12 branched stars in the adult cortex.

⭐ Clinical Pearl: Cortical spoke cataracts form along suture lines in 40% of age-related cataracts because these regions have highest membrane surface area and lowest gap junction density, making them vulnerable to oxidative damage. The anterior Y-suture (erect Y) and posterior Y-suture (inverted Y) create the classic cortical spoke pattern seen on slit-lamp examination with retroillumination.

The lens achieves transparency through four key histological features: (1) absence of blood vessels and nerves, (2) absence of organelles in mature fibers, (3) precise hexagonal fiber packing minimizing extracellular space to <0.5% of volume, and (4) uniform refractive index within each fiber layer. Any disruption-protein aggregation, membrane damage, water influx-causes light scatter and cataract formation.

Connect microscopic structure through biochemical machinery to understand how molecular processes maintain transparency and enable accommodation.

⚗️ Biochemical Machinery: The Crystallin Protein Universe

The lens contains the highest protein concentration of any tissue-33-35% by weight in cortex, >40% in nucleus-with >90% comprised of crystallins, a unique protein family that maintains transparency through precise molecular organization. Understanding crystallin biochemistry unlocks the pathophysiology of diabetic cataracts, age-related nuclear sclerosis, and UV-induced damage.

Crystallin Protein Families: The Transparency Triad

• α-Crystallins: 40% of total lens protein
  • Molecular weight: 800 kDa aggregates of 20 kDa subunits
  • Two subunits: αA (57% of α-crystallin) and αB (43%)
  • Chaperone function: prevents protein aggregation under stress
  • Heat shock protein family member (HSP20 related)
  • Maintains solubility of β- and γ-crystallins
  • Age-related changes: decreases from 40% to 30% by age 80
  • Mutation effects: αA-crystallin mutations cause autosomal dominant cataracts in >50 families worldwide

📌 Remember: ALPHA for α-crystallin functions

• Aggregation prevention (molecular chaperone)
• Large molecular weight (800 kDa complexes)
• Protein stability maintenance (prevents β/γ precipitation)
• Heat shock response (upregulated 3-5× with stress)
• Age-related decline (40% to 30% by age 80)

• β-Crystallins: 30-35% of lens protein

  • Molecular weight: 40-200 kDa (monomers to tetramers)
  • Seven distinct subunits: βA1, βA2, βA3, βA4, βB1, βB2, βB3
  • Structural proteins: maintain lens architecture
  • High concentration in cortex: 35-40% of cortical protein
  • Age-related insolubilization: 20-30% becomes water-insoluble by age 70
  • Cataract association: β-crystallin aggregation causes cortical opacities in 40% of age-related cases

• γ-Crystallins: 15-20% of lens protein

  • Molecular weight: 20 kDa monomers
  • Six subunits: γA, γB, γC, γD, γE, γF
  • Highest concentration in nucleus: >50% of nuclear protein
  • Synthesized only in fetal development: no adult production
  • Extreme stability: can remain soluble for 100+ years
  • Mutation effects: γD-crystallin mutations cause congenital nuclear cataracts with 100% penetrance

⭐ Clinical Pearl: The nuclear to cortical crystallin ratio determines lens hardness for phacoemulsification-nuclei with >50% γ-crystallin content (Grade 4-5 sclerosis) require 40-50% ultrasound power compared to 20-30% power for cortical material with 35% β-crystallin dominance. This biochemical difference explains why brunescent cataracts (dark brown nuclear sclerosis with extreme γ-crystallin compaction) require 60-70% power and 2-3× longer phaco time.

Post-Translational Modifications: The Aging Cascade

Crystallins undergo extensive post-translational modifications (PTMs) with age, progressively impairing transparency:

• Oxidation: Methionine and cysteine residues
  • Reactive oxygen species (ROS) accumulate with age
  • Glutathione (GSH) levels decrease 40-50% from age 20 to 80
  • Methionine sulfoxide formation increases 5-10× in elderly lens
  • Disulfide bond formation causes protein aggregation
• Glycation: Non-enzymatic glucose attachment
  • Advanced glycation end-products (AGEs) accumulate
  • Diabetic patients show 3-5× higher AGE levels
  • Lysine residues modified in 15-20% of crystallins by age 70
  • Creates yellow-brown lens coloration (brunescence)
• Deamidation: Asparagine and glutamine conversion
  • Aspartate and glutamate formation alters protein charge
  • Occurs in 30-40% of crystallin residues by age 80
  • Promotes protein aggregation and light scatter
• Truncation: Proteolytic cleavage
  • Calpain proteases cleave crystallins at specific sites
  • C-terminal truncation of αA-crystallin in 60% of aged lenses
  • Reduces chaperone function by 50-70%

Metabolic Pathways: Energy Production Without Oxygen

The lens operates in a hypoxic environment with <5% oxygen tension compared to atmospheric levels, relying on anaerobic glycolysis for >80% of ATP production despite its inefficiency (2 ATP per glucose vs 36 ATP via oxidative phosphorylation).

• Glycolysis: Primary energy pathway
  • Converts glucose → pyruvate → lactate
  • Produces ~2 mM ATP per hour in normal lens
  • Requires continuous glucose supply from aqueous humor
  • Hexokinase (rate-limiting enzyme) activity decreases 30% with age
  • Lactate accumulation: 15-20 mM in lens vs 2 mM in aqueous

💡 Master This: The lens glucose metabolism branches into three critical pathways: (1) Glycolysis (80%) for ATP production, (2) Pentose phosphate pathway (15%) for NADPH generation (critical for glutathione reduction and antioxidant defense), and (3) Sorbitol pathway (5%) via aldose reductase. In diabetes, hyperglycemia shunts 30-40% of glucose into the sorbitol pathway, accumulating sorbitol to 5-10 mM (vs <0.1 mM normally). Sorbitol cannot cross membranes, creating osmotic stress that draws water into the lens, causing acute cortical cataract formation in 15-20% of poorly controlled diabetics within 2-3 months of sustained hyperglycemia.

• Pentose phosphate pathway: Antioxidant defense
  • Generates NADPH for glutathione reduction
  • Maintains glutathione (GSH) at 3-5 mM in young lens
  • GSH/GSSG ratio: >100:1 in healthy lens vs 10:1 in cataract
  • Activity decreases 40-50% with age, compromising antioxidant capacity
• Sorbitol pathway: Osmotic stress generator
  • Aldose reductase converts glucose → sorbitol
  • Sorbitol dehydrogenase converts sorbitol → fructose
  • Diabetic activation: 5-10× increased flux
  • Sorbitol accumulation: causes osmotic lens swelling
  • Aldose reductase inhibitors (e.g., epalrestat) reduce diabetic cataract risk by 40-50% in animal models

Antioxidant Defense Systems: Fighting Free Radical Damage

The lens maintains transparency through robust antioxidant systems that neutralize reactive oxygen species (ROS) generated by UV light exposure and normal metabolism:

• Glutathione system: Primary antioxidant
  • GSH concentration: 3-5 mM in young lens (highest in body)
  • Glutathione peroxidase: detoxifies H₂O₂
  • Glutathione reductase: regenerates GSH from GSSG using NADPH
  • Age-related decline: GSH decreases to 1-2 mM by age 70
  • Cataract threshold: GSH <1 mM associated with 80% cataract risk
• Superoxide dismutase (SOD): Superoxide neutralization
  • Cu/Zn-SOD in cytoplasm, Mn-SOD in mitochondria (epithelium only)
  • Converts O₂⁻ → H₂O₂ (then detoxified by glutathione peroxidase)
  • Activity decreases 25-30% with age
• Catalase: Hydrogen peroxide breakdown
  • H₂O₂ → H₂O + O₂ direct conversion
  • Low activity in lens compared to other tissues
  • Primarily in anterior epithelium
• Ascorbic acid (Vitamin C): Water-soluble antioxidant
  • Aqueous humor concentration: 1-2 mM (20-40× plasma levels)
  • Lens concentration: 1.5-2.5 mM
  • Active transport from aqueous via SVCT2 transporter
  • Protects against UV-B damage (280-320nm wavelength)

⭐ Clinical Pearl: UV-B exposure generates 10-20× baseline ROS in the lens, overwhelming antioxidant defenses when cumulative lifetime exposure exceeds 10,000 hours (equivalent to 30 years of 1 hour/day outdoor exposure without protection). This explains why cortical cataracts occur in 60-70% of chronic outdoor workers by age 60 vs 30-40% in indoor workers, and why UV-blocking sunglasses reduce cataract risk by 40% in high-exposure populations.

Connect biochemical machinery through physiological function to understand how molecular processes enable accommodation and maintain transparency.

🔧 Physiological Function: The Dynamic Focusing Engine

The lens executes two critical functions: (1) providing +18 to +20 diopters of fixed refractive power and (2) dynamically adjusting power by 8-10 diopters in youth through accommodation. This dual role requires precise control of lens shape, refractive index gradient, and zonular tension through the ciliary muscle-lens-zonule system.

Accommodation Mechanism: The Helmholtz Paradigm

Accommodation follows Helmholtz's theory (1855): ciliary muscle contraction releases zonular tension, allowing the elastic lens to assume a more spherical shape, increasing anterior curvature and refractive power for near vision.

📌 Remember: NEAR for accommodation sequence

• Near stimulus activates parasympathetic (CN III)
• Equatorial release (zonules relax with ciliary contraction)
• Anterior curvature increases (radius decreases from 10mm to 6mm)
• Refractive power rises (+8-10D in youth, decreasing with age)

• Distance vision (unaccommodated state):
  • Ciliary muscle relaxed (circular fibers elongated)
  • Zonular fibers taut (pulling lens equator peripherally)
  • Lens flattened: anterior radius 10-11mm, posterior radius 6mm
  • Refractive power: +18-20D baseline
  • Lens thickness: 3.6-4.0mm in young adult
• Near vision (accommodated state):
  • Ciliary muscle contracted (circular fibers shorten 0.5-1.0mm)
  • Zonular tension reduced by 40-60%
  • Lens assumes spherical shape: anterior radius 6-7mm, posterior 5.5mm
  • Refractive power increases: +28-30D (8-10D accommodation amplitude)
  • Lens thickness increases: 4.5-5.0mm (15-20% thicker)
  • Anterior chamber depth decreases: 0.3-0.5mm shallower

Accommodative Amplitude: The Age-Related Decline

Accommodation amplitude decreases linearly with age from 14-16D at age 10 to <1D by age 60, defining the presbyopia progression that affects >90% of individuals by age 50.

⭐ Clinical Pearl: Presbyopia onset correlates with lens thickness reaching 4.3-4.5mm around age 42-45, when the lens becomes too thick for the ciliary muscle to generate sufficient shape change. The Donders' table predicts that accommodative amplitude decreases by 0.25-0.3D per year after age 40, allowing precise calculation: Amplitude (D) ≈ 18.5 - (0.3 × age). A 45-year-old has predicted amplitude of 18.5 - 13.5 = 5D, requiring +2.00D add for comfortable 40cm reading distance.

Refractive Index Gradient: The GRIN Lens Effect

The lens functions as a gradient index (GRIN) lens with refractive index decreasing from nucleus (n = 1.406-1.411) to cortex (n = 1.361-1.368), contributing ~3D of power while reducing spherical aberration by 60-70% compared to homogeneous lens.

• Nuclear refractive index: n = 1.406 (age
