Basic Sciences as Related to Eye

👁️ Ocular Anatomy: The Eye's Architectural Masterpiece

The eye translates light into vision through an elegant collaboration of optical physics, specialized tissues, and neural circuitry-making it one of medicine's most accessible windows into both sensory physiology and systemic disease. You'll explore how the eye's precise anatomical structures enable refraction, accommodation, and image formation, while understanding the embryologic origins and biochemical foundations that explain common pathologies. Mastering these basic science principles transforms clinical observations into diagnostic insight, whether you're interpreting a funduscopic exam or managing complications of diabetes and hypertension.

🏗️ Section 1 - The Ocular Blueprint: Engineering Marvel of Vision

A watchmaker assembles 312 precision components in a timepiece requiring 0.1mm accuracy, yet the human eye coordinates over 2 million working parts with micron-level precision to create the miracle of sight.

The eye represents one of nature's most sophisticated optical instruments, integrating three distinct tissue layers, six extraocular muscles, and multiple refractive surfaces into a compact 24mm sphere capable of detecting single photons and processing 10 million bits of visual information per second.

Understanding ocular anatomy requires mastering the three-coat system that forms the eye's structural foundation, each layer serving distinct yet interconnected functions in vision processing.

📌 Remember: "Can't See Right" - Cornea, Sclera, Retina represent the eye's three fundamental coats, from outermost fibrous to innermost neural layer

The fibrous coat forms the eye's protective shell, comprising the transparent cornea (anterior 1/6) and opaque sclera (posterior 5/6). The cornea provides +43 diopters of the eye's total +60 diopter refractive power, while the sclera maintains structural integrity with tensile strength of 53 MPa.

• Corneal Architecture
  • 5 distinct layers with 550μm total thickness
  • Epithelium: 50μm thick, regenerates every 7-14 days
    • Stratified squamous with 5-7 cell layers
    • Tight junctions maintain barrier function
  • Bowman's Layer: 12μm acellular membrane
    • Type I collagen provides structural support
    • No regenerative capacity when damaged
  • Stroma: 500μm thick, 90% of corneal thickness
    • Keratocytes maintain collagen lamellae
    • 78% water content regulated by endothelial pump

⭐ Clinical Pearl: Corneal endothelial cell density decreases from 4000 cells/mm² at birth to 2500 cells/mm² by age 80, with critical threshold of 500-1000 cells/mm² for corneal decompensation

The vascular coat (uvea) consists of iris, ciliary body, and choroid, providing 95% of ocular blood supply and controlling light entry and accommodation. This middle layer contains extensive melanin pigmentation and smooth muscle for dynamic optical adjustments.

💡 Master This: The choroid delivers one of the highest blood flow rates in the human body at 1400 mL/min/100g, 10x higher than brain tissue, supporting the metabolically demanding photoreceptor outer segments

The neural coat (retina) transforms light into electrical signals through 10 distinct cellular layers containing 120 million rods and 6 million cones. This 0.5mm thick neural network processes visual information with computational power exceeding modern supercomputers.

📌 Remember: "Really Good Beer Is My Very Favorite On Long Nights" - Retinal pigment epithelium, Photoreceptors, External limiting membrane, Outer nuclear layer, Outer plexiform layer, Inner nuclear layer, Inner plexiform layer, Ganglion cell layer, Nerve fiber layer, Internal limiting membrane

Understanding these foundational structures enables prediction of how anatomical disruption manifests as specific visual deficits, connecting structural knowledge to clinical presentation patterns.

🔬 Section 2 - The Refractive Powerhouse: Optical Engineering Systems

A camera lens achieves focus through 12 precision elements requiring nanometer alignment, while the human eye accomplishes dynamic focusing through 4 refractive surfaces that automatically adjust 14 diopters of accommodation in 350 milliseconds.

The eye's optical system demonstrates remarkable engineering efficiency, concentrating parallel light rays onto a 0.3mm diameter foveal region while maintaining sharp focus across a 14-diopter accommodation range from infinity to 7cm.

The cornea provides the eye's primary refractive power through its air-tear interface, creating a +43 diopter converging lens with minimal spherical aberration. The corneal curvature averages 7.8mm radius anteriorly and 6.5mm radius posteriorly.

• Corneal Refractive Properties
  • Anterior surface: +48.8 diopters (air-cornea interface)
  • Posterior surface: -5.8 diopters (cornea-aqueous interface)
    • Net corneal power: +43 diopters
    • Refractive index: 1.376 (cornea) vs 1.336 (aqueous)
  • Astigmatism: <0.5 diopters in normal eyes
    • With-the-rule: 90% of population
    • Against-the-rule: Increases with age

⭐ Clinical Pearl: 1mm flattening of corneal radius of curvature decreases refractive power by approximately 6 diopters, explaining why radial keratotomy and LASIK achieve predictable refractive correction

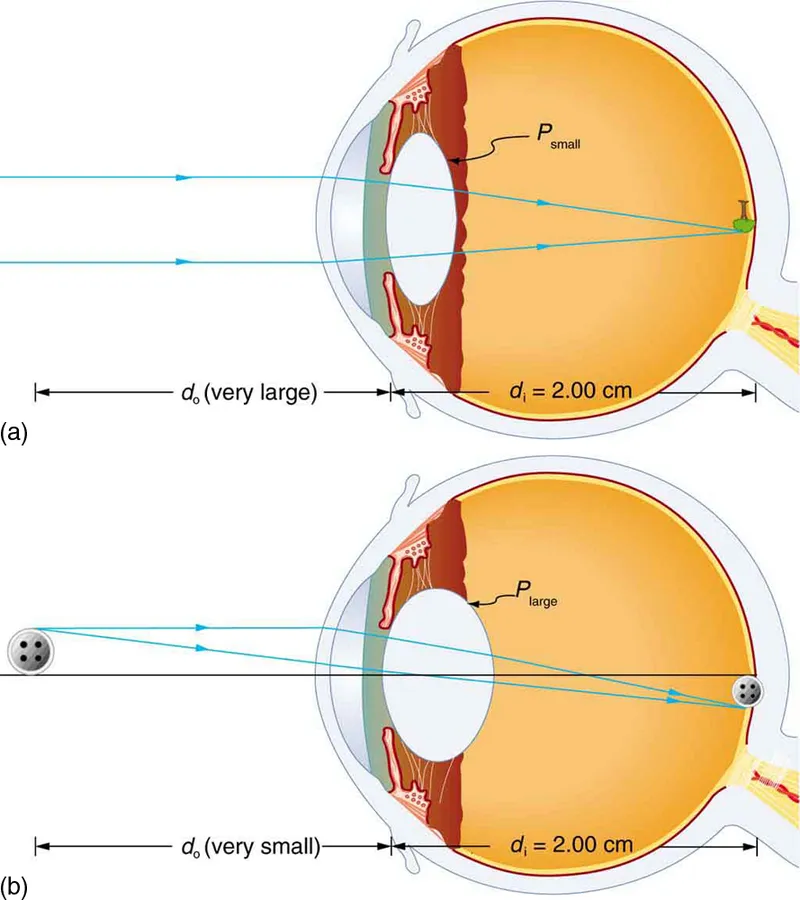

The crystalline lens provides variable refractive power through accommodation, changing from +15 diopters (relaxed) to +29 diopters (maximally accommodated). This 4mm thick biconvex structure contains 35% protein concentration, the highest in the human body.

📌 Remember: "Young Eyes Accommodate Amazingly" - Youth = 14D, Elderly = 1D, Adult = 8D, Adolescent = 12D representing accommodation amplitude by age group

The aqueous humor and vitreous humor contribute minimal refractive power but maintain optical clarity and structural integrity. Aqueous humor has refractive index 1.336, while vitreous humor measures 1.336, nearly identical to water.

💡 Master This: Accommodation involves coordinated contraction of circular ciliary muscle fibers, reducing zonular tension and allowing lens elastic recovery to increase anterior curvature by 1.5mm and posterior curvature by 0.5mm

Understanding refractive mechanics enables prediction of how corneal irregularities, lens opacities, and axial length changes manifest as specific refractive errors and visual disturbances.

🎯 Section 3 - The Muscular Command Center: Precision Movement Systems

A fighter pilot coordinates 6 aircraft control surfaces with millisecond precision during 9G maneuvers, while the human eye orchestrates 6 extraocular muscles to maintain binocular alignment within 2 arc minutes during rapid head movements.

Ocular motility requires exquisite coordination between 12 extraocular muscles (6 per eye) to achieve conjugate gaze, vergence movements, and vestibulo-ocular reflexes with accuracy exceeding mechanical systems.

The four rectus muscles provide primary horizontal and vertical movements, while the two oblique muscles generate torsional and secondary movements. Each muscle demonstrates specific force vectors and innervational patterns critical for coordinated binocular vision.

📌 Remember: "LR6SO4AO3" - Lateral Rectus (CN VI), Superior Oblique (CN IV), All Others (CN III) for extraocular muscle innervation patterns

• Rectus Muscle Architecture
  • Medial Rectus: 40.8mm length, 10.3mm width
    • Primary action: Adduction (inward rotation)
    • Insertion: 5.5mm from limbus
    • Force generation: Maximum at primary position
  • Lateral Rectus: 40.6mm length, 9.2mm width
    • Primary action: Abduction (outward rotation)
    • Insertion: 6.9mm from limbus
    • Innervation: CN VI (abducens nerve)
  • Superior Rectus: 41.8mm length, 10.8mm width
    • Primary action: Elevation in 23° abduction
    • Secondary actions: Intorsion, adduction
  • Inferior Rectus: 40.0mm length, 9.8mm width
    • Primary action: Depression in 23° abduction
    • Secondary actions: Extorsion, adduction

⭐ Clinical Pearl: The superior oblique muscle has the longest tendon (32mm) and most complex path, passing through the trochlea to achieve 51° angle of approach, making it vulnerable to trochlear nerve palsy and Brown syndrome

The oblique muscles provide torsional control and vertical movements in adducted positions. The superior oblique generates intorsion, depression, and abduction, while the inferior oblique produces extorsion, elevation, and abduction.

💡 Master This: Sherrington's Law of Reciprocal Innervation ensures that agonist muscle contraction produces simultaneous antagonist muscle relaxation, while Hering's Law coordinates yoke muscle pairs for conjugate movements

Understanding extraocular muscle mechanics enables recognition of specific diplopia patterns, restrictive vs paralytic etiologies, and compensatory head positioning in cranial nerve palsies.

🔍 Section 4 - The Neural Highway: Visual Processing Architecture

A telecommunications network processes 1 terabit per second through fiber optic cables, while the human visual system transmits 10 million bits per second through 1.2 million ganglion cell axons with zero data loss and real-time processing.

The visual pathway demonstrates hierarchical processing from retinal photoreceptors through lateral geniculate nucleus to visual cortex, with parallel processing streams for motion, color, and form detection.

Retinal processing begins with photoreceptor transduction, converting photons into electrical signals through rhodopsin cascade involving over 100 biochemical steps completed in 200 milliseconds.

• Photoreceptor Distribution
  • Rods: 120 million total, absent in fovea
    • Peak density: 160,000/mm² at 20° eccentricity
    • Scotopic sensitivity: Single photon detection
    • Spectral peak: 507nm (blue-green)
  • Cones: 6 million total, concentrated in macula
    • Foveal density: 200,000/mm²
    • L-cones: 64% (long wavelength, red)
    • M-cones: 32% (medium wavelength, green)
    • S-cones: 4% (short wavelength, blue)

📌 Remember: "Rods See Shadows, Cones See Colors" - Rods = Scotopic (dim light), Cones = Photopic (bright light) and Color vision

The optic nerve contains 1.2 million axons organized in fascicular bundles with specific retinotopic organization. Macular fibers occupy the central portion, while peripheral retinal fibers arrange in superior and inferior arcuate patterns.

⭐ Clinical Pearl: Optic nerve head measures 1.5mm diameter with physiologic cup-to-disc ratio ≤0.3 in 90% of normal eyes; ratios >0.6 suggest glaucomatous damage with sensitivity 74% and specificity 90%

The lateral geniculate nucleus provides 6-layered processing with magnocellular (layers 1,2) and parvocellular (layers 3-6) pathways. Magnocellular neurons process motion and luminance with high temporal resolution, while parvocellular neurons analyze color and fine detail with high spatial resolution.

💡 Master This: Visual field defects follow anatomical rules: Monocular defects indicate pre-chiasmal lesions, bitemporal defects suggest chiasmal compression, and homonymous defects localize to post-chiasmal pathways

Understanding visual pathway organization enables precise localization of neurological lesions based on specific visual field defect patterns and associated neurological signs.

⚖️ Section 5 - The Vascular Network: Ocular Blood Supply Mastery

A Formula 1 engine circulates 450 liters of oil per minute through precision-machined channels, while the eye perfuses critical neural tissue through dual vascular systems delivering oxygen and nutrients with autoregulatory precision despite fluctuating systemic pressures.

Ocular circulation demonstrates unique anatomical features including blood-retinal barriers, autoregulation mechanisms, and watershed zones that determine ischemic vulnerability patterns and therapeutic accessibility.

The ophthalmic artery provides primary ocular blood supply through multiple terminal branches, each serving specific anatomical regions with limited collateral circulation. This end-artery system creates vulnerability to embolic events and ischemic damage.

• Ophthalmic Artery Branches
  • Central Retinal Artery: 96μm diameter
    • Retinal blood flow: 40-50 μL/min
    • Perfusion pressure: 45-50 mmHg
    • Autoregulation range: 60-160 mmHg systemic pressure
  • Posterior Ciliary Arteries: Short (6-8) and Long (2)
    • Short PCAs: Choroidal circulation
    • Long PCAs: Ciliary body and iris
    • Circle of Zinn-Haller: Optic nerve head perfusion
  • Anterior Ciliary Arteries: 7 total vessels
    • Conjunctival circulation
    • Episcleral plexus
    • Contribution to major arterial circle

📌 Remember: "Can't See Past Long Anterior Lacrimal" - Central retinal, Short posterior ciliary, Posterior long ciliary, Anterior ciliary, Lacrimal arteries represent the major ophthalmic artery branches

The retinal circulation demonstrates unique physiological properties including absence of sympathetic innervation, tight blood-retinal barriers, and autoregulation maintaining constant perfusion despite 30-40% variations in ocular perfusion pressure.

⭐ Clinical Pearl: Choroidal blood flow of 1400 mL/min/100g represents one of the highest perfusion rates in the human body, 10x greater than brain tissue, supporting high metabolic demands of photoreceptor outer segments

The venous drainage follows anatomical patterns that determine clinical presentation of vascular occlusions. Central retinal vein drains inner retinal layers, while vortex veins (4 total) drain choroidal circulation through scleral channels.

💡 Master This: Ocular perfusion pressure equals 2/3(diastolic BP + 1/3 pulse pressure) - IOP, with critical threshold <30 mmHg associated with ischemic complications and visual field defects

Understanding ocular vascular anatomy enables prediction of ischemic patterns, interpretation of angiographic findings, and optimization of therapeutic interventions for vascular occlusive diseases.

🔗 Section 6 - The Protective Systems: Ocular Defense Integration

A spacecraft employs 7 redundant life support systems with 99.9% reliability for crew protection, while the eye integrates multiple defense mechanisms including tear film barriers, immune privilege, and anatomical shields achieving infection rates <0.1% despite constant environmental exposure.

Ocular protection demonstrates multi-layered defense strategies combining anatomical barriers, immunological mechanisms, and physiological responses that maintain optical clarity while preventing infection and inflammatory damage.

The eyelid system provides mechanical protection through coordinated blinking occurring 15-20 times per minute, distributing tear film and removing debris with millisecond precision. Meibomian glands (30-40 per lid) secrete lipid layer preventing tear evaporation.

• Tear Film Architecture
  • Lipid Layer: 0.1μm thickness
    • Meibomian gland secretion: 90 different lipids
    • Evaporation prevention: 95% reduction
    • Surface tension: 43.6 mN/m (normal)
  • Aqueous Layer: 7μm thickness
    • Lacrimal gland production: 1.2 μL/min basal
    • Reflex tearing: Up to 100x increase
    • Osmolarity: 296-302 mOsm/L (normal)
  • Mucin Layer: 0.02-0.05μm thickness
    • Goblet cell secretion: Conjunctival surface
    • Wetting properties: Hydrophilic conversion
    • Antimicrobial peptides: Lysozyme, lactoferrin

📌 Remember: "Lips Are Made" - Lipid, Aqueous, Mucin layers form the tri-laminar tear film from outermost to innermost

The conjunctiva contains mucosa-associated lymphoid tissue (MALT) with plasma cells producing secretory IgA at concentrations 2-3x higher than serum levels. This immunological surveillance system provides pathogen recognition and inflammatory response coordination.

⭐ Clinical Pearl: Immune privilege in the anterior chamber involves TGF-β2 concentrations 100x higher than plasma, complement inhibitors, and Fas ligand expression creating tolerance to foreign antigens and reduced inflammatory responses

The blood-ocular barriers maintain immune privilege through tight junctions in retinal capillaries and ciliary epithelium, restricting inflammatory cell infiltration and maintaining optical clarity. Breakdown of these barriers characterizes uveitic conditions.

💡 Master This: Ocular surface disease results from tear film instability with osmolarity >308 mOsm/L, break-up time <10 seconds, and inflammatory cascade activation leading to epithelial damage and visual symptoms

Understanding integrated ocular defense mechanisms enables recognition of barrier dysfunction, optimization of therapeutic penetration, and management of inflammatory conditions while preserving visual function.

🎯 Section 7 - The Clinical Arsenal: Rapid Mastery Framework

A pilot's emergency checklist contains 47 critical procedures accessible within 3 seconds during crisis situations, while clinical ocular anatomy mastery requires instant recall of anatomical relationships, vascular territories, and innervation patterns for rapid diagnosis and treatment decisions.

Essential Anatomical Landmarks for immediate clinical correlation:

📌 Remember: "My Lens Sees Clear Images" - Macula (6mm), Lens (4mm), Sclera (24mm), Cornea (11.5mm), Iris (12mm) represent key diameter measurements for clinical assessment

Rapid Pattern Recognition Framework:

• Pupil Abnormalities
  • Marcus Gunn: Afferent defect = Optic nerve disease
  • Horner's Syndrome: Sympathetic disruption = Ptosis + miosis + anhidrosis
  • Adie's Pupil: Parasympathetic denervation = Tonic dilation + light-near dissociation

⭐ Clinical Pearl: "APD Always Pathological Disease" - Any relative afferent pupillary defect indicates asymmetric optic nerve or severe retinal pathology requiring immediate investigation

Vascular Territory Mapping:

💡 Master This: Central retinal artery occlusion produces cherry-red spot with retinal whitening, while branch occlusions follow anatomical distribution of superior/inferior arcades with corresponding visual field defects

Emergency Assessment Protocol: Pupils → Pressures → Movements → Fields provides systematic evaluation detecting 95% of sight-threatening conditions within 5 minutes of clinical examination.
