Real-Time PCR

On this page

Basics & Principle - Glow & Go PCR

  • Real-Time PCR (qPCR): Monitors PCR product amplification during each cycle for quantitative analysis, unlike conventional PCR (end-point).
  • Principle: "Glow & Go" - fluorescence intensity, proportional to DNA amount, measured in real-time.
    • Fluorescent reporters:
      • SYBR Green: Binds non-specifically to dsDNA, fluoresces. Cost-effective.
      • TaqMan Probes: Sequence-specific. Probe hydrolysis during extension separates fluorophore from quencher, emitting light. ↑Specificity.
  • Ct (Cycle threshold): Cycle number when fluorescence significantly exceeds background.
    • Inversely proportional to initial template ($↓Ct = ↑initial DNA$).

⭐ qPCR allows precise quantification of starting nucleic acid, a key advantage over traditional PCR.

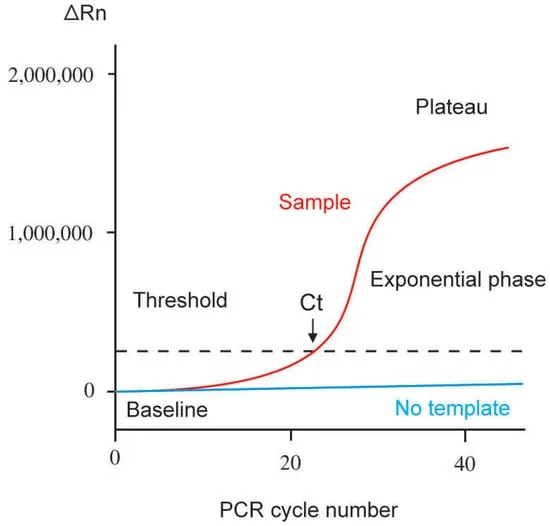

Real-Time PCR amplification curve and Ct valueoka

Detection Chemistries - Tag, You're It!

  • Non-Specific Dyes (e.g., SYBR Green I):
    • Binds any dsDNA; fluorescence ↑ upon binding.
    • Pros: Simple, cost-effective.
    • Cons: Non-specific (binds primer-dimers). Requires melt curve analysis for specificity check.
  • Specific Probes: ↑ Specificity; enables multiplexing.
    • Hydrolysis Probes (e.g., TaqMan®):
      • Probe: Reporter (R) + Quencher (Q).
      • Taq's 5'→3' exonuclease activity cleaves probe during extension → R separates from Q → fluorescence ↑.

      ⭐ TaqMan® is the most common hydrolysis probe, offering high specificity and reliable quantification.

    • Hybridization Probes (FRET Probes):
      • Two probes: Donor & Acceptor. Fluorescence upon adjacent hybridization to target (FRET).
    • Molecular Beacons:
      • Stem-loop structure (R & Q close, quenched).
      • Binding to target → opens hairpin → R & Q separate → fluorescence ↑. High specificity. qPCR amplification curves

Data Interpretation - PCR's Crystal Ball

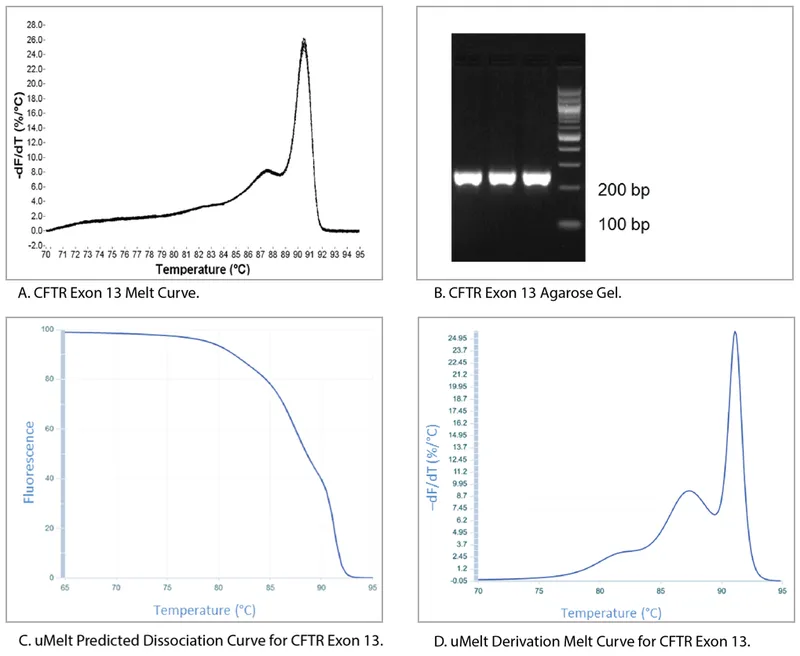

Real-Time PCR Melt Curves and Gel

  • Cycle Threshold ($C_t$ or $C_q$ Value):
    • Cycle number at which fluorescence signal significantly exceeds background, crossing a set threshold.
    • Inversely proportional to initial target nucleic acid amount: ↓$C_t$ implies ↑ initial template.
  • Melting Curve Analysis:
    • Performed post-PCR to assess product specificity and purity.
    • Based on the unique melting temperature ($T_m$) of dsDNA, influenced by GC content and length.
    • Helps distinguish specific products from non-specific amplicons or primer-dimers.
  • Quantification Strategies:
    • Absolute: Determines exact copy number using a standard curve generated from samples of known concentrations plotted against their $C_t$ values.
    • Relative: Measures fold change in gene expression relative to a calibrator sample, normalized to a reference (housekeeping) gene, often using the $2^{-\Delta\Delta C_t}$ method.

⭐ A lower $C_t$ value signifies a higher initial concentration of the target nucleic acid.

Clinical Utility - Bug Detector Pro

  • Rapid Pathogen ID:
    • Bacteria (MTB/GeneXpert), Viruses (HIV, HCV, HBV, CMV), Fungi, Parasites.
    • High sens/spec.
    • Culture-negative detection (fastidious, prior Abx).
  • Quantification (Load Monitoring):
    • Viral load (HIV, HBV, HCV): monitors Rx efficacy, guides therapy.
    • Bacterial load: assesses severity.
  • Antimicrobial Resistance (AMR) Detection:
    • Detects resistance genes (e.g., mecA, vanA/B, blaKPC).
    • Guides targeted Abx therapy.
  • Advantages:
    • Rapid TAT (hours vs days).
    • High throughput.
    • Detects non-culturable.
    • Closed system ↓ contamination.
  • Limitations:
    • DNA/RNA ≠ viable organism.
    • Costly, expertise needed.
    • False +/- risk.
    • Infection vs. colonization challenge.

⭐ Real-Time PCR can detect as few as 1-10 copies of target DNA/RNA per reaction, making it exceptionally sensitive for early pathogen detection.

High‑Yield Points - ⚡ Biggest Takeaways

  • Real-Time PCR (qPCR) enables quantification of DNA/RNA as it amplifies.
  • Employs fluorescent reporters (e.g., SYBR Green, TaqMan probes) for real-time monitoring.
  • Ct value is inversely proportional to initial target nucleic acid quantity.
  • Melting curve analysis (SYBR Green) verifies product specificity, distinguishing from primer-dimers.
  • Crucial for viral load quantification (HIV, HBV, HCV) and gene expression analysis.
  • TaqMan probes provide specificity through 5'-3' exonuclease activity of Taq polymerase.

Practice Questions: Real-Time PCR

Test your understanding with these related questions

What is the technique for accurate quantification of gene expression?

1 of 5

Flashcards: Real-Time PCR

1/7

The new variant of SARS-CoV2 has been detected by _____

TAP TO REVEAL ANSWER

The new variant of SARS-CoV2 has been detected by _____

molecular typing
