Nucleic Acid Extraction Methods

On this page

Extraction Principles - Code Cracking Intro

  • Nucleic acids (DNA/RNA): Microbial genetic material; life's code.
  • Goal: Isolate pure, intact DNA or RNA from microbes.
  • Essential for: Diagnostics (PCR), sequencing, research, epidemiology.
  • Challenges:
    • Efficient cell lysis (e.g., tough bacterial walls).
    • Preventing nuclease degradation.

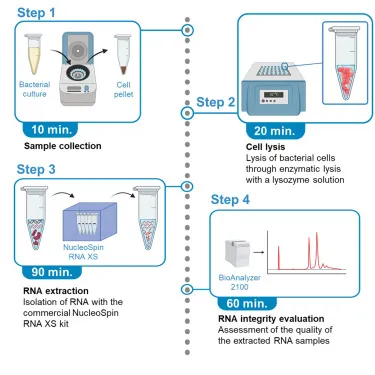

    • Removing assay inhibitors (e.g., heme, polysaccharides). RNA extraction and integrity evaluation workflow

⭐ Purity (A260/A280 ratio: DNA ~1.8, RNA ~2.0) and integrity are critical for downstream applications like PCR success.

General Steps - The Great Unraveling

📌 Mnemonic: Large Purple Pandas Want Eucalyptus (Lysis, Purification, Precipitation, Wash, Elution).

DNA Extraction Steps Diagram

  • Lysis (Cell Breakage): Key to release NA.
    • Mechanical: Beads, sonication.
    • Chemical: Detergents (SDS), chaotropic salts (guanidinium thiocyanate).
    • Enzymatic: Lysozyme (bacteria), Lyticase (yeast), Proteinase K (degrades proteins/nucleases).
  • Purification (Remove Contaminants): Isolate NA from cellular debris.
    • Organic extraction: Phenol-chloroform.
    • Solid-phase: Silica columns (NA binds in high salt, elutes in low salt).
  • Concentration & Wash: Concentrate NA and remove residual impurities.
    • Precipitation: Cold ethanol or isopropanol + salt.
    • Wash: 70% ethanol (removes salts/contaminants).
  • Elution (Resuspend NA): Rehydrate purified NA.
    • Nuclease-free $H_2O$ or TE buffer.

⭐ Proteinase K is crucial; it degrades most proteins, including nucleases that would otherwise degrade DNA/RNA, and remains active in detergents like SDS and chaotropic salts during lysis and purification steps.

DNA Methods - Blueprint Retrievers

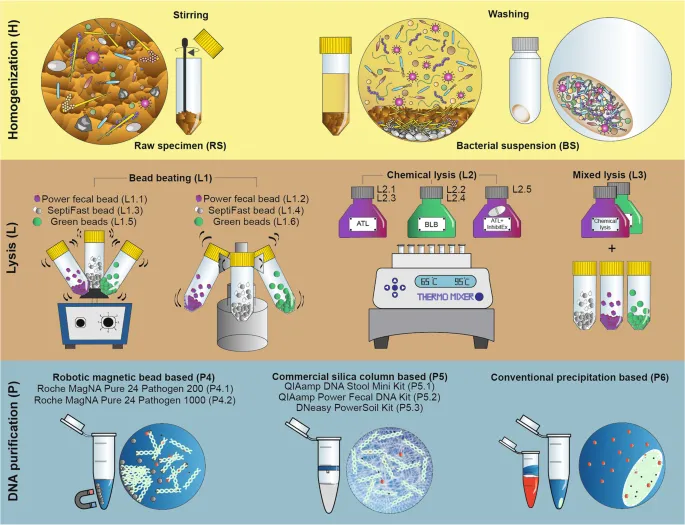

Microbial DNA Extraction Methods Overview

  • Goal: Isolate pure DNA from microbes for PCR, sequencing.
  • Core Steps:
    • Cell Lysis: Break cells.
    • Contaminant Removal (proteins, RNA).
    • DNA Recovery.
  • Lysis Types:
    • Mechanical: Bead beating, sonication. Physical force. Use: Tough cells (fungi, Gram+). Pro: Effective. Con: DNA shear.
    • Chemical: Detergents (SDS), chaotropes. Membrane disruption. Pro: Gentler. Con: Inhibitors.
    • Enzymatic: Lysozyme (bacteria), lyticase (yeast), Proteinase K (protein digestion, nuclease inactivation). Specific. Pro: Mild. Con: Cost. 📌 Pro-K for Nuclease Knell!
  • Purification:
    • Phenol-Chloroform (PCI): Phase separation. DNA in aqueous. ⚠️ Toxic.
    • Silica Column: DNA binds silica (high salt), elutes (low salt). Fast, pure.

⭐ Silica columns offer rapid, high-purity DNA ideal for sensitive assays like qPCR & NGS.

RNA & QC - Messenger Wrangling

  • Challenge: Ubiquitous, stable RNases degrade RNA. 📌 RNA Needs Always Careful Extraction (RNACE).
  • RNase Control:
    • Strict RNase-free environment (gloves, consumables).
    • Chemicals: DEPC (water/buffers), GITC (lysis buffer, Trizol).
    • Inhibitors: Proteinaceous (e.g., RNasin®).
  • RNA Extraction:
    • Methods: Organic (Phenol-GITC) or Solid-phase (silica).
    • DNase I treatment: Essential for RT-PCR, RNA-seq (removes gDNA).
  • RNA Quality Control (QC):
    • Purity (A260/A280): Target ~2.0. (<1.8 = protein contam.).
    • Purity (A260/A230): Target 1.8-2.2. (<1.8 = phenol/salt contam.).
    • Integrity (Gel): 28S & 18S rRNA (eukaryotes), ratio ~2:1. Smear = degradation.
    • Integrity (RIN): Scale 1-10. >7 good; >8 for NGS/sensitive assays.
    • Concentration: A260nm or fluorometry (Qubit for specificity).

⭐ High-quality RNA for demanding applications (NGS, microarrays) requires A260/A280 ≈ 2.0, A260/A230 >2.0, and RIN >8.

RNA gel electrophoresis: intact vs degraded RNA

High‑Yield Points - ⚡ Biggest Takeaways

  • Phenol-chloroform extraction is classic but toxic; separates by phase.
  • Silica spin columns ensure rapid, pure DNA/RNA isolation using chaotropic salts.
  • Alkaline lysis is standard for bacterial plasmid DNA extraction.
  • Enzymatic lysis (lysozyme, proteinase K) is vital for cell disruption.
  • RNA extraction demands RNase inhibitors (e.g., DEPC) or guanidinium thiocyanate.
  • Automated systems offer high-throughput, standardized nucleic acid isolation.
  • Method choice depends on sample, target nucleic acid (DNA/RNA), and application.
