Microarrays in Microbial Diagnostics

On this page

Microarray Basics - Chips & Dips

  • Core Principle: Massively parallel hybridization. Labeled sample nucleic acids (targets) bind to complementary, immobilized oligonucleotide probes on a solid surface (chip).
  • Key Components:
    • Microarray Chip: Solid support (e.g., glass, silicon) with thousands of spots.
    • Probes: Short, known DNA/RNA sequences (oligonucleotides, cDNA) fixed to chip spots.
    • Target: Fluorescently labeled nucleic acids derived from the microbial sample.
  • Hybridization ("Dips"): Chip is incubated with the target solution; specific binding reveals target presence/abundance. Microarray principle: RNA isolation, labeling, hybridization

⭐ DNA microarrays can simultaneously detect multiple pathogens and their antibiotic resistance genes from a single clinical sample.

Microarray Workflow - Lab Bench Ballet

  • Principle: Utilizes massively parallel hybridization on a chip. DNA probes bind labeled sample nucleic acids for simultaneous multi-target detection.
  • Steps:
    • Sample preparation: Isolate & purify microbial DNA/RNA (e.g., from patient specimen).
    • Labeling: Enzymatically attach fluorescent dyes (e.g., Cy3, Cy5) to sample nucleic acids.
    • Hybridization: Incubate labeled sample with microarray chip; specific probe-target binding occurs.
    • Washing: Stringent washes remove unbound/weakly bound material, reducing background noise.
    • Scanning: Laser excites dyes; a scanner detects and quantifies emitted fluorescence intensity.
    • Data analysis: Software processes signals, normalizes data, and interprets patterns for pathogen ID or gene analysis.

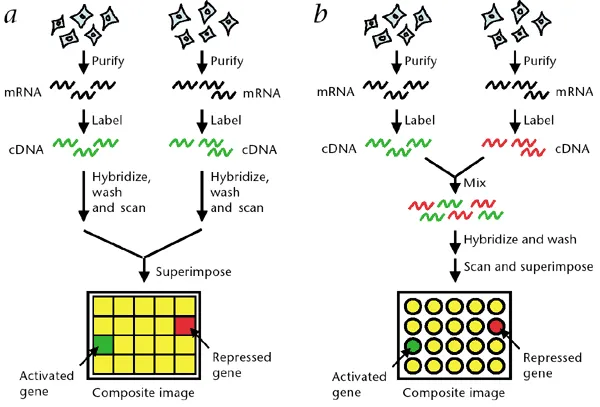

Microarray workflow diagram

⭐ Microarrays enable high-throughput screening for multiple pathogens or AMR genes in one assay, aiding rapid diagnostics.

Diagnostic Applications - Bugs on Chips

  • Multiplex Pathogen Detection:
    • Simultaneously identifies diverse microbes (bacteria, viruses, fungi, parasites) from clinical samples (blood, sputum, CSF).
    • Applications: Sepsis panels, respiratory virus panels, GI panels.
    • Enables rapid species/strain level identification.
  • Antimicrobial Resistance (AMR) Gene Detection:
    • Identifies key resistance genes (e.g., $mecA$, $vanA$, $bla_{KPC}$, $bla_{NDM}$, ESBLs).
    • Crucial for guiding targeted antibiotic therapy, combating resistance.
  • Epidemiological Tool:
    • Facilitates outbreak investigations & molecular epidemiology.
    • Tracks pathogen transmission routes & evolution.

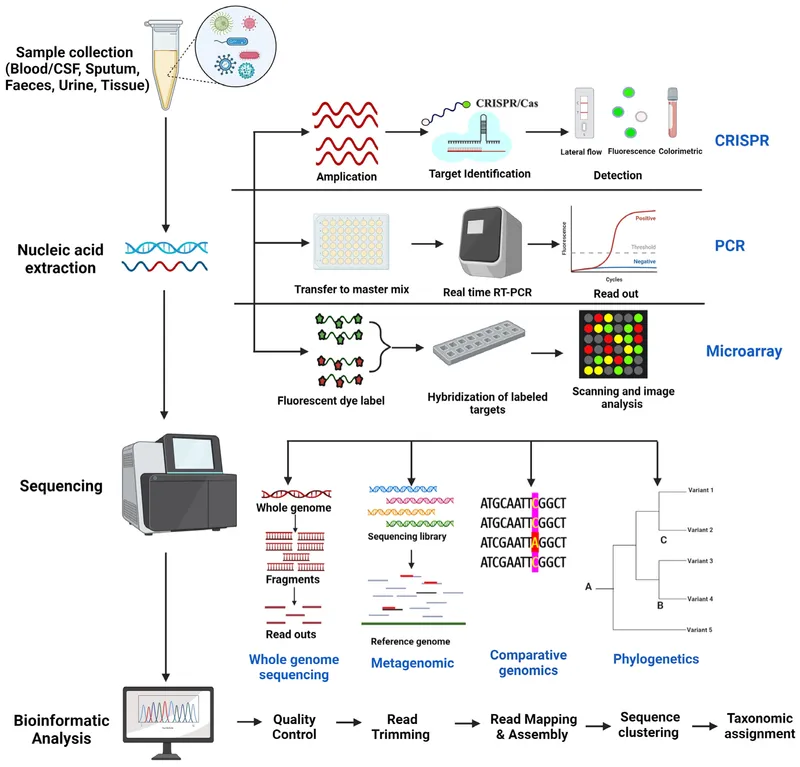

  • Advantages: High throughput, speed, comprehensive screening from minimal sample. Microarray workflow in microbial diagnostics

⭐ Microarrays allow for the detection of unculturable or slow-growing microorganisms, significantly reducing diagnostic turnaround time.

Clinical Utility & Future - Array of Hope?

  • Clinical Utility:
    • High-throughput: Simultaneous detection of multiple pathogens, virulence factors, & AMR genes.
    • Rapid ID: Faster than culture for some organisms; detects unculturable microbes.
    • Applications: Syndromic panels (respiratory, GI, sepsis), TB drug resistance (Line Probe Assays), viral genotyping.
  • Limitations:
    • Cost & complexity: Significant barriers in many Indian settings.
    • Data interpretation can be challenging.
    • Detects only pre-defined targets on the array.
  • Future Prospects:
    • Affordable Point-of-Care (POC) arrays.
    • Integration with NGS for broader pathogen discovery.
    • Enhanced epidemiological surveillance & outbreak response.
    • Guiding personalized antimicrobial therapy.

⭐ Microarrays enable rapid, multiplex detection of antimicrobial resistance (AMR) genes, crucial for guiding timely and effective treatment in critical infections.

High‑Yield Points - ⚡ Biggest Takeaways

  • Microarrays enable simultaneous detection of multiple microbial nucleic acids via hybridization.
  • Critical for rapid pathogen identification, AMR gene screening, and outbreak analysis.
  • Utilizes immobilized DNA probes (oligonucleotides or cDNA) on a chip.
  • Offers high-throughput and multiplexing advantages for complex samples.
  • Widely used for syndromic panels in sepsis, respiratory, and GI infections.
  • Fluorescent signals typically indicate positive hybridization and target presence.
  • Main limitations: cost and reliance on pre-existing sequence information for probe design.
