Introduction to DNA Sequencing - Gene Code Crackers

  • The fundamental process of determining the precise order of nucleotide bases (A, T, C, G) within a DNA strand.
  • Revolutionized microbiology: enables pathogen identification, tracking antimicrobial resistance, and understanding microbial evolution. DNA structure and nucleotide sequence representation

⭐ Key for rapid identification of unknown pathogens and guiding treatment during outbreaks, significantly impacting public health responses and patient outcomes quickly and effectively for better results.

Sanger Sequencing - Chain Terminator Classic

  • Principle: Controlled interruption of in vitro DNA synthesis using dideoxynucleotides (ddNTPs).
    • ddNTPs lack the 3'-hydroxyl (OH) group, halting phosphodiester bond formation & chain elongation. 📌 Mnemonic: No 3'-OH, No Go!
  • Core Components:
    • Single-stranded DNA (ssDNA) template
    • Specific primer
    • DNA polymerase (e.g., Taq)
    • Deoxynucleotide triphosphates (dNTPs)
    • Four fluorescently labeled ddNTPs (ddATP, ddGTP, ddCTP, ddTTP)
  • Workflow:
  • Key Features:
    • "Gold standard" for sequence accuracy & validation.
    • Long, high-quality reads (500-1000 bp).
    • Applications: targeted sequencing, mutation confirmation, small genomes.
  • Limitations:
    • Lower throughput & higher cost per base vs. NGS.
    • Not ideal for large-scale whole-genome sequencing.

⭐ The critical feature of ddNTPs is the absence of a 3'-OH group; its incorporation into a growing DNA strand prevents the addition of subsequent nucleotides, thereby terminating synthesis.

Next-Generation Sequencing (NGS) - Speedy Gene Readers

  • Massively parallel sequencing: Millions of DNA fragments sequenced simultaneously.
  • Revolutionized genomics: ↑ speed, ↑ throughput, ↓ cost vs. Sanger.
  • Core Principle: Utilizes "Sequencing by Synthesis" (SBS) or other novel detection methods for base identification.

General Workflow:

Key Advantages over Sanger:

  • High-throughput: From single genomes to complex metagenomes.
  • Quantitative: Measures gene expression levels (RNA-Seq).
  • Sensitivity: Detects rare variants (e.g., drug resistance mutations).
  • Discovery: Identifies novel pathogens or genomic features.

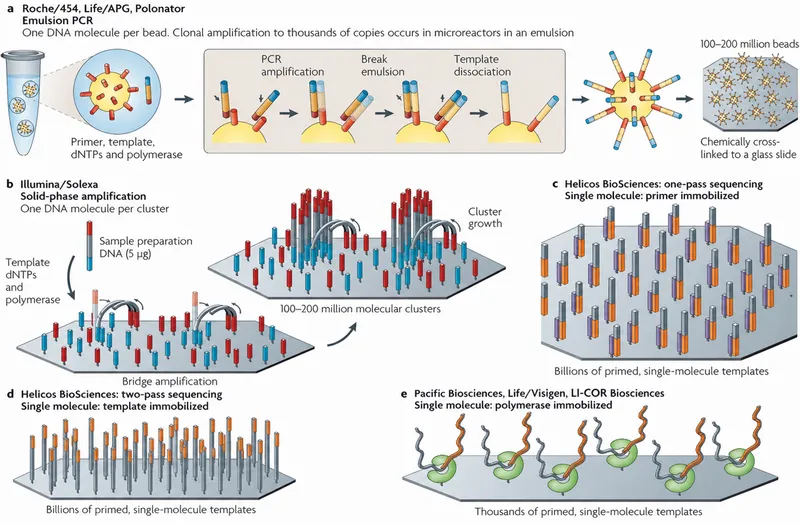

Next-Generation Sequencing Amplification Methods

Key Platforms & Features:

  • Illumina: Dominant SBS tech; short, highly accurate reads.
  • Ion Torrent: Semiconductor sequencing (detects H+ ion release).
  • PacBio (SMRT) & Oxford Nanopore (ONT): Long-read sequencing; resolves complex regions, structural variants.

Microbiological Applications:

  • Whole Genome Sequencing (WGS) for outbreak tracing, AMR gene profiling.
  • Metagenomics: Characterizing microbial communities (e.g., gut flora).
  • Transcriptomics (RNA-Seq): Studying gene expression in microbes.

⭐ NGS enables detection of low-frequency mutations (e.g., < 1%), crucial for tracking antimicrobial resistance evolution and minor viral variants.

Applications in Microbiology - Bug ID & Beyond

  • Precise Pathogen Identification:
    • 16S rRNA gene sequencing: Bacterial/archaeal identification, phylogeny.
    • ITS (Internal Transcribed Spacer) sequencing: Fungal identification.
    • Whole Genome Sequencing (WGS): Definitive ID of known/novel pathogens, high-resolution typing.
  • Antimicrobial Resistance (AMR) Profiling:
    • Rapid detection of resistance genes (e.g., mecA, blaKPC, vanA). Predicts susceptibility.
  • Molecular Epidemiology & Outbreak Investigation:
    • Strain typing, tracking transmission routes, source attribution.
  • Virulence Factor Detection:
    • Identifying genes encoding toxins, adhesins, invasins.
  • Metagenomics:
    • Culture-independent analysis of complex microbial communities (e.g., gut, soil).
    • Identifies unculturable organisms. Overview of DNA Sequencing Workflows

⭐ WGS is revolutionizing public health by enabling rapid, precise tracking of infectious disease outbreaks and AMR spread, often replacing older methods like PFGE for outbreak investigations for many pathogens.

High-Yield Points - ⚡ Biggest Takeaways

  • Sanger sequencing: uses ddNTPs for chain termination; gold standard for targeted sequencing.
  • NGS (Next-Generation Sequencing): enables massively parallel sequencing (e.g., Illumina) for high throughput.
  • 16S rRNA sequencing: key for bacterial identification and phylogeny.
  • WGS (Whole Genome Sequencing): vital for outbreak investigation and AMR detection.
  • Pyrosequencing: detects pyrophosphate (PPi) release upon nucleotide addition.
  • Applications: Pathogen ID, AMR profiling, epidemiological surveillance.
