Phenotypic Intro - Resistance Spotting 101

  • Phenotypic methods: Detect antimicrobial resistance (AMR) by observing bacterial growth response to antibiotics.
  • Core principle: "Sees" if bacteria can grow (resistant) or are inhibited/killed (susceptible) by a drug.
  • Directly measures the expressed resistance; what the drug actually encounters in the patient.
  • Often considered the reference standard for guiding clinical therapy.
  • Major categories:
    • Disk Diffusion (e.g., Kirby-Bauer): Measures zone of inhibition size.
    • Dilution (Broth/Agar): Determines Minimum Inhibitory Concentration (MIC).
    • Automated Systems: Provide rapid, standardized results.
  • Pros: Clinically intuitive, generally cost-effective.
  • Cons: Slower (requires bacterial growth), some resistance mechanisms (e.g., inducible clindamycin resistance) may require specific tests.

⭐ The Minimum Inhibitory Concentration (MIC) is the lowest concentration of an antimicrobial that inhibits visible growth of a microorganism after overnight incubation; a cornerstone of susceptibility testing.

Diffusion/Dilution - Zone & MIC Workhorses

  • Phenotypic methods: Observe growth inhibition by antimicrobials.
  • Disk Diffusion (Kirby-Bauer)
    • Principle: Antibiotic diffuses from disk into agar.
    • Measures: Zone of Inhibition (ZOI) diameter (mm).
    • Interpretation: ZOI correlates to S/I/R (CLSI/EUCAST).
    • Qualitative/Semi-quantitative.
    • Kirby-Bauer disk diffusion test with zones of inhibition
  • Dilution Methods (Broth/Agar)
    • Principle: Organism vs. serial antibiotic dilutions.
    • Determines: Minimum Inhibitory Concentration (MIC) - lowest concentration inhibiting visible growth.
    • Quantitative.
    • Broth microdilution: Common (96-well plates).
  • MIC: Crucial for therapy; guides dosage.

    ⭐ MIC is the lowest concentration of an antimicrobial that inhibits visible growth of a microorganism in vitro.

  • MBC (Minimum Bactericidal Concentration): Lowest concentration killing ≥99.9% of initial inoculum.

Targeted Phenotypic Tests - Superbug Unmasking

  • MRSA (Methicillin-Resistant S. aureus)
    • Cefoxitin disc (30µg): Zone ≤ 21mm for S. aureus.
    • PBP2a detection (e.g., latex agglutination, chromogenic agar).
  • VRE (Vancomycin-Resistant Enterococci)
    • Vancomycin screen agar (6 µg/ml vancomycin).
  • ESBL (Extended-Spectrum β-Lactamase) Producers
    • Screen: Resistance to 3rd gen cephalosporins (e.g., Cefotaxime, Ceftazidime).
    • Confirm: Combination Disc Test (CDT) - Ceftazidime/Cefotaxime ± Clavulanate (zone difference ≥ 5mm).
  • AmpC β-Lactamase
    • Cefoxitin resistance.
    • AmpC disc test / Cloxacillin synergy test.
  • Carbapenemase Producers (CPE)
    • Screen: Carbapenem resistance (Ertapenem most sensitive indicator).
    • Confirm: mCIM (zone 6-15mm or pinpoint colonies); eCIM for MBLs (zone difference ≥ 5mm with EDTA).

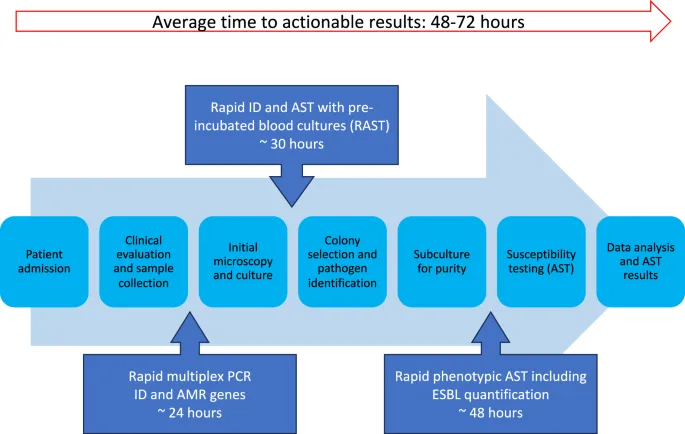

Flowchart diagram

Workflow for rapid antimicrobial resistance detection

⭐ The mCIM test is crucial for detecting carbapenemase activity, and eCIM helps differentiate Metallo-β-Lactamases (MBLs) using EDTA. This has largely replaced the less specific Modified Hodge Test (MHT).

Genotypic & Novel Methods - Gene Code Crackers

  • Genotypic Methods: Directly detect resistance genes or mutations.
    • PCR & Real-time PCR: Rapid; targets specific genes (e.g., mecA, vanA, blaKPC, mcr-1).
    • DNA Microarrays/Multiplex Panels: Simultaneous detection of multiple resistance genes.
    • Whole Genome Sequencing (WGS): Comprehensive; identifies known/novel mechanisms, crucial for outbreak epidemiology.
    • Advantages: Fast (hours), culture-independent, not affected by prior antibiotic use.
    • Limitation: Gene presence ≠ expression of resistance.
  • Novel & Rapid Phenotypic Methods:
    • MALDI-TOF MS: Detects antibiotic degradation (e.g., β-lactamase activity by identifying hydrolyzed antibiotic peaks).
    • Bacteriophage-based assays: Use phage lysis or reporter systems for rapid susceptibility.

⭐ Detection of the mecA gene by PCR is a cornerstone for identifying Methicillin-Resistant Staphylococcus aureus (MRSA).

High‑Yield Points - ⚡ Biggest Takeaways

  • Phenotypic methods: Kirby-Bauer (disk diffusion) and MIC determination (E-test, dilution) are key.
  • Genotypic methods (PCR) detect resistance genes like mecA (MRSA) and vanA (VRE).
  • ESBLs detected by double-disk synergy (DDST) or combination disk tests (ceftazidime + clavulanate).
  • Carbapenemase detection: Carba NP test (preferred) or Modified Hodge Test (MHT).
  • Cefoxitin disk diffusion is the recommended screening for MRSA.
  • D-test detects inducible clindamycin resistance in staphylococci (iMLSB).
  • Automated systems (VITEK) provide rapid MICs and resistance profiles.

Practice Questions: Detection of Antimicrobial Resistance

Test your understanding with these related questions

All are true about ESBL except -

1 of 5

Flashcards: Detection of Antimicrobial Resistance

1/9

Tube and Agar dilution method are _____ methods to test antibiotic sensitivity.

TAP TO REVEAL ANSWER

Tube and Agar dilution method are _____ methods to test antibiotic sensitivity.

dilution
