Crystal Clear Overview - Sparkly Invaders

Crystal arthropathies: Group of inflammatory joint diseases. Caused by deposition of microscopic crystals in/around joints, leading to acute or chronic inflammation.

Microscopic views of crystals in arthropathies

  • Key culprits:
    • Monosodium Urate (MSU): Gout. Needle-shaped, negatively birefringent. (📌 Negative Needles)
    • Calcium Pyrophosphate Dihydrate (CPPD): Pseudogout. Rhomboid/rod-shaped, weakly positive birefringence. (📌 Pseudogout = Positive)
    • Basic Calcium Phosphate (BCP): Apatite deposition disease. Non-birefringent, small, pleomorphic.

⭐ Endogenous crystals like MSU and CPPD trigger inflammation primarily by activating the NLRP3 inflammasome complex, leading to IL-1β release.

Gout - The King's Complaint

  • Metabolic disease: Monosodium Urate (MSU) crystal deposition from chronic hyperuricemia (serum urate >6.8 mg/dL or >400 µmol/L).
  • 📌 GOUT: Great toe, One joint, Uric acid, Tophi.
  • Features:
    • Acute: Sudden, severe monoarthritis (podagra - 1st MTP).
    • Chronic: Tophi, erosions, nephropathy (urolithiasis, urate nephropathy).
  • Diagnosis:
    • Arthrocentesis: Needle-shaped, negatively birefringent MSU crystals (gold standard).

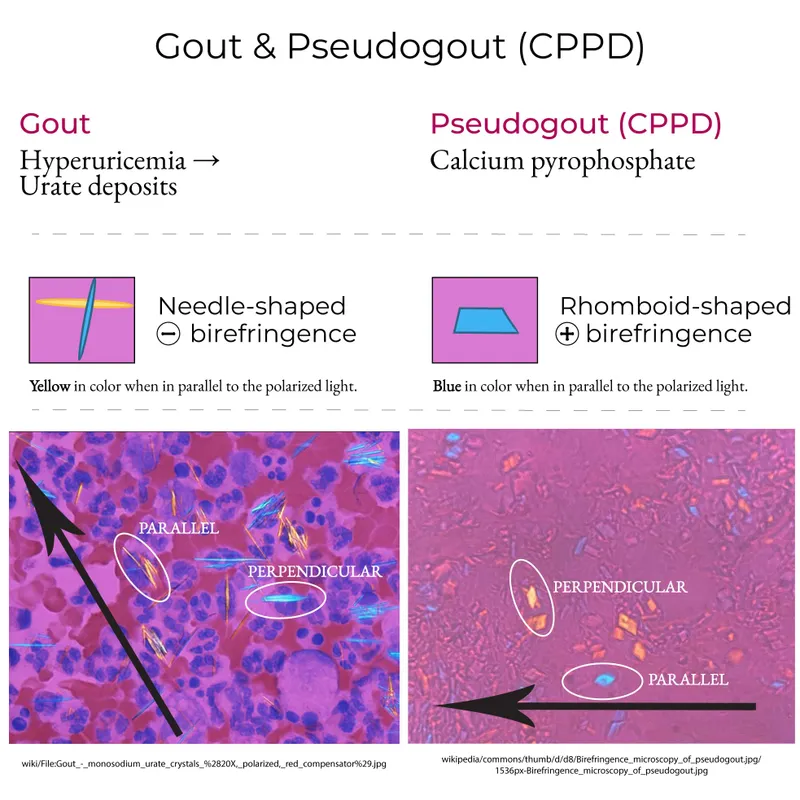

    • Serum Urate: Often ↑, but can be normal/low in acute flare. Gout and Pseudogout Crystal Microscopy Gouty arthropathy: clinical, X-ray, and MRI
  • Management:
    • Acute Attack: NSAIDs, colchicine (low-dose), or corticosteroids (oral/IA/IM). Initiate within 24h.
    • Chronic (ULT): Indications: tophi, ≥2 attacks/yr, CKD stage ≥2, urolithiasis.
      • Goal: Serum urate <6 mg/dL (<360 µmol/L); <5 mg/dL (<300 µmol/L) if tophi/severe disease.
      • Agents: Allopurinol (start 100mg/day, lower in CKD), febuxostat.
      • Anti-inflammatory prophylaxis (colchicine/NSAID) for 3-6 months when starting ULT.

⭐ The HLA-B*5801 allele is a strong predictor of severe cutaneous adverse reactions (SCARs) to allopurinol, particularly in Han Chinese, Thai, and Korean populations.

Pseudogout (CPPD) - The Great Imitator

  • Calcium Pyrophosphate Dihydrate (CPPD) crystal deposition in/around joints.
  • Crystals: Rhomboid/rod-shaped; weakly positively birefringent under polarized light.
    • MSU vs CPPD crystals under polarized light
  • X-ray Hallmark: Chondrocalcinosis (cartilage calcification). Common: knee, wrist, symphysis pubis.

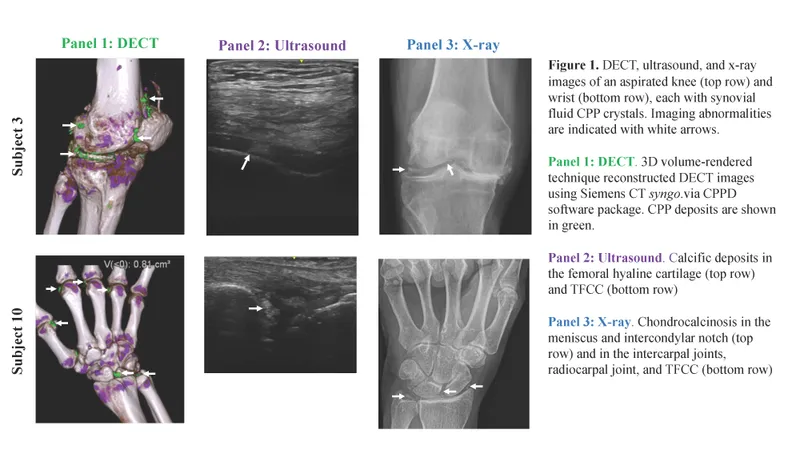

    • Chondrocalcinosis in knee and wrist X-ray
  • Clinical: "The Great Imitator"
    • Acute pseudogout: sudden, severe monoarthritis (often knee).
    • Chronic CPP crystal arthritis: polyarticular, mimics RA/OA.
  • Diagnosis: Synovial fluid analysis: definitive, shows CPPD crystals.
  • Management:
    • Acute flares: NSAIDs, colchicine, corticosteroids (intra-articular/systemic).
    • Chronic: Symptomatic relief; treat associated conditions.

⭐ CPPD deposition disease is frequently associated with underlying metabolic conditions: hyperparathyroidism, hemochromatosis, hypophosphatasia, and hypomagnesemia (📌 Triple H M).

Crystal Comparisons - Spot the Sparkle

  • Definitive Diagnosis: Synovial fluid analysis for crystal identification.
  • Acute Attack Management: NSAIDs, colchicine, corticosteroids. Prophylaxis aims to ↓ crystal load.
FeatureGout (MSU)CPPD (Pseudogout)BCP Disease (Hydroxyapatite)
CrystalMonosodium UrateCalcium Pyrophosphate DihydrateBasic Calcium Phosphate
ShapeNeedleRhomboid, rod-shapedSmall, non-birefringent clumps
BirefringenceStrongly Negative (Yellow parallel to compensator axis)Weakly Positive (Blue parallel to compensator axis)None / Not visualized
X-RayPunched-out erosions (rat-bite), TophiChondrocalcinosis (cartilage calc.)Periarticular/Intra-articular calcification (e.g., Milwaukee shoulder)
Common Sites1st MTP (Podagra), knee, ankle, midfootKnee, wrist, shoulder, elbowShoulder, hip, knee
📌 MnemonicGout: Negative, NeedleCPPD: Positive, Polygon (rhomboid)

Diagnostic Algorithm: Acute Monoarthritis

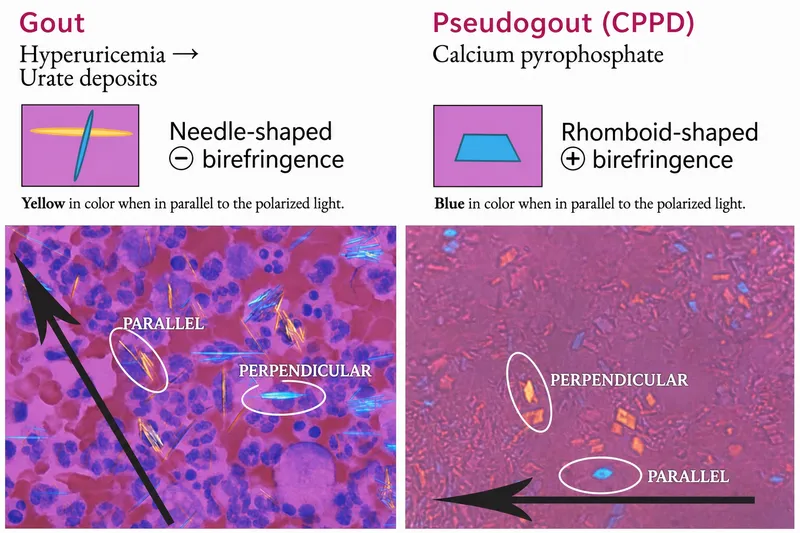

MSU and CPPD crystals under polarized light

High‑Yield Points - ⚡ Biggest Takeaways

  • Gout: MSU crystals (needle, negatively birefringent). Classic: Podagra (1st MTP).
  • Pseudogout (CPPD): CPPD crystals (rhomboid, positively birefringent). Affects knee, wrist. Chondrocalcinosis on X-ray.
  • Acute Gout Attack: Treat with NSAIDs, colchicine, or corticosteroids.
  • Chronic Gout: Manage with allopurinol or febuxostat (target urate <6 mg/dL).
  • Tophi: Pathognomonic for chronic gout; MSU crystal deposits.
  • Colchicine: For acute attacks & prophylaxis; inhibits microtubule function.

Practice Questions: Crystal Arthropathies

Test your understanding with these related questions

All are true about gout except:

1 of 5

Flashcards: Crystal Arthropathies

1/10

The crystals of Calcium hydroxyapatite deposition disease are _____birefringent

TAP TO REVEAL ANSWER

The crystals of Calcium hydroxyapatite deposition disease are _____birefringent

non
