Radiation Exposure and Safety

On this page

Radiation Basics - Zap Fundamentals

  • Types of Ionizing Radiation:
    • Particulate: Alpha (α), Beta (β), Neutrons (n).
      • α: Large, +2 charge, high Linear Energy Transfer (LET), low penetration (paper).
      • β: Small, ±1 charge, moderate LET & penetration (thin aluminum).
    • Electromagnetic (Photons): Gamma (γ), X-rays.
      • γ/X-rays: No charge/mass, low LET, high penetration (lead, concrete).
  • Key Units:
    • Absorbed Dose: Gray (Gy) - energy deposited per unit mass (J/kg).
    • Equivalent Dose: Sievert (Sv) - Gy x Radiation Weighting Factor ($W_R$). Accounts for biological effectiveness.
    • Activity: Becquerel (Bq) - 1 disintegration/sec. Curie (Ci) - 3.7 x $10^{10}$ Bq.
  • Sources:
    • Natural: Cosmic rays, terrestrial (radon, thoron), internal (K-40).

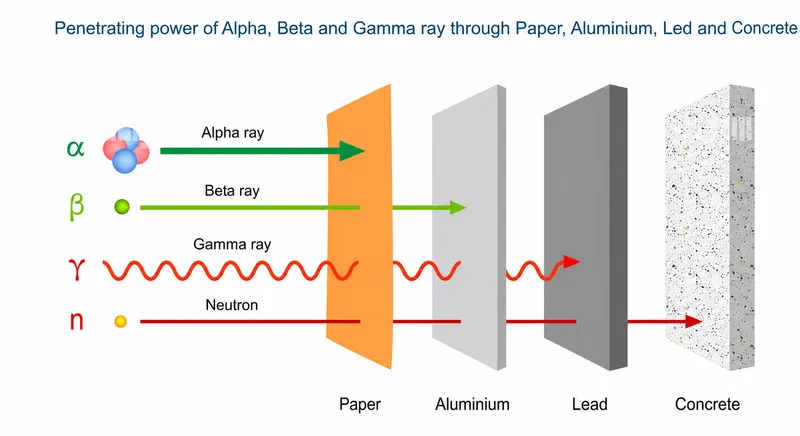

    • Man-made: Medical (X-rays, CT), industrial, nuclear fallout. Radiation Penetration: Alpha, Beta, Gamma, Neutron

⭐ Alpha particles, despite low penetration, are highly damaging if internalized (ingested/inhaled) due to their high LET causing dense ionization tracks. This makes internal emitters like Radon-222 particularly hazardous for lung tissue.

Biological Effects - Cellular Shockwaves

  • Rapid Cascade (Cellular Shockwave): Initial energy deposition & ionization ($<10^{-15}$ s) → free radical formation (indirect action, $10^{-12}$ to $10^{-6}$ s) → biomolecular damage (microseconds to seconds).
  • Mechanisms of Damage:
    • Direct Action: Radiation directly ionizes critical macromolecules (DNA, proteins). Predominant with high-LET radiation (α-particles, neutrons).
    • Indirect Action: Radiation interacts with cellular $H_2O$ (radiolysis), creating reactive free radicals (e.g., $\cdot OH$, $H\cdot$). These diffuse to damage targets.

      ⭐ Indirect action via water radiolysis accounts for ~70% of DNA damage from X-rays & γ-rays (low-LET).

  • Primary Target: DNA
    • Damage types: Single-Strand Breaks (SSBs), Double-Strand Breaks (DSBs), base alterations, crosslinks.
    • DSBs are most critical for cell lethality, mutations, and carcinogenesis.
  • Cellular Fate: Depends on damage extent: successful repair, apoptosis (programmed cell death), senescence, or genomic instability leading to cancer.

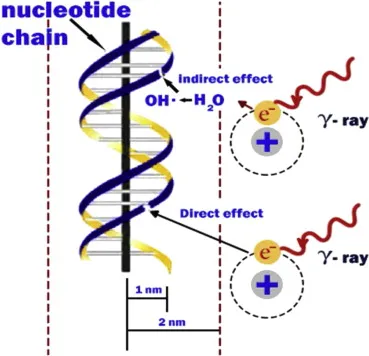

Direct vs. Indirect Radiation Damage to DNA

Radiation Protection - Shield Up!

  • ALARA Principle: "As Low As Reasonably Achievable" guides all radiation safety practices.
  • Three Cardinal Rules (📌 TDS):
    • Time: ↓ exposure time = ↓ dose.
    • Distance: ↑ distance from source = ↓ dose. Intensity decreases with square of distance ($I \propto 1/d^2$).
    • Shielding: Use appropriate barriers.
      • Lead (Pb) for X-rays & gamma rays.
      • Concrete for high-energy gamma & neutrons.
      • Perspex/Lucite for beta particles.
  • Personnel Monitoring: Dosimeters (e.g., TLD, film badge) track individual exposure.
  • Controlled & Supervised Areas: Demarcated zones with restricted access & specific safety protocols.

Radiation protection in medical imaging

⭐ The inverse square law is a cornerstone of radiation protection: doubling the distance from a point source reduces the radiation intensity to one-quarter ($1/4$).

Exposure Management - Damage Control

  • Initial Steps & Decontamination:
    • Remove victim from source immediately.
    • Remove clothing (↓ dose up to 90%).
    • External decontamination: wash (soap/water); cover wounds.
  • Internal Contamination (Decorporation):
    • Blocking: KI (130 mg) for $^{131}I$.
    • Chelation:
      • Prussian Blue: Caesium ($^{137}Cs$), Thallium.
      • DTPA (Ca/Zn): Plutonium, Americium.
    • Dilution: Water for Tritium ($^3H$).
  • Medical Management (ARS):
    • Supportive: antiemetics, fluids, pain relief, antibiotics.
    • Hematopoietic (>1 Gy): G-CSF/GM-CSF; HSCT if >6-8 Gy.
    • GI (>6 Gy): IV fluids, electrolytes, gut rest.
    • Neurovascular (>20 Gy): Palliative care.
  • Rescuer Safety: TDS; PPE.

⭐ Early onset of vomiting (<1 hour) post-exposure suggests a severe dose (>4 Gy), guiding triage.

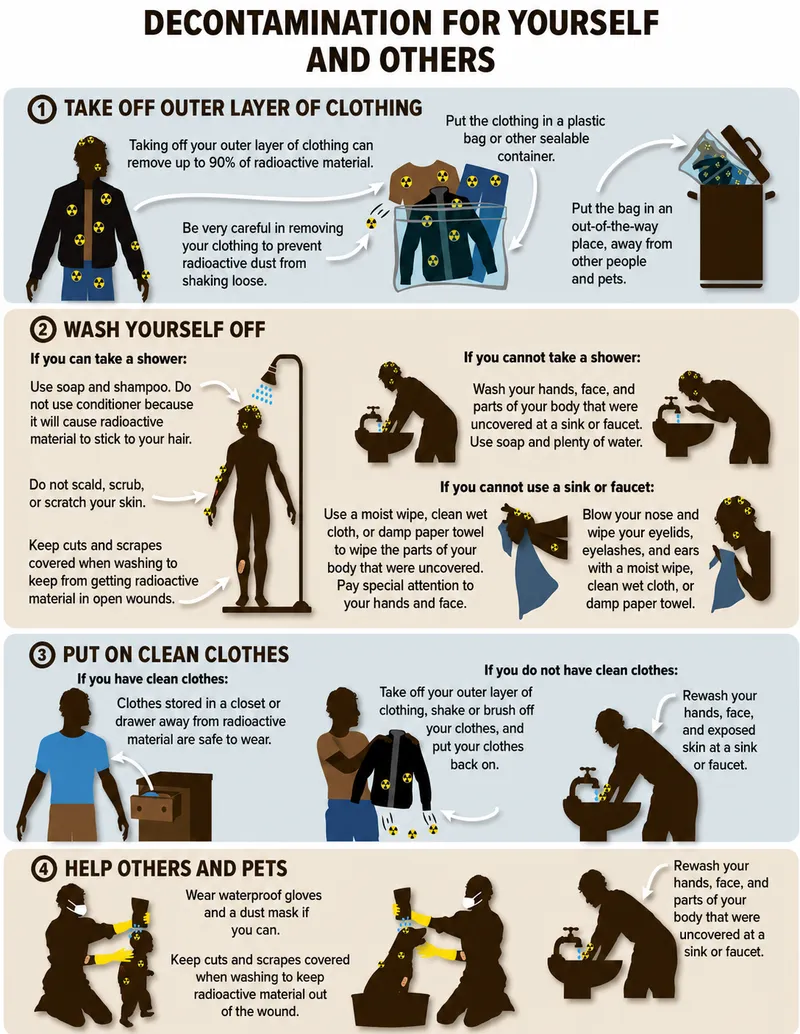

Radiation Decontamination Steps

High‑Yield Points - ⚡ Biggest Takeaways

  • Deterministic effects: threshold dose, severity ↑ with dose (e.g., skin erythema, cataracts).
  • Stochastic effects: no threshold, probability ↑ with dose (e.g., cancer, genetic effects).
  • ALARA (As Low As Reasonably Achievable) is the guiding principle for radiation safety.
  • Minimize exposure via Time (↓), Distance (↑), and Shielding.
  • Most radiosensitive: lymphoid, bone marrow, gonads, intestinal epithelium.
  • Acute Radiation Syndrome (ARS): prodromal, latent, manifest illness, recovery/death stages.
  • Potassium Iodide (KI) protects thyroid from radioactive iodine exposure during nuclear incidents.
