🚨 Critical Care Command Center: The ICU Mastery Blueprint

Critical care medicine transforms you from observer to orchestrator when seconds determine survival and every organ system demands simultaneous attention. You'll master the physiology behind ventilator strategies, decode the hemodynamic signatures of shock states, recognize how organ failures cascade through interconnected systems, and deploy targeted interventions with precision monitoring. This lesson builds your command of ICU fundamentals through integrated reasoning-connecting respiratory mechanics to perfusion crises, therapeutic choices to real-time data, and isolated problems to multi-system catastrophes. By synthesizing these frameworks, you'll develop the rapid pattern recognition and systematic thinking that defines expert intensivists who stabilize the unstable.

📌 Remember: SHOCK - Systolic <90, Heart rate >100, Oliguria <0.5ml/kg/h, Cold extremities, Knowledge saves lives. These cardinal signs appear within 15-30 minutes of hemodynamic compromise.

The modern ICU integrates 15+ monitoring systems simultaneously: arterial pressure monitoring (beat-to-beat analysis), central venous pressure (8-12 mmHg normal), pulmonary artery catheterization (cardiac output 4-8 L/min), continuous cardiac monitoring, mechanical ventilation parameters, and real-time laboratory integration. Each system provides critical data points that guide therapeutic interventions.

  • Hemodynamic Monitoring Arsenal
    • Arterial line: ±2 mmHg accuracy, 1000 Hz sampling rate
    • Central venous pressure: 2-8 mmHg normal range
      • Elevated CVP (>12 mmHg): fluid overload, right heart failure
      • Low CVP (<2 mmHg): hypovolemia, vasodilation
    • Pulmonary artery catheter: thermodilution cardiac output measurement
      • Cardiac index: 2.5-4.0 L/min/m² normal range
      • Pulmonary capillary wedge pressure: 6-12 mmHg normal

Clinical Pearl: Mixed venous oxygen saturation (SvO₂) <65% indicates inadequate oxygen delivery, while >80% suggests impaired oxygen extraction - both require immediate intervention with mortality increasing 15% for every hour of delay.

ParameterNormal RangeMild DysfunctionSevere DysfunctionCritical ThresholdIntervention
MAP70-100 mmHg60-69 mmHg50-59 mmHg<50 mmHgVasopressors
Cardiac Index2.5-4.0 L/min/m²2.0-2.4 L/min/m²1.5-1.9 L/min/m²<1.5 L/min/m²Inotropes
SvO₂65-75%60-64%50-59%<50%Optimize DO₂
Lactate<2 mmol/L2-4 mmol/L4-8 mmol/L>8 mmol/LSource control
ScvO₂70-80%65-69%55-64%<55%Resuscitation

Connect hemodynamic foundations through respiratory mechanics to understand how ventilation-perfusion relationships determine patient survival in the next section.


🚨 Critical Care Command Center: The ICU Mastery Blueprint

🫁 Respiratory Mechanics Mastery: The Ventilation Command System

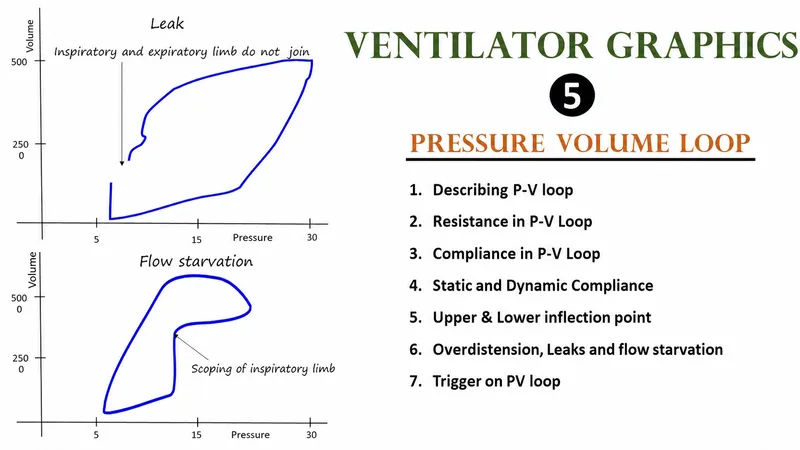

Mechanical ventilator displaying pressure-volume loops and respiratory parameters

📌 Remember: VENT - Volume 6-8ml/kg, End-expiratory pressure 5-15cmH₂O, No plateau >30cmH₂O, Tidal volumes protect lungs. Lung-protective ventilation reduces mortality by 9-16% in ARDS patients.

The ventilator-patient interaction involves complex feedback loops where airway pressure, flow patterns, and volume delivery must be continuously optimized. Plateau pressure >30 cmH₂O increases pneumothorax risk by 300%, while driving pressure >15 cmH₂O correlates with increased mortality in mechanically ventilated patients.

  • Ventilator Mode Selection Strategy
    • Volume Control: guaranteed tidal volume, variable pressure
      • Advantages: predictable minute ventilation, consistent CO₂ removal
      • Risks: barotrauma if compliance decreases suddenly
    • Pressure Control: guaranteed pressure limit, variable volume
      • Advantages: pressure limitation, improved patient comfort
      • Risks: variable minute ventilation, potential hypoventilation
    • SIMV: synchronized mandatory breaths with spontaneous breathing
      • Weaning mode: gradual reduction in mandatory rate
      • Patient comfort: preserved respiratory drive

Clinical Pearl: Recruitment maneuvers using 40 cmH₂O for 40 seconds can improve oxygenation by 50-100 mmHg in ARDS patients, but must be followed by adequate PEEP (2-3 cmH₂O above lower inflection point) to maintain alveolar recruitment.

Ventilator ParameterNormal RangeARDS SettingCOPD SettingWeaning TargetClinical Significance
Tidal Volume6-8 mL/kg IBW4-6 mL/kg IBW6-8 mL/kg IBW8-10 mL/kg IBWLung protection
PEEP5-8 cmH₂O10-15 cmH₂O3-5 cmH₂O5-8 cmH₂ORecruitment
Plateau Pressure<25 cmH₂O<30 cmH₂O<25 cmH₂O<25 cmH₂OBarotrauma prevention
Driving Pressure<15 cmH₂O<15 cmH₂O<15 cmH₂O<15 cmH₂OMortality predictor
I:E Ratio1:21:1 to 1:21:3 to 1:41:2Gas trapping

Connect respiratory mechanics through hemodynamic interactions to understand how shock syndromes disrupt oxygen delivery in the next section.


🫁 Respiratory Mechanics Mastery: The Ventilation Command System

💔 Shock Syndrome Recognition: The Perfusion Crisis Decoder

📌 Remember: SHOCK - Systemic hypoperfusion, Hypotension (MAP <65mmHg), Organ dysfunction, Cellular hypoxia, Key is early recognition. Golden hour concept: mortality doubles for every hour of delayed resuscitation.

The hemodynamic fingerprint of each shock type provides diagnostic clarity within 15-30 minutes of presentation. Distributive shock accounts for 60% of ICU shock cases, with septic shock carrying 25-30% mortality despite optimal management. Cardiogenic shock presents the highest mortality at 40-50%, requiring immediate mechanical circulatory support consideration.

  • Shock Classification by Hemodynamic Profile
    • Distributive Shock (Sepsis, Anaphylaxis, Neurogenic)
      • Cardiac Output: ↑↑ (hyperdynamic phase)
      • SVR: ↓↓ (profound vasodilation)
      • CVP: Normal to ↓
      • Treatment: Norepinephrine 0.1-3.0 mcg/kg/min
    • Cardiogenic Shock (MI, Heart Failure, Arrhythmia)
      • Cardiac Output: ↓↓ (pump failure)
      • SVR: ↑↑ (compensatory vasoconstriction)
      • CVP: ↑↑ (elevated filling pressures)
      • Treatment: Dobutamine 2.5-20 mcg/kg/min, IABP/ECMO

Clinical presentation of different shock types with physical examination findings

Clinical Pearl: Lactate clearance >10% in the first 6 hours predicts survival, while persistent lactate >4 mmol/L after 24 hours carries >80% mortality. Serial lactate measurements guide resuscitation better than single values.

Shock TypeCOSVRCVPPCWPSvO₂Key InterventionMortality
Distributive↑↑↓↓Vasopressors25-30%
Cardiogenic↓↓↑↑↑↑↑↑↓↓Inotropes/MCS40-50%
Hypovolemic↓↓↓↓Volume10-20%
Obstructive↓↓↑↑VariableDecompress30-60%
NeurogenicNormalVolume+Pressors15-25%

Connect shock recognition through organ dysfunction patterns to understand how multi-organ failure develops in the next section.


💔 Shock Syndrome Recognition: The Perfusion Crisis Decoder

🎯 Multi-Organ Dysfunction Analysis: The Cascade Catastrophe

Multi-organ dysfunction progression showing inflammatory cascade and organ interactions

📌 Remember: MODS - Multiple organs failing, Oxygen delivery impaired, Dysfunction spreads, Scores predict survival. SOFA score increases of ≥2 points indicate 10% mortality increase per point.

The pathophysiology involves cytokine storm with TNF-α, IL-1β, and IL-6 levels increasing 10-100 fold above normal. Endothelial dysfunction leads to increased capillary permeability, microthrombi formation, and distributive shock. Mitochondrial dysfunction impairs cellular oxygen utilization despite adequate delivery.

  • Organ System Failure Patterns
    • Respiratory Failure (First to fail, 24-48 hours)
      • PaO₂/FiO₂ ratio <300: mild ARDS
      • PaO₂/FiO₂ ratio <200: moderate ARDS
      • PaO₂/FiO₂ ratio <100: severe ARDS
    • Cardiovascular Failure (48-72 hours)
      • MAP <70 mmHg despite adequate volume
      • Cardiac index <2.5 L/min/m²
      • Vasopressor requirement: norepinephrine >0.1 mcg/kg/min
    • Renal Failure (72-96 hours)
      • Creatinine >2.0 mg/dL or 50% increase from baseline
      • Urine output <0.5 mL/kg/h for >6 hours
      • Need for renal replacement therapy

SOFA score calculation chart showing organ system scoring criteria

Clinical Pearl: Early goal-directed therapy within 6 hours reduces MODS progression by 25%. Central venous oxygen saturation (ScvO₂) >70% and lactate clearance >10% are key targets that prevent organ dysfunction cascade.

Organ SystemSOFA 1SOFA 2SOFA 3SOFA 4Mortality Risk
RespiratoryPF ratio 300-400PF ratio 200-300PF ratio 100-200PF ratio <100+15% per point
CardiovascularMAP <70Dopa ≤5 or any NEDopa >5 or NE ≤0.1NE >0.1+20% per point
HepaticBili 1.2-1.9Bili 2.0-5.9Bili 6.0-11.9Bili >12.0+10% per point
CoagulationPlt 100-150Plt 50-100Plt 20-50Plt <20+12% per point
RenalCr 1.2-1.9Cr 2.0-3.4Cr 3.5-4.9Cr >5.0 or RRT+18% per point
NeurologicGCS 13-14GCS 10-12GCS 6-9GCS <6+25% per point

Connect organ dysfunction assessment through therapeutic intervention strategies to understand treatment algorithms in the next section.


🎯 Multi-Organ Dysfunction Analysis: The Cascade Catastrophe

⚡ Critical Care Therapeutics: The Intervention Arsenal

📌 Remember: PRESS - Pressors for MAP >65, Renal support for oliguria, Enteral nutrition by day 3, Sedation breaks daily, Sepsis bundles save lives. 3-hour bundle completion reduces mortality by 25%.

Vasopressor selection follows physiological rationale: norepinephrine (α₁ + β₁) for distributive shock, dobutamine (β₁ + β₂) for cardiogenic shock, vasopressin (V₁ receptor) for catecholamine-resistant shock. Dose escalation follows evidence-based protocols with specific endpoints and weaning strategies.

  • Vasopressor and Inotrope Protocol
    • Norepinephrine (First-line for septic shock)
      • Starting dose: 0.1 mcg/kg/min
      • Target: MAP 65-70 mmHg
      • Maximum: 3.0 mcg/kg/min before adding second agent
      • Weaning: Decrease by 25% every 30 minutes when stable
    • Dobutamine (Cardiogenic shock with low CO)
      • Starting dose: 2.5 mcg/kg/min
      • Target: Cardiac index >2.5 L/min/m²
      • Maximum: 20 mcg/kg/min
      • Monitor: Heart rate increase <10% from baseline
    • Vasopressin (Catecholamine-sparing agent)
      • Fixed dose: 0.03-0.04 units/min
      • Add when: Norepinephrine >0.25 mcg/kg/min
      • Effect: Reduces norepinephrine requirement by 25-50%

Clinical Pearl: Spontaneous breathing trials performed daily reduce ventilator days by 25% and ICU length of stay by 2 days. RSBI (Rapid Shallow Breathing Index) <105 predicts successful extubation with 85% accuracy.

InterventionIndicationTargetMonitoringWeaning CriteriaComplications
NorepinephrineMAP <65 mmHgMAP 65-70BP q15minMAP stable x2hDigital ischemia
Mechanical VentPF ratio <200SpO₂ 88-95%ABG q6hRSBI <105VAP, Barotrauma
CRRTAKI stage 3Fluid balanceUOP, Cr dailyUOP >0.5ml/kg/hHypotension
SedationRASS targetRASS -1 to 0q4h assessmentSAT dailyDelirium
Nutrition>48h ICU stay25 kcal/kg/dProtein intakeGI toleranceRefeeding

Connect therapeutic interventions through advanced monitoring techniques to understand precision medicine approaches in the next section.


⚡ Critical Care Therapeutics: The Intervention Arsenal

🔬 Advanced Monitoring Integration: The Precision Medicine Matrix

📌 Remember: MONITOR - Microcirculation assessment, Oxygen delivery optimization, Neurological function, Inflammatory markers, Tissue perfusion, Organ function, Real-time integration. Multimodal monitoring improves outcomes by 15-20% compared to standard care.

Near-infrared spectroscopy (NIRS) provides non-invasive tissue oxygenation monitoring with real-time feedback on regional perfusion. Sublingual microcirculation assessment using sidestream dark-field imaging reveals microvascular dysfunction before macrocirculatory changes become apparent. Continuous glucose monitoring enables tight glycemic control with target ranges 140-180 mg/dL.

  • Advanced Monitoring Modalities
    • Tissue Oxygenation (NIRS)
      • Cerebral rSO₂: >60% normal, <50% intervention threshold
      • Renal rSO₂: >75% normal, <65% indicates hypoperfusion
      • Muscle rSO₂: >70% normal, correlates with lactate clearance
    • Microcirculatory Assessment
      • Perfused vessel density: >20 mm/mm² normal
      • Microvascular flow index: >2.6 indicates adequate perfusion
      • Heterogeneity index: <0.4 suggests uniform perfusion
    • Brain Tissue Monitoring
      • ICP monitoring: <20 mmHg target, >25 mmHg treatment threshold
      • Brain tissue oxygen (PbtO₂): >20 mmHg target
      • Cerebral microdialysis: lactate/pyruvate ratio <25

Microcirculatory assessment using sublingual microscopy showing perfusion patterns

Clinical Pearl: Microcirculatory dysfunction precedes organ failure by 6-12 hours. Perfused vessel density <15 mm/mm² predicts AKI development with 80% sensitivity and 75% specificity, enabling preemptive interventions.

Monitoring SystemParameterNormal RangeIntervention ThresholdPredictive ValueClinical Application
NIRS CerebralrSO₂60-80%<50%AUC 0.85 for strokeNeuroprotection
MicrocirculationPVD>20 mm/mm²<15 mm/mm²AUC 0.80 for AKIFluid optimization
ICP MonitorICP<15 mmHg>20 mmHgAUC 0.90 for outcomeTargeted therapy
Continuous EEGBurst suppression<10%>50%Seizure detectionSedation titration
Lactate TrendClearance>10%/6h<10%/6hMortality predictorResuscitation guide

Connect advanced monitoring capabilities through evidence-based protocols to understand rapid mastery frameworks in the next section.


🔬 Advanced Monitoring Integration: The Precision Medicine Matrix

🎯 Critical Care Mastery Arsenal: The Rapid Response Toolkit

📌 Remember: MASTER - Monitor continuously, Assess systematically, Stabilize rapidly, Treat specifically, Evaluate response, Reassess frequently. Systematic approaches reduce diagnostic errors by 40% and improve outcomes by 25%.

  • Essential Critical Care Arsenal
    • Rapid Assessment Protocol (ABCDE approach)
      • Airway: Patent, protected, positioned - 15-second assessment
      • Breathing: Rate 12-20, SpO₂ >92%, bilateral air entry
      • Circulation: MAP >65, HR 60-100, perfusion assessment
      • Disability: GCS >13, pupils reactive, focal deficits
      • Exposure: Temperature 36-38°C, skin assessment, lines/tubes
    • Shock Recognition Matrix
      • Distributive: ↑CO, ↓SVR, warm extremities
      • Cardiogenic: ↓CO, ↑SVR, cool extremities, elevated JVP
      • Hypovolemic: ↓CO, ↑SVR, flat neck veins
      • Obstructive: ↓CO, ↑CVP, distended neck veins

Clinical Pearl: The Rule of 65s - MAP >65, ScvO₂ >65%, Hgb >6.5 g/dL - represents minimum thresholds for adequate oxygen delivery. Achieving all three targets within 6 hours reduces mortality by 30% in septic shock.

Clinical ScenarioRecognition PatternImmediate ActionTarget ParameterTime FrameSuccess Metric
Septic ShockFever + Hypotension + ↑LactateFluid + AntibioticsMAP >65 mmHg<3 hoursLactate clearance
Cardiogenic Shock↓CO + ↑PCWP + Cool extremitiesInotropes + DiureticsCI >2.5 L/min/m²<1 hourUOP >0.5 ml/kg/h
ARDSPF ratio <200 + Bilateral infiltratesLung protectionPplat <30 cmH₂OImmediateImproved PF ratio
Status EpilepticusSeizure >5 minBenzodiazepinesSeizure cessation<5 minutesEEG normalization
AnaphylaxisRash + Hypotension + BronchospasmEpinephrine + SteroidsBP normalization<15 minutesSymptom resolution

The mastery of critical care medicine represents the pinnacle of clinical expertise, where physiological understanding, technological integration, and clinical judgment converge to save lives in the most challenging circumstances.
