Superimposition Techniques

Superimposition Basics - Skull Meets Photo

• Definition: Overlaying an image of a skull (or other remains) onto an ante-mortem photograph of a suspected individual to assess consistency within modern forensic identification frameworks under BSA provisions.
• Purpose: To establish identity by comparing anatomical landmarks as part of comprehensive forensic analysis, often supporting evidence under BSA Section 45 (expert opinion).
• Types:
  • Advanced 3D imaging techniques: CT scans, MRI, and 3D surface scanning with digital overlay methods.
  • 3D-3D registration: Sophisticated computational analysis with statistical shape models.
  • AI-assisted superimposition: Quantitative assessment using machine learning algorithms for ↑precision and objectivity.
• Key Skull Landmarks: Nasion, glabella, orbital rims, nasal aperture, zygomatic arches, gonial angles, dental features analyzed through comprehensive craniofacial complex mapping.
• Technical Requirements: High-resolution 3D imaging, ante-mortem medical imaging when available, multimodal integration approach.

⭐ Modern craniofacial superimposition integrates advanced 3D imaging with statistical methods for quantifiable identity assessment. The frontal sinus pattern remains highly individualistic and valuable when enhanced by 3D imaging comparison with ante-mortem medical records, supporting multimodal forensic identification under current BSA expert testimony standards.

Photo/Video Methods - Picture Perfect Match?

• Photographic Superimposition: Overlaying photograph of missing person onto skull radiograph/photo.

  • Principle: Matching anatomical landmarks, morphology, and proportions.
  • Requirements:
    • Antemortem photo: High-resolution, in-focus images with multiple views and clear visibility of anterior dentition.
    • Skull: Intact, correctly oriented.
    • Equipment: Camera, adjustable stand, light source.
  • Procedure: Adjusting size & orientation of photo to match skull image using advanced digital tools for precise alignment.
  • Craniofacial landmarks: Nasion, glabella, ectocanthion, endocanthion, alare, subnasale, stomion, cheilion, pogonion, gonion, euryon.

• Video Superimposition: Similar to photographic, but uses video images of the deceased (e.g., CCTV) and antemortem video/photos.

  • Advantages: Can analyze dynamic features, multiple angles if available.
  • Challenges: Image quality, distortion, synchronization.

• Modern Developments:

  • 3D Imaging: CT, MRI, and 3D surface scanning provide more accurate and objective craniofacial superimposition.
  • AI Integration: Machine learning automates image analysis and reduces subjectivity through automated landmark detection.

• Limitations:

  • While subjectivity remains a challenge, advancements in 3D imaging and AI-driven analysis significantly reduce subjective interpretation.
  • Soft tissue thickness variations.
  • Critical dependence on antemortem image quality for reliable results.

⭐ Gustafson's method (1966) provides foundational principles for photographic superimposition, now enhanced by current digital practices incorporating quantifiable, objective methods for precise alignment and analysis.

• Key Considerations:
  • Camera-to-subject distance, lens focal length, and angulation must be replicated or accounted for.
  • Digital methods offer more precision and tools (e.g., blending, warping) but require expertise.

Craniofacial Techniques - 3D Skull Sleuthing

Matching a skull to antemortem facial images/3D models for identification. Key: anatomical landmarks, skull-face morphology.

• Principle: Align skull & antemortem facial features. Precise orientation & scaling crucial.

• Methods:

  • 2D (Photographic/Video): Historical significance but significantly declined due to development of more precise molecular analysis and advanced digital tools.
  • Computer-Assisted (2D/3D): Digital tools aid alignment, transparency, scaling, rotation.

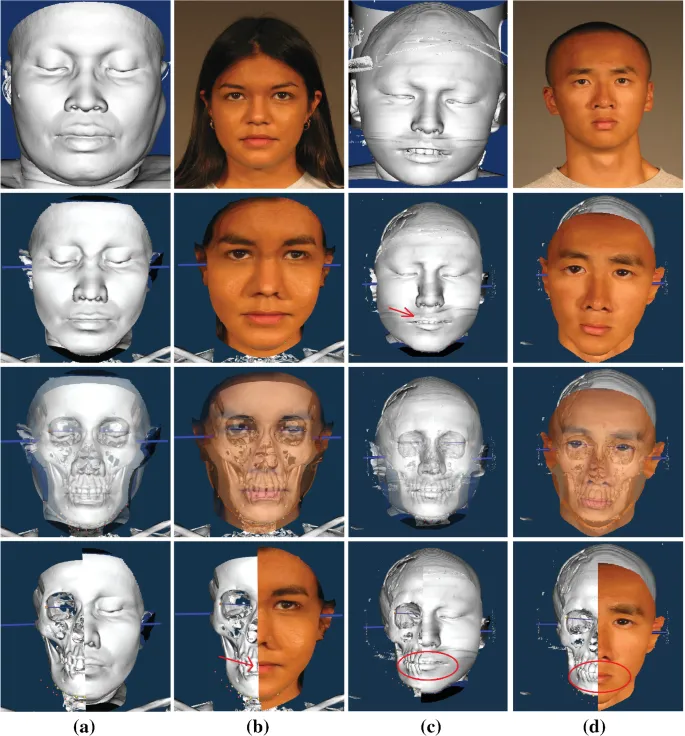

  • 3D-3D Superimposition: 3D skull model (CT/laser) vs. 3D facial model (scan/photogrammetry). Highest accuracy with standardized procedures.
    • Reduces errors; quantitative congruence assessment. MEPROCS framework establishes robust validation methodologies.

• Landmarks (Examples): Nasion, glabella, orbitale, porion, gonion, stomion.

  • Soft tissue thickness data vital (varies: age, sex, race).

• Challenges: Expression, posture, aging, weight changes.

⭐ 3D-to-3D superimposition offers superior accuracy via volumetric comparison, with ongoing standardization efforts integrating clinical practices and statistical advancements for validated forensic identification.

Legal & Limits - Courtroom Drama Unfolds

• Medico-legal Role: Key in identifying unknown deceased, especially skeletal/decomposed remains.
• Evidentiary Value:
  • Expert opinion, admissible under Sec. 45 IEA.
  • Corroborative; not conclusive proof of identity.
• Common Pitfalls:
  • Poor quality/unsuitable ante-mortem photograph.
  • Incorrect skull-photo orientation or magnification.
  • Subjectivity and observer bias.
• Advancements:
  • Digital superimposition for ↑precision.
  • 3D-3D techniques (e.g., CT skull vs. 3D facial model).
  • AI-assisted analysis.

⭐ Admissible (Sec. 45 IEA), its court value depends on technique, photo quality, expert skill; an aid, not infallible.

High‑Yield Points - ⚡ Biggest Takeaways

• Craniofacial Superimposition (CFS) involves overlaying an antemortem photograph onto a postmortem skull image.
• Its primary purpose is to assist in positive personal identification.
• Techniques include photographic, video, and computerized/digital superimposition.
• Relies on matching key anatomical landmarks between the skull and photograph.
• Quality of antemortem images and correct skull orientation are critical.
• Often corroborative evidence, supporting other identification methods.
• Digital methods offer ↑ precision and objective comparison.
