Hair and Fiber Analysis

On this page

Hair Morphology & ID - Follicle Files

  • Structure:
    • Cuticle: Outer scales (human: imbricate).
    • Cortex: Pigment granules, cortical fusi.
    • Medulla: Central core; types: continuous, interrupted, fragmented, or absent. Medullary Index (MI): $MI = \frac{\text{Medulla Dia.}}{\text{Hair Dia.}}$. Human MI < 0.3; Animal MI > 0.5.
  • Growth Phases (📌 ACT):
    • Anagen: Active growth (~85%); rounded root.
    • Catagen: Transitional (~1-2%); constricted root.
    • Telogen: Resting (~10-15%); club root (naturally shed).
  • Types: Lanugo (fetal), Vellus (fine, non-pigmented), Terminal (coarse, pigmented).
  • ID Features:
    • Species: MI, cuticular pattern, medullary type.
    • Race: Cross-section, pigment distribution, cuticle thickness.
    • Body Area: Length, diameter, shape, tip appearance.
    • Removal: Forcibly removed (stretched root, follicular tag) vs. Shed (club root).
  • Modern Standards: ASTM E3316-22 and ENFSI-BPM-THG-03 emphasize DNA analysis as gold standard for positive associations; microscopic comparisons require DNA confirmation under BSA provisions.

⭐ While Medullary Index (MI) is useful (human < 0.3, animal > 0.5), DNA analysis is now the gold standard for definitive forensic hair identification under BSA evidence standards.

Hair Examination - Microscopic Maneuvers

  • Mounting: Dry or wet (e.g., DPX).
  • Key Features:
    • Cuticle: Outermost. Scale patterns (human: imbricate). Note margins.
    • Cortex: Main body. Pigment granules (distribution, density), cortical fusi (air spaces), ovoid bodies.
    • Medulla: Central core.
      • Pattern: Continuous, interrupted, fragmented, absent.
      • Structure: Amorphous, patterned.
      • Medullary Index (MI): $MI = \frac{\text{diameter of medulla}}{\text{diameter of hair shaft}}$.
        • Human: < 0.3.
        • Animal: > 0.5.

Microscopic examination serves as preliminary screening for species determination and class characteristics. Individual identification requires DNA analysis under BSA provisions for definitive forensic evidence.

Hair Structure: Cuticle, Cortex, Medulla, and Keratin

⭐ Medullary Index (MI) is crucial: human hair MI < 0.3, animal hair MI > 0.5. Differentiates species but DNA analysis mandatory for individual identification in criminal cases under BNSS procedures.

Fiber Fundamentals & ID - Threadbare Truths

  • Fiber Classification:
    • Natural:
      • Vegetable: Cotton (flat, twisted ribbon), Jute, Linen
      • Animal: Wool (cuticular scales), Silk (smooth, triangular)
      • Mineral: Asbestos (fibrous silicates)
    • Man-made:
      • Synthetic: Nylon, Polyester, Acrylics (various cross-sections)
      • Regenerated: Rayon (from cellulose), Acetate
  • Key Identification Properties:
    • Morphology: Cross-section (e.g., trilobal for nylon), diameter, length, surface features (striations, delustrant particles).
    • Optical: Refractive Index (RI), Birefringence (using polarizing microscope), color, fluorescence (UV light).
    • Chemical: Solubility in different solvents, staining characteristics, melting point, pyrolysis gas chromatography.
    • Advanced Techniques: FTIR Spectroscopy, Raman Spectroscopy, Microspectrophotometry for non-destructive fiber composition and dye analysis. SEM with EDX for detailed morphological and elemental analysis.
  • Significance: Valuable trace evidence under BSA provisions; principle of exchange (Locard's). Strong associative value in BNS investigations.

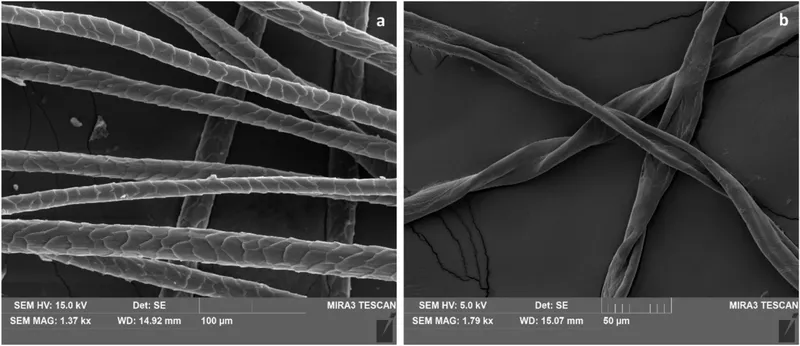

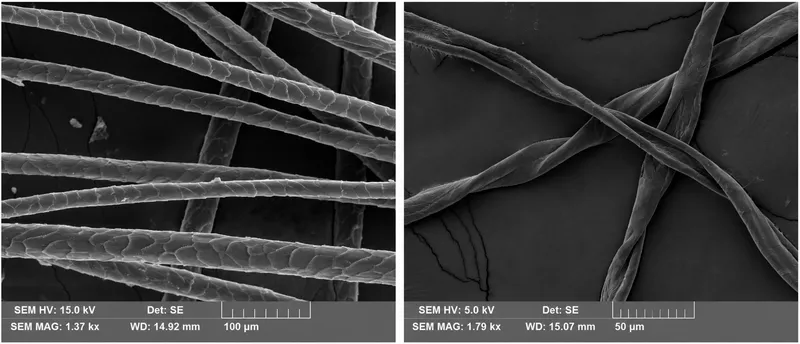

SEM of wool and cotton fibers for forensic analysis

⭐ Cross-transfer of fibers between a suspect and victim or scene significantly increases evidentiary value under BSA standards, especially for less common fiber types or multiple fiber matches analyzed through advanced spectroscopic methods.

Fiber Forensics - Weaving a Case

Microscopic view of blue fibers

  • Collection: Forceps, tape lifts, vacuum. Package items separately. Prevent contamination.
  • Types: Natural (cotton, wool, silk), Man-made (nylon, polyester, rayon).
  • Examination Protocol:
    • Microscopy: Comparison (color, diameter, cross-section, birefringence).
    • Instrumental: MSP (color), FTIR (chemical type).
    • Advanced (if needed): Pyrolysis-GC/MS (synthetics), chemical tests (destructive).
  • Significance: Class evidence. Value ↑ with rarity, multiple matches, cross-transfer.
  • Limitations: Common fibers (blue cotton) offer low specificity. Persistence issues.

⭐ Most transferred fibers are lost quickly; ~80% within 4 hours (Heelgaard-Treadwell).

High‑Yield Points - ⚡ Biggest Takeaways

  • Medullary Index: Human <0.3, Animal >0.5; helpful indicator but not absolute for species determination - cuticle patterns and DNA analysis provide definitive identification.
  • Anagen Root: Best for nuclear DNA extraction; actively growing phase.
  • Telogen Root: Shed hair; modern techniques can extract nuclear DNA, not limited to mitochondrial DNA only.
  • Cuticle (e.g., human imbricate) & Cross-section: Aid species and race identification.
  • Fibers: Differentiate natural/synthetic via microscopy, birefringence, and MSP (Microspectrophotometry).
  • Locard's Exchange Principle: "Every contact leaves a trace" - fundamental concept under BSA evidence standards.
  • Hair Evidence: Primarily for exclusion or corroboration; DNA analysis enhances associative value for identification.
