Bloodstain Pattern Analysis

On this page

BPA Fundamentals - Bloody Basics

  • Definition: Study of bloodstain patterns to reconstruct events of bloodshed.
  • Blood Properties:
    • Viscosity: Resistance to flow (avg. 3.5-5.5 cP); higher than water.
    • Surface Tension: Causes spherical drops in flight.
    • Specific Gravity: Approx. 1.050-1.060.
  • Surface Impact:
    • Smooth (e.g., glass, tile): More circular stains, minimal satellite spatter.
    • Rough (e.g., wood, fabric): Irregular stains, ↑ satellite spatter.

    ⭐ Rough surfaces cause more irregular and satellite spatter compared to smooth surfaces.

  • Stain Categories (Broad):
    • Passive: Gravity-driven (e.g., drips, pools, flows).
    • Transfer: Contact-based (e.g., wipes, swipes, pattern transfers).
    • Projected/Spatter: Force-driven (e.g., impact, cast-off, arterial spray).

⚠️ Scientific Limitations: The validity and accuracy of bloodstain pattern analysis (BPA) have been questioned since the 1990s, with more recent studies casting significant doubt on its reliability. There is a lack of universally accepted methodology and discipline standards, leading to inconsistency and uncertainty in interpretation. While still used, its limitations and the need for rigorous, consistent practices should be emphasized.

Passive & Transfer Stains - Silent Transfers

  • Passive Stains: Formed by gravity acting on liquid blood.
    • Drops: Shape reflects impact angle, surface.
    • Drip Patterns: Blood into existing wet blood.
    • Pools: Blood accumulation on a surface.
    • Flows: Movement due to gravity, surface contours.
  • Transfer Stains: Wet bloody surface contacts another; pattern may reveal object.
    • Contact Stains: Direct transfer (e.g., bloody handprint).
    • Pattern Transfers: Imprint of object (e.g., shoe, fabric).

    ⭐ A swipe stain involves a bloody object transferring its pattern to a non-bloody surface, while a wipe involves a non-bloody object moving through an existing wet bloodstain.

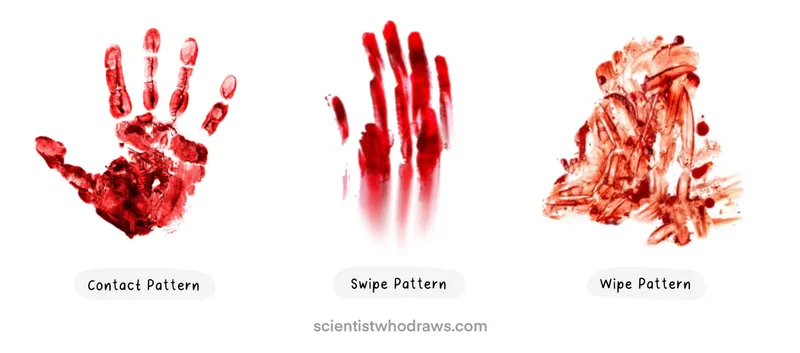

  • Silent Transfers: Subtle, often microscopic, traces linking elements (victim, suspect, scene). Contact, Swipe, and Wipe Bloodstain Patterns

Impact & Projected Spatter - Violent Signatures

  • Impact Spatter: Bloodstains created when a force impacts a source of liquid blood; pattern characteristics provide qualitative guidance for interpretation.
    • Low Velocity Impact Spatter (LVIS): Generally larger droplets; lower impact forces (e.g., blood dripping, gravity).
    • Medium Velocity Impact Spatter (MVIS): Intermediate droplet sizes; moderate impact forces (e.g., blunt force, stabbings).
    • High Velocity Impact Spatter (HVIS): Fine mist-like droplets; high impact forces (e.g., gunshots, explosions).

      ⭐ High Velocity Impact Spatter (HVIS), typically associated with gunshots, produces fine mist-like droplets requiring holistic pattern interpretation rather than strict size categorization.

    • Angle of Impact: Calculated using $Angle = \arcsin(\frac{Width}{Length})$ of drop; indicates directionality.
    • Point of Convergence (2D) & Area of Origin (3D): Help reconstruct event by locating blood source.
  • Projected Spatter: Blood released under pressure, not impact.
    • Arterial Spurts/Gushes: Large volume, wave-like pattern due to heart pumping; often bright red.
    • Expirated Spatter: Blood from mouth/nose/lungs; may show air bubbles, dilution with saliva/mucus.
    • Cast-off Stains: Blood flung from a blood-bearing object in motion (e.g., weapon); linear or arc-like. Number of trails can suggest minimum number of blows.

Analysis & Reconstruction - Reading the Scene

⭐ The 'tail' of an elongated bloodstain points in the direction of travel.

  • Directionality & Angle:
    • Tail of elongated stain indicates travel direction.
    • Angle of Impact (AOI): $AOI = \arcsin(\text{width}/\text{length})$.
  • Area of Origin:
    • Area of Convergence (2D): Intersection of lines through long axes of multiple stains.
    • Area of Origin (3D): Point in space determined using AOI and convergence (e.g., stringing method).
  • Documentation: Crucial; includes photos (with scale), sketches, detailed notes.

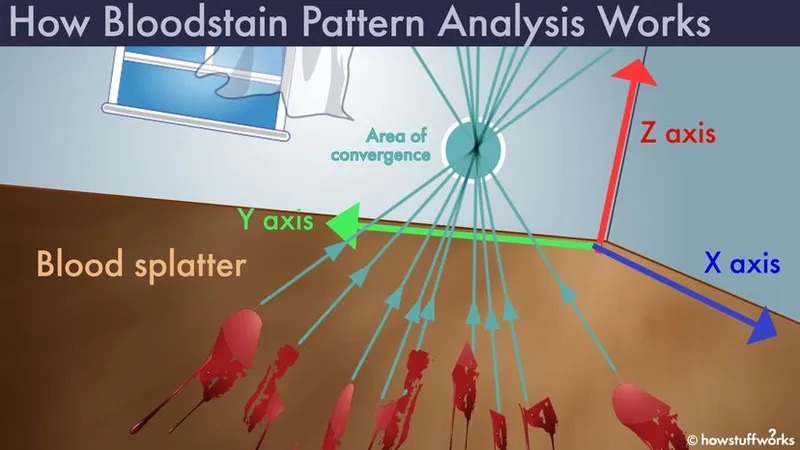

Bloodstain Pattern Analysis Area of Origin

High‑Yield Points - ⚡ Biggest Takeaways

  • Angle of impact is calculated using the formula: arcsin (width/length) of the bloodstain.
  • The tail of an elongated bloodstain indicates the direction of travel.
  • Point of convergence (2D) and point of origin (3D) are crucial for event reconstruction.
  • Cast-off patterns are produced by a blood-bearing object in motion (e.g., weapon).
  • Arterial spurts create characteristic patterns due to breached arteries and blood pressure.
  • Void patterns indicate an object was present during the blood spatter and later removed.
  • Satellite spatter refers to smaller droplets around a parent stain, often from dripping or impact dynamics.
