Peripheral Anatomy - Inner Ear Gyroscopes

  • Bony Labyrinth: Houses membranous labyrinth; contains perilymph.
  • Membranous Labyrinth: Contains endolymph.
    • Semicircular Canals (SCCs): Detect angular acceleration (head rotation).
      • Superior, Posterior, Lateral; arranged orthogonally.
      • Ampulla: Dilated end with crista ampullaris (sensory organ).
      • Cupula: Gelatinous structure overlying crista.
    • Otolith Organs (Utricle & Saccule): Detect linear acceleration & gravity.
      • Maculae: Sensory areas with hair cells.
      • Otolithic membrane: Gelatinous layer with otoconia ($CaCO_3$ crystals) providing mass.
  • Hair Cells: Mechanoreceptors.
    • Stereocilia & one Kinocilium.
    • Bending towards kinocilium → Excitation (↑ firing).

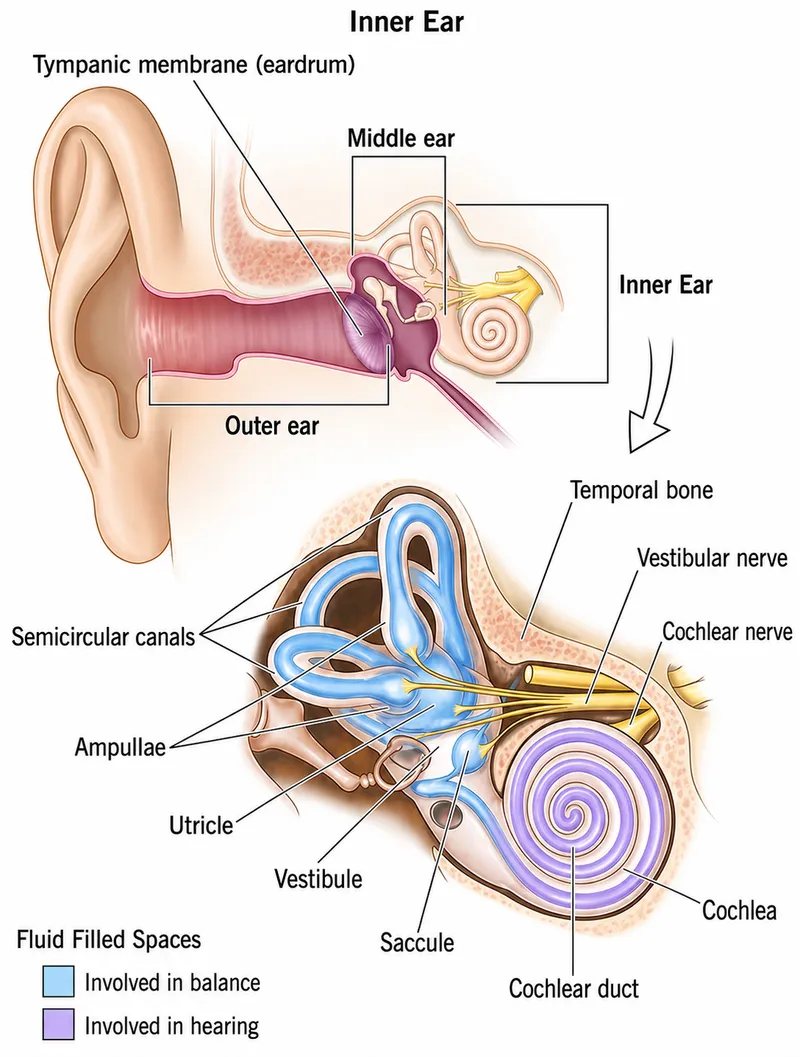

    • Bending away from kinocilium → Inhibition (↓ firing). Inner ear anatomy: balance (blue) and hearing (purple)

⭐ The three SCCs (anterior, posterior, horizontal) are oriented at roughly 90° to each other, sensing head rotation in yaw, pitch, and roll planes.

Central Pathways - Brain's Balancing Act

  • Vestibular Nuclei (VN): Located in pons & medulla.
    • Four key nuclei: Superior, Lateral (Deiters'), Medial, Inferior.
    • Inputs: CN VIII, cerebellum, visual system, proprioception.
  • Key Outputs & Functions:
    • Medial Longitudinal Fasciculus (MLF): To CN III, IV, VI → Vestibulo-Ocular Reflex (VOR) for gaze stability.
    • Vestibulospinal Tracts (VST):
      • Lateral VST (from Deiters'): To ipsilateral extensors → Postural control (Vestibulospinal Reflex - VSR).
      • Medial VST: To bilateral neck/axial muscles → Head stabilization.
    • Vestibulocerebellar Tracts: To cerebellum (esp. flocculonodular lobe) → Modulates VOR/VSR, balance learning.
    • Vestibulothalamocortical Pathway: To thalamus & cortex (e.g., Parieto-Insular Vestibular Cortex - PIVC) → Conscious perception of motion & spatial orientation.

⭐ Lesions of the Medial Longitudinal Fasciculus (MLF) cause Internuclear Ophthalmoplegia (INO), characterized by impaired adduction of the ipsilateral eye and nystagmus of the abducting contralateral eye during horizontal gaze.

Central vestibular pathways and connections

Balance Physiology - Motion Sensing Magic

  • Peripheral Sensors:
    • Semicircular Canals (SCCs): Three (anterior, posterior, horizontal) detect angular acceleration (head rotation).
      • Crista ampullaris in ampulla: sensory organ; hair cells in gelatinous cupula.
      • Endolymph inertia during rotation deflects cupula, stimulating hair cells.
    • Otolith Organs (Utricle & Saccule): Detect linear acceleration (e.g., forward, up/down) & static head tilt (gravity).
      • Maculae: sensory epithelium; hair cells. Stereocilia & kinocilium project into otolithic membrane, weighted by otoconia ($CaCO_3$ crystals).
  • Central Processing: Signals via vestibular nerve (CN VIII) to vestibular nuclei (brainstem) & cerebellum for integration.
  • Key Reflexes:
    • Vestibulo-Ocular Reflex (VOR): Maintains stable vision during head movements. Head turns, eyes move conjugately opposite.

      ⭐ VOR gain (eye velocity / head velocity) is normally 1.0. Reduced gain indicates peripheral vestibular hypofunction.

    • Vestibulospinal Reflex (VSR): Adjusts limb/trunk posture to maintain balance, prevent falls.

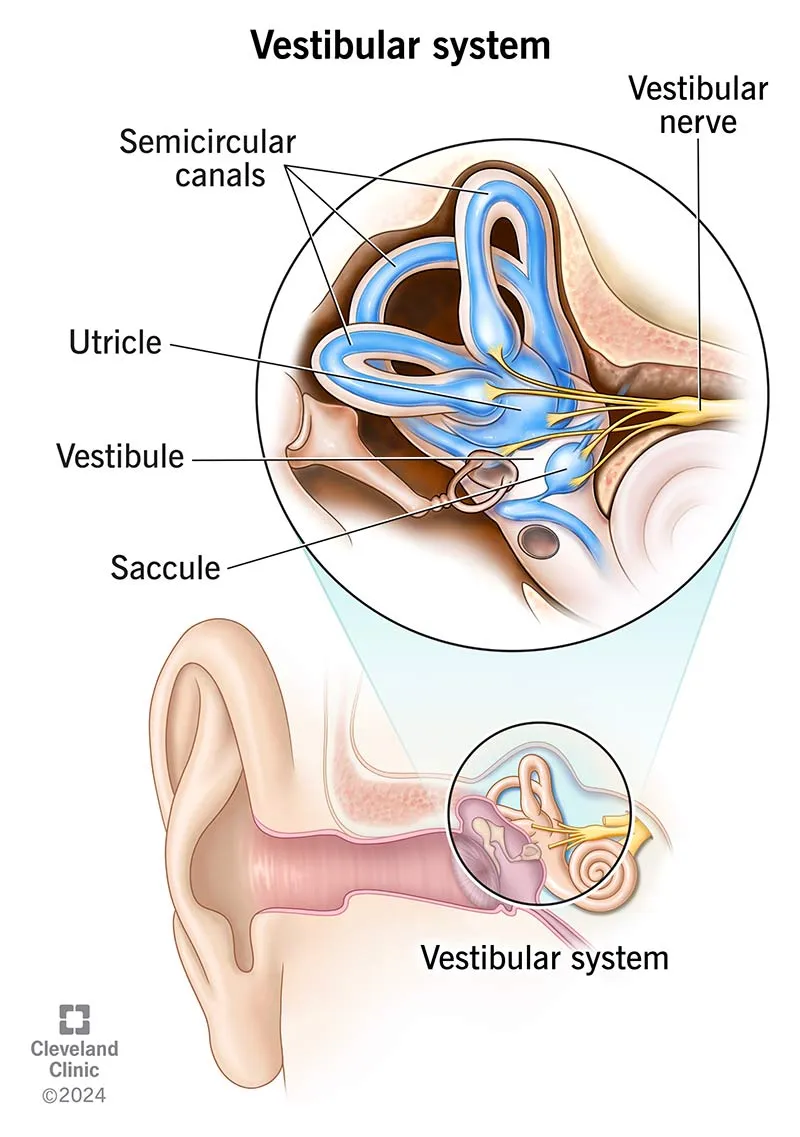

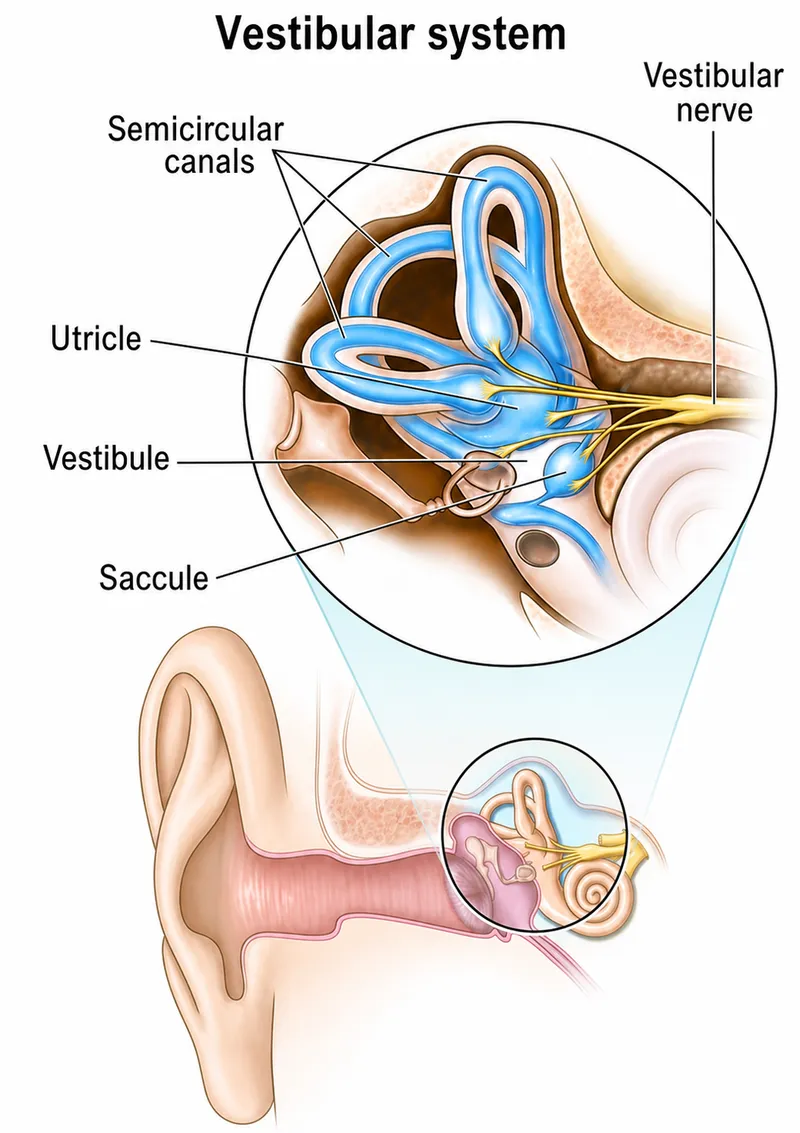

Anatomy of the Vestibular System

Sensory Integration - The Balance Trinity

Effective balance (equilibrium) relies on continuous input and integration from three primary sensory systems, often called the "Balance Trinity":

  • Vestibular System:
    • Detects head motion (angular, linear acceleration) and orientation relative to gravity.
    • Key for gaze stabilization (Vestibulo-Ocular Reflex, VOR) and postural reflexes (Vestibulospinal Reflex, VSR).
  • Visual System:
    • Provides information about body position relative to surroundings and motion of the environment.
    • Crucial for anticipatory postural adjustments and spatial orientation.
  • Proprioceptive System:
    • Senses position, movement, and force from muscles, joints (especially cervical), and skin (cutaneous mechanoreceptors).
    • Receptors in the neck are vital for head-on-body orientation.

Balance System: Vestibular, Visual, Proprioceptive Inputs

⭐ The Romberg test differentiates sensory ataxia from cerebellar ataxia. A patient with sensory ataxia (proprioceptive or vestibular loss) sways more with eyes closed, while a patient with cerebellar ataxia sways significantly with eyes open or closed. This highlights the CNS's reliance on at least two of the three sensory inputs for maintaining stance; removing one (vision) unmasks deficits in the others.

High‑Yield Points - ⚡ Biggest Takeaways

  • Vestibular system: SCCs (angular acceleration), otoliths (utricle/saccule: linear acceleration, gravity).
  • Three SCCs (Anterior, Posterior, Horizontal) detect yaw, pitch, roll movements.
  • Otolith maculae house otoconia (CaCO₃ crystals) for gravity/linear motion sensing.
  • Vestibulo-Ocular Reflex (VOR) stabilizes gaze during head motion; gain is ~1.
  • Crista ampullaris in SCCs, with its cupula, detects angular acceleration.
  • Hair cell excitation: stereocilia deflection towards kinocilium; inhibition if away.
  • Central processing: Vestibular nuclei connect to cerebellum, spinal cord, ocular motor nuclei.
