Temporal Bone Fractures

On this page

Temporal Bone Fractures: Intro & Anatomy - Skull Base Shaker

  • Fractures of the temporal bone, a component of the skull base; typically result from high-impact head trauma (e.g., road traffic accidents, falls, assaults).
  • Anatomy: Consists of four main parts: squamous, mastoid, petrous, and tympanic.
    • Houses vital neurovascular structures: Facial nerve (CN VII), vestibulocochlear nerve (CN VIII), internal carotid artery, jugular bulb, sigmoid sinus, ossicles, and labyrinth.

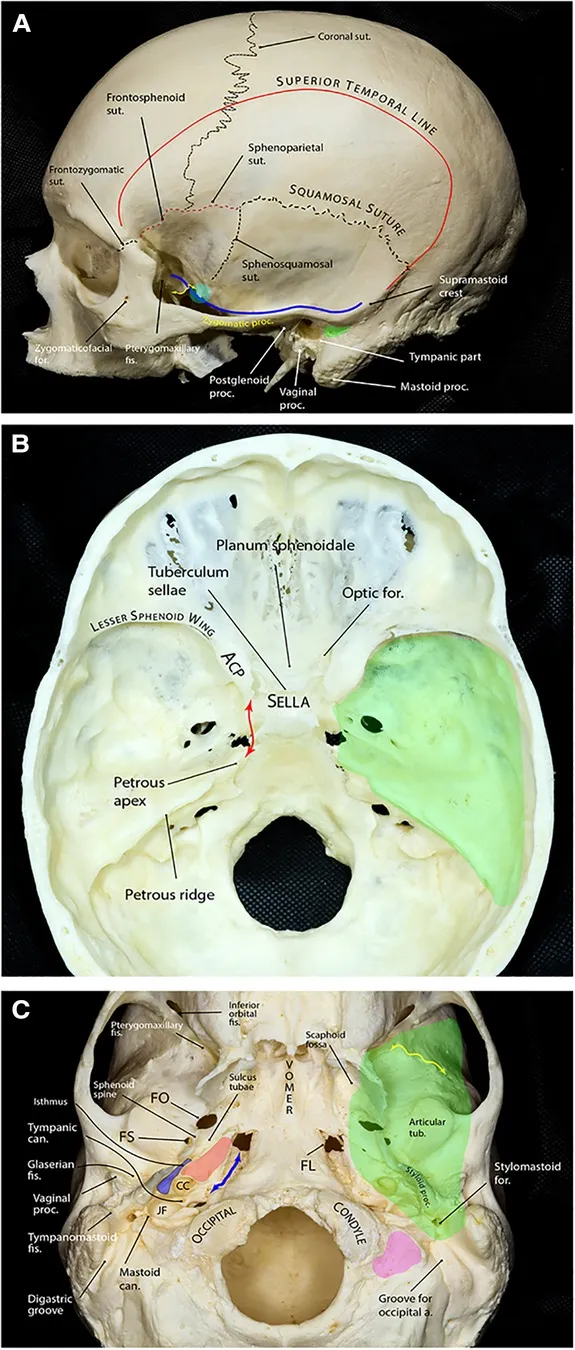

    • Petrous portion: Densest bone, protects inner ear structures. Temporal Bone Anatomy with Key Structures

⭐ The course of the facial nerve through the temporal bone makes it particularly susceptible to injury in these fractures, potentially leading to facial paralysis.

Temporal Bone Fractures: Classification - Fracture Fault Lines

  • Traditional (vs. Petrous Ridge Axis):

    • Longitudinal (~70-90%):
      • Parallel to ridge.
      • Cause: Lateral blow.
      • Features: CHL, CSF otorrhea; Facial N. injury (10-20%).
    • Transverse (~10-30%):
      • Perpendicular to ridge.
      • Cause: Frontal/occipital blow.
      • Features: SNHL, vertigo; Facial N. injury (~50%); Hemotympanum.
    • Mixed: Elements of both.
  • Modern (Otic Capsule Involvement - clinically vital):

    • Otic Capsule Sparing (OCS):
      • Labyrinth NOT involved.
      • Typically longitudinal.
    • Otic Capsule Violating (OCV):
      • Labyrinth involved.
      • Typically transverse; ↑Risk SNHL, facial palsy.

⭐ Transverse fractures: higher incidence of facial nerve injury (~50%) & profound SNHL.

Temporal Bone Fractures: Clinical Features & Diagnosis - Signs & Scans Spotlight

  • Clinical Presentation:
    • Otorrhagia, hemotympanum
    • CSF otorrhea/rhinorrhea (⚠️ dural tear sign)
    • Battle’s sign (postauricular ecchymosis)
    • Raccoon eyes (periorbital ecchymosis)
    • Hearing Loss: Conductive, Sensorineural (SNHL), or mixed
    • Facial Nerve (CN VII) Palsy: Immediate (poorer prognosis) vs. Delayed (better prognosis)
    • Vertigo, nystagmus
  • Diagnostic Gold Standard:

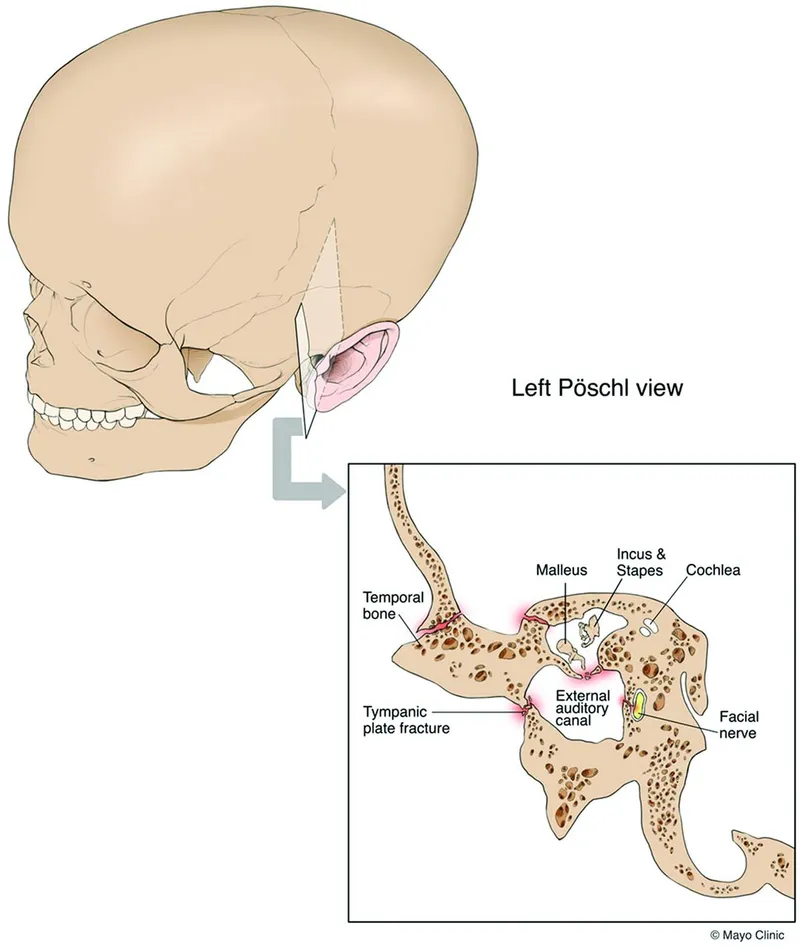

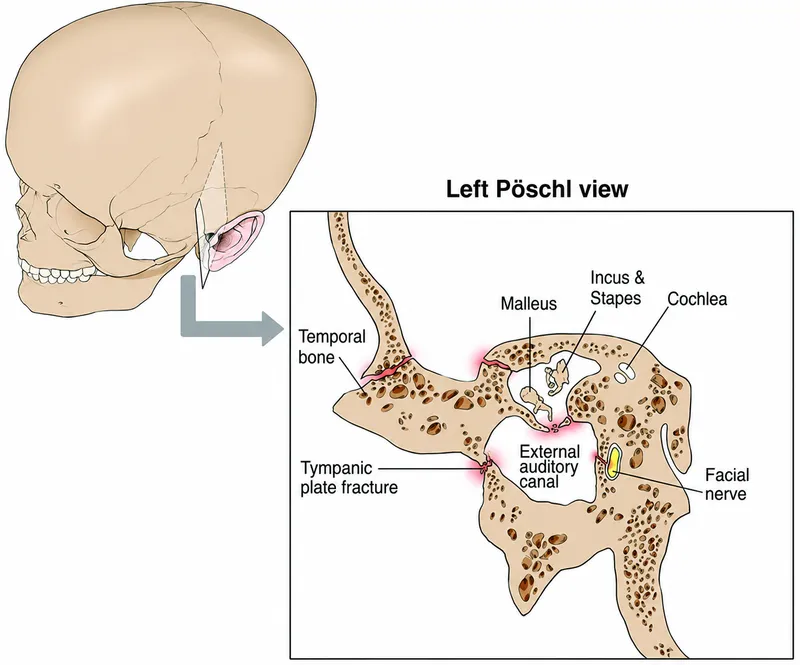

    • HRCT Temporal Bone: Axial & coronal views. Details fracture lines, ossicular chain, otic capsule involvement. Temporal Bone Fracture with Tympanic Plate Involvement
  • Ancillary Tests:
    • Audiometry: Assess type & degree of hearing loss.
    • Facial Nerve electroneurography (ENoG) / electromyography (EMG) if palsy present & severe.

⭐ Transverse fractures, though less common (approx. 20%), more frequently involve the otic capsule, leading to profound SNHL and immediate facial palsy compared to longitudinal fractures.

Temporal Bone Fractures: Management & Complications - Mend & Monitor Mayhem

Error generating content for this concept group: Failed to process successful response

High‑Yield Points - ⚡ Biggest Takeaways

  • Longitudinal fractures (most common): Temporoparietal impact; cause CHL, CSF otorrhea, TM perforation.
  • Transverse fractures: Fronto-occipital impact; higher risk of SNHL, vertigo, severe facial nerve palsy (up to 50%).
  • Facial nerve injury: More frequent and severe in transverse fractures; can be immediate or delayed.
  • Otic capsule violation (transverse) often causes profound SNHL and vertigo.
  • Battle's sign and CSF otorrhea are key clinical indicators.
  • HRCT temporal bone is the diagnostic imaging standard.

Practice Questions: Temporal Bone Fractures

Test your understanding with these related questions

All are intracranial complications of otitis media except which of the following?

1 of 5

Flashcards: Temporal Bone Fractures

1/1

Treatment of ANOM must include IV antibiotics for a minimum of _____ days.

TAP TO REVEAL ANSWER

Treatment of ANOM must include IV antibiotics for a minimum of _____ days.

10
