Vestibular System Anatomy and Physiology

Vestibular System Anatomy and Physiology

Vestibular System Anatomy and Physiology

On this page

Introduction to Vestibular System - Dizzying Depths

  • Location: Inner ear; essential for balance and spatial orientation.
  • Bony Labyrinth: Outer, protective bony shell filled with perilymph.
    • Encases the membranous labyrinth.
  • Membranous Labyrinth: Inner system of sacs and ducts; contains endolymph and sensory hair cells.
  • Key Components:
    • Vestibule: Central part; houses utricle & saccule (detect linear acceleration, gravity).
    • Semicircular Canals (SCCs): Superior, posterior, lateral (detect angular acceleration).
    • Cochlea: Auditory portion; anatomically connected, shares perilymph/endolymph systems. Inner ear anatomy with vestibular system parts

⭐ The unique ionic composition of endolymph (high K+, low Na+) is critical for the generation of receptor potentials in vestibular hair cells.

Sensory Epithelia: Otolith Organs - Gravity Gurus

Error generating content for this concept group: Failed to process successful response

Sensory Epithelia: Semicircular Canals - Spin Doctors

  • Three Semicircular Canals (SCCs) - Superior (Anterior), Posterior, and Horizontal (Lateral) - detect angular acceleration.

  • Each SCC has a dilated end, the Ampulla, housing the sensory organ: Crista Ampullaris.

    • The Crista contains hair cells whose stereocilia are embedded in the gelatinous Cupula.
    • Endolymph movement deflects the Cupula, stimulating or inhibiting hair cells.

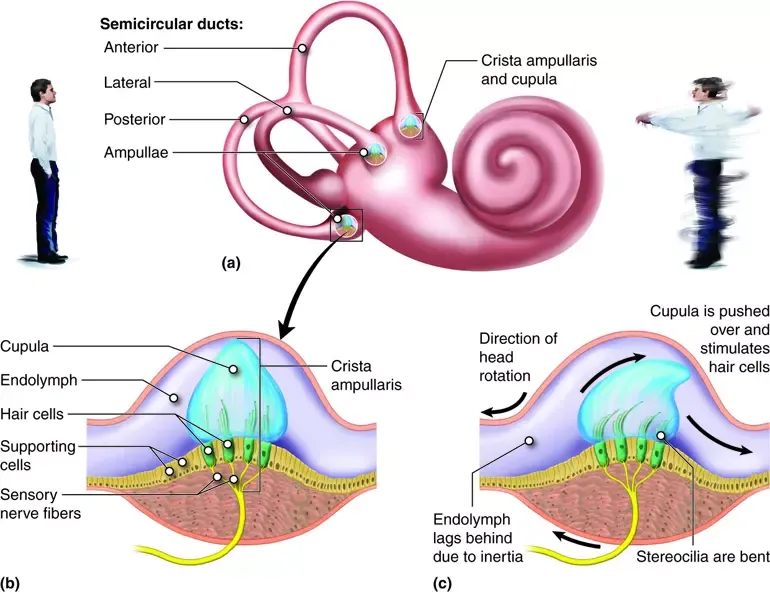

    Crista ampullaris and cupula function

  • SCC Functional Pairs (Push-Pull Mechanism):

    • RALP: Right Anterior & Left Posterior
    • LARP: Left Anterior & Right Posterior
    • Horizontals: Right Horizontal & Left Horizontal
  • Ewald's Laws govern SCC function:

    • 1st Law: Nystagmus occurs in the plane of the stimulated SCC.
    • 2nd Law:
      • Horizontal SCC: Ampullopetal (towards ampulla) endolymph flow is excitatory (↑ firing rate).
      • Vertical SCCs (Ant/Post): Ampullofugal (away from ampulla) endolymph flow is excitatory. 📌 Mnemonic for Horizontal SCC: "UP-E" (UtriculoPetal Excites).

⭐ The horizontal SCC is naturally tilted approximately 30° upwards posteriorly. For maximal stimulation (e.g., during caloric testing), the head should be tilted 60° back from sitting, or the head elevated 30° when the patient is supine to bring the canal to a vertical plane for gravity-induced convection, or horizontal for rotational testing. (Correction: for caloric, it's to make it vertical for convection; for BPPV maneuvers or rotational tests, it's about aligning with plane of rotation). For caloric testing, this orients the HSCC vertically. For rotational chair testing, the HSCC is best aligned with the plane of rotation.

Let's rephrase the star fact for clarity in context of caloric testing which is more common for this fact.

Sensory Epithelia: Semicircular Canals - Spin Doctors

  • Three Semicircular Canals (SCCs) - Superior (Anterior), Posterior, and Horizontal (Lateral) - detect angular acceleration.
  • Each SCC has a dilated end, the Ampulla, housing the sensory organ: Crista Ampullaris.
    • The Crista contains hair cells whose stereocilia are embedded in the gelatinous Cupula.
    • Endolymph movement deflects the Cupula, stimulating or inhibiting hair cells. (image)[9e581388-b5a8-4d67-a5eb-cd91699bfb4c] (image)[a4c0c3e3-32db-41ed-83fd-ab8afc1d7315]
  • SCC Functional Pairs (Push-Pull Mechanism):
    • RALP: Right Anterior & Left Posterior
    • LARP: Left Anterior & Right Posterior
    • Horizontals: Right Horizontal & Left Horizontal
  • Ewald's Laws govern SCC function:
    • 1st Law: Nystagmus occurs in the plane of the stimulated SCC.
    • 2nd Law:
      • Horizontal SCC: Ampullopetal (towards ampulla) endolymph flow is excitatory (↑ firing rate).
      • Vertical SCCs (Ant/Post): Ampullofugal (away from ampulla) endolymph flow is excitatory. 📌 Mnemonic for Horizontal SCC: "UP-E" (UtriculoPetal Excites). (flowchart)[b17a612c-c104-4d31-bfa1-031c58dda499]

⭐ The horizontal SCC is naturally tilted approximately 30° upwards posteriorly. For maximal stimulation during caloric testing (to make it vertical for convection currents), the head is tilted 60° back from sitting, or elevated 30° when supine.

Vestibular Physiology & Central Pathways - Brainy Balancers

  • Hair Cell Physiology:
    • Stereocilia bend towards kinocilium → Depolarization (↑ firing rate).
    • Bend away from kinocilium → Hyperpolarization (↓ firing rate).
  • Peripheral & Central Path: Hair cells (cristae/maculae) → Scarpa's ganglion (1st order neuron) → Vestibular nerve (CN VIII) → Vestibular nuclei (brainstem: pons & medulla).
  • Vestibular Nuclei:
    • Superior (SVN): Key for VOR; projects to ocular motor nuclei (CN III, IV).
    • Lateral (LVN/Deiters'): Origin of lateral vestibulospinal tract (LVST) for VSR (posture, antigravity muscles).
    • Medial (MVN): Major VOR role (via MLF to CN III, IV, VI); medial vestibulospinal tract (MVST for head/neck reflexes).
    • Inferior (IVN/Descending): Integrates with cerebellum, reticular formation; connections to all other vestibular nuclei.
  • Key Reflexes:
    • Vestibulo-Ocular Reflex (VOR): Stabilizes gaze during head movements. Classic three-neuron arc.
    • Vestibulospinal Reflex (VSR): Adjusts posture for balance via LVST & MVST.
  • Cerebellar Link: Flocculonodular lobe (vestibulocerebellum) modulates and calibrates vestibular reflexes.

⭐ > The Medial Longitudinal Fasciculus (MLF) is a critical pathway for VOR, coordinating conjugate eye movements. Lesions (e.g., in MS) cause internuclear ophthalmoplegia (INO).

Central vestibular pathways diagram

High‑Yield Points - ⚡ Biggest Takeaways

  • SCCs: angular acceleration; Otoliths (utricle, saccule): linear acceleration & gravity.
  • Sensory organs: Cristae in SCCs, Maculae in otoliths; both have hair cells.
  • Hair cell excitation: stereocilia bend towards kinocilium; inhibition if away.
  • VOR (Vestibulo-Ocular Reflex) stabilizes gaze; gain is 1.
  • Nystagmus: named by fast phase; slow phase is vestibular.
  • Caloric Test (COWS): Cold-Opposite, Warm-Same nystagmus direction.
  • Key pathway: CN VIIIVestibular Nuclei → Cerebellum, Oculomotor nuclei.

Practice Questions: Vestibular System Anatomy and Physiology

Test your understanding with these related questions

A person presenting to the outpatient department with complaints of rotational vertigo and nausea in the morning, which worsens with changes in head position. What is your diagnosis?

1 of 5

Flashcards: Vestibular System Anatomy and Physiology

1/9

Progressive _____lateral sensorineural hearing loss, often accompanied by tinnitus, is the most common presenting symptom of acoustic neuroma

TAP TO REVEAL ANSWER

Progressive _____lateral sensorineural hearing loss, often accompanied by tinnitus, is the most common presenting symptom of acoustic neuroma

uni
