Skull Base Surgery

On this page

Skull Base Surgery - Bony Blueprint

Superior and inferior views of skull base foramina

  • Anterior Cranial Fossa (ACF):
    • Bones: Frontal, Ethmoid, Sphenoid (lesser wing).
    • Foramina: Cribriform plate (CN I); Optic canal (CN II, ophthalmic art.).
  • Middle Cranial Fossa (MCF):
    • Bones: Sphenoid (greater wing), Temporal.
    • Foramina: Superior Orbital Fissure (CN III, IV, V1, VI); Rotundum (V2); Ovale (V3); Spinosum (Middle Meningeal Art.).
  • Posterior Cranial Fossa (PCF):
    • Bones: Occipital, Temporal (petrous).
    • Foramina: Internal Acoustic Meatus (CN VII, VIII); Jugular (CN IX, X, XI); Hypoglossal (CN XII); Magnum (Brainstem).

⭐ Foramen Ovale transmits CN V3. Foramen Spinosum, posterolateral to ovale, transmits the Middle Meningeal Artery, crucial in extradural bleeds.

Skull Base Surgery - Trouble Hotspots

  • Neurovascular Injury Hotspots:
    • CN VII (Facial): Translabyrinthine, middle fossa approaches. Monitor intraoperatively.
    • CN VIII (Vestibulocochlear): Hearing/balance deficits.
    • Lower CNs (IX, X, XI, XII): Risk of dysphagia, hoarseness, aspiration.
    • Optic Apparatus (CN II, Chiasm): Endonasal, anterior craniofacial surgery.
    • Internal Carotid Artery (ICA): Esp. paraclival/cavernous segments.
    • Cavernous Sinus: Houses CN III, IV, V1, V2, VI & ICA.
  • CSF Leak: Persistent; ↑ meningitis risk. Confirm with β2-transferrin.
  • Brain Injury: Retraction edema/ischemia (temporal lobe, cerebellum). Skull base anatomy with foramina and landmarks

⭐ During transsphenoidal surgery, the intersphenoid septum, if attached laterally to the carotid prominence, can misguide instruments towards the ICA (Hardy's "dangerous septum").

Skull Base Surgery - Detective Toolkit

  • CT (HRCT): Details bony erosion, foraminal expansion. Essential for osseous pathologies (e.g., fibrous dysplasia).
  • MRI (Gadolinium): Superior for soft tissue, perineural spread (PNS), intracranial extension. Key sequences: T1 C+, T2, DWI.
  • Angiography (CTA/MRA/DSA): For vascular lesions (JNA, paragangliomas); diagnostic & pre-op embolization.
  • Biopsy: Crucial for histopathological diagnosis; image-guided or endoscopic routes.

⭐ MRI is paramount for assessing perineural spread (PNS) in skull base tumors, guiding treatment.

Skull Base Surgery - Gateway Strategies

  • Goal: Safe access to lesion, minimize morbidity.
  • Corridor Selection (Key Factors): Lesion location, extent, pathology, neurovascular involvement.
  • Common Approaches:

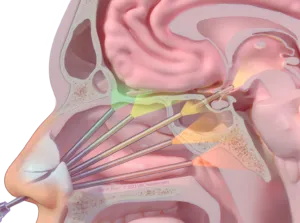

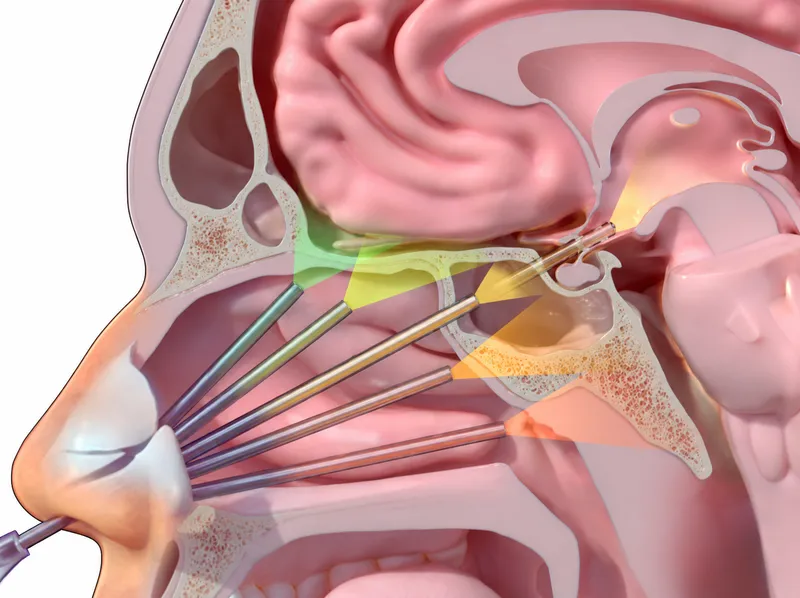

    • Endoscopic Endonasal (EEA): Midline, clivus, sella.
    • Anterior Cranial Fossa: Subfrontal, craniofacial.
    • Middle Cranial Fossa: Pterional, subtemporal, infratemporal.
    • Posterior Cranial Fossa: Retrosigmoid, translabyrinthine, far-lateral.
  • Principles: Preserve function, staged surgery if needed. Endoscopic Endonasal Approach to Skull Base

⭐ The Infratemporal Fossa (ITF) approach is versatile for extensive middle cranial fossa and parapharyngeal space lesions; Fisch classification (Types A-D) guides extent.

Skull Base Surgery - Navigating Pitfalls

  • CSF Leak: Most common complication. Management: lumbar drain, bed rest, surgical repair if persistent.
    • ⚠️ Risk of meningitis.
  • Cranial Nerve (CN) Palsies: CN VII, VIII, IX-XII most vulnerable. Management: observation, steroids, physiotherapy, surgical decompression/grafting.
  • Vascular Injury: Carotid, vertebral artery. Intraoperative control, endovascular stenting/coiling.
  • Postoperative Hematoma: Evacuation if symptomatic.
  • Infection: Meningitis, wound infection. Prophylactic & therapeutic antibiotics.

⭐ Pneumocephalus is common post-op; tension pneumocephalus requires urgent decompression (e.g., needle aspiration, re-exploration).

High‑Yield Points - ⚡ Biggest Takeaways

  • Trans-sphenoidal approach is standard for pituitary adenomas; watch for bitemporal hemianopia.
  • Acoustic neuromas (Vestibular Schwannomas) are the most common Cerebellopontine Angle (CPA) tumors; prioritize facial nerve (CN VII) preservation.
  • Glomus jugulare tumors cause pulsatile tinnitus and lower cranial nerve palsies; angiography shows a characteristic "salt & pepper" appearance.
  • CSF leak (rhinorrhea/otorrhea) is a major surgical risk; Beta-2 transferrin is the key diagnostic test.
  • The facial nerve (CN VII), lower cranial nerves (IX-XII), and internal carotid artery are critical structures at high risk.
  • Chordomas are aggressive, midline clival tumors known for high rates of local recurrence after surgery.
