Cochlear Implants

On this page

Cochlear Implants: Basics & Indications - Hear the Future

  • Surgically implanted electronic device providing functional hearing in severe-profound sensorineural hearing loss (SNHL).
  • Mechanism: Bypasses damaged cochlear hair cells, directly stimulating auditory nerve fibers with electrical impulses.

⭐ Cochlear implants electrically stimulate the auditory nerve (CN VIII), bypassing damaged hair cells, offering sound perception.

  • Key Indications:
    • Bilateral severe to profound SNHL; adults & children (≥9-12 months).
    • Limited benefit from optimal hearing aids (open-set sentence recognition <50-60%).
    • High patient/family motivation, realistic expectations.

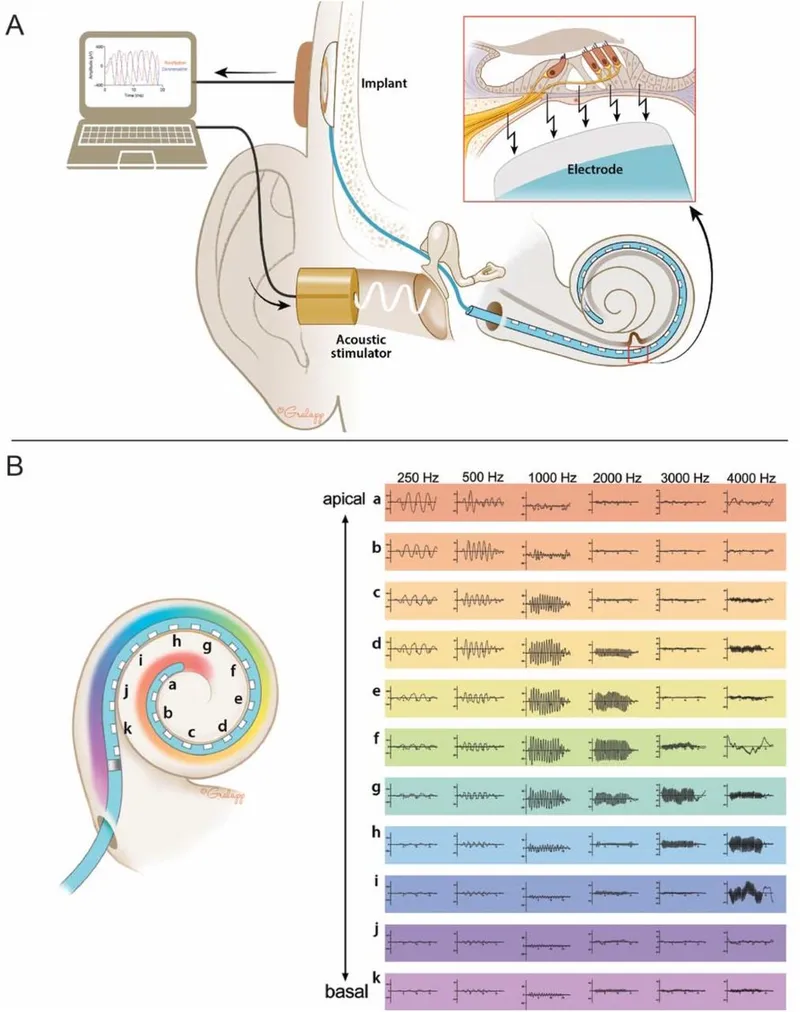

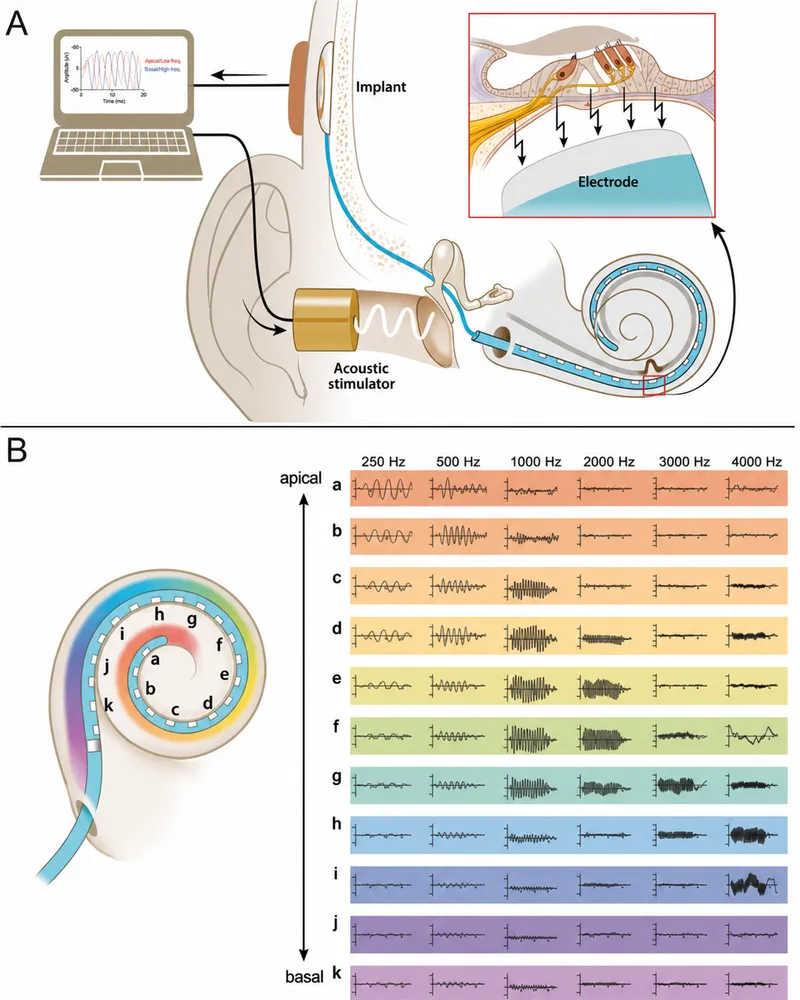

    • No absolute medical/radiological contraindications (e.g., cochlear nerve aplasia, active infection). Cochlear implant placement and frequency mappingoka

Cochlear Implants: Components & Mechanism - Bionic Ear Bits

  • External Components:
    • Microphone: Captures sound.
    • Speech Processor: Analyzes and digitally codes sounds.
    • Transmitter Coil: Transmits coded signals via radiofrequency to internal device; magnet holds.
  • Internal Components (Surgically implanted):
    • Receiver-Stimulator: Receives signals; converts to electrical impulses.
    • Electrode Array: Thin wire with electrodes; inserted into scala tympani of cochlea, stimulates auditory nerve.
  • Mechanism: Sound → Mic → Processor → Transmitter → Receiver → Electrodes → Auditory Nerve → Brain.

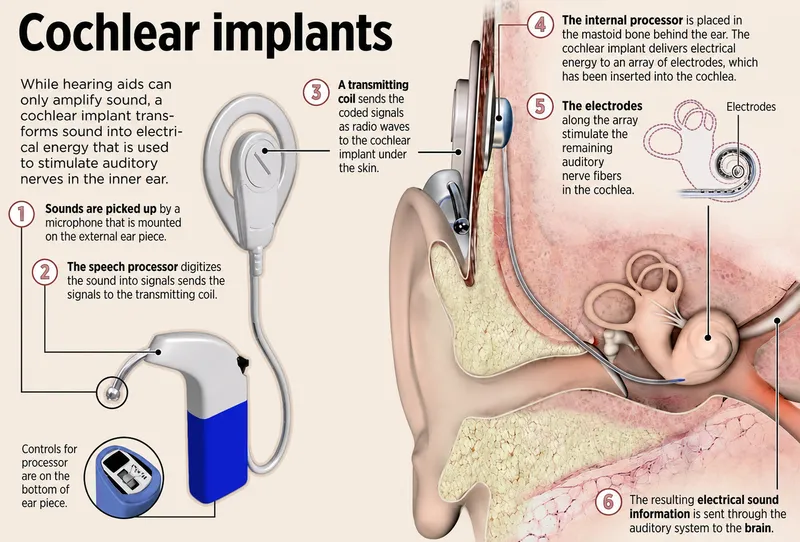

Cochlear implant external and internal components

⭐ The electrode array is placed in the scala tympani, providing tonotopic stimulation: different electrodes stimulate nerve fibers for different sound frequencies, mimicking natural hearing.

Cochlear Implants: Candidacy Criteria - Ticket to Sound

Key for unlocking sound for severe-to-profound Sensorineural Hearing Loss (SNHL).

  • Adults (≥18 yrs):
    • Bilateral severe-to-profound SNHL.
    • PTA ≥ 70 dB HL in better ear.
    • Sentence recognition ≤ 50% (best-aided).
  • Children:
    • (12-24 months): Bilateral profound SNHL (PTA ≥ 90 dB HL).
    • (2-17 years): Bilateral severe-to-profound SNHL (PTA ≥ 70 dB HL).
    • Limited hearing aid benefit; poor auditory skill development.
  • General: No medical/radiological contraindications; realistic expectations; strong support system.

⭐ A trial with appropriately fitted hearing aids for at least 3-6 months is usually required before CI consideration.

Cochlear Implants: Surgical Procedure & Complications - Scalpel & Soundwaves

  • Surgical Steps:
    • Standard post-auricular incision; cortical mastoidectomy.
    • Facial recess approach (posterior tympanotomy) to access middle ear.
    • Electrode insertion via cochleostomy or Round Window (RW).
  • Insertion Techniques:
    • Round Window: Preferred, less traumatic, aims for hearing preservation.
    • Cochleostomy: Drilled antero-inferior to RW.
  • Potential Complications:
    • Intra-op: Facial nerve injury (⚠️ crucial monitoring), CSF leak, perilymph gusher, bleeding.
    • Post-op (Early): Wound infection, hematoma, flap necrosis, vertigo, tinnitus, device displacement.
    • Post-op (Late): Device failure, electrode migration, meningitis (vaccination important!), fibrous tissue (impedance ↑).

⭐ Facial nerve integrity is paramount; intraoperative monitoring (e.g., NIM) is standard of care to prevent injury. Cochlear implant on skull X-rayoka

Cochlear Implants: Post-op & Outcomes - New Soundscapes

  • Post-operative Phase:
    • Routine wound care.
    • Device activation: 2-4 weeks after surgery.
  • Device Programming (Mapping):
    • Speech processor customized.
    • Electrical stimulation thresholds (T-levels) and comfort levels (C-levels) set for each electrode.
    • Periodic adjustments essential.
  • Auditory Rehabilitation:
    • Critical for maximizing benefit; trains brain to interpret new signals.
    • Involves intensive speech therapy and listening exercises.
  • Expected Outcomes:
    • Significant improvement in sound detection and speech understanding (open-set).
    • Enhanced speech production.

    ⭐ Early implantation in pre-lingually deaf children (ideally < 2 years) significantly improves speech and language acquisition trajectories.

High‑Yield Points - ⚡ Biggest Takeaways

  • Bilateral severe-to-profound SNHL is the main indication for cochlear implantation.
  • Candidates show limited benefit from appropriately fitted hearing aids.
  • Minimum age is generally 12 months, earlier in post-meningitic deafness.
  • Patent cochlea is essential; internal device has electrode array in scala tympani.
  • External components include microphone, speech processor, and transmitter coil.
  • Post-operative Neural Response Telemetry (NRT) and mapping are crucial.
  • Intensive auditory-verbal therapy is vital for optimal outcomes and speech development.
