Auditory Brainstem Response: Basics - Sound Waves Speak

  • Objective electrophysiological test: Assesses auditory pathway function from cochlea to brainstem.
  • Records brainwave activity (evoked potentials) in response to sound stimuli (clicks or tone bursts).
  • Non-invasive; sedation may be required for infants/young children to ensure they remain still.
  • Key Uses:
    • Estimating hearing thresholds (especially in infants, uncooperative patients).
    • Newborn hearing screening programs.
    • Identifying retrocochlear pathology (e.g., vestibular schwannoma).

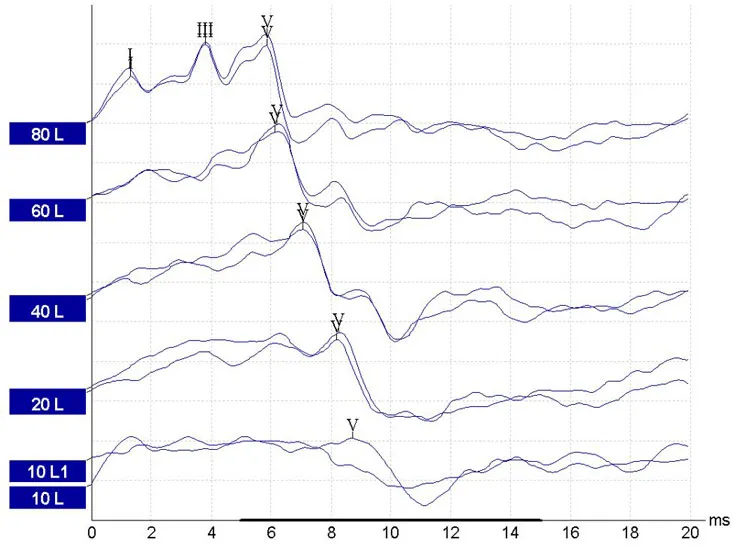

    • Intraoperative nerve monitoring. ABR Waveform Analysis

⭐ ABR is crucial for detecting auditory neuropathy spectrum disorder (ANSD), where otoacoustic emissions (OAEs) may be present but ABR is absent or severely abnormal, indicating a neural dys-synchrony rather than cochlear hair cell dysfunction alone.

Auditory Brainstem Response: Waveforms - Peaks & Origins

  • ABR Waves & Neural Generators (Approx. Latencies):
    • Wave I: Distal CN VIII (Auditory N.) - ~1.6 ms
    • Wave II: Proximal CN VIII / Cochlear Nuc. - ~2.6 ms
    • Wave III: Superior Olivary Complex (SOC) - ~3.7 ms
    • Wave IV: Lateral Lemniscus (LL) - ~4.8 ms
    • Wave V: Inferior Colliculus (IC) - ~5.6 ms
  • 📌 Mnemonic (Generators I-V): "Eight nerve, Cochlear nucleus, Olivary complex, Lateral lemniscus, Inferior colliculus" (E COLI)
  • Key Interpeak Latencies (IPLs):
    • I-III: ~2.0 ms
    • III-V: ~2.0 ms
    • I-V: ~4.0 ms (Central Conduction Time)

⭐ Wave V is the most robust ABR component, persisting near auditory threshold; crucial for objective hearing assessment.

Auditory Brainstem Response: Test Setup - Eliciting Echoes

  • Stimulus Parameters:
    • Type: Click (broadband, for neuro ABR), Tone-bursts (frequency-specific).
    • Intensity: 70-90 dB nHL (diagnostic).
    • Rate: 11.1-21.1/sec; >50/sec for stress.
    • Polarity: Alternating (cancels artifact), Condensation, Rarefaction.
  • Recording Parameters:
    • Electrodes: Active (Cz/Fz), Reference (ipsilateral mastoid M1/earlobe A1), Ground (contralateral mastoid M2/Fpz).
    • Filters: Band-pass 100-3000 Hz (adults), 30-3000 Hz (infants).
    • Averaging: 1000-2000 sweeps (improves SNR).
    • Time Window: 10-15 ms.

⭐ Click stimulus is preferred for neurological ABR as it synchronizes firing of a large number of cochlear nerve fibers.

Auditory Brainstem Response: Clinical Use - ABR in Action

ABR is a versatile objective test with diverse clinical applications:

  • Newborn Hearing Screening (NHS):
    • Automated ABR (AABR) for universal screening.

    ⭐ ABR is a cornerstone for early detection of congenital hearing loss.

  • Hearing Threshold Estimation:
    • For infants, children, or uncooperative adults.
    • Estimates hearing sensitivity, particularly in the 2-4 kHz range.
  • Retrocochlear Pathology (RCP) Diagnosis:
    • Detects retrocochlear lesions (e.g., acoustic neuroma).
    • Key signs: ↑ I-V, III-V IPLs; Wave V ILD > 0.2 ms.
  • Intraoperative Monitoring (IOM):
    • Monitors auditory nerve & brainstem integrity during neurosurgery.
  • Other Uses: Brainstem lesion localization, confirmation of brain death.

Auditory Brainstem Response: Interpretation - Reading Ripples

  • Waves: I (VIII N), III (SOC), V (LL/IC - most robust).
  • Key Parameters:
    • Interpeak Latency (IPL): I-V ~4 ms. If >4.4 ms → retrocochlear.
    • Amplitude: V/I ratio >1.
    • Morphology: Clear, well-defined peaks.
  • Pathology Clues:
    • Conductive: All latencies ↑, normal IPLs.
    • Cochlear: Wave V latency ↑, early waves may vanish.

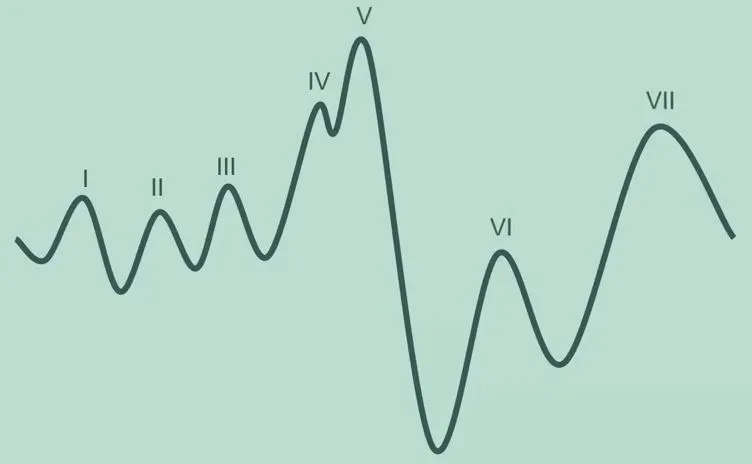

    • Retrocochlear: IPLs ↑ (e.g., I-V). ABR waveform with labeled waves I-VII

⭐ Wave V: Most robust, used for threshold estimation; last to disappear with ↓ stimulus intensity.

High‑Yield Points - ⚡ Biggest Takeaways

  • ABR is an objective test for auditory pathway function up to the brainstem.
  • Records electrical potentials (waves I-V) in response to click stimuli.
  • Wave V, from inferior colliculus region, is the most robust and clinically used.
  • Interpeak latencies (e.g., I-V) are vital for detecting retrocochlear pathology.
  • Key for newborn hearing screening and threshold estimation in difficult-to-test individuals.
  • Helps identify acoustic neuromas and demyelinating diseases.
