Ergonomics Essentials - Body & Work Harmony

  • Definition: Science of fitting the job to the worker, enhancing well-being and system performance.
  • Aims: Optimize: efficiency, safety, comfort, health. Prevent: musculoskeletal disorders (MSDs).
  • Components:
    • Physical: Body's interaction with tasks (posture, force, repetition).
    • Cognitive: Mental processes (perception, memory, workload).
    • Organizational: Work system design (job structure, teamwork).

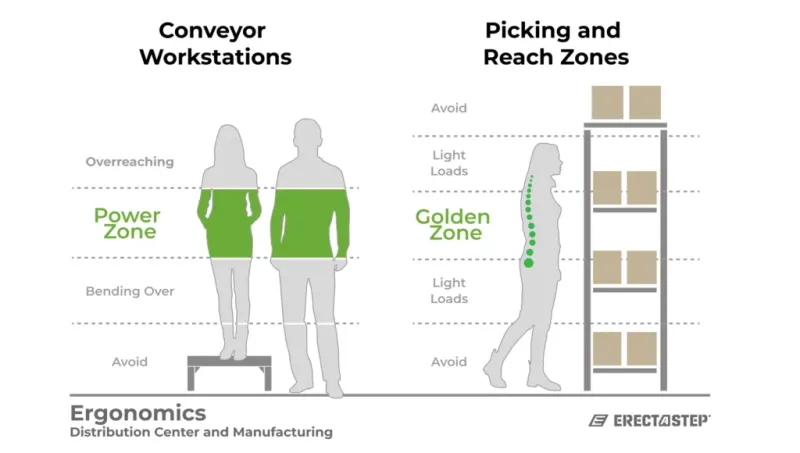

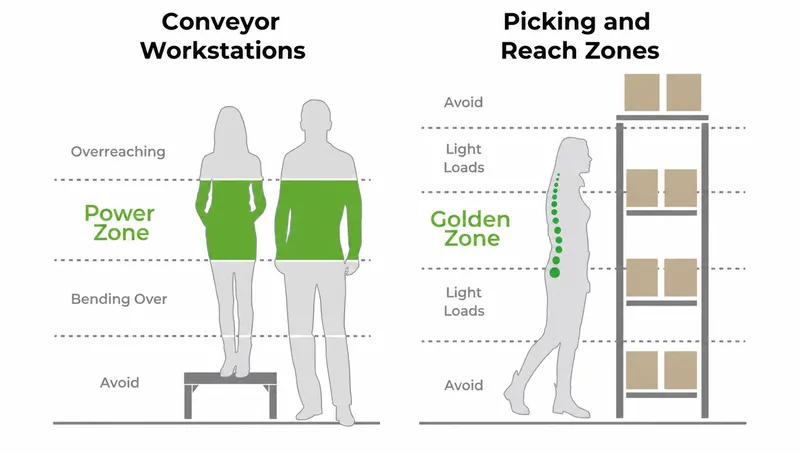

  • Key Principles: Maintain neutral postures; reduce excessive force & motions; keep items in easy reach; work at proper heights; minimize fatigue & static load; encourage movement; comfortable environment. Ergonomic zones for lifting and reaching

⭐ The primary aim of ergonomics is to fit the job to the worker, not the worker to the job, to enhance efficiency and well-being.

MSD Culprits - Strain & Pain Triggers

Ergonomic risk factors cause WRMSDs. 📌 Mnemonic: FORCE (Force, Overuse/Repetition, Reach/Posture, Contact Stress, Environment/Vibration). Also: Duration, Temperature.

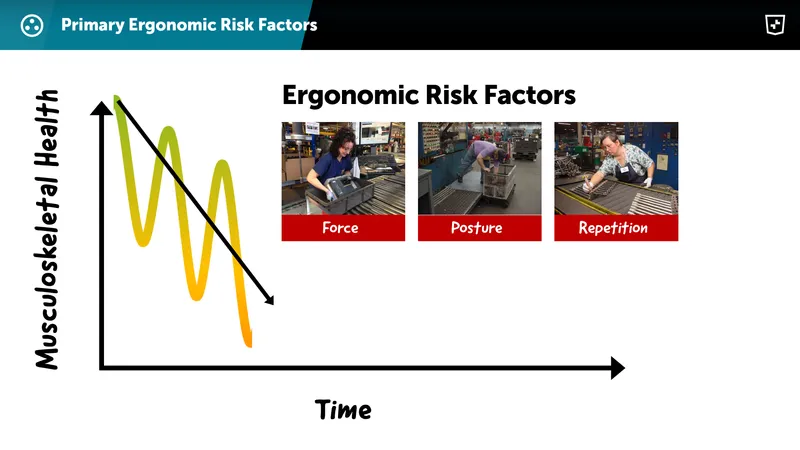

Ergonomic Risk Factors: Force, Posture, Repetition

Ergonomic Risk Factors & Associated WRMSDs:

Risk FactorExamples of Associated WRMSDs
RepetitionCarpal Tunnel Syndrome (CTS), Tendinitis, Tenosynovitis
ForceLow Back Pain (LBP), Tendinitis, Herniated discs
Awkward/Static PostureLBP, Neck Pain (Text Neck), CTS, Thoracic Outlet Syndrome
VibrationHand-Arm Vibration Syndrome (HAVS), CTS, LBP (whole-body)
Contact StressCTS (wrist), Bursitis (elbow)
  • CTS: Median nerve compression; pain/numbness lateral 3.5 fingers.
  • LBP: Lumbar pain; from poor posture/lifting.
  • Neck Pain: Cervical pain; often from forward head flexion.

Carpal Tunnel Syndrome is commonly associated with repetitive wrist movements and is the most frequently reported upper limb WRMSD.

Ergo Fixes - Smart Work Solutions

  • Ergonomic Assessment Methods:
    • Observational: Visual tools (RULA, REBA, QEC, OWAS).
    • Direct Measurement: Instrumental (Goniometry, EMG).
    • Checklists: Standardized (e.g., OSHA).
  • NIOSH Lifting Equation:
    • Assesses low-back injury risk from manual lifting.
    • $LI = L / (RWL)$ (L=Load Weight, RWL=Recommended Weight Limit).
    • $RWL = LC \times HM \times VM \times DM \times AM \times FM \times CM$ (LC=Load Constant; HM, VM etc. are multipliers).
    • $LI > \textbf{1.0}$ indicates increased risk.
  • Hierarchy of Controls: Prioritized approach for ergonomic risk mitigation.
      1. Elimination: Physically remove hazard.
      1. Substitution: Replace hazard.
      1. Engineering Controls: Isolate from hazard (e.g., workstation redesign, lifting aids).
      1. Administrative Controls: Change work practices (e.g., job rotation, training, rest breaks).

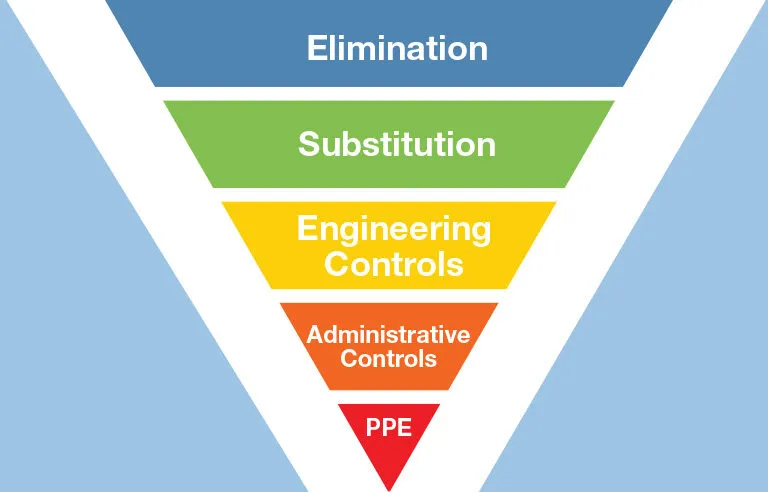

      1. PPE: Protect worker (e.g., anti-vibration gloves - limited effectiveness). Hierarchy of Controls Pyramid

    Engineering controls, such as redesigning tools or workstations, are the most effective and preferred methods for mitigating ergonomic hazards.

    • Control Application Flowchart:

VDT Vision - Screen Smart Setup

  • Workstation Ergonomics

    • Monitor: Top at/below eye level, 50-70 cm away, 15-20° downward gaze.
    • Posture: Neutral spine; elbows, hips, knees ~90°; wrists straight.
    • Input: Close, neutral wrists.
    • Chair: Adjustable, lumbar support.

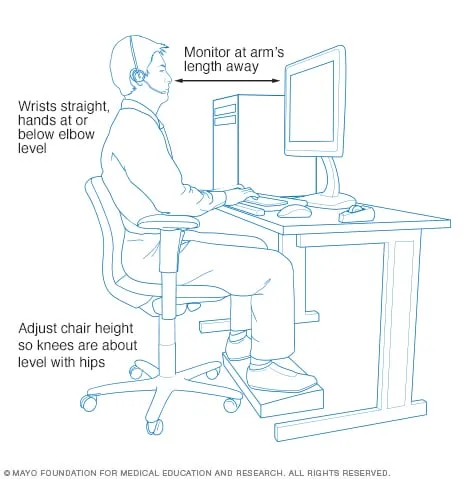

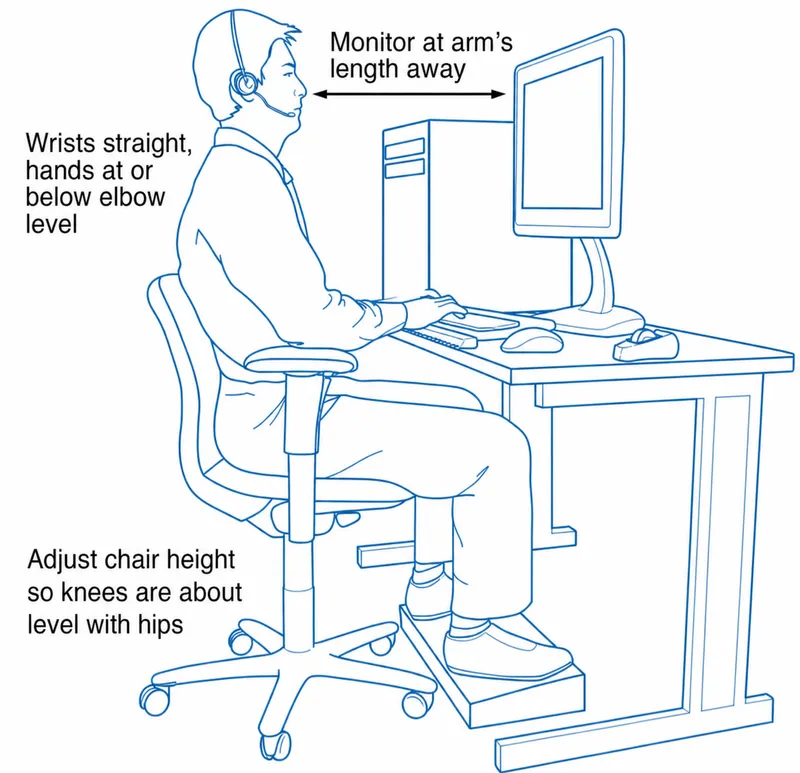

    • Lighting: Glare-free. Ideal Computer Workstation Posture
  • Health & Prevention

    • CVS (Eye Strain): Use 📌 20-20-20 rule (every 20 min, 20 ft view, 20 sec).
    • MSDs (Pain): Good posture, breaks.

⭐ For VDT users, the top of the screen should be at or slightly below eye level, and the viewing distance should be 50-70 cm (arm's length). The 20-20-20 rule helps prevent Computer Vision Syndrome.

High‑Yield Points - ⚡ Biggest Takeaways

  • Ergonomics: Fitting the job to the worker to boost safety and productivity.
  • Prevents Musculoskeletal Disorders (MSDs) like Carpal Tunnel Syndrome & Low Back Pain.
  • Focuses on neutral postures, reduced forceful exertions, and minimal repetition.
  • Anthropometry guides design of ergonomic workstations and tools.
  • Interventions: Job rotation, tool redesign, workstation adjustment, and training.
  • Key risk factors: Awkward postures, static loads, vibration, repetitive tasks.

Practice Questions: Ergonomics

Test your understanding with these related questions

Desks provided with a tabletop to prevent neck problems is an example of:

1 of 5

Flashcards: Ergonomics

1/10

According to the Factories act 1948, for factories established after 1948, per capita space availability should be min _____cuft / person

TAP TO REVEAL ANSWER

According to the Factories act 1948, for factories established after 1948, per capita space availability should be min _____cuft / person

500
